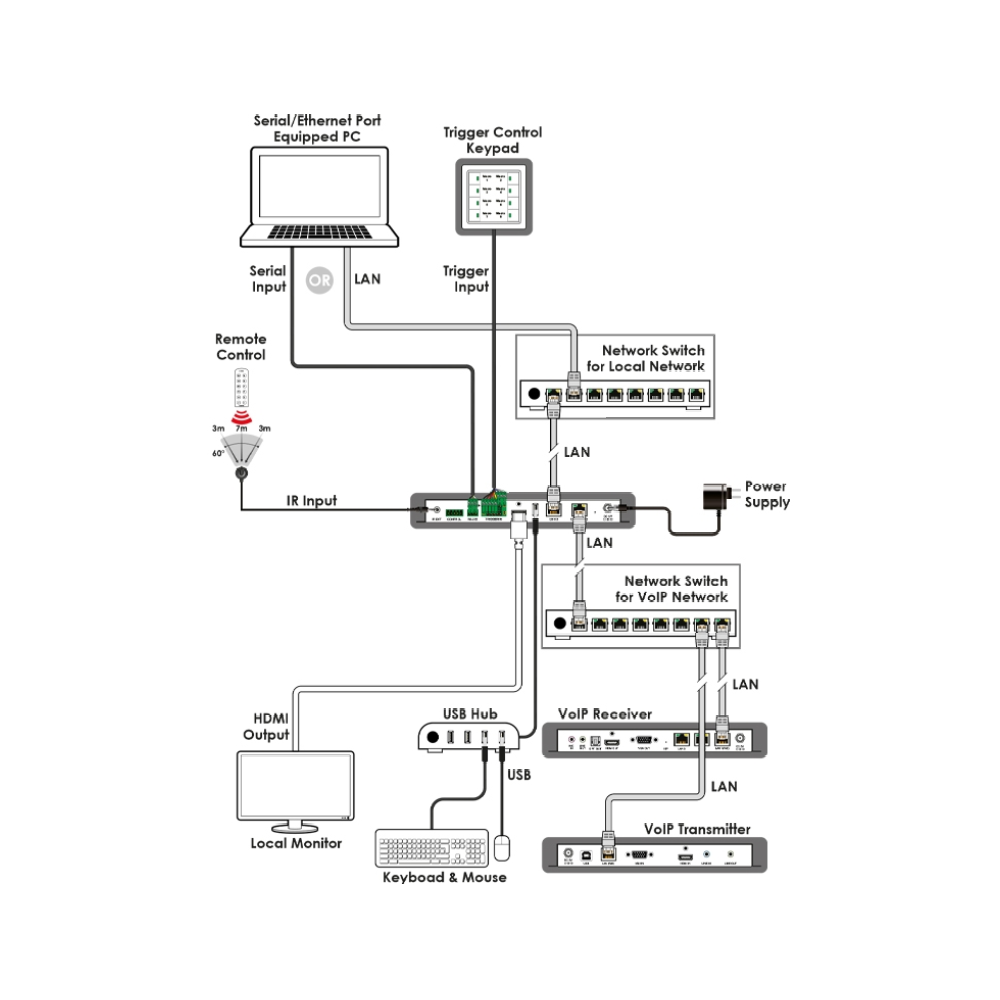

- Enables the management and configuration of multiple compatible Video over IP (VoIP) extenders through a single WebGUI
- Supports point-to-point (unicast) and multi-to-multi (multicast) routing selections
- Control over both matrix and TV wall modes using WebGUI presets
- Definable display groups
- WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection, etc.
- HDMI output displays the WebGUI and system status
- Supports the use of a USB mouse and keyboard to locally control the WebGUI (Optional)
- Can be powered by Ethernet switches supporting the IEEE 802.3af2003 PoE standard (Optional)
- Trigger Control Keypad support for easy, single-button, preset activation (Optional)
- Standard control is available via WebGUI (remote or local), RS-232, Telnet, and IR Remote

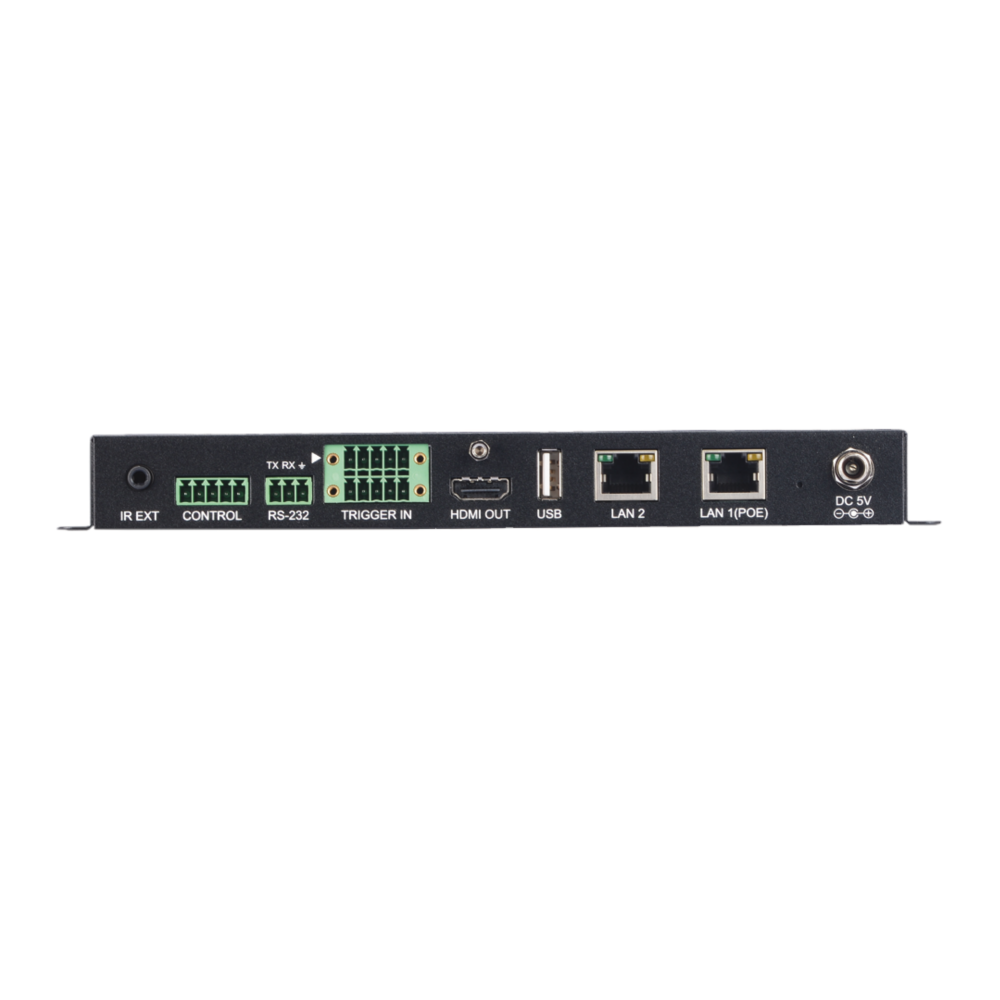

Inputs
- 1x USB Type-A [1x KEYBOARD / MOUSE / SERVICE Propriety Data]
- 1x 3.5mm [1x Infrared Receiver]
- 1x Terminal Block 5-pin [1x RS-232/422/485/DMX512]
- 1x 10-Pin Terminal Block [1x Trigger]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x RJ-45 [1x LAN 1 (PoE) IP Control]
- 1x RJ-45 [1x LAN 2 IP Control]
- 3x 1-Pin Terminal Block [1x RS-232]
PSU: 5V/2.6A
Dimensions: 231mm [W] x 117mm [D] x 25mm [H]
Net Weight: 250g
