The Nice/ELAN Premium Video over IP (VIP) platform enables distribution of HDMI video over a 1Gb Network switch. The EL-4K-VIP-TX and EL-4K-VIP-RX are HDCP 2.2 compliant Transmitters and Receivers that use visually lossless compression technology to deliver HDMI, Bi-directional IR, RS-232 and USB/KVM up to lengths of 100m over standard network architecture. The EL-4K-VIP-TX/RX can be powered via PoE from a Network switch or powered locally should a switch either not be used or not support PoE. With multiple configuration options available, this Video over IP solution is ideal for both commercial and residential installations.
FEATURES
- Designed to work with the Nice/ELAN smart home control and automation platform
- Advanced UHD video over 1Gb Network
- Virtually unlimited system size
- Connect to any supported Layer 2 / Layer 3 Managed Switch for HDMI video distribution
- Supports up to 4K HDR UHD video (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz4:2:0)
NOTE: HDR support is dependant on video signal bandwidth. Please see table in product manual for reference.
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Video up-scaling and down-scaling
- Features 4 operational modes:
- Matrix distribution (Requires 1Gb network switch)
- Video wall (Requires 1Gb network switch)
- One-to-one HDMI extender (No network switch required)
- One-to-many HDMI splitter (No network switch required)
- HDCP 2.2 Compliant
- Advanced EDID management
- Analog L/R audio embedding and de-embedding on EL-4K-VIP-TX Transmitter
- Analog L/R audio breakout on EL-4K-VIP-RX Receiver
- Bi-directional RS-232 and IR pass through
- USB 2.0 connectivity (backwards compatible with USB 1.1) for KVM and other USB devices
- PoE (Power over Ethernet) to power Nice/ELAN products from PoE switch
- Local 24V 1A power input should network switch not support PoE, sold separately
- Simple configuration via web-GUI through the EL-4K-VIP-ACM
- HDMI audio embedding supports up to 192 Khz, EL-4K-VIP-RX analog audio output supports up to 96Khz only
- RS-232, IR and Telnet/IP integration for control of the VoIP system using Nice/ELAN EL-4K-VIP-ACM

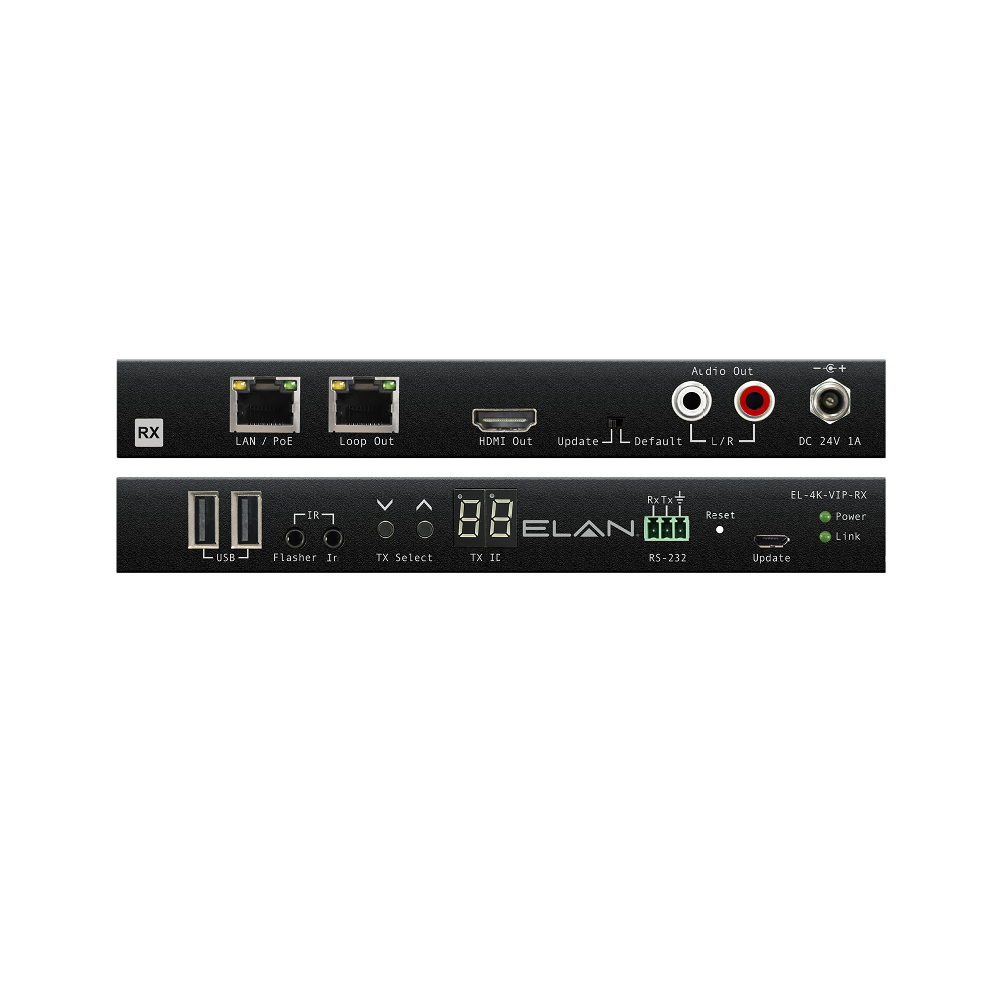

SPECIFICATIONS
Video output: 1 x HDMI Type A, female
Audio output: 2 x RCA L/R analog audio
Video input/Ethernet port: 1 x LAN RJ45 connector
Video/Ethernet extension: 1 x LAN RJ45 connector (PoE 9W)
USB / KVM: 2 x USB, Type A
RS-232 serial port: 1 x 3-pin Phoenix connector
IR input: 1 x 3.5mm stereo jack
IR flasher: 1 x 3.5mm mono jack
Firmware update: 1 x USB Micro B
Accessories: Mounting kit included
Dimensions (W x D x H ): 190mm x 114mm x 25mm
Shipping weight (Kit): 0.8kg
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
