Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
When connected, the analog Line In audio is automatically embedded into the transmitted signal for output on connected Receivers via HDMI and their analog Line Out ports
The Mic In on a connected Receiver will send audio directly to the analog Line Out on this Transmitter
May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
Supports USB keyboard, mouse and storage extension

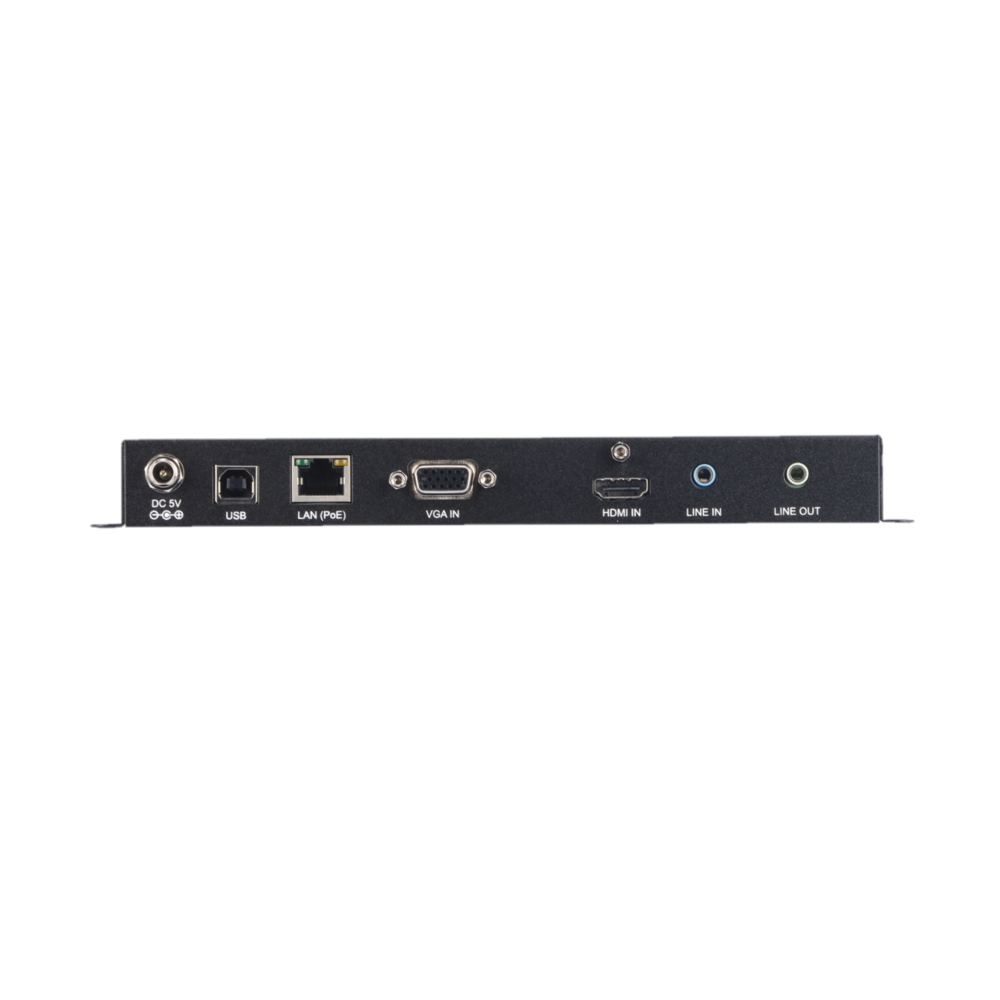

Interfaces
Input Port
1 HDMI (Type-A)
1 VGA (HD-15)
1 Analog Stereo (3.5mm)
Output Port
1 VGA (HD-15)
1 Analog Stereo (3.5mm)
Bi-directional Port
1 GbE LAN (RJ-45)

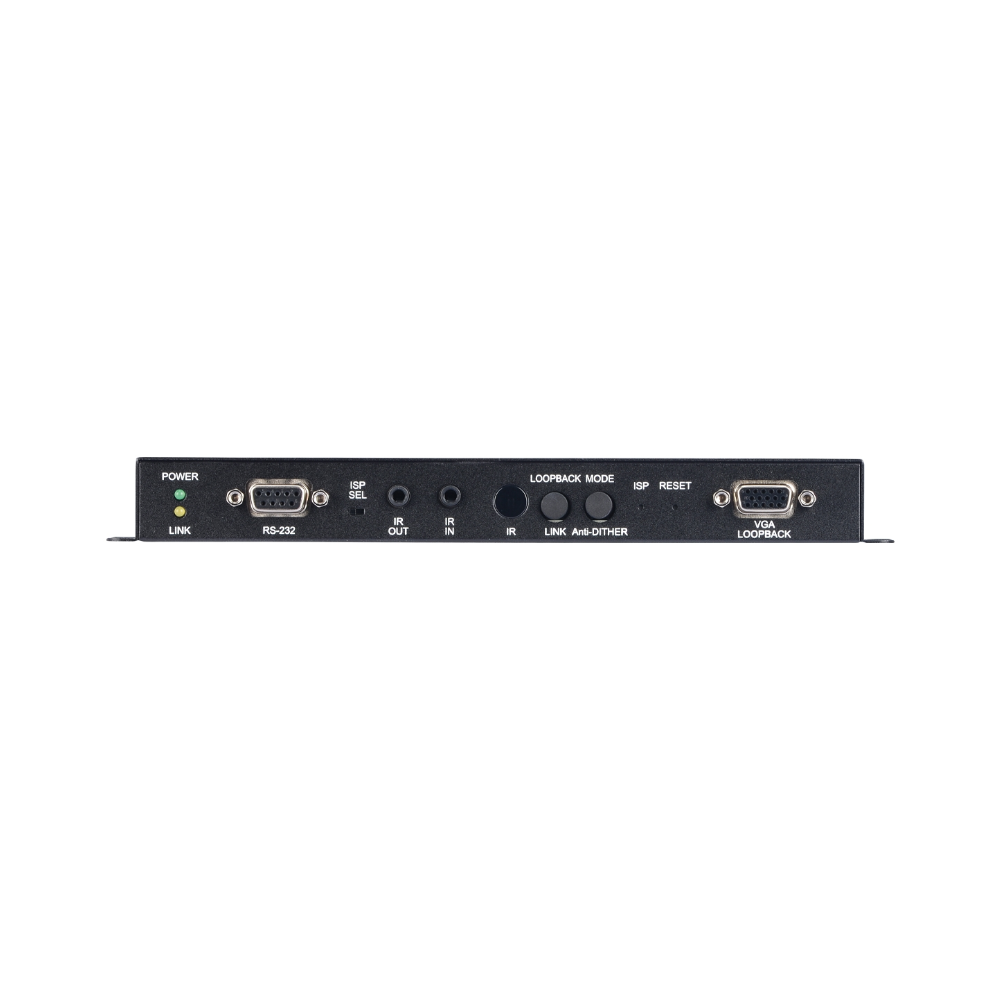

Control I/O
1 IR Extender (3.5mm)
1 IR Blaster (3.5mm)
1 RS-232 (DB-9)
1 USB (Type-B)
Video
HDMI Compliance
HDMI 2.0 (DVI 1.0)
HDCP Compliance
2.X
Input Signal Types
4096x2160p@60 8bit YUV4:2:0
Output Signal Type
4096x2160p@30 8bit RGB
Resolutions
Maximum Input
HDMI
4096×2160p@60
VGA
1920×1200p@60RB
Maximum Output
10G LAN (Streaming)
4096×2160p@60
VGA
1920×1200p@60RB
Audio
Digital Formats
HDMI
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line In
2 Vrms
S/N Ratio: > 80dB (1kHz with 0dBFS)
Line Out
2 Vrms
S/N Ratio: > 80dB (1kHz with 0dBFS)
