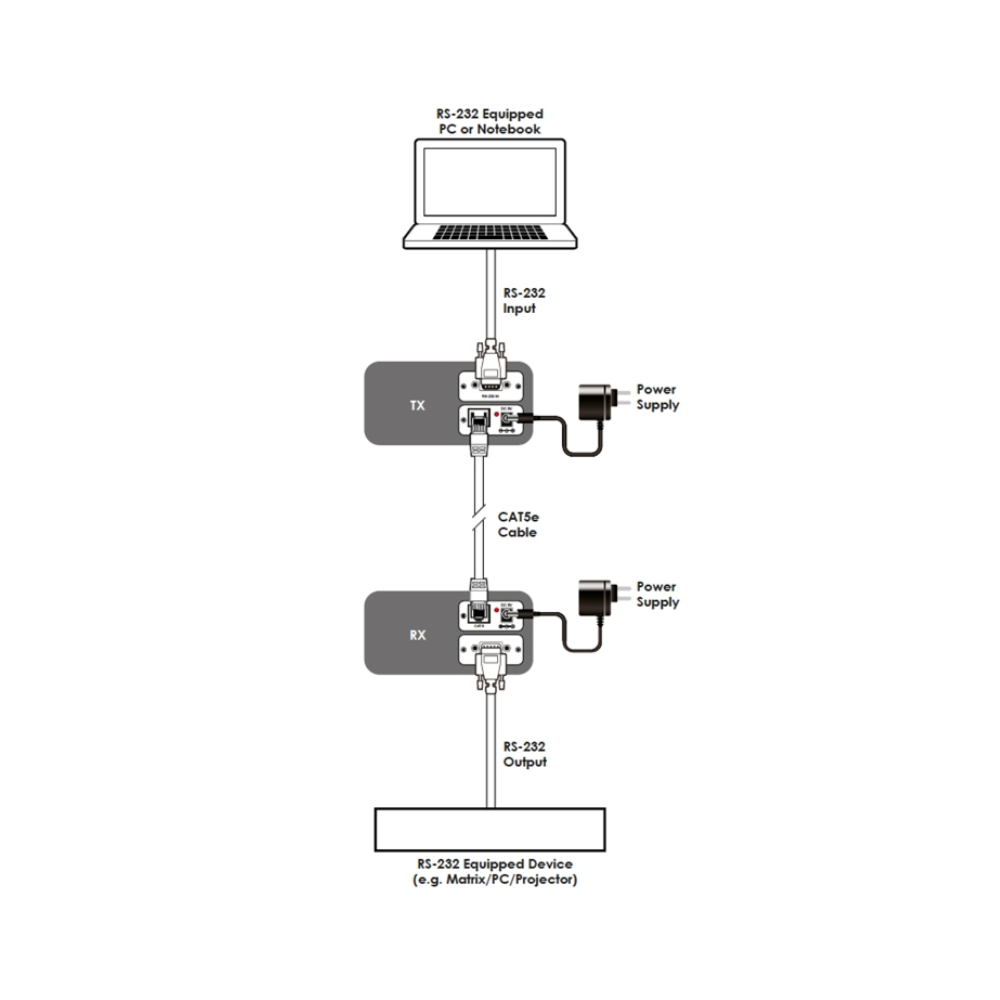

- Extends any device compatible with RS232 from the source to the display up to 250 meters
- Only One CAT 5 cable
- Perfect for digital signage
- Simple and easy installation
- Baud Rate: 110-921600
- Data bit: 8-bit

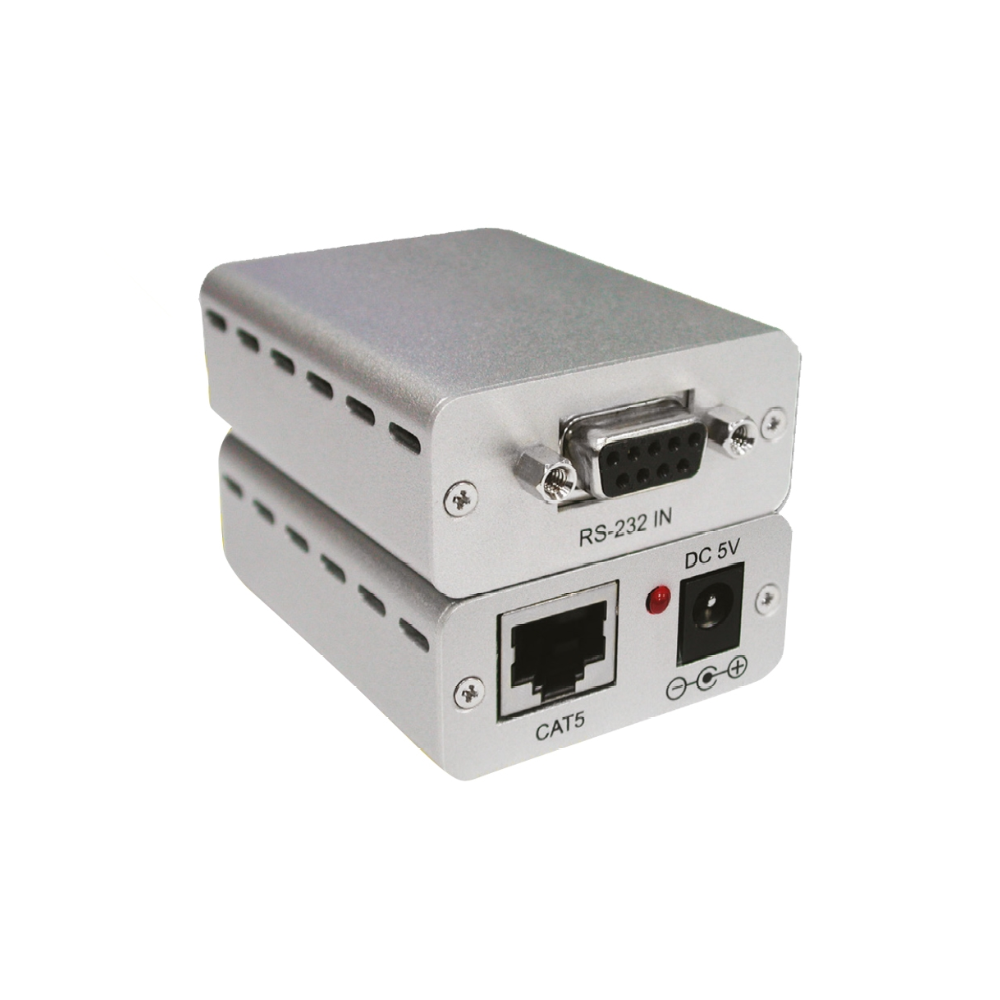

TRANSMITTER
Inputs
- 1x 9-pin D-sub [1x RS-232 Data]
Outputs
- 1x RJ45 [1x RS-232 Propriety Data]
PSU:
- 5V/1A
Dimensions
- 50mm [W] x 67mm [D] x 23mm [H]
Net Weight
- 80gr
RECEIVER
Inputs
- 1x RJ45 [1x RS-232 Propriety Data]
Outputs
- 1x 9-pin D-sub [1x RS-232 Data]
PSU:
- 5V/1A
Dimensions
- 50mm [W] x 67mm [D] x 23mm [H]
Net Weight
- 80gr
