USB 2.0 Ranger 2311
Single Port CAT 5e/6/7 100m Extender

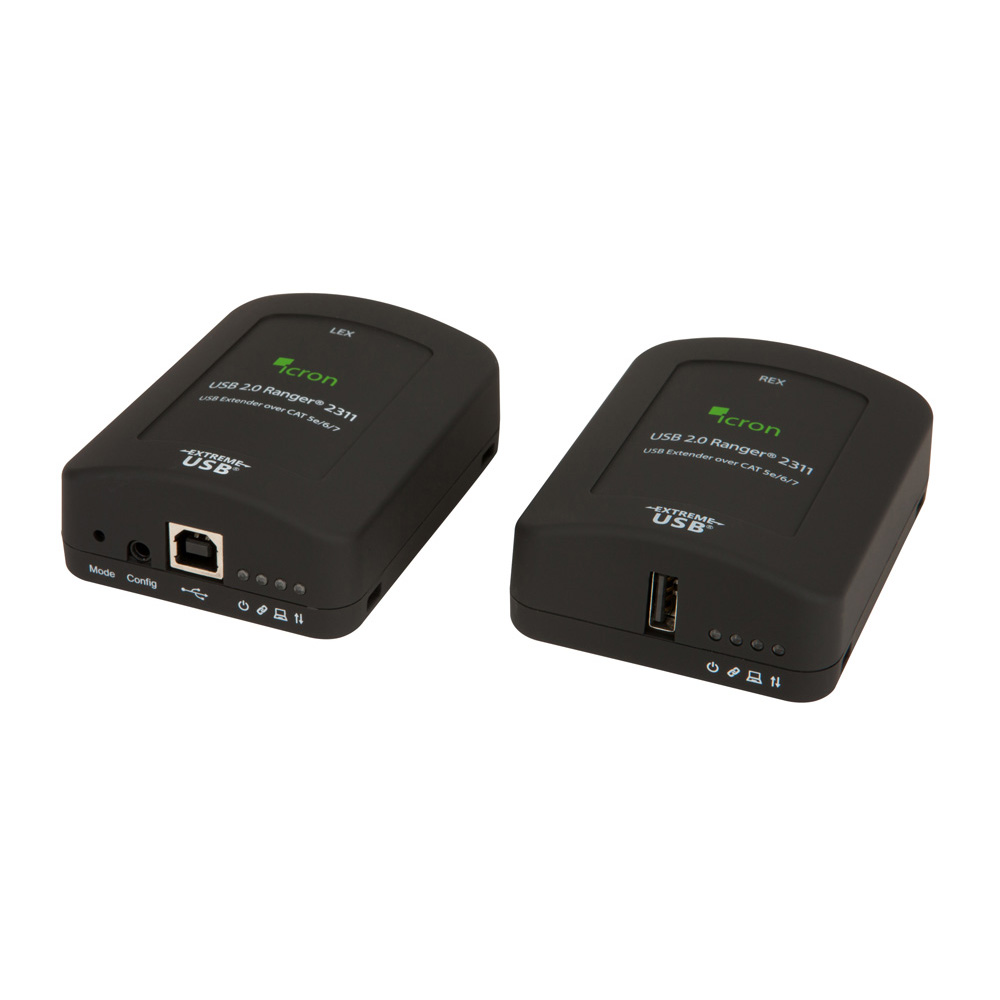

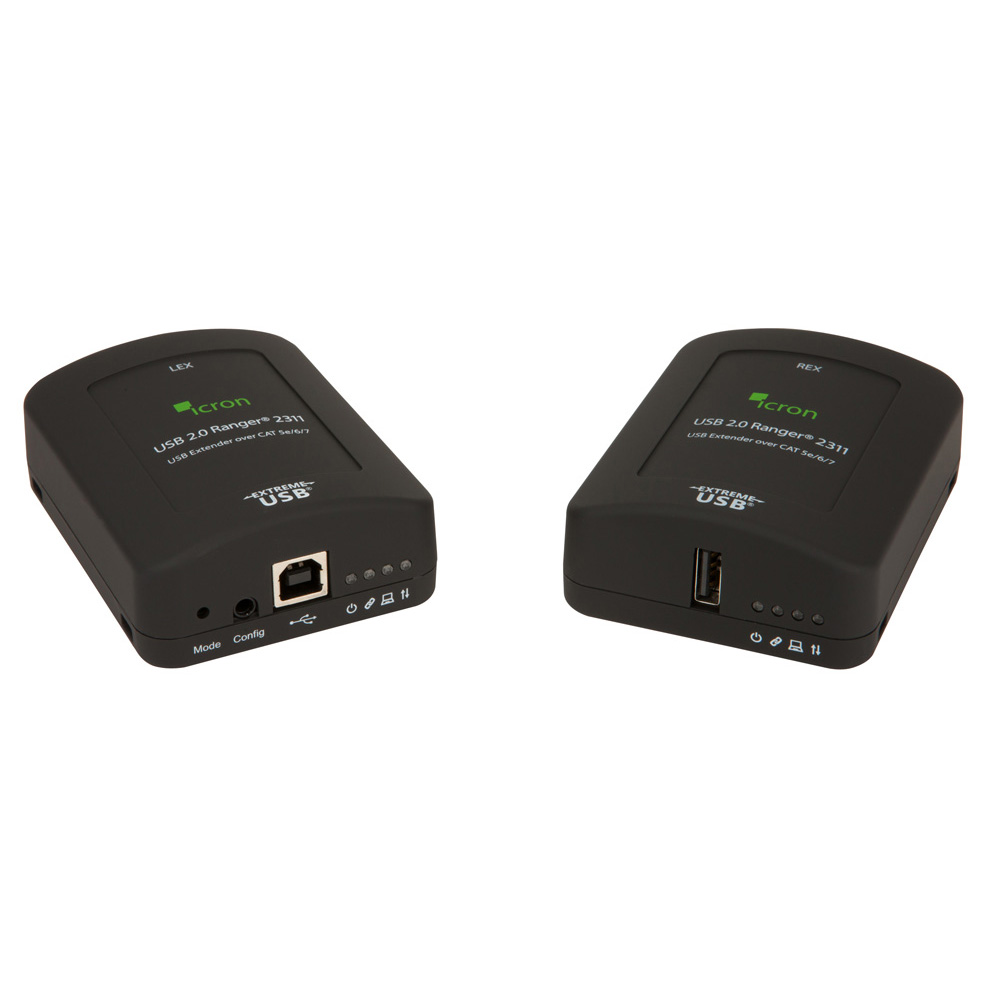

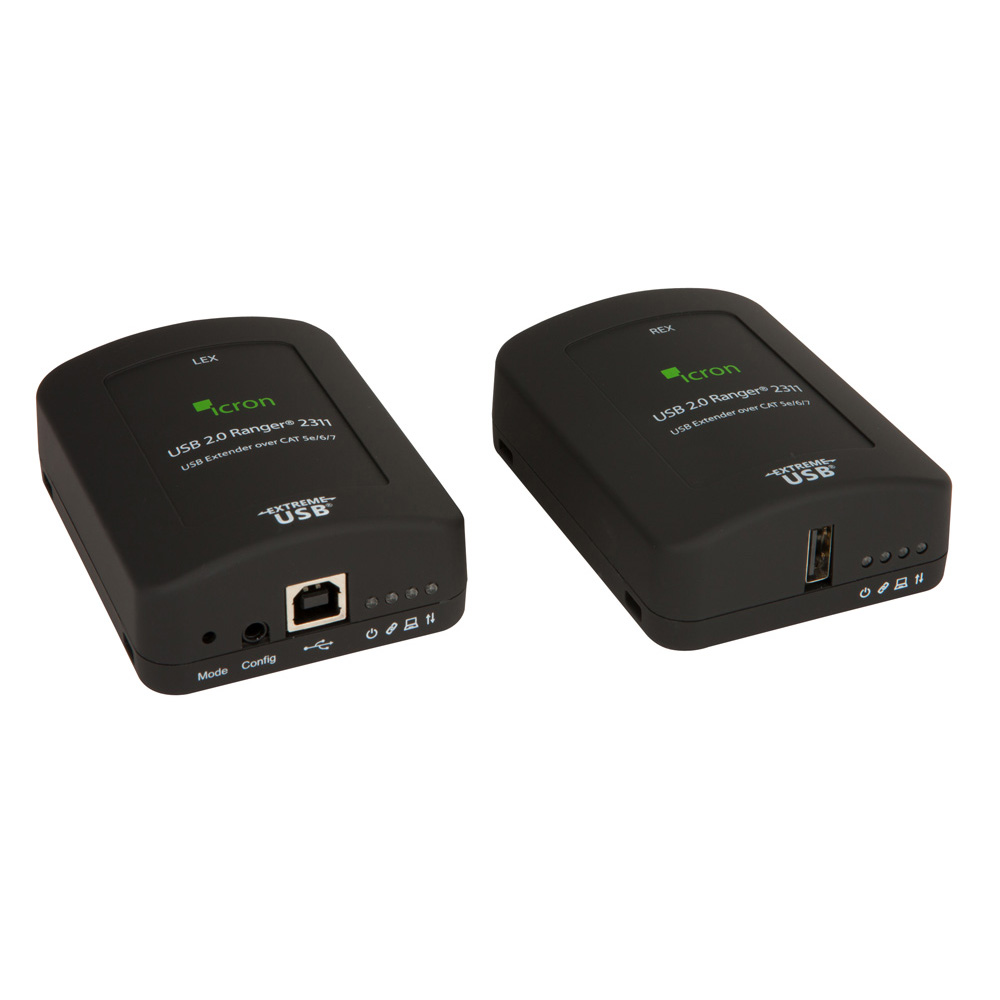

The USB 2.0 Ranger® 2311 with flexible power extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote Extender). This USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

OVERVİEW

The USB 2.0 Ranger® 2311 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2311 is plug and play – no software drivers required – and works with all major operating systems: Windows®, macOSTM, and Linux®

Additionally, this ExtremeUSB® based extension system is ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

FEATURES

  • USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
  • Supplies up to 1 Amp to USB port
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Supports all USB 2.0/1.1 devices up to 480 Mbps
  • Two year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOSTM, and Linux®

SPECIFICATIONS

Range

  • Direct connect up to 100m (330 ft) over CAT 5e/6/7

Speeds

  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps

Power

  • Power Supply: 100-240V AC Input, 24V 1A DC Output. Apply at either LEX or REX.

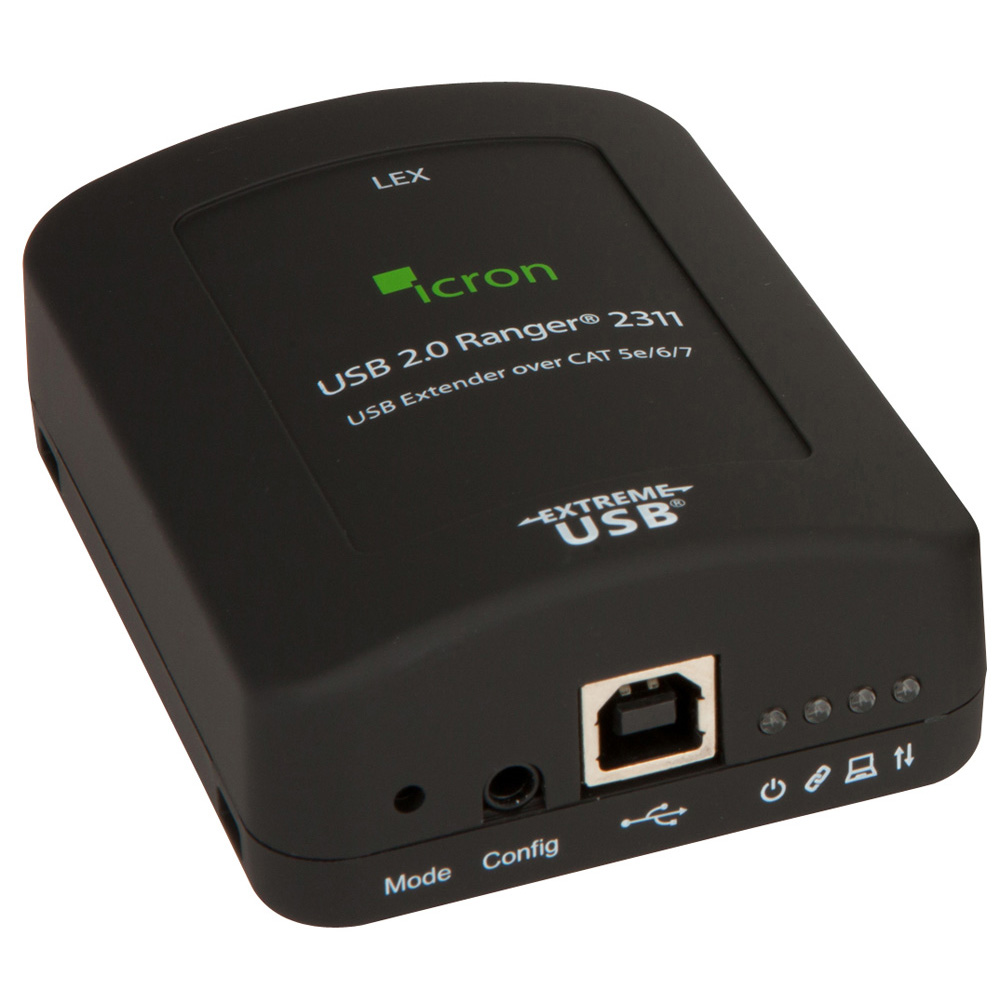

LEX (Local Extender)

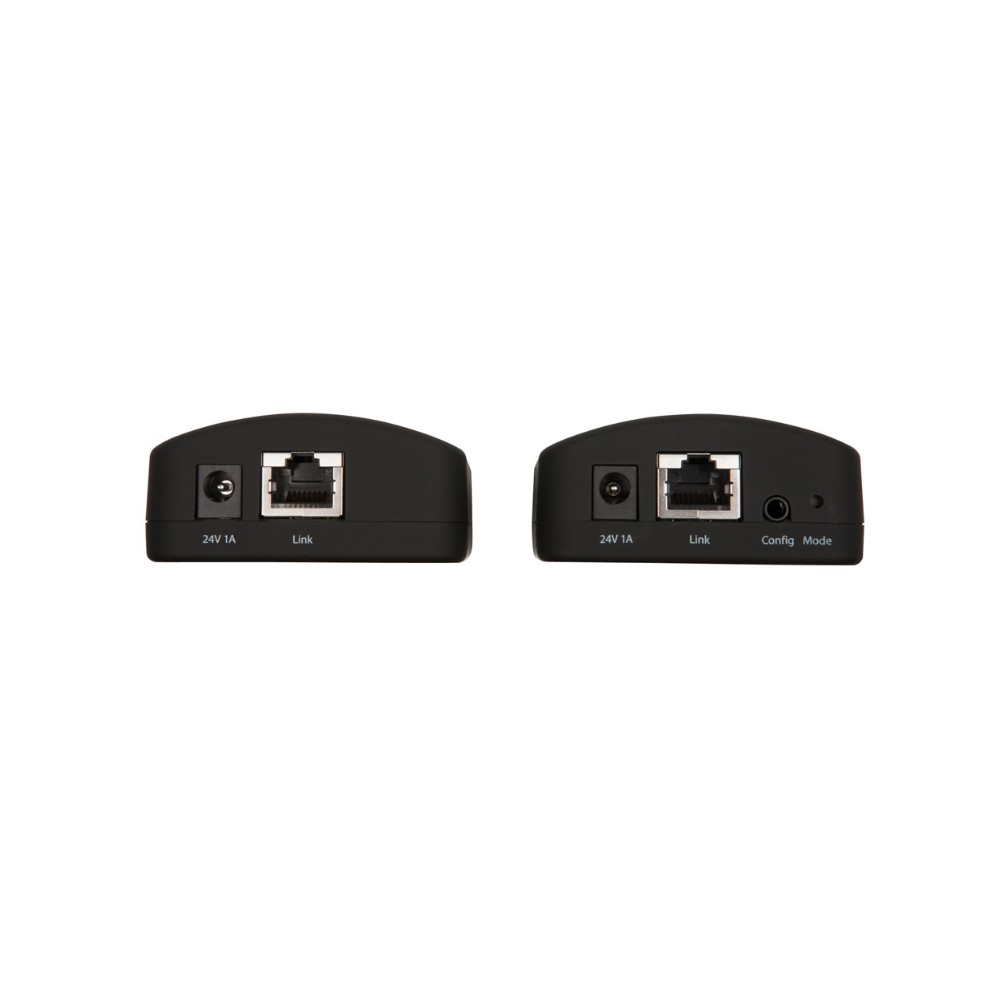

  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x RJ45
  • Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
  • Mounting: Slots for cable ties
  • Enclosure Material: Black ABS with rubberized coating

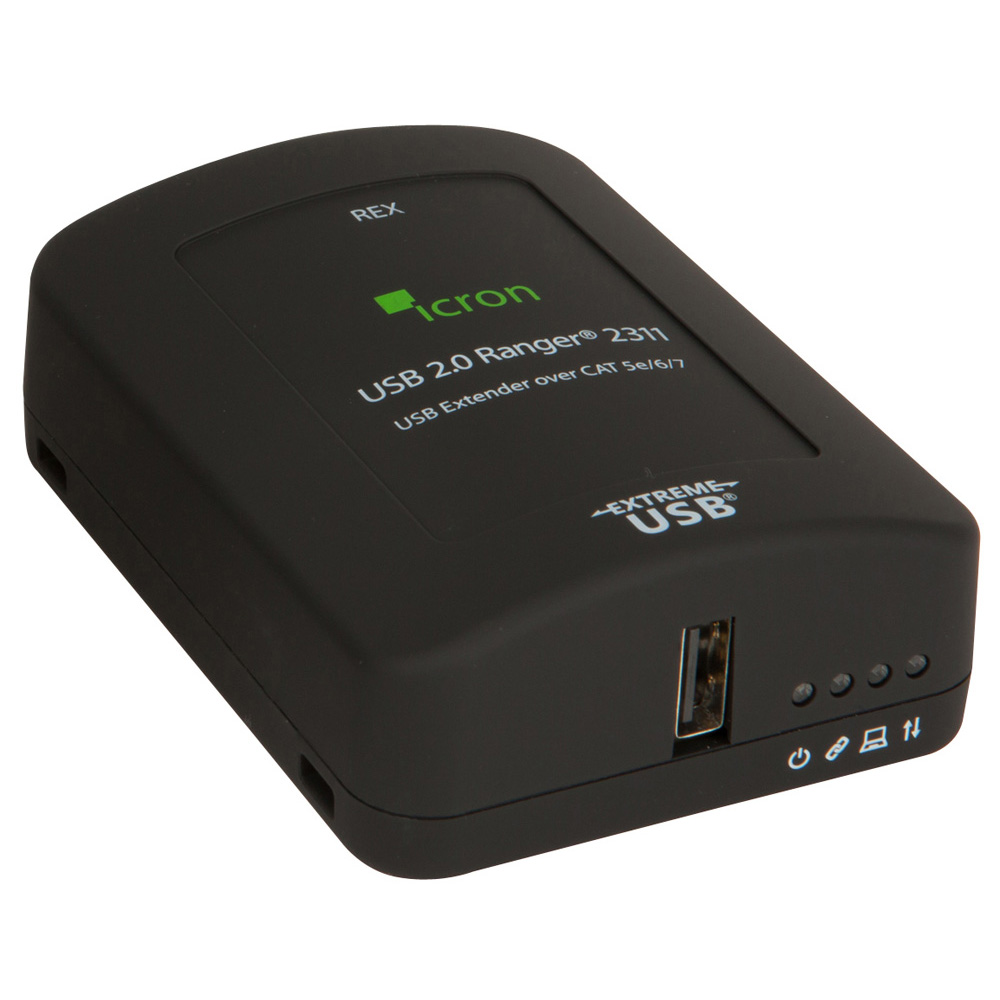

REX (Remote Extender)

  • USB Connector: 1 x USB Type A Receptacle
  • Link Connector: 1 x RJ45
  • Available Current: up to 1 Amp to USB port
  • Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
  • Mounting: Slots for cable ties
  • Enclosure Material: Black ABS with rubberized coating

Environmental

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

  • FCC (Class A), CE (Class A), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1, Flammability V-0

Support

  • Warranty: 2-year

IN THE BOX

The USB 2.0 Ranger® 2311 extender system with flexible power includes:

  • Local Extender (LEX) module
  • Remote Extender (REX) module
  • USB Cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

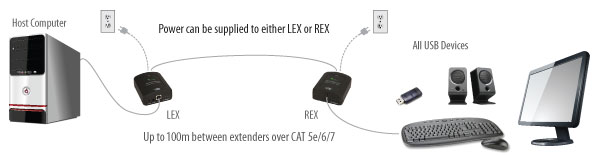

CONNECTION DIAGRAM
