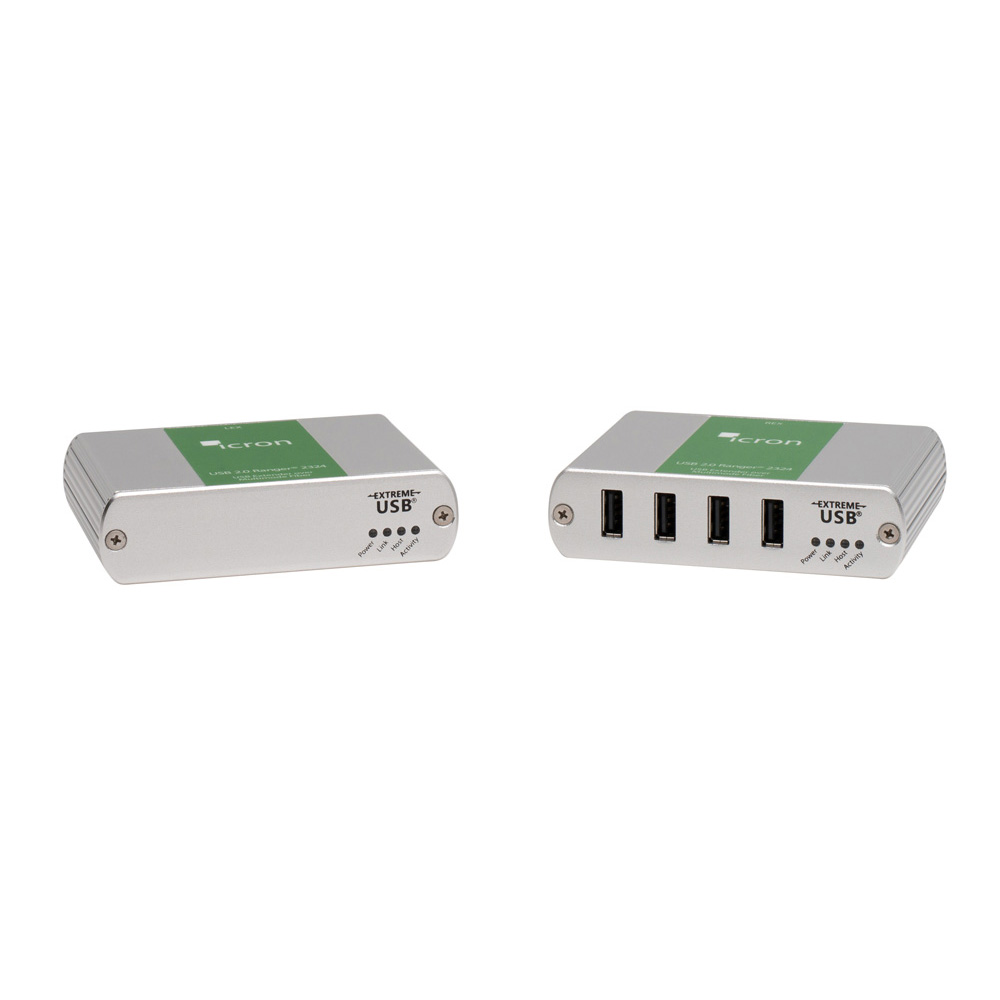

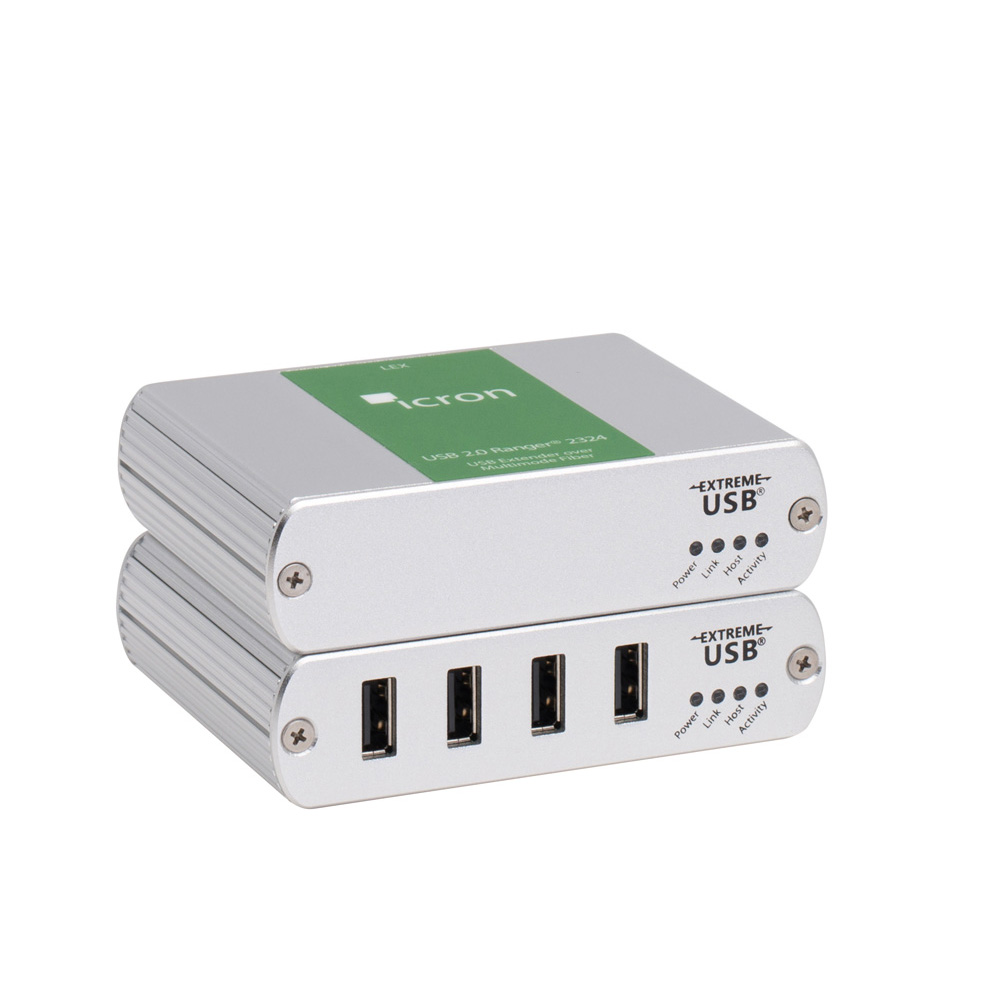

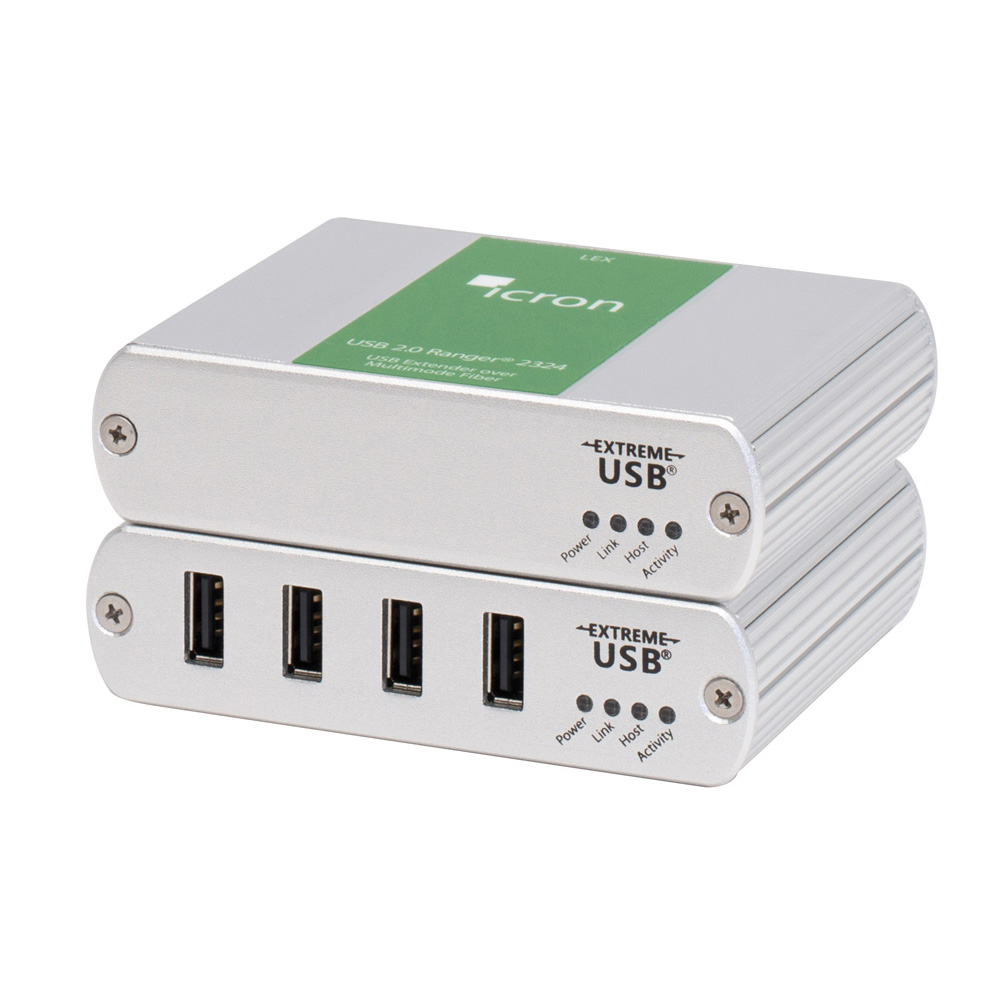

USB 2.0 Ranger® 2324
USB 4-port Multimode Fiber 500m extender

The USB 2.0 Ranger® 2324 extends high-speed USB 2.0 connections at up to 480 Mbps over 500m (1,640 ft) of OM2 fiber optic cable. This 4-port USB 2.0 multimode fiber extender with ExtremeUSB® is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device

OVERVİEW

The USB 2.0 Ranger® 2324 allows users to extend USB 2.0/1.1 connections up to 500m using OM2 (or better) fiber optic cable.

This 4-port USB 2.0 multimode fiber extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®

Additionally, this ExtremeUSB® based USB 2.0 multimode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

FEATURES

  • 4-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
  • Up to 500m extension using OM2 multimode fiber
  • Integrated hub supplying up to 1 Amp to each USB port; 2.5 Amps total shared
  • Electrical isolation
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOSTM, and Linux®

SPECIFICATIONS

  • Range
    • Direct connect up to 500m (1.640 ft) over multimode OM2; up to 275m (902 ft) over OM1

    Speeds

    • USB 2.0: up to 480 Mbps
    • USB 1.1: up to 12 Mbps

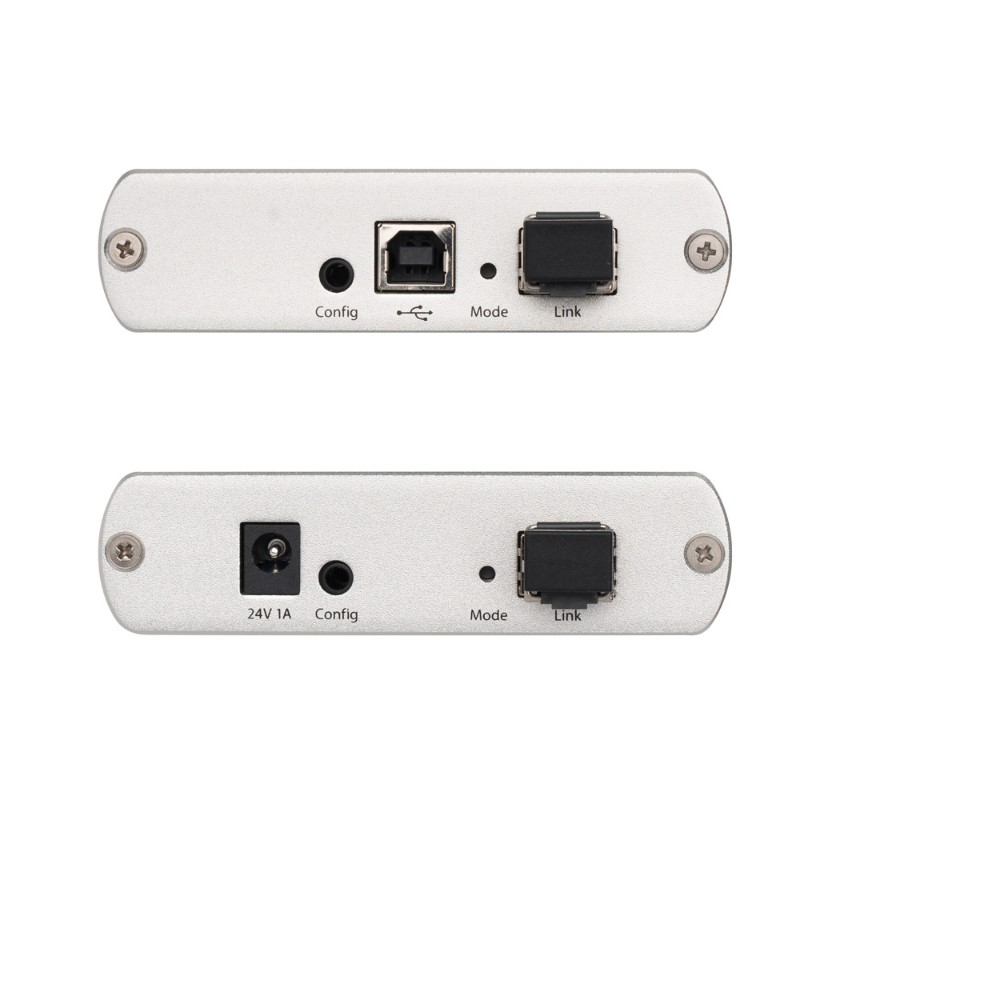

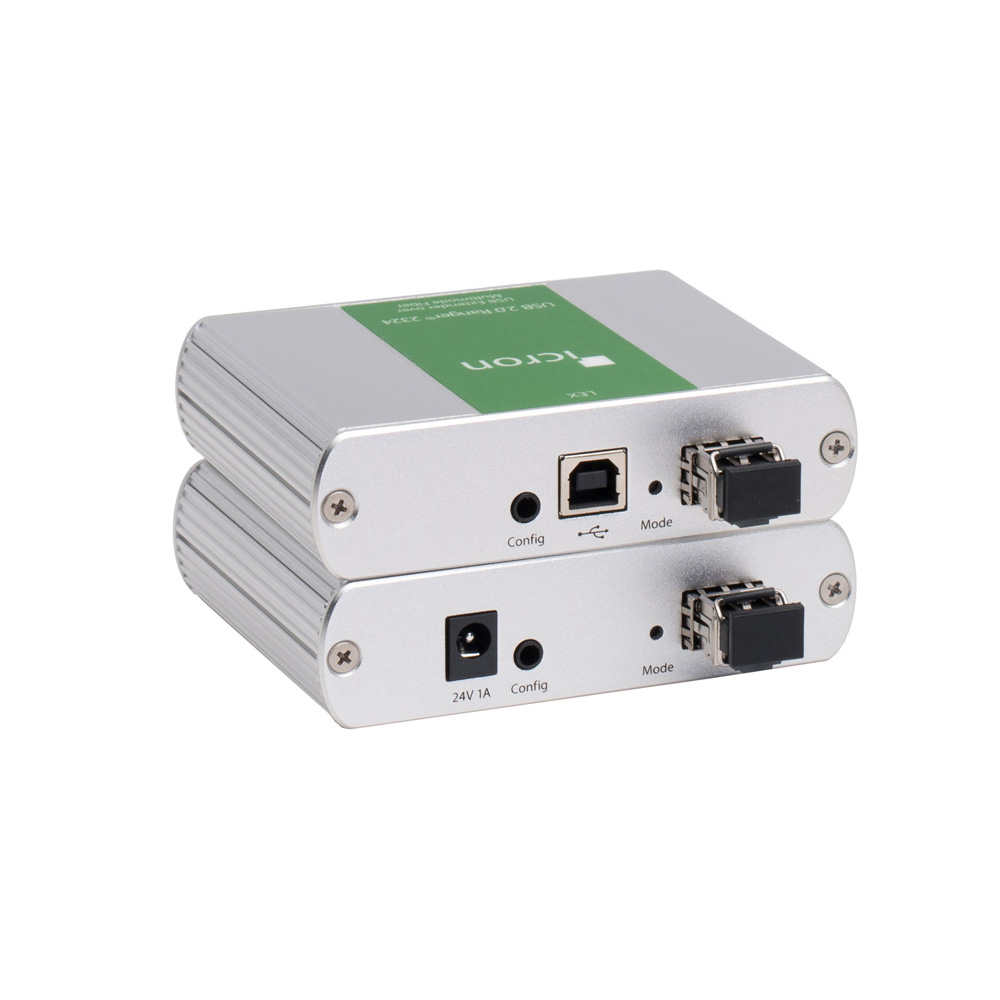

    LEX (Local Extender)

    • USB Connector: 1 x USB Type B Receptacle
    • Link Connector: 1 x SFP Duplex LC
    • Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9″ x 3.0″ x 1.0″)
    • Mounting: 4 surface mounting holes or optional mounting kit available
    • Enclosure Material: Silver anodized aluminum

    REX (Remote Extender)

    • USB Connector: 4 x USB Type A Receptacles
    • Link Connector:  1 x SFP Duplex LC
    • Available Current: up to 1 Amp to each USB port; 2.5 Amps total shared
    • Power Supply: 100-240V AC Input, 24V 1A DC Output
    • Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9″ x 3.0″ x 1.0″)
    • Mounting: 4 surface mounting holes or optional mounting kit available
    • Enclosure Material: Silver anodized aluminum

    Environmental

    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing

    Compliance

    • FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1

    Support

    • Warranty: 2-year

IN THE BOX

The USB 2.0 Ranger 2324 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • SFP multimode transceiver modules
  • 2 meter USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

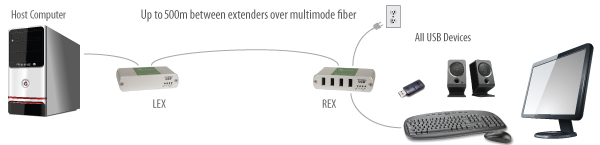

CONNECTION DIAGRAM
