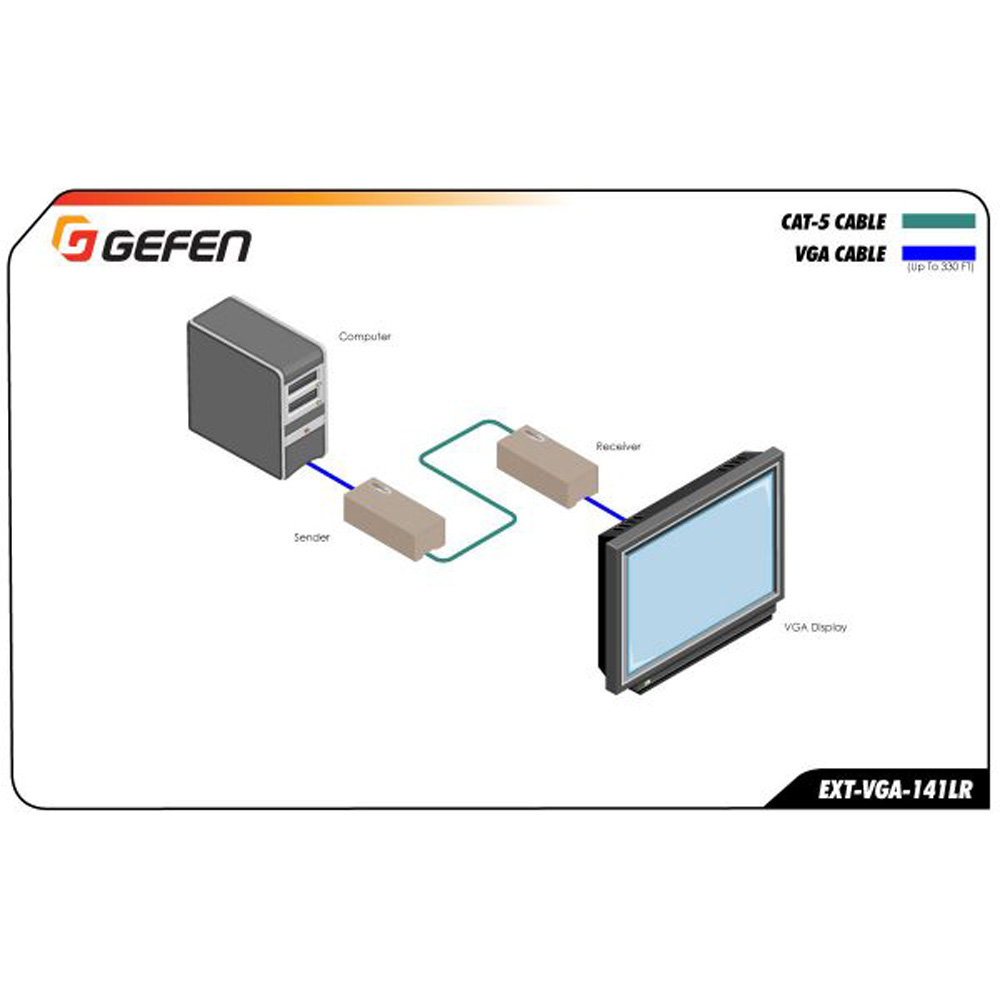

The VGA Extender LR allows users to extend video signals beyond the A/V rack. The VGA Extender Series can be used to extend an analog signal to cover distances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension.
FEATURES
- Extends any VGA or high definition component display up to 330 feet (100 meters)
- One CAT-5e cable for extension
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
SPECIFICATIONS
- Video Amplifier Bandwidth: 350 MHz
- Input Video Signal: 1.2 V p-p
- Input Sync Signal: 5 V p-p (TTL)
- Horizontal Frequency Range: 15-70 KHz
- Vertical Frequency Range: 30 – 170 Hz

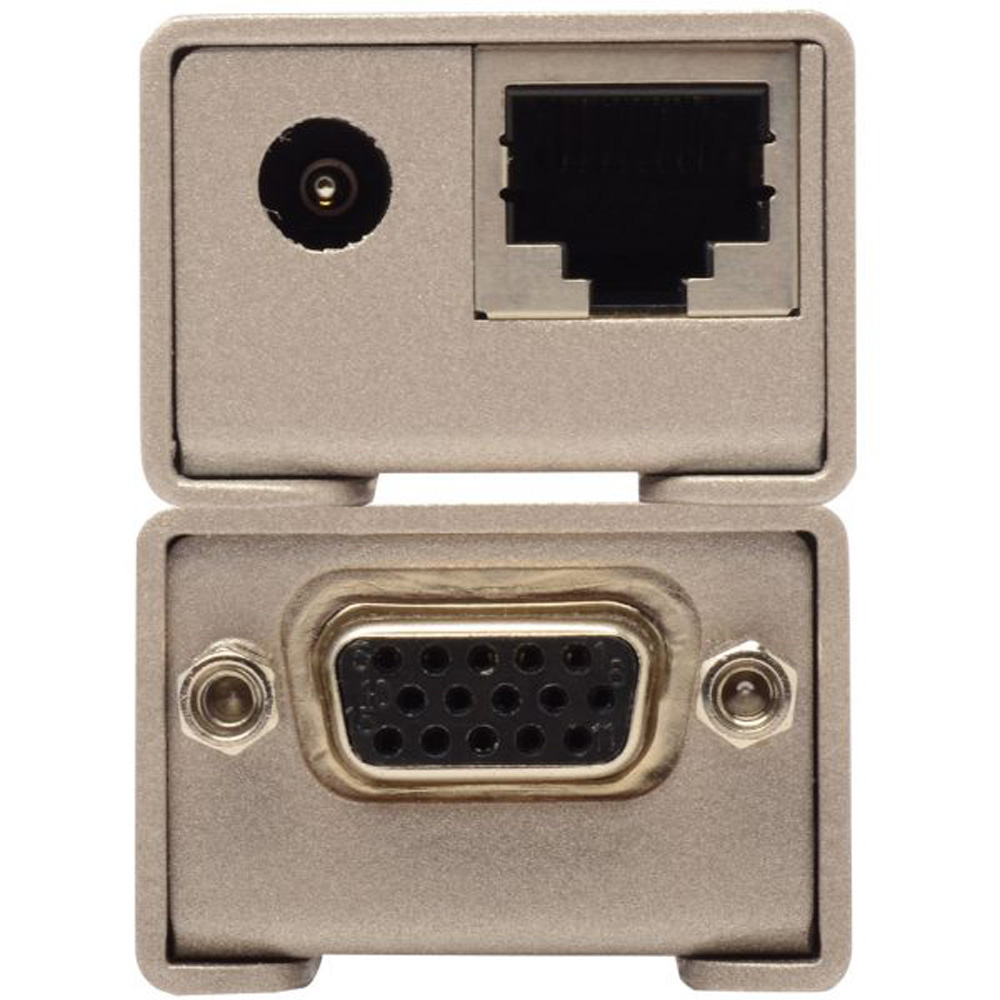

- Video In: HD-15 male
- Video out: HD-15 female
- Link Connector: RJ-45 Shielded
- Power Supply: 5V DC
- Power Consumption: 5 W (max.)
- Dimensions: : 3.7″ W x 0.85″ H x 1.4″ D each module
- Shipping Weight: 2 lbs.
OTHER SPECIFICATIONS
Shipping Info
- Length9.31 (Inches)
- Width6.1 (Inches)
- Height3 (Inches)
- Weight1.7 (Lbs)
- UPC845344000008
Other Specifications
- Video Amplifier Bandwidth: 350 MHz
- Input Video Signal: 1.2 V p-p
- Input Sync Signal: 5 V p-p (TTL)
- Horizontal Frequency Range: 15-70 KHz
- Vertical Frequency Range: 30 – 170 Hz
- Video In: HD-15 male
- Video out: HD-15 female
- Link Connector: RJ-45 Shielded
- Power Supply: 5V DC
- Power Consumption: 5 W (max.)
- Dimensions: 3.7″ W x 0.85″ H x 1.4″ D each module
- Shipping Weight: 2 lbs.
In The Box

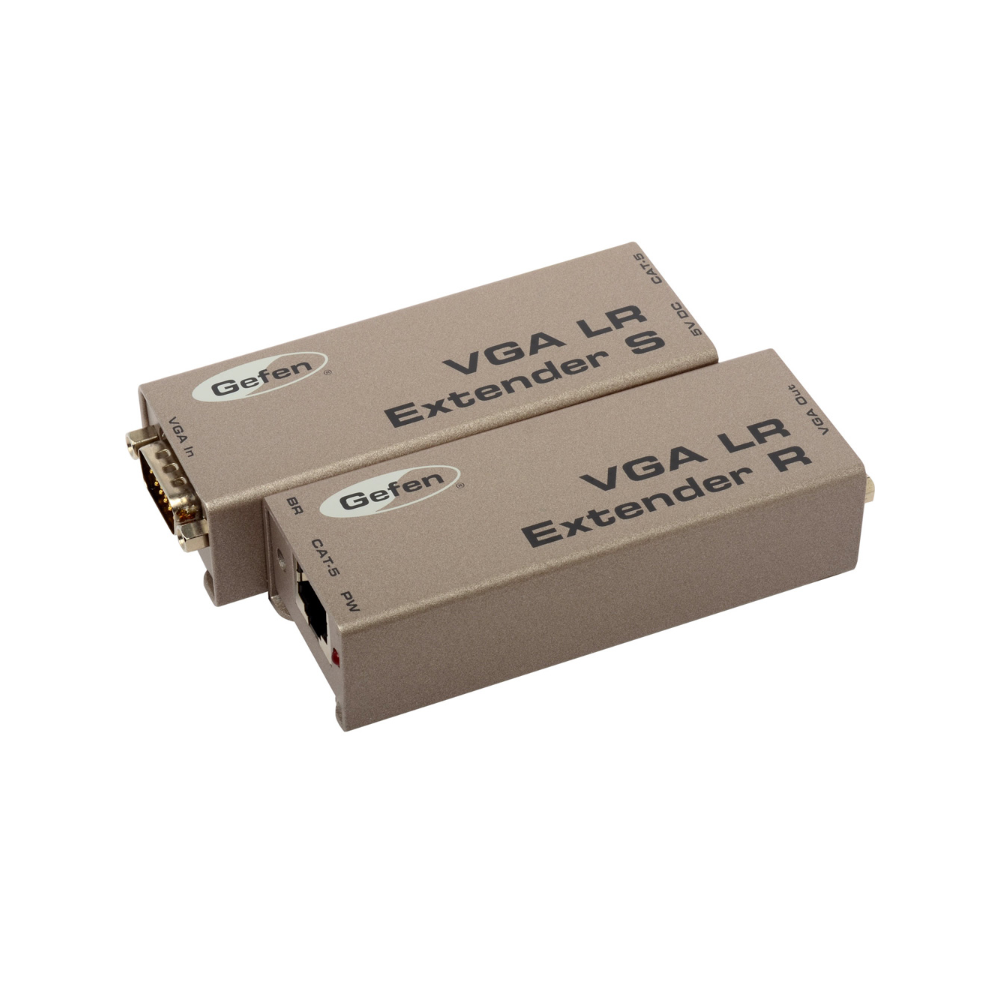

- VGA Extender S Sender Unit (1)
- VGA Extender R Receive Unit(1)
- 6 foot VGA cable (M-F) (1)
- 5V DC power supply (EXT-PS51AIP or EXT-PS51AIP-6)(1)
