- Compatible with HDMI 2.0 , HDCP 1.4 and 2.2

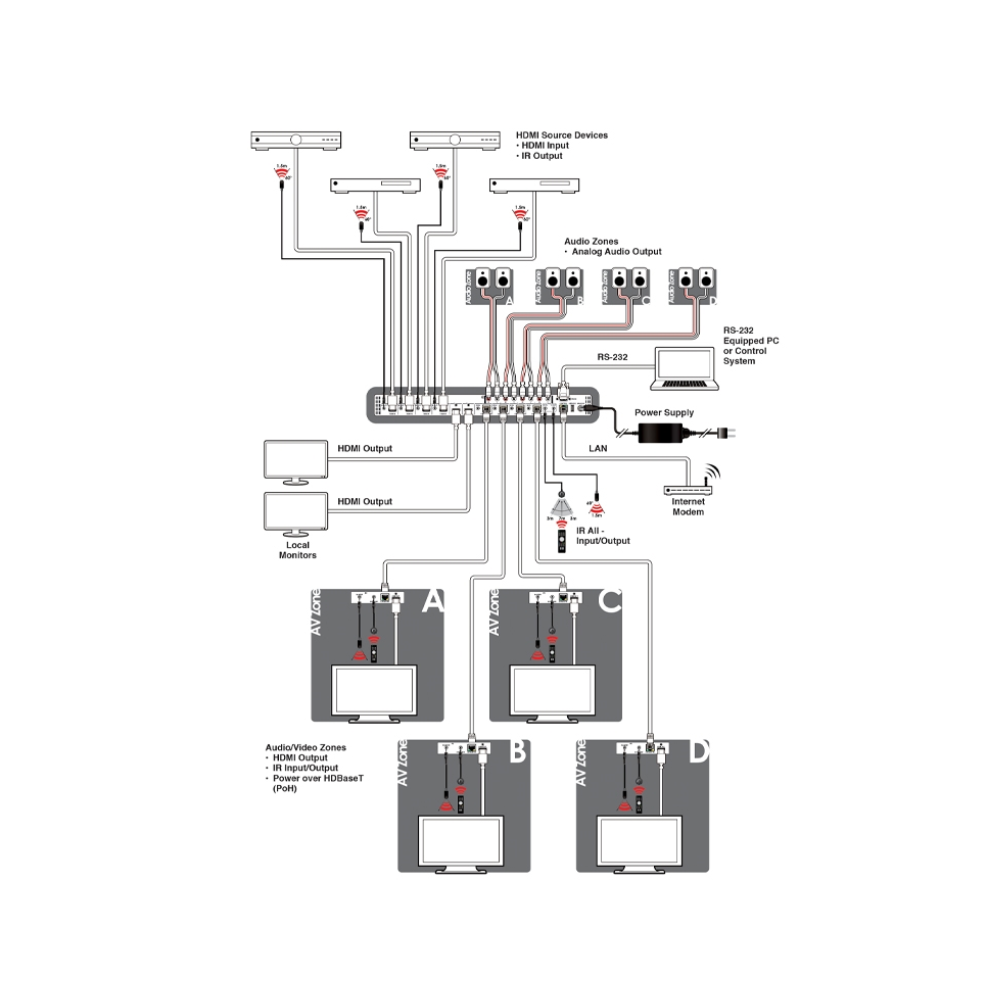

- Routes 4 HDMI sources to 6 displays using 4 HDBaseT outputs and 2 independent or mirrored HDMI outputs
- HDBaseT property support: HD video/audio, PoH (Power over HDBaseT), and control (IR/RS-232 passthrough)
- Supports HDMI output resolutions up to 4K@60Hz (RGB/YUV 4:4:4)
- Supported HDBaseT resolutions:480i~1080p ,VGA~WUXGA, 4K@24/25/30Hz (RGB, YUV 4:4:4 & YUV 4:2:2) & 4K@60Hz (YUV 4:2:0)
- Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 transformation for HDBaseT outputs
- Supports passthrough of all standard digital audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- 4K@30Hz signals can be transmitted up to 35m via Cat.5e/6 and up to 40m via Cat.6a/7
- Supports Digital to Analog Conversion (DAC)
- Bi-directional IR and RS-232 support over HDBaseT
- Enhanced internal and external EDID administration with 4 sets of controllable EDID settings
- Control via front panel controls, Ethernet (Telnet & WebGUI), RS-232 & IR remote

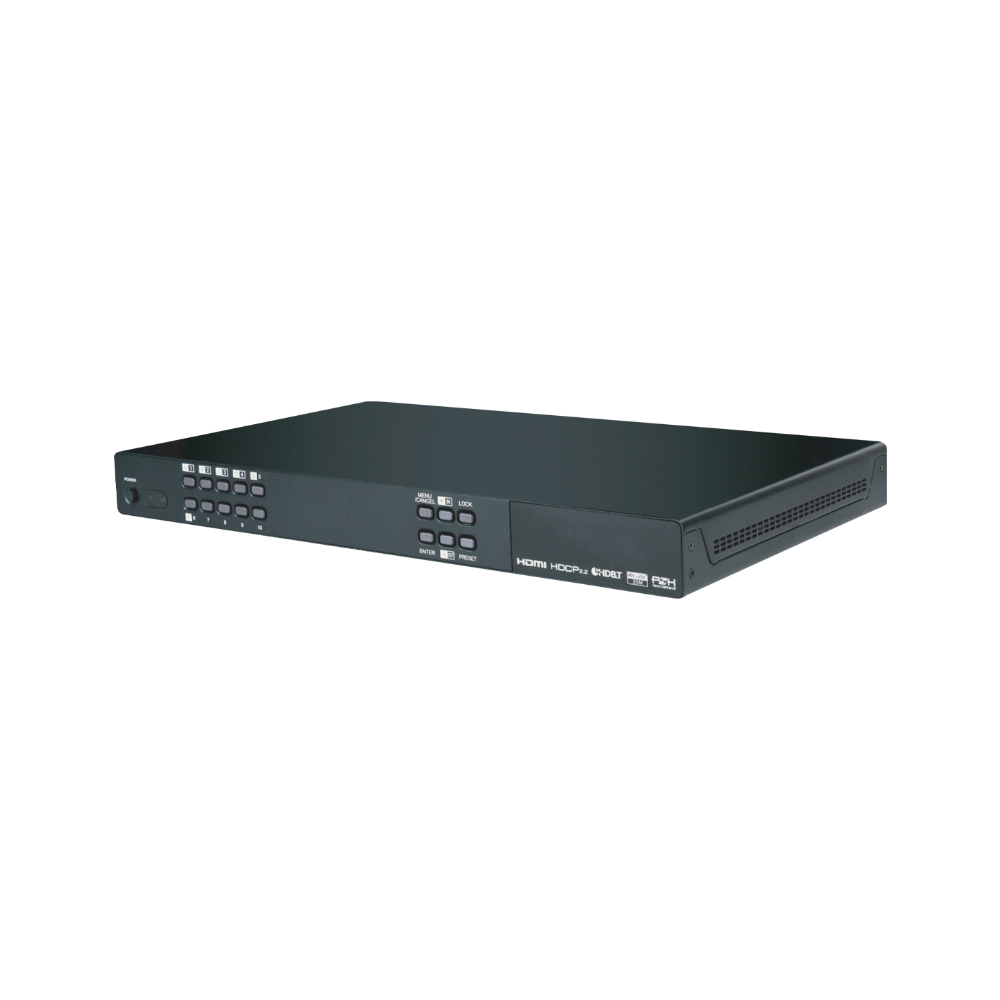

- 1U shelf mounted design
Inputs
- 4x HDMI [4x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
- 4x RJ45 [4x HDMI & Propriety Data]
- 8x RCA [4x ZONE Stereo (L/R)]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
PSU:
- 24V/6.25A
Dimensions
- 482mm [W] x 279mm [D] x 49mm [H]
Net Weight
- 3642gr
