- Compatible with HDMI v.2.0, HDCP v.1.4 and HDCP v.2.2
- Ten HDMI inputs to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputs
- HDBaseT Resolution: VGA-WUXGA(1920×1200) , 480i-1080p, 4K UHD@24/25/30Hz (RGB 4:4:4, YUV 4:4:4: & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0) depends on the output’s EDID settings
- HDMI output resolution up to 4K@60Hz (RGB/YUV 4:4:4)
- Converts automaticly 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 for HDBaseT outputs
- HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232)
- 4K UHD@30Hz signals can be transmitted up to 100m via CAT6a/7 and 60m via CAT5e/6 -Supports Hi-Def audio formats: LPCM 2.0/5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio and DTS: X
- Supports audio matrix functionality and full audio management including HDMI audio embedding/de-embedding and HDBaseT audio selection, fully independent audio-only zones
- For audio supports Digital to Analog and Analog to Digital Conversion
- Supports integrated audio over CAT inputs and outputs for transmission up to 150m -Supports mute function on all outputs and volume, treble, bass, and audio delay up to 230ms on analog audio outputs
- HDBaseT outputs supports Optical Audio Return (OAR)
- Supports audio mixer function (three mixers in total)
- Advanced external and internal EDID management with 4 sets of configurable EDID settings
- Internal test pattern generation for self and sink device testing (up to 4K UHD@60Hz Signal)
- Supports Bi-directional IR over HDBaseT
- Control via front panel buttons, Ethernet (Telnet & WebGUI), RS-232 and IR remote

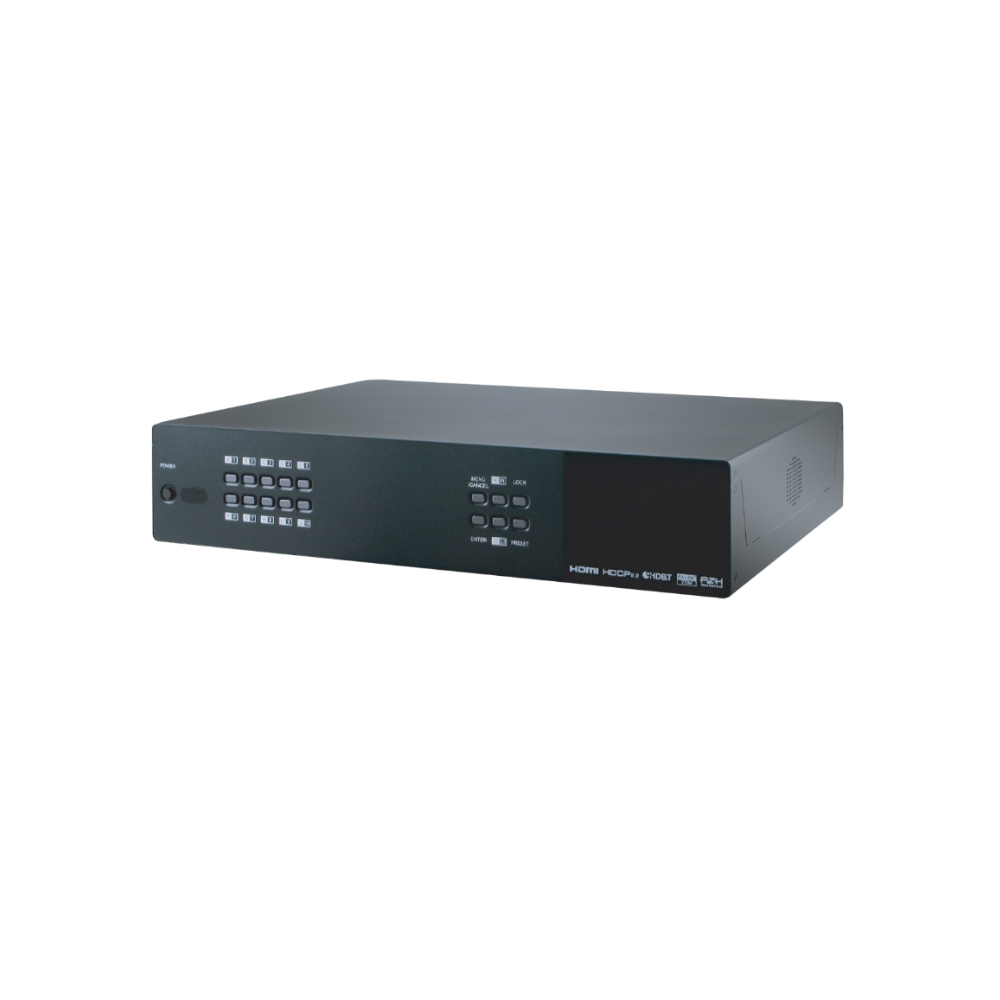

- Rack mounted 2U design
Inputs
- 10x HDMI [10x Uncompressed AV and Data]
- 2x TOSLINK [2x OPTICAL 2 Channel LPCM]
- 2x RCA [2x COAXIAL 2 Channel LPCM]
- 8x RCA [4x Stereo (L/R)]
- 2x RJ45 [2x IN / OUT Digital Audio Propriety Data]
- 8x 3.5mm Stereo Mini-jack [8x Infrared Receiver]
- 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Receiver]
- 1x RJ45 [1x IP Control / LAN Serving]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 8x RJ45 [8x HDMI & Propriety Data]
- 2x HDMI [2x Uncompressed AV and Data]
- 8x RCA [4x EXTENDED Stereo (L/R)]
- 16x RCA [8x ZONE Stereo (L/R)]
- 10x 3.5mm Stereo Mini-jack [10x Infrared Emitter]
- 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Emitter]
PSU:
- 24V/6.25A
Dimensions
- 483mm [W] x 356mm [D] x 96mm [H]
Net Weight
- 6500gr
