- Compatible with HDMI 2.0 , HDCP 1.4 and HDCP 2.2

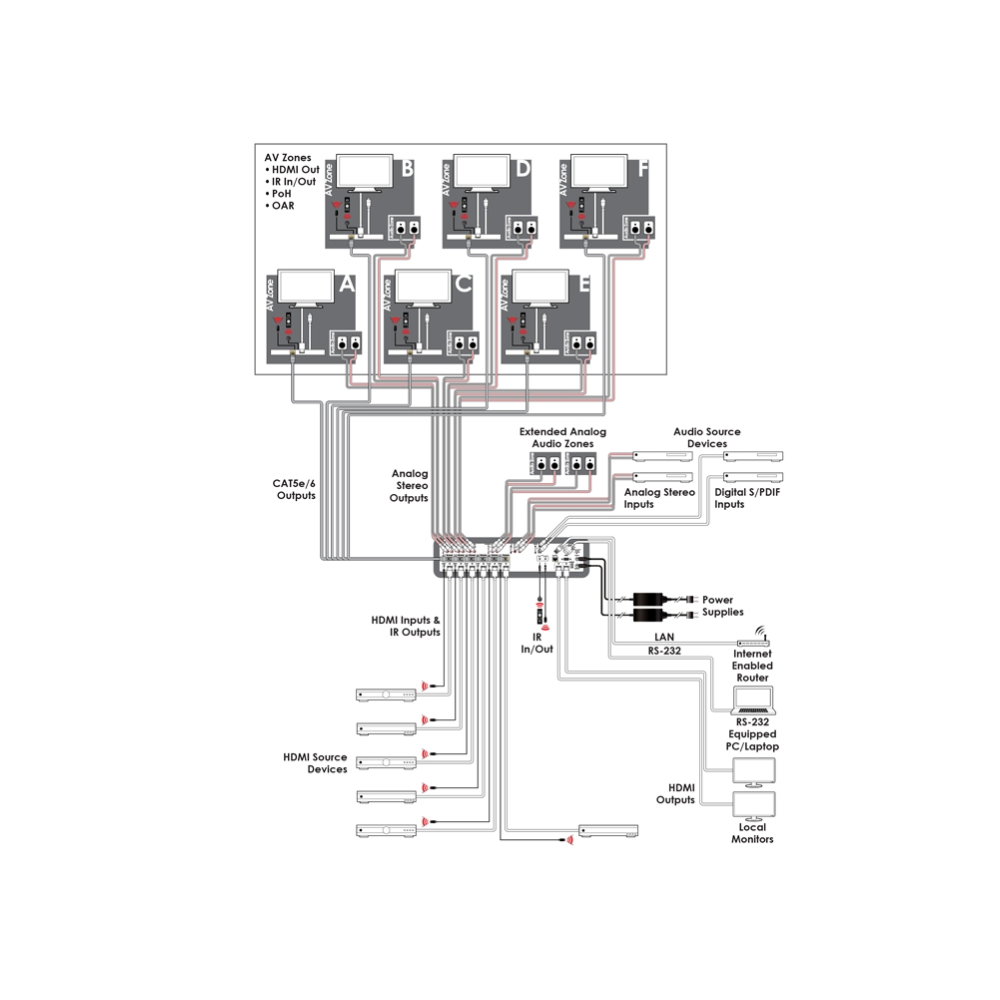

- Routes 6 HDMI sources to 8 displays using 6 HDBaseT outputs and 2 independent or mirrored HDMI outputs
- HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, 48v PoH (Power over HDBaseT) and check (Bidirectional IR & RS-232 pass through)
- Supports HDMI output resolutions up to 4K@60Hz (RGB/YUV 4:4:4)
- Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K@24/25/30Hz (RGB, YUV 4:4:4 & YUV 4:2:2) & 4K@60Hz (YUV 4:2:0) depends on the output display’s EDID settings
- Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 transformation for HDBaseT outputs
- 4K@30Hz signals can be transmitted up to 60m via Cat.5e/6 and up to 100m via Cat.6a/7
- Supports audio matrix functionality enabling full audio administration of the system including HDBaseT audio selection, fully independent audio-only zones and HDMI audio embedding and de-embedding (LPCM only)
- Supports pass-through of all standard digital audio formats: LPCM 2.0/5.1/7.1, bitstream, and HD bitstream
- HDBaseT outputs with Optical Audio Return (OAR) support
- Supports Digital to Analog Conversion (DAC) and Analog to Digital Conversion (ADC) for audio integration
- Supports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputs
- Internal test pattern generation for self and sink testing
- Check via front panel controls, Ethernet (Telnet & WebGUI), RS-232, and IR remote
- Enhanced internal and external EDID management with 4 sets of controllable EDID settings
- Capable of generating test signals up to 4K@60Hz
- Bi-directional IR support over HDBaseT

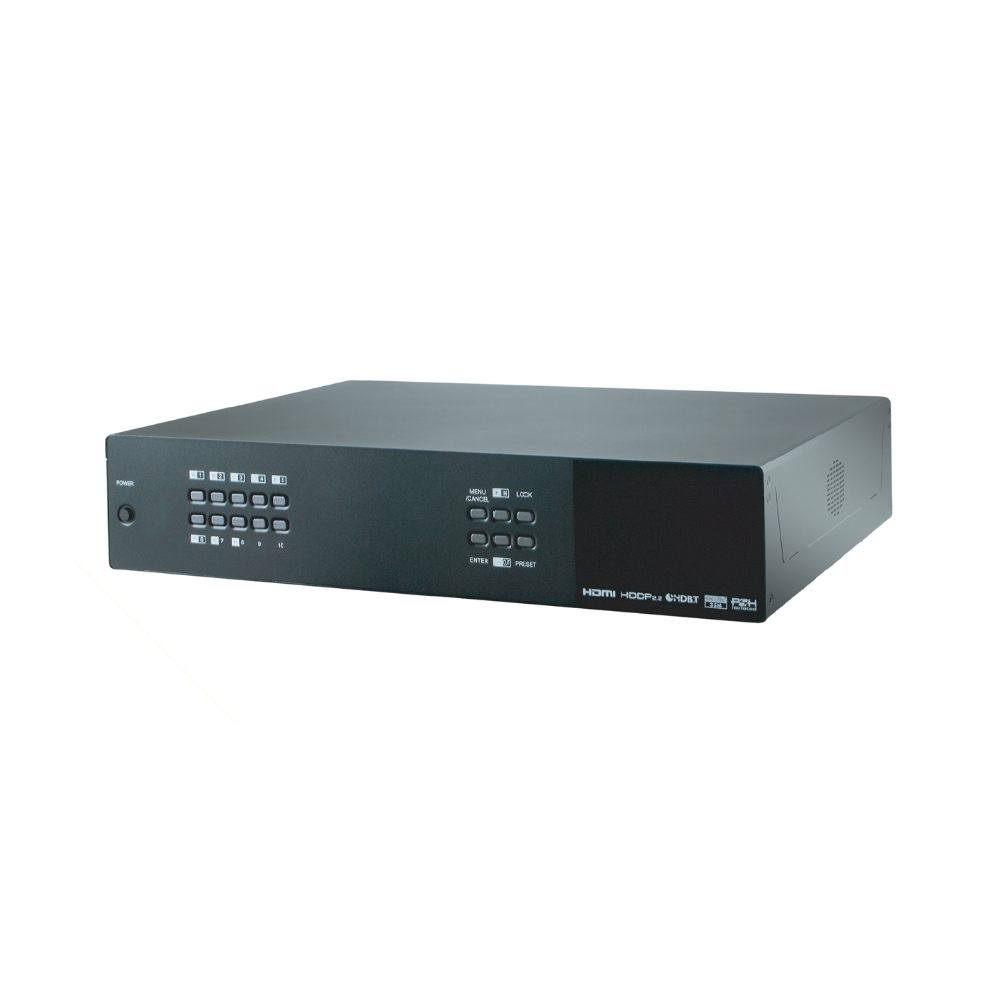

- 2U shelf mounted design
Inputs
- 6x HDMI [6x Uncompressed AV and Data]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
- 1x RCA [1x COAX 2 Channel LPCM]
- 4x RCA [2x Stereo (L/R)]
- 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Receiver]
- 6x 3.5mm Stereo Mini-jack [6x Infrared Receiver]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x RJ45 [1x IP Control / LAN Serving]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
- 6x RJ45 [6x HDMI & Propriety Data]
- 16x RCA [8x Stereo (L/R)]
- 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Emitter]
- 6x 3.5mm Stereo Mini-jack [6x Infrared Emitter]
PSU:
- 24V/6.25A
Dimensions
- 483mm [W] x 356mm [D] x 96mm [H]
Net Weight
- 6400gr
