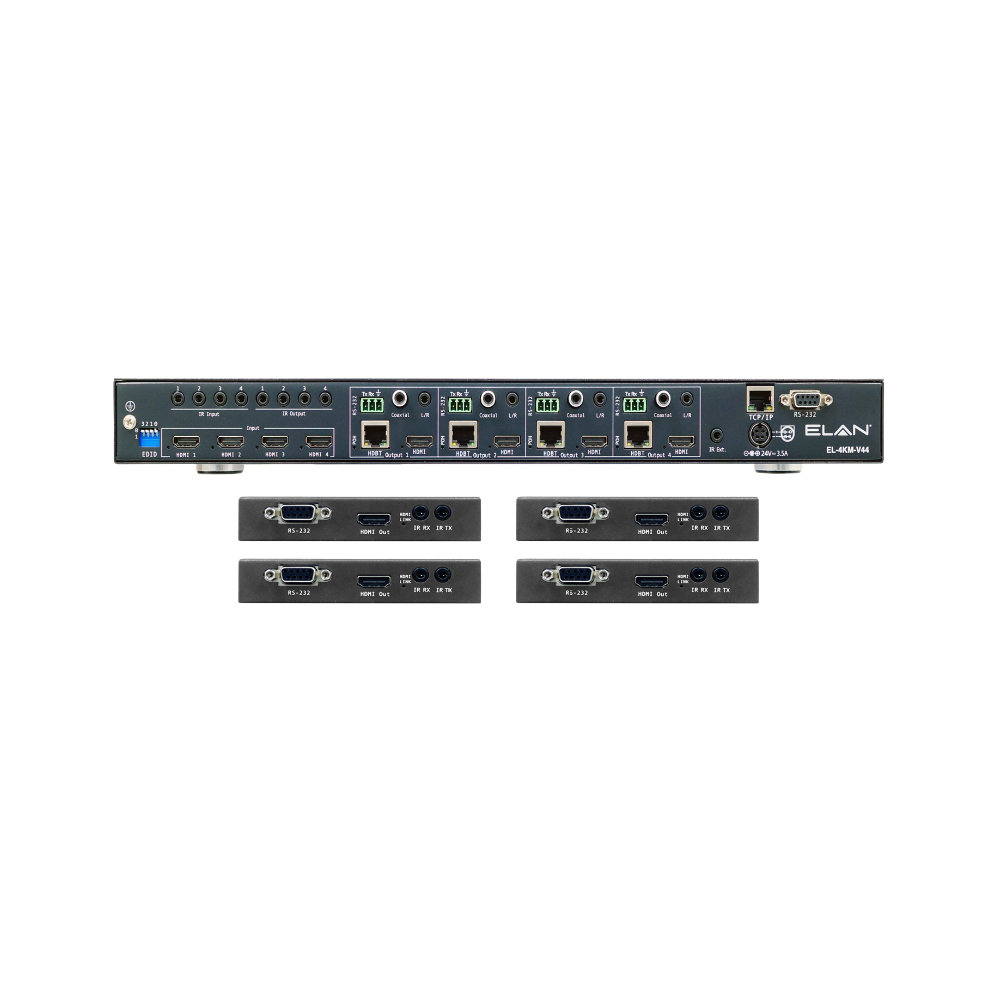

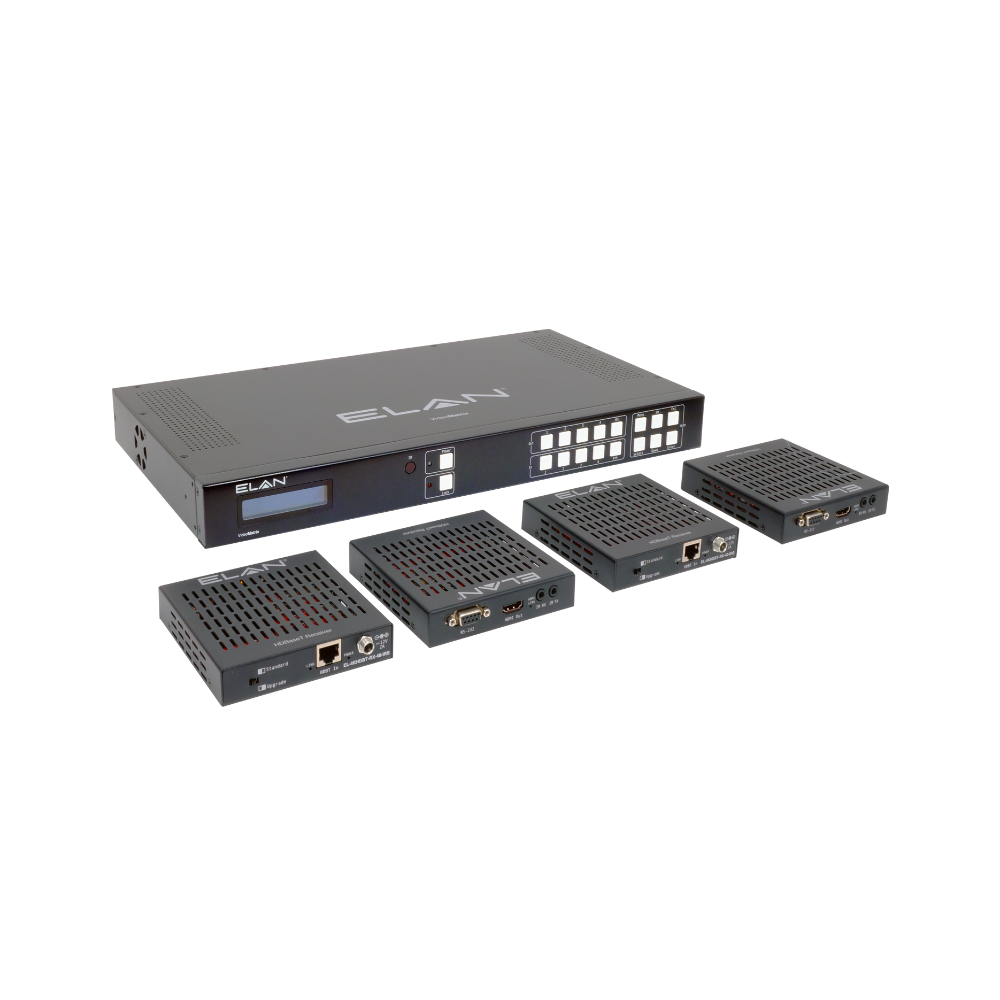

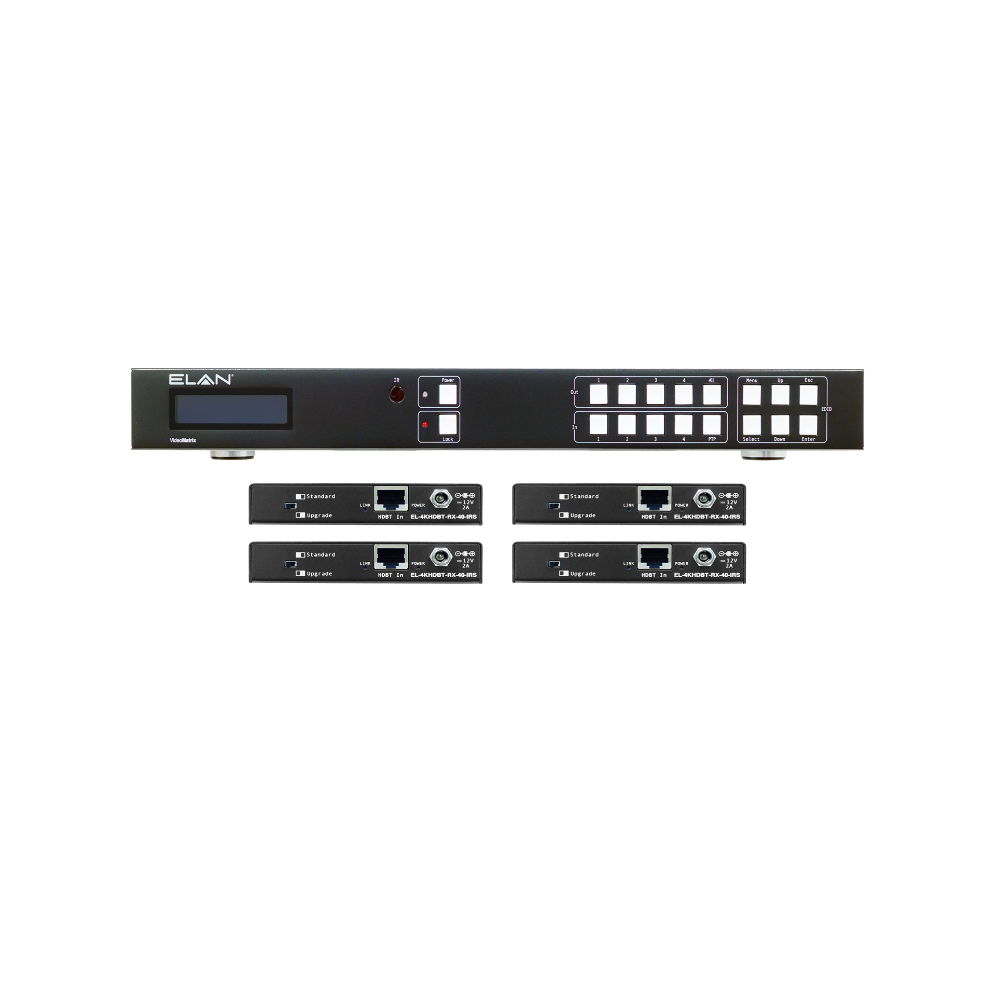

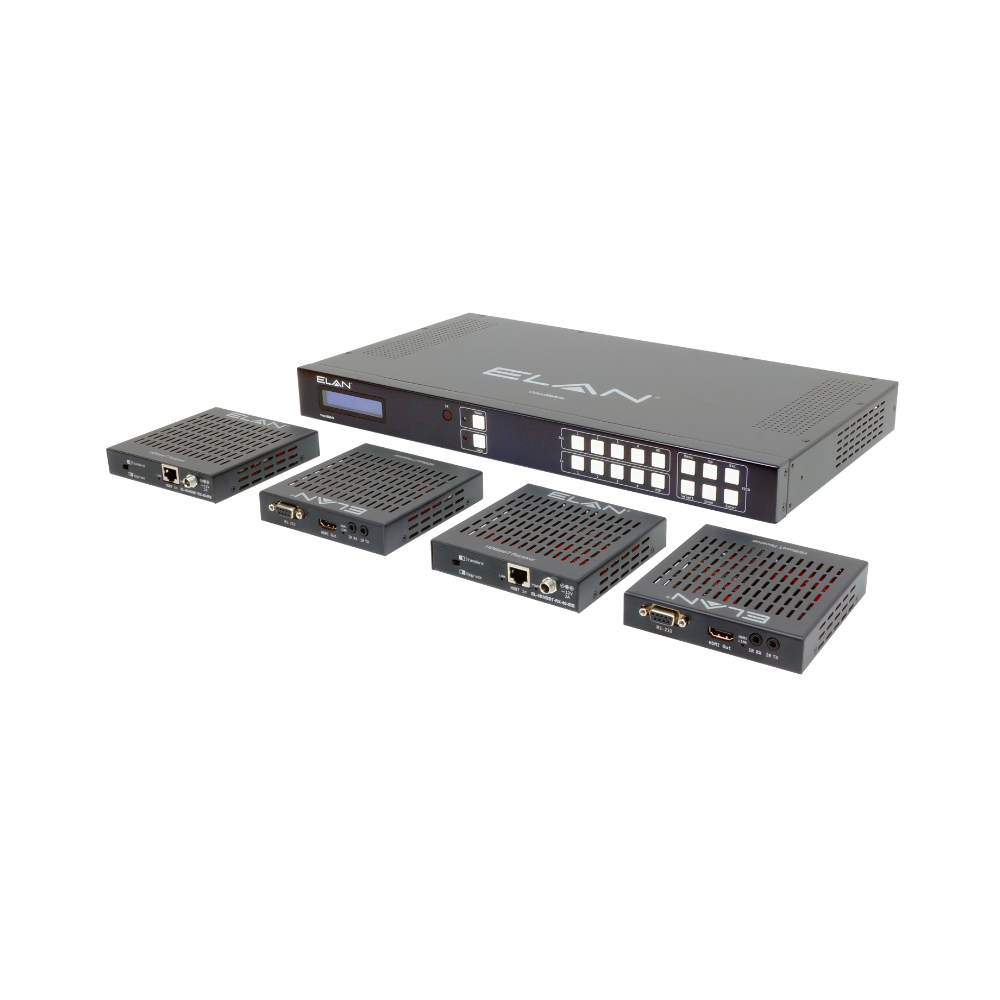

The Nice/ELAN HDMI Video Matrices offer unprecedented performance and value for the custom installation market. The EL-4KM-V44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The matrix also provideos advanced features including point-to-point Audio breakout with pre-amp variable line-level control, simultaneous HDBaseT/HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix. The matrix is easily configured and added to your Nice/ELAN projects using Nice/ELAN’s Configuration Software. The EL-4KM-V44-KIT is supplied with 4 x EL-4KHDBT-RX-IRS Receivers.
FEATURES
- Features 4x HDMI inputs which can be independently routed to 4x HDBaseT/HDMI outputs
- Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
- HDMI audio breakout to associated analog L/R audio outputs with pre-amp line level control
- Extends HDMI 1080p up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Web interface module for control and configuration of matrix
- Bi-directional IR from all input and output locations
- Bi-directional RS-232 from all input and output locations
- Includes 4 x 5v-to-12v IR converter cables for IR Inputs
- Control via front panel , IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
- 3rd Party drivers available for all major home control brands
- Advanced EDID management HDCP 2.2 compliant
- Kit includes 4 x EL-4KHDBT-RX-IRS HDBaseT Receivers
- 1U Design for 19″ rack mount integration – Mounting kit included
SPECIFICATIONS
Video Input Connectors :4x HDMI Type A, 19-pin, female
Video Output Connectors :4x HDMI Type A, 19-pin, female
:4x HDBaseT RJ45 connector
Audio Output Connectors :4x 3.5mm stereo jack
RS-232 serial port :5x DB-9, female
TCP/IP Control :1x RJ45, female
IR Input ports :5x5v 3.5mm stereo jack
IR Output ports :4x5v 3.5mm mono jack
Rack-Mountable :1U rack height, rack ears included
Casing Dimensions (W x H x D) :440mm x 235mm x 43mm, without feet
Dimensions (W x D x H) :440mm x 241mm x 43mm, with feet
Shipping Weight :2.7kg
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-4°F to 140°F (-20°C to 60°C)
Power Supply :1x 24V/3.5A DC (POH)
OTHER SPECIFICATIONS
Shipping Info
- Length20 (Inches)
- Width11.9 (Inches)
- Height6.1 (Inches)
- Weight17.78 (Lbs)
- Unit of MeasureEach
- UPC844039013460
Other Specifications
- Video Input Connectors 4x HDMI Type A, 19-pin, female
- Video Output Connectors 4x HDMI Type A, 19-pin, female
- 4x HDBaseT RJ45 connector Audio Output Connectors 4x 3.5mm stereo jack
- RS-232 serial port 5x DB-9, female
- TCP/IP Control 1x RJ45, female
- IR Input ports 5x5v 3.5mm stereo jack
- IR Output ports 4x5v 3.5mm mono jack
- Rack-Mountable 1U rack height, rack ears included
- Casing Dimensions (W x H x D) 440mm x 235mm x 43mm, without feet
- Dimensions (W x D x H) 440mm x 241mm x 43mm, with feet
- Shipping Weight 2.7kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Power Supply 1x 24V/3.5A DC (POH)
