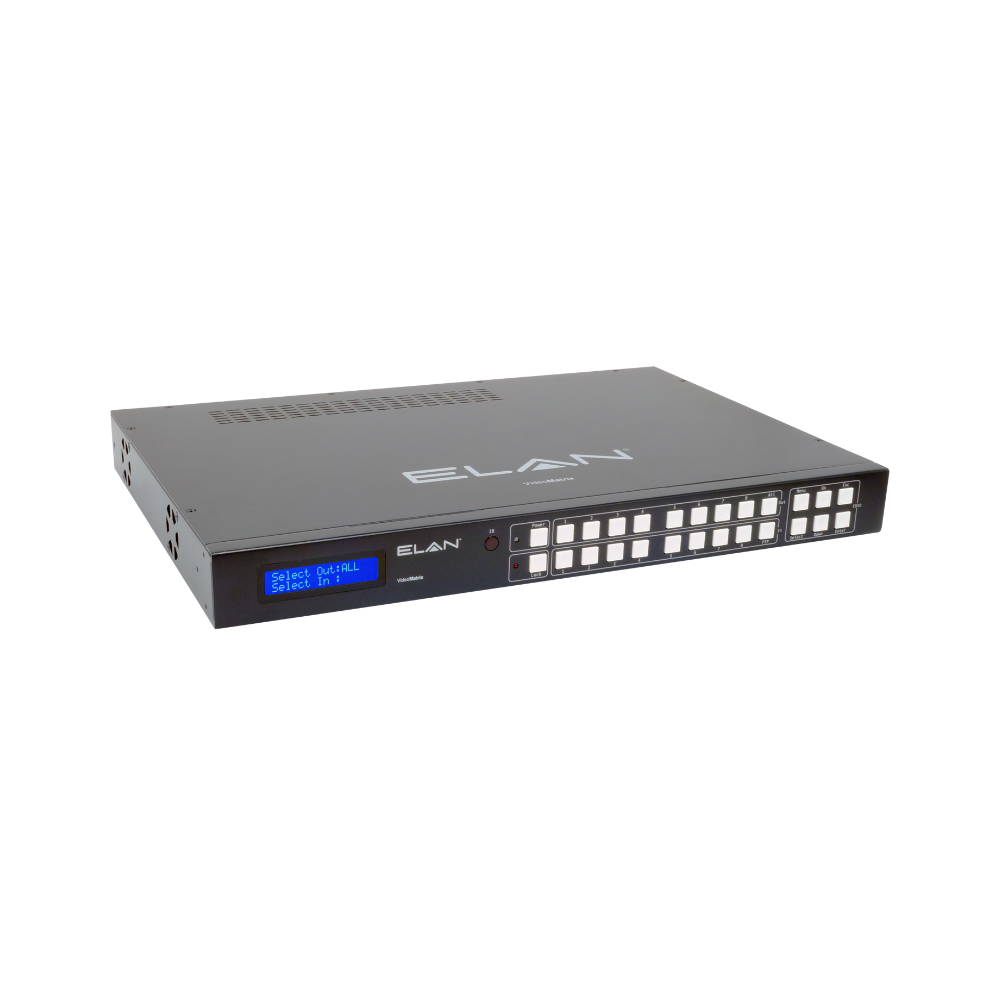

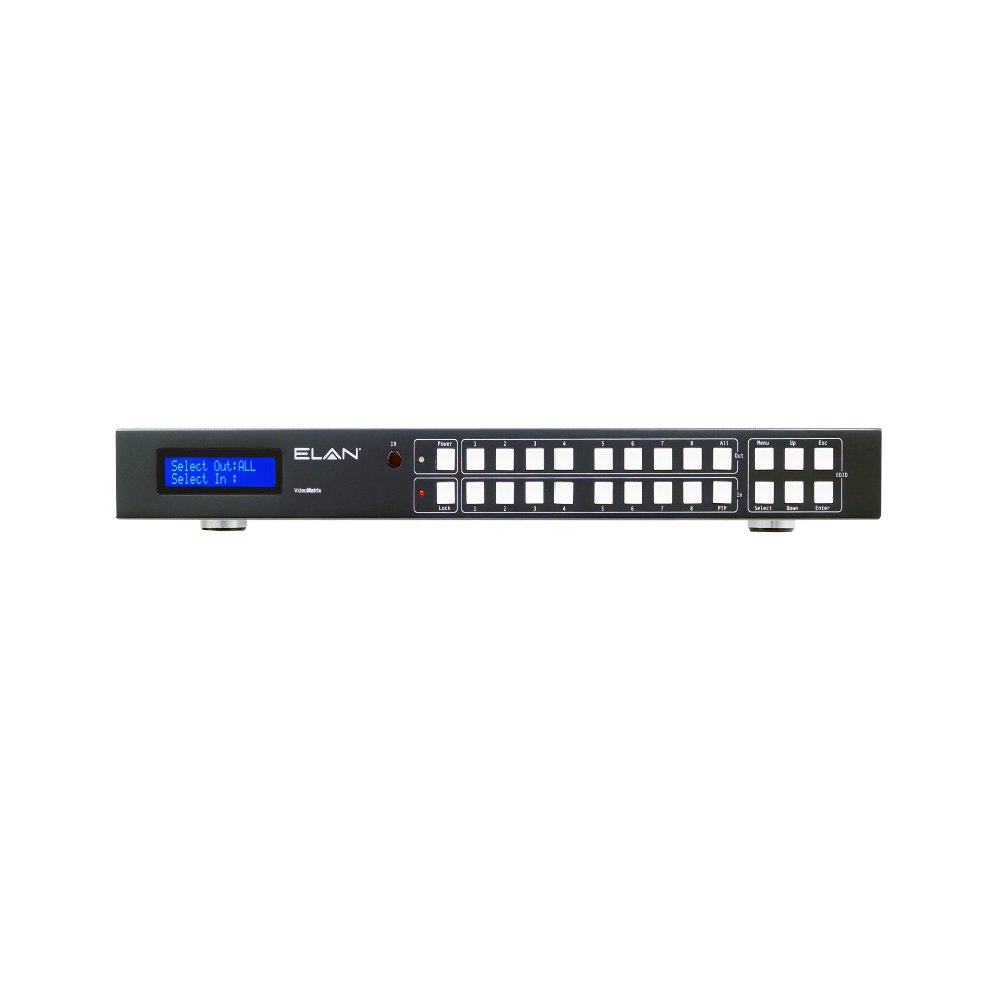

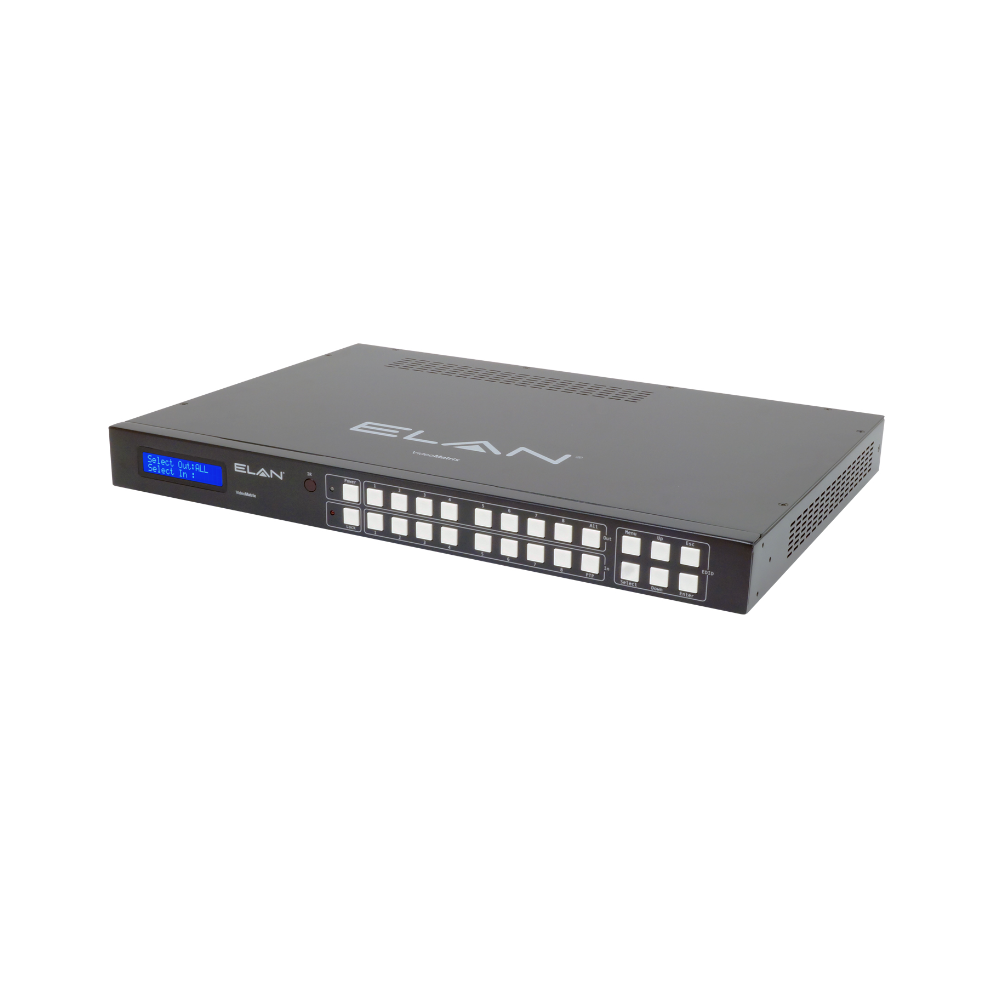

The Nice/ELAN HDMI Video Matrices offer unprecedented performance and value for the custom installation market. The EL-4KM-V88 is a 4K HDCP 2.2 8×8 matrix with a combination of 6 x HDBaseT and 2 x HDMI Outputs. This allows for cost effective integration of local displays and AV receivers within an installation. The matrix delivers HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The matrix can be controlled and configured using the built-in web interface module or Nice/ELAN Configuration Software, allowing the user to define HDMI outputs, HDMI inputs, and designate EDID presets.
FEATURES
- Features 8x HDMI inputs which can be independently routed to 8 outputs (6x HDBaseT + 2x HDMI)
- Extends HDMI 1080p up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
- Master Audio transmission
- Web interface module for control and configuration of Matrix
- Bi-directional IR from all input and output locations
- Includes 8 x 5v-to-12v IR converter cables for IR InputsControl via front panel , IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
- HDCP 2.2 compliant1
- U Design for 19″ rack mount integration – Mounting kit included
SPECIFICATIONS

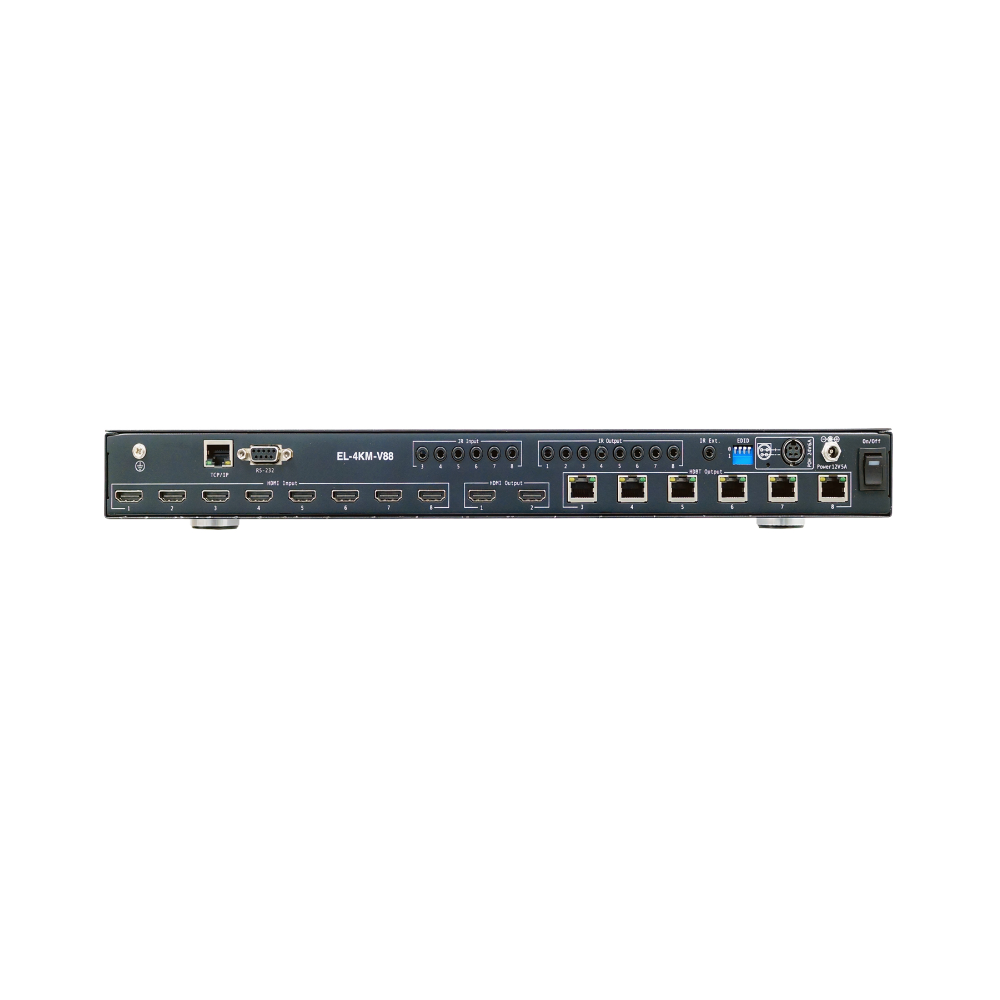

Video Input Connectors :8x HDMI Type A, 19-pin, female
Video Output Connectors :6x HDBaseT RJ45 connector
:2x HDMI Type A, 19-pin, female
RS-232 serial port :DB-9, female TCP/IP Control :RJ45, female
IR Input ports :9x5v 3.5mm stereo jack
IR Output ports :8x5v 3.5mm mono jack
Rack-Mountable :1U rack height, rack ears included
Casing Dimensions (W x H x D) : 440mm x 300mm x 43mm, without feet
Dimensions (W x D x H) :440mm x 305mm x 43mm, with feet
Shipping Weight :2.7kg
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-4°F to 140°F (-20°C to 60°C)
Power Supply :12V/5A DC (main) & 24V/6A DC (POH)
OTHER SPECIFICATIONS
Shipping Info
- Length20 (Inches)
- Width15.7 (Inches)
- Height7.1 (Inches)
- Weight20.35 (Lbs)
- Unit of MeasureEach
- UPC844039013453
Other Specifications
- Video Input Connectors 8x HDMI Type A, 19-pin, female
- Video Output Connectors 6x HDBaseT RJ45 connector
- 2x HDMI Type A, 19-pin, female
- RS-232 serial port DB-9, female TCP/IP Control RJ45, female
- IR Input ports 9x5v 3.5mm stereo jack
- IR Output ports 8x5v 3.5mm mono jack
- Rack-Mountable 1U rack height, rack ears included
- Casing Dimensions (W x H x D) 440mm x 300mm x 43mm, without feet
- Dimensions (W x D x H) 440mm x 305mm x 43mm, with feet
- Shipping Weight 2.7kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Power Supply 12V/5A DC (main) & 24V/6A DC (POH)
