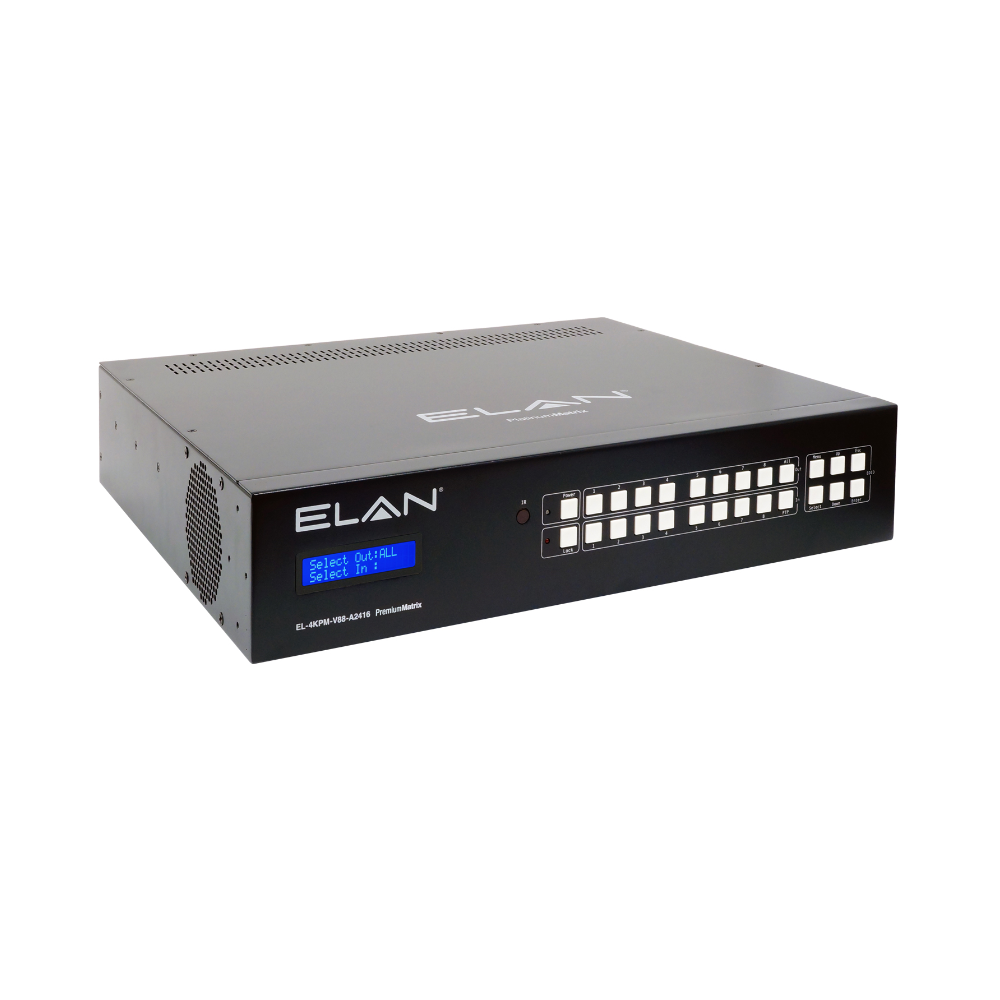

The Nice/ELAN Premium HDMI Audio/Video Matrices delivers a range of industry leading features. The EL-4KPM-V88-A2416 is a 4K HDCP 2.2 compliant 8×8 video matrix, transmitting HDMI, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable. The matrix also provides a 24×16 audio matrix with advanced features; including independent audio routing, Audio Return Channel (ARC), simultaneous HDBaseT/HDMI outputs, two HDBaseT inputs , LAN Serving and RS-232 pass through to enable seamless 3rd party control integration. The matrix can be controlled and configured using the built-in web interface module or Nice/ELAN Configuration Software, allowing the user to define audio channels, designate EDID presets and insert audio delays on outputs to correct any lip-sync issues within the system.
FEATURES
- Advanced HDBaseT technology offering uncompressed video and audio with zero latency
- Features 8x HDMI inputs which can be independantly routed to 8x HDBaseT + HDMI outputs
- Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
- Inputs 1 & 2 support dual HDBaseT & HDMI to enable integration of remote HDMI sources up to 1080p 70m distance (4K up to 40m)
- Up to 24×16 Audio Matrix independently controllable from video:
- 8x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT/HDMI outputs
- HDMI audio breakout to Coaxial digital and analog L/R audio outputs with variable pre-amp line level control
- Supports ARC (Audio Return Channel) via HDMI or Optical digital inputs from compatible EL-4KHDBT-RX-70-E-ARC-IRS receivers
- Extends HDMI up to distance of 100m over single CAT cable
- Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal displaySupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Integrated Ethernet switch (LAN Serving) when used with EL-4KHDBT-RX-70-E-ARC-IRS (sold separatley). EL-4KHDBT-RX-70-E-ARC-IRS features a 3 port 10/100 Ethernet switch
- Web interface module for control and configuration of Matrix
- Bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)
- Bi-directional IR from all input and output locations
- Includes 8 x 5v-to-12v IR converter cables for IR Input and 2 RS-232 control cables

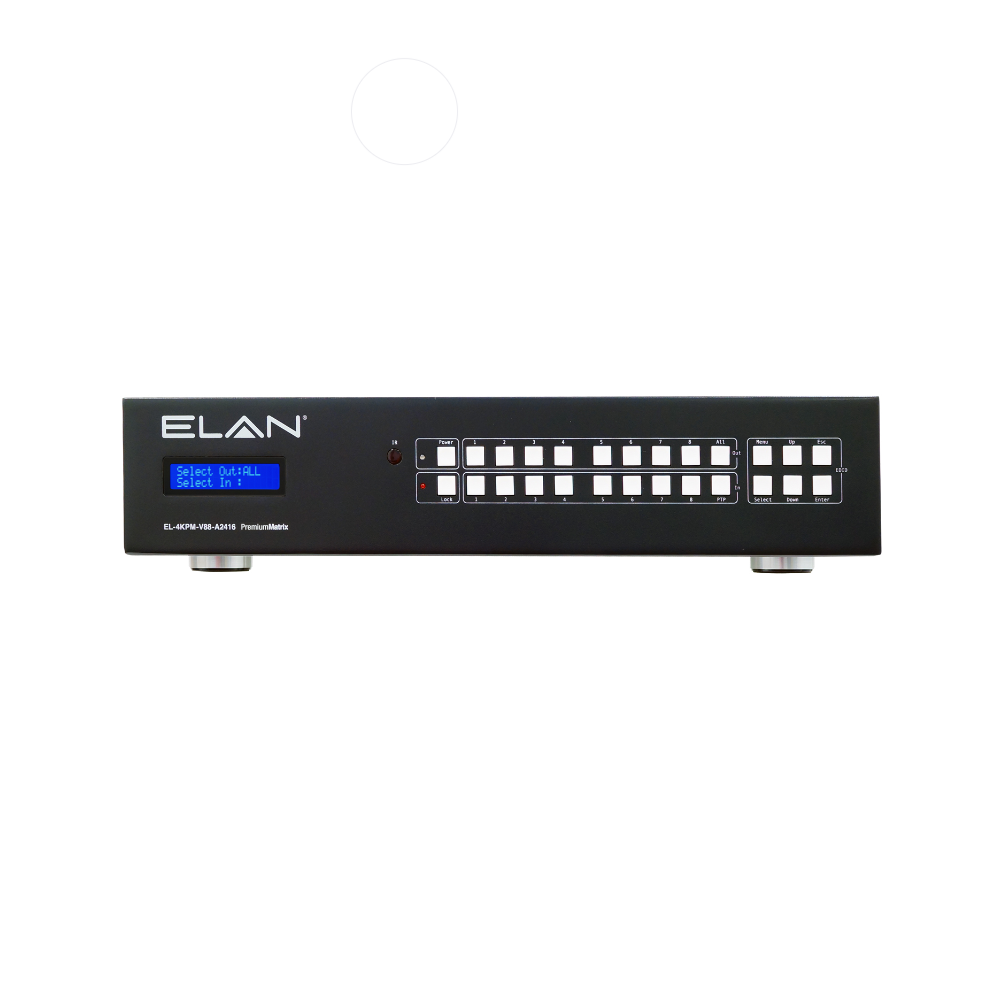

- Control of Matrix via front panel , IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT) to power compatible HDBaseT transmitters & receivers
- 3rd Party drivers available for all major home control brands
- Advanced EDID management HDCP 2.2 compliant
- 2U Design for 19″ rack mount integration – Mounting kit included
SPECIFICATIONS

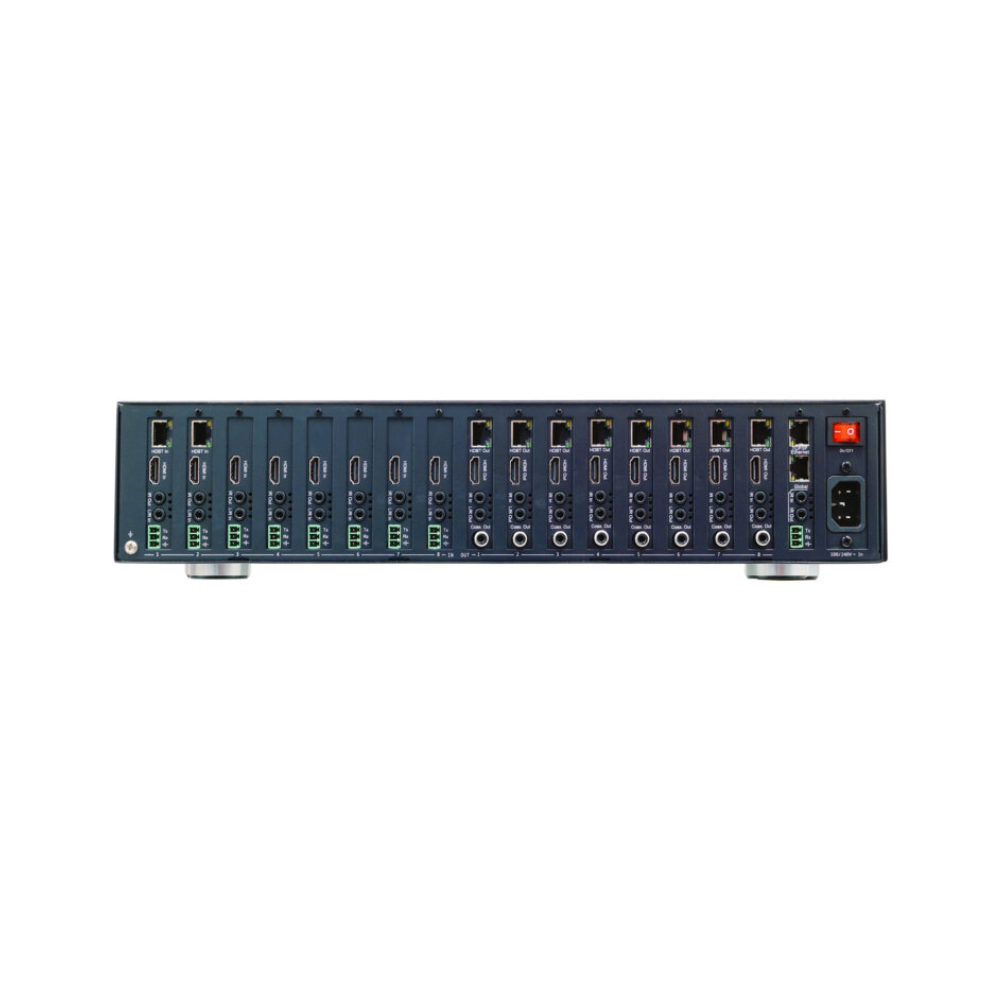

Video Input Connectors :8x HDMI Type A, 19-pin, female
:2x HDBaseT RJ45 connector
Video Output Connectors :8x HDMI Type A, 19-pin, female :8x HDBaseT RJ45 connector
Audio Input Connectors :8x 3.5mm stereo jack (L/R)
Audio Output Connectors :8x RCA (SPDIF) :8x 3.5mm stereo jack (L/R)
RS-232 serial ports :9x 3-Pin Phoenix connector
TCP/IP Control :RJ45, female Ethernet/Network :RJ45, female
IR Input ports :9x5v 3.5mm stereo jack
IR Output ports :9x5v 3.5mm mono jack
Rack-Mountable :2 U rack height, rack ears included
Casing Dimensions (W x H x D) :440mm x 87mm x 361m, without feet
Dimensions Including Connections (W x H x D) :440mm x 87mm x 369mm, with feet
Shipping Weight :8.8kg
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-4°F to 140°F (-20°C to 60°C)
Power Supply :Internal 100-240v DC
OTHER SPECIFICATIONS
Shipping Info
- Length24.02 (Inches)
- Width21.26 (Inches)
- Height10.83 (Inches)
- Weight31.97 (Lbs)
- Unit of MeasureEach
- UPC844039013439
Other Specifications
- Video Input Connectors 8x HDMI Type A, 19-pin, female
- 2x HDBaseT RJ45 connector
- Video Output Connectors 8x HDMI Type A, 19-pin, female 8x HDBaseT RJ45 connector
- Audio Input Connectors 8x 3.5mm stereo jack (L/R)
- Audio Output Connectors 8x RCA (SPDIF) 8x 3.5mm stereo jack (L/R)
- RS-232 serial ports 9x 3-Pin Phoenix connector
- TCP/IP Control RJ45, female Ethernet/Network RJ45, female
- IR Input ports 9x5v 3.5mm stereo jack
- IR Output ports 9x5v 3.5mm mono jack
- Rack-Mountable 2 U rack height, rack ears included
- Casing Dimensions (W x H x D) 440mm x 87mm x 361m, without feet
- Dimensions Including Connections (W x H x D) 440mm x 87mm x 369mm, with feet
- Shipping Weight 8.8kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Power Supply Internal 100-240v DC
