- Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
- Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT outputs
- Output 1 features simultaneous HDMI and HDBaseT output
- Video down-conversion on HDBaseT outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0, or 1080p) to receive 4K 60Hz 4:4:4 video content, while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 70m, and 1080p video up to 100m
- 26×8 Audio Matrix independently controllable from video. Audio source inputs include:- 8 x audio breakout from HDMI source inputs- 8 x audio breakout from zone outputs – 8 x ARC from zone outputs*- 1 x Optical and 1 x analogue audio input
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Web interface module for control and configuration of Matrix
- Supports bi-directional IR and RS-232 on all HDBaseT outputs
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoC (Power over Cable) to power compatible HDBaseT receivers
- Supplied with Nice/ELAN 5V 3.5mm IR receivers and emitters
- Advanced EDID management and HDCP 2.2 compliant *ARC feature compatible with EL-4KHDBT-RX-70-ARC-18G only
SPECIFICATIONS
Video Input Connectors: 8 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT RJ45 connectors.
Audio Input Connectors:1 x Analog audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)
Audio Output Connectors:8 x Analog audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF) RS-232
Serial Port: 9 x 3-pin phoenix connector
IR Input Ports:9 x 3.5mm stereo jack
IR Output Ports:9 x 3.5mm mono jack
Rack Mountable: 2U rack height, rack ears included
Casing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet)
Shipping Weight:10.5kg
Operating Temperature:32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: Internal 100-240V AC HDBT
Power Output:24V DC 0.75A Per Port
Certifications: FCC NOTICE
Package Contents:

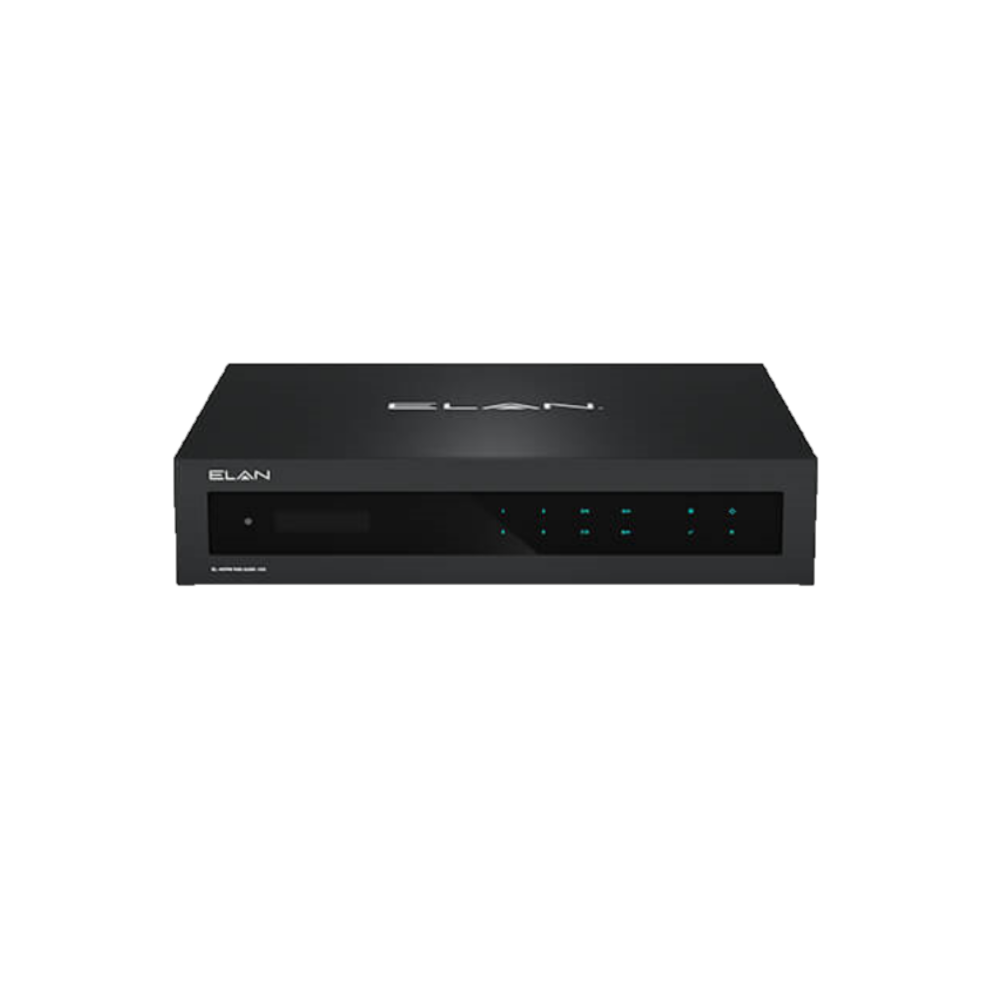

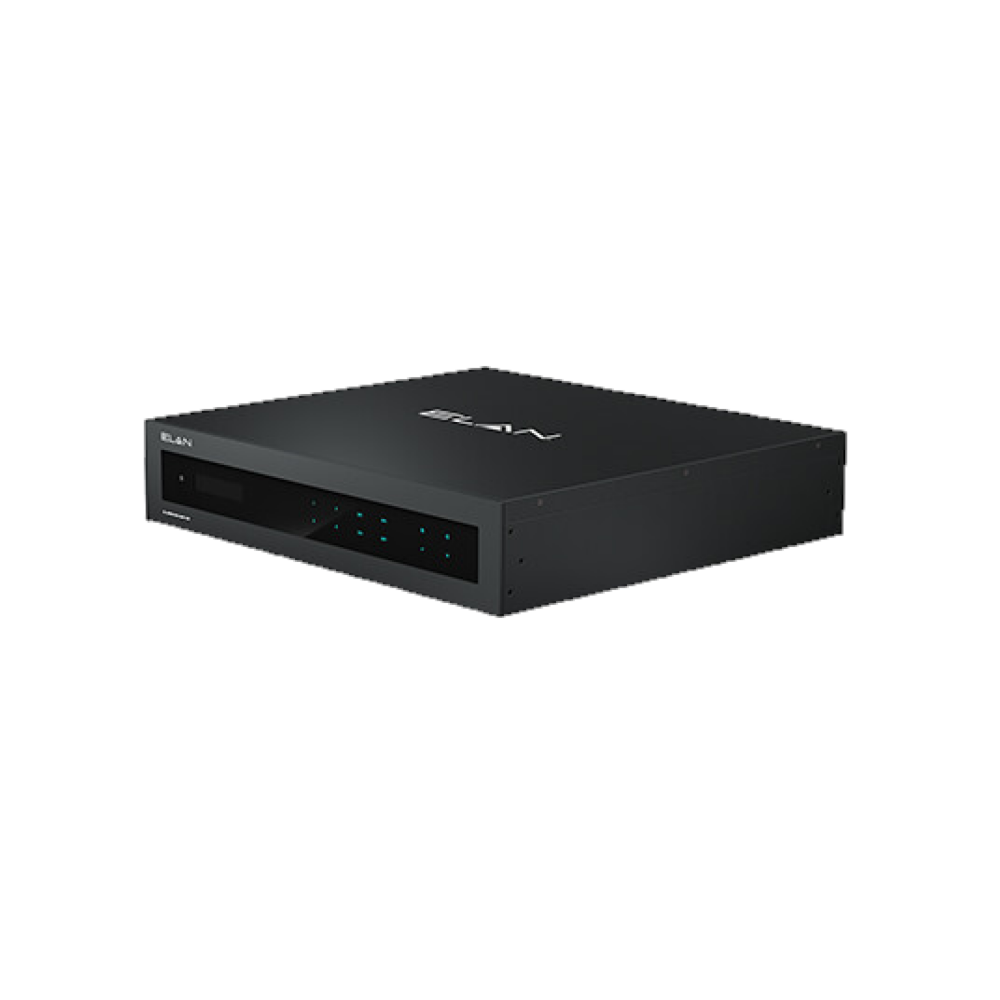

- 1 x EL-4KPM-V88-A268-18G
- 1 x Rack Mounting Kit
- 1 x Remote Control
- 8 x IR Emitters
- 9 x IR Receivers
- 1 x Serial Cable – DB9 to 3-pin phoenix Connector
- 1 x IR Control Cable – 3.5mm to 3.5mm
- 1 x Quick Reference Guide
- IEC Power Cable(s) Note: Battery not included. CR2025 battery required for remote control.
