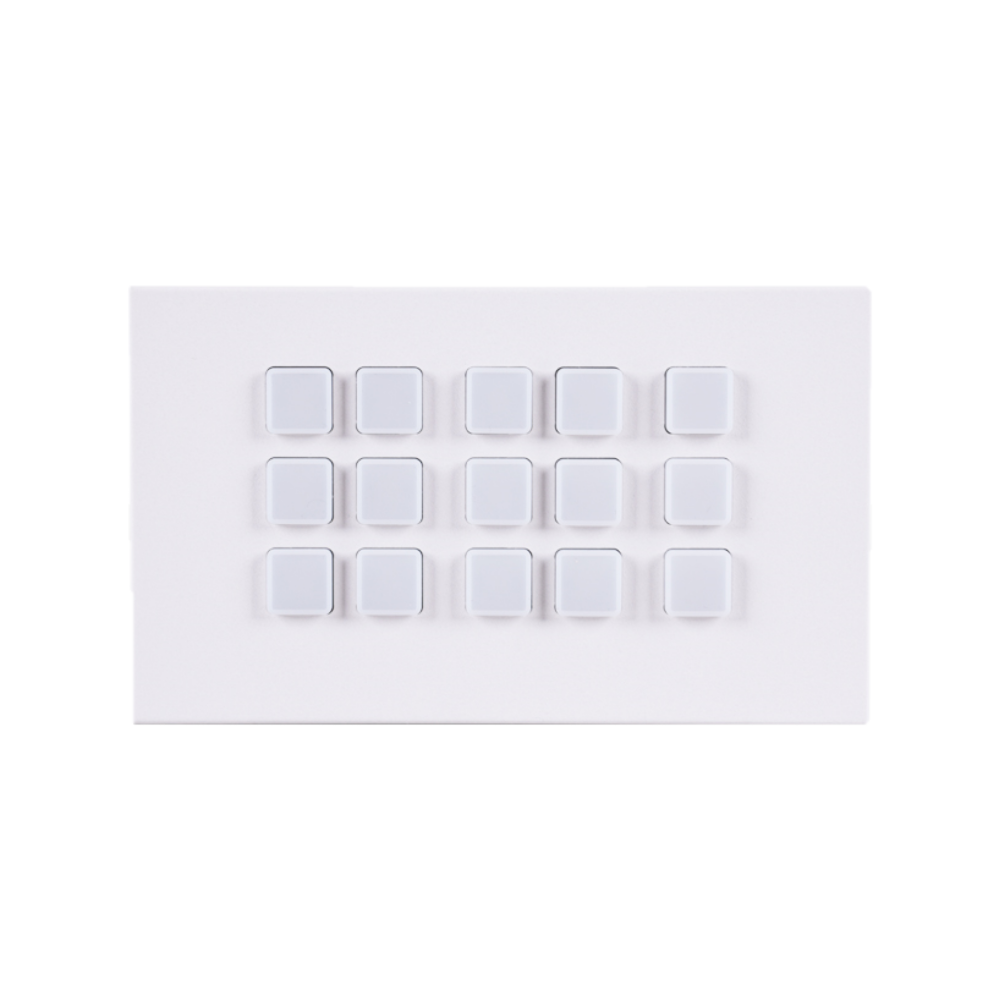

- UK 2 or 1 gang wall plate design with adjustable LED brightness
- 30 (18 on the 1 gang) macros for controlling user equipment
- Up to 128 total commands can be stored and used across all macros in the system (up to 16 per macro)
- Supports relay triggers to control compatible devices
- Supports time and date macro scheduling (single and recurring)
- Supports 48 hours of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss
- Supports customizable daylight savings time settings for scheduling
- Supports Keypad, Telnet and WebGUI control
- Supports PoE or DC power supply
- Multiple uses for home, hotel rooms, central control rooms, conference rooms, etc.
Outputs
- 1x RJ45 [1x IP Control]
- 2x 2-Pin Terminal Block [2x Relay]
PSU:
- 5V/2.6A
Dimensions
- 146mm [W] x 86mm [D] x 40mm [H]
Net Weight
- 226g
