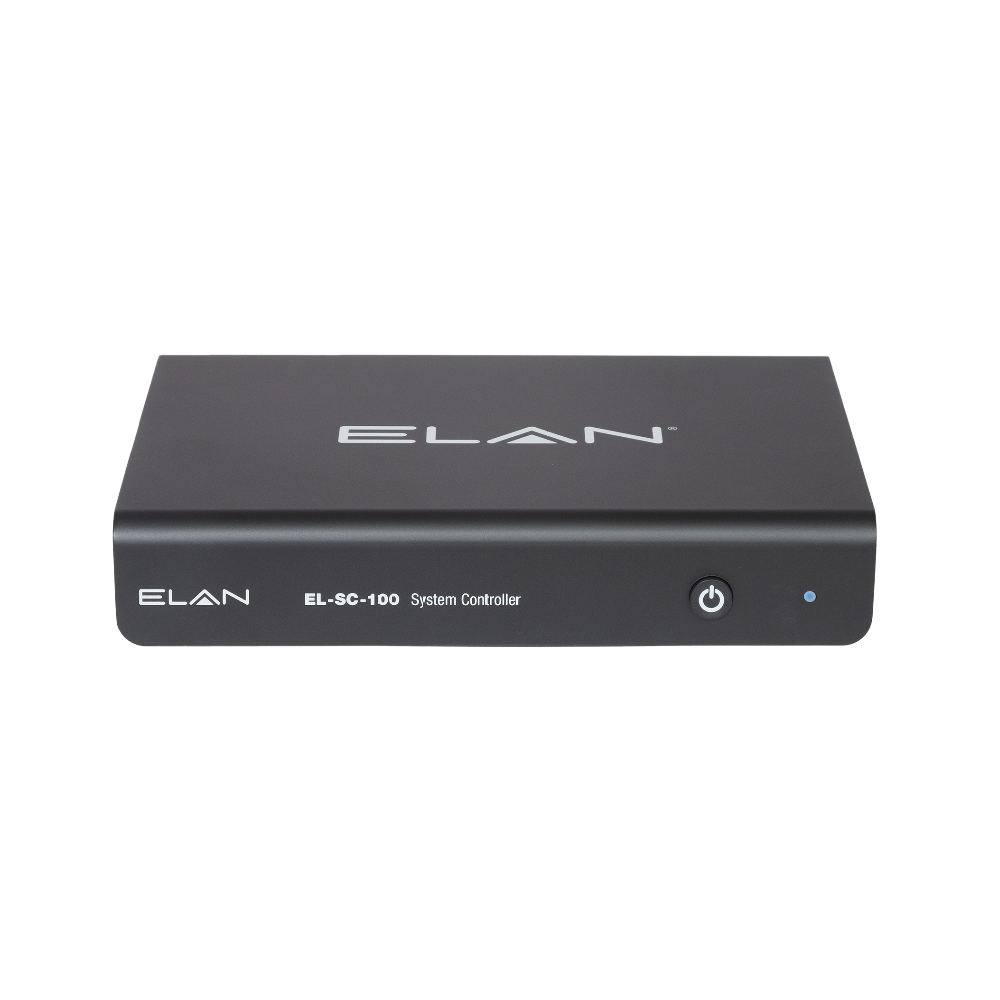

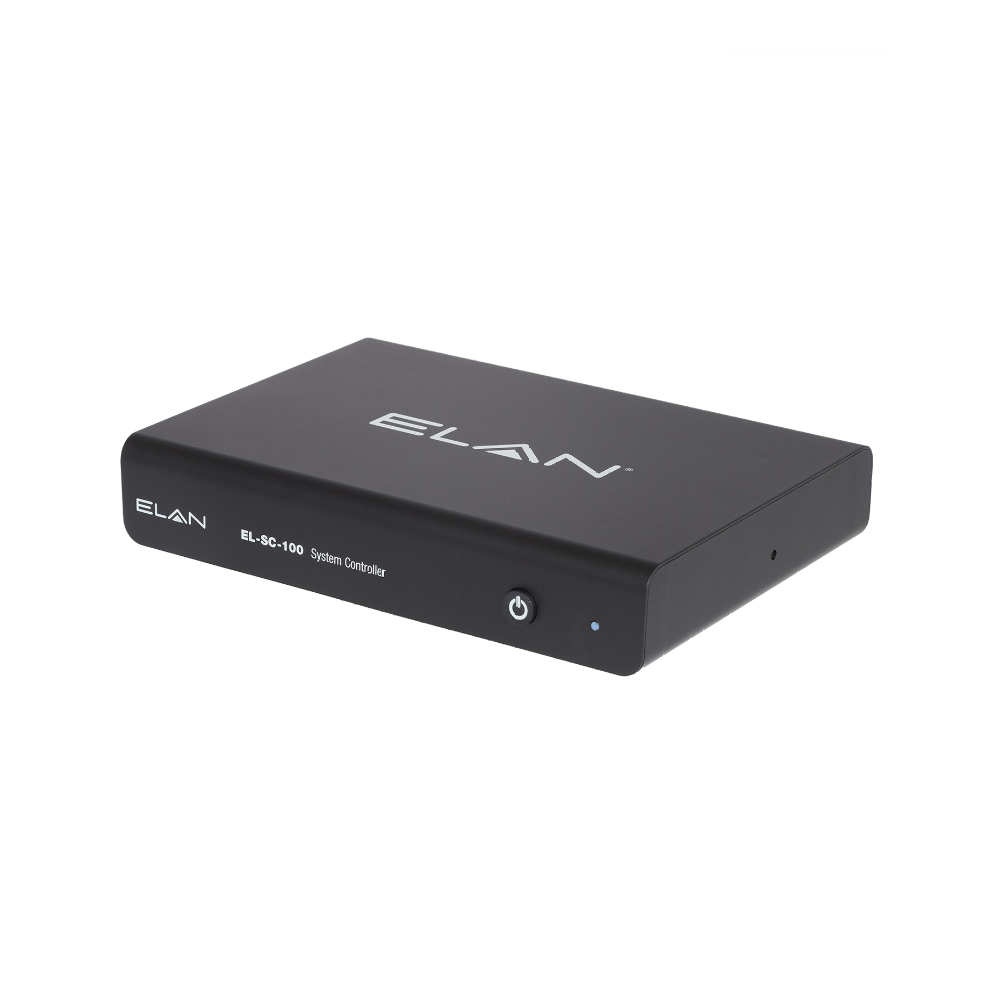

EL-SC-100
System Controller

The EL-SC-100 provides a single point of control and automation for media, climate, lighting, door locks, and more.

The Nice/ELAN¨ SC-100 System Controller offers robust performance at a price point that creates new opportunities for more smaller setups. For smaller to moderate installations the EL-SC-100 provides a single point of control and automation for media, climate, lighting, security, surveillance and more. Pair with the EL-IO-200 as a cost-effective way of adding control connections to another area.

The Nice/ELAN SC-100 includes integrated Z-Wave, which eliminates the need to add third-party hardware (with optional EL-SC-ZW Z-Wave transceiver). Backed by and controlled through our award-winning Nice/ELAN user interface, the EL-SC-100 delivers an exceptional experience.

FEATURES

  • Compatibility – Control all your devices, no matter what the format. Integrated IP, serial, and infrared control in a one-box design.
  • Multi-Platform Experience – Themes and layouts will be consistent across all your devices, whether you’re using the Nice/ELAN¨ Touch Panels or Mobile and Desktop Apps.
  • Compact – The design allows for installation in cabinets, structured wiring cabinets or behind a display.
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to greatly reduce the amount of cables needed.
  • Z-WAVE¨ Integration – Z-Wave functionality enables control and automation of compatible Z-Wave devices. Requires optional Z-Wave Transceiver EL-SC-ZW
  • Network Flexibility – Connect these devices wired or wirelessly to the network for reliable control of all your devices; allowing for more installation flexibility.
  • A great partner – Pair with the EL-IO-200 Control Extender on larger or decentralized installations.

SPECIFICATIONS

RS-232 : (1) RJ-45 Connector
ELAN Sense : (1) 3.5mm Connector
IR Output : (3) 3.5mm Connectors (Mono), – 12V DC
Audio : (1) 3.5mm Connectors (Stereo)
On-Screen Display: (1) HDMI Female Connector
USB : (1) USB A Connector
Ethernet: (1) RJ-45 PoE Connector
Wi-Fi : 802.11 b/g/n
Power: Coaxial Type A, 2.5mm inside diam.
Included Power Supply: 120/240VAC input 12VDC 1A output
Temperature : 32 °F to 131 Degrees° F
Operating Humidity : 90% Maximum (Non-Condensing)
Mounting : Free standing, Wall mount, Structured wiring cabinet

Dimensions: (in.) 6 15/16 W x 1 1/4 H x 5 D

  • (mm) 176 W x x 31 H x 126 D

Weight:0.8 lb / 0.36 Kg
Certifications:CE, FCC, C-Tick
Software compatibility:Requires Core Module 8.4 or above
Updates:Managed by Core Module software
