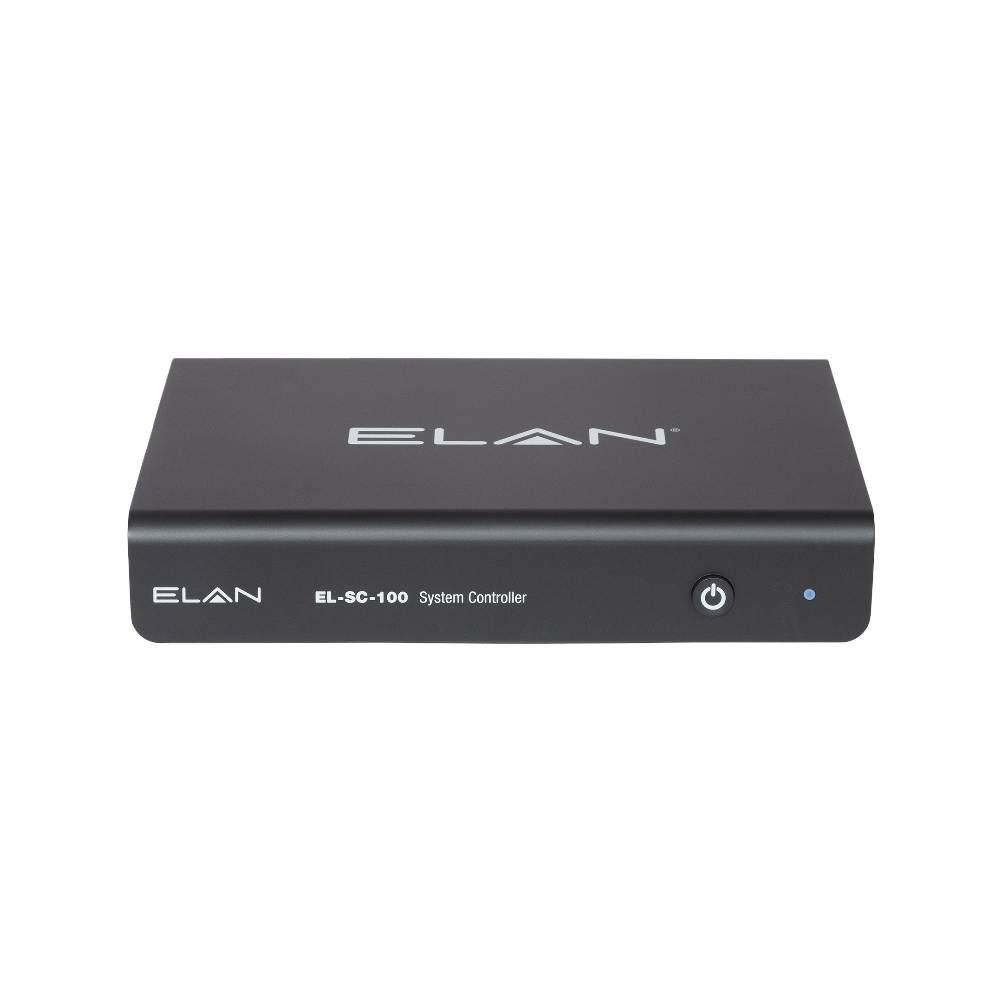

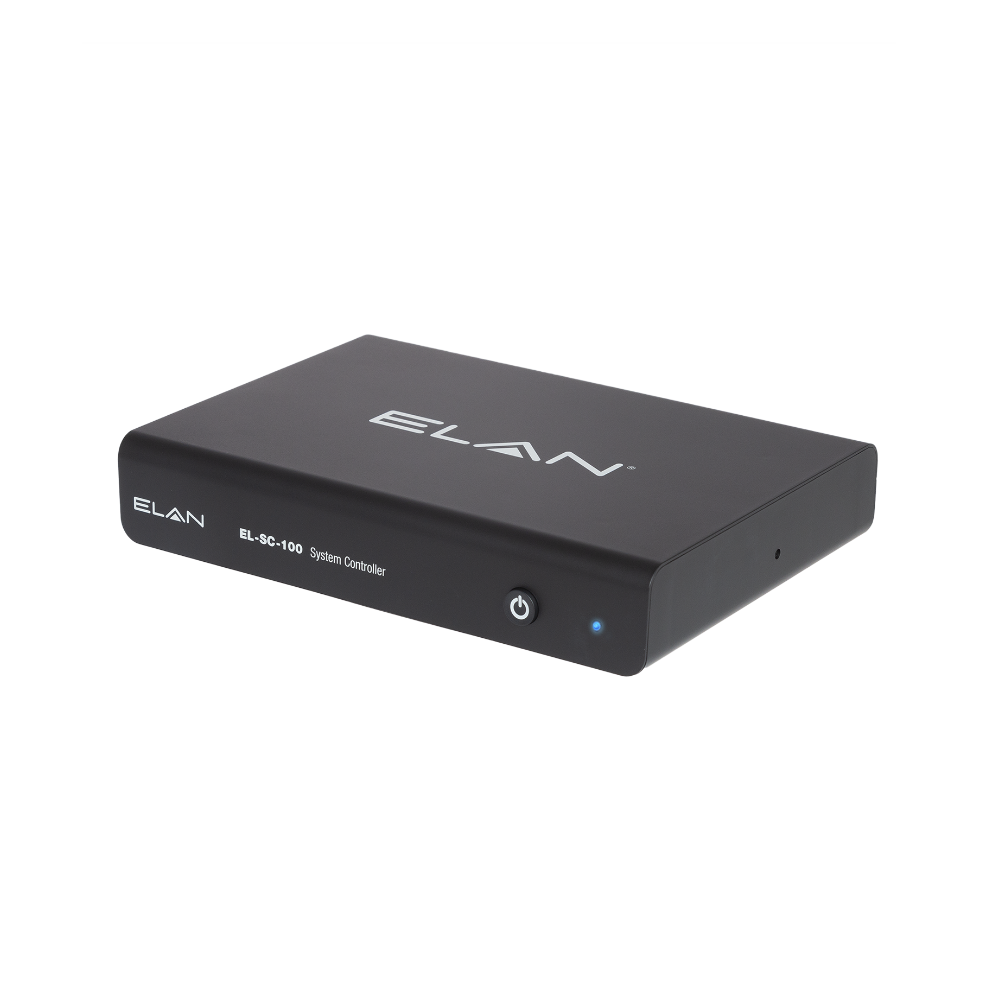

EL-SC-100-ZW
System Controller with Z-Wave

The EL-SC-100-ZW provides a single point of control and automation for media, climate, lighting, door locks, and more.

The Nice/ELAN¨ SC-100-ZW System Controller offers robust performance at a price point that creates new opportunities for more smaller setups. For smaller to moderate installations the EL-SC-100-ZW provides a single point of control and automation for media, climate, lighting, security, surveillance and more. Pair with the EL-IO-200 as a cost-effective way of adding control connections to another area.

The Nice/ELAN SC-100-ZW includes integrated Z-Wave, which eliminates the need to add third-party hardware. Backed by and controlled through our award-winning Nice/ELAN user interface, the EL-SC-100-ZW delivers an exceptional experience.

FEATURES

  • Compatibility – Control all your devices, no matter what the format. Integrated IP, serial, and infrared control in a one-box design.
  • Multi-Platform Experience – Themes and layouts will be consistent across all your devices, whether youÕre using the Nice/ELAN¨ Touch Panels or Mobile and Desktop Apps.
  • Compact – The design allows for installation in cabinets, structured wiring cabinets or behind a display.
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to greatly reduce the amount of cables needed.
  • Z-WAVE¨ Integration – Included Z-Wave functionality enables control and automation of compatible Z-Wave devices.
  • Network Flexibility – Connect these devices wired or wirelessly to the network for reliable control of all your devices; allowing for more installation flexibility.
  • A great partner – Pair with the EL-IO-200 Control Extender on larger or decentralized installations.

SPECIFICATIONS

EL-SC-100 Specifications:

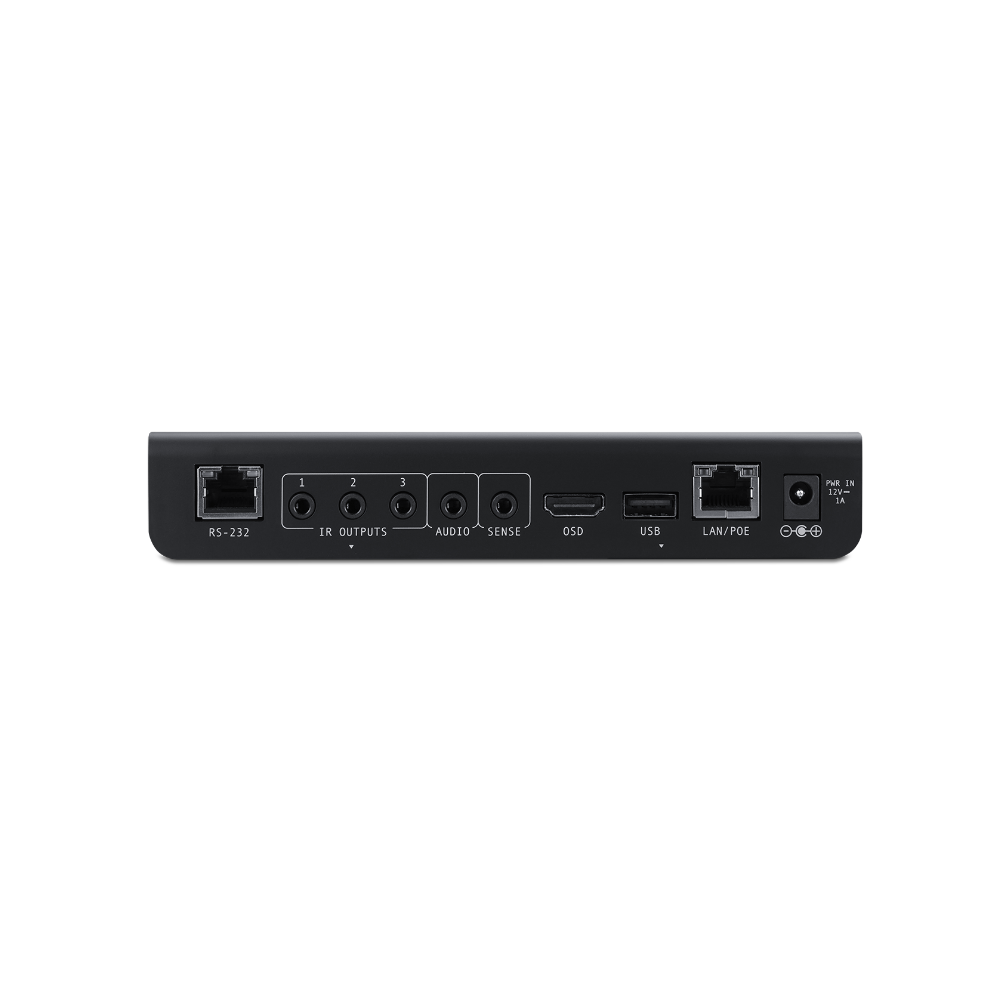

CONNECTIONS:
RS-232:(1) RJ-45 Connector
ELAN Sense:(1) 3.5mm Connector
IR Output:(3) 3.5mm Connectors (Mono), – 12V DC
Audio:(1) 3.5mm Connectors (Stereo)
On-Screen Display:(1) HDMI Female Connector
USB:(1) USB A Connector
Ethernet:(1) RJ-45
Wi-Fi:2.4 / 5 GHz 802.11 b/g/n

SYSTEM:
Software compatibility:Requires Core Module 8.4 or above
Updates:Managed by Core Module software

GENERAL:
Power:120/240VAC Input 12VDC 1A output

  • PoE IEEE 802.3af (802.3at Type 1)

Operating Temperature:0° to 40° C
Operating Humidity:90% Maximum (Non-Condensing)
Mounting:Free standing, Wall mount, Structured wiring cabinet
Product Dimensions:(in.)6.975w x 1.25h x 5d

  • (mm.) 176w x 31h x 126d

Product Weight:0.8 lb / 0.36 Kg

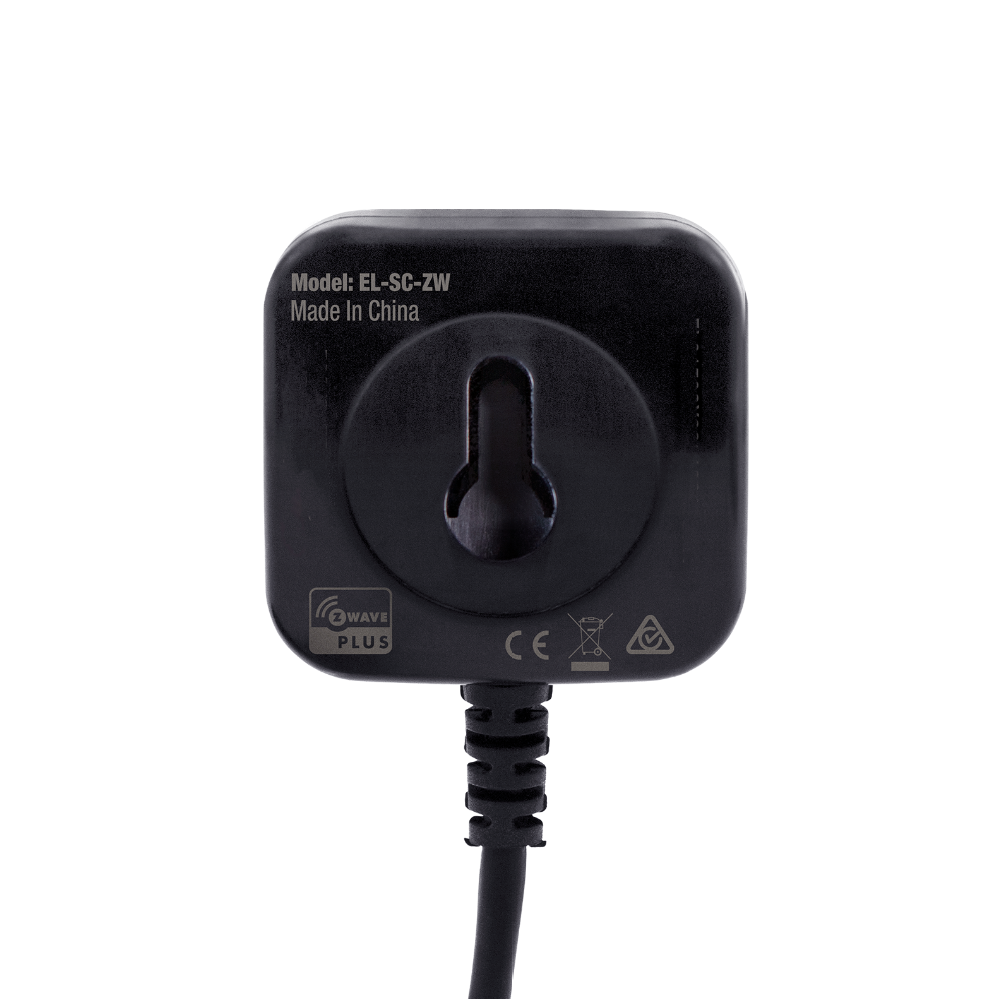

Z-WAVE TRANSCEIVER:
Frequency Band:868.4MHz – 916MHz

RZ-Wave 700 Series
Supported Regions:Multi-Region
Connection:USB / Nice/ELAN Controller
Power Consumption:5V
Power Connection:USB / Nice/ELAN Controller
Operating Temperature:32° to 104°F / 0° to 40°C
Operating Humidity:90% Maximum (Non-Condensing)
Product Dimensions:1.5w x 1.5h x .5d in. / 40w x 40h x 17d mm
Connector Cable Length:6.5 feet / 2 meters
