EL-SC-200
Serial Controller

A Control Bundle Perfect for Moderate Sized Installations

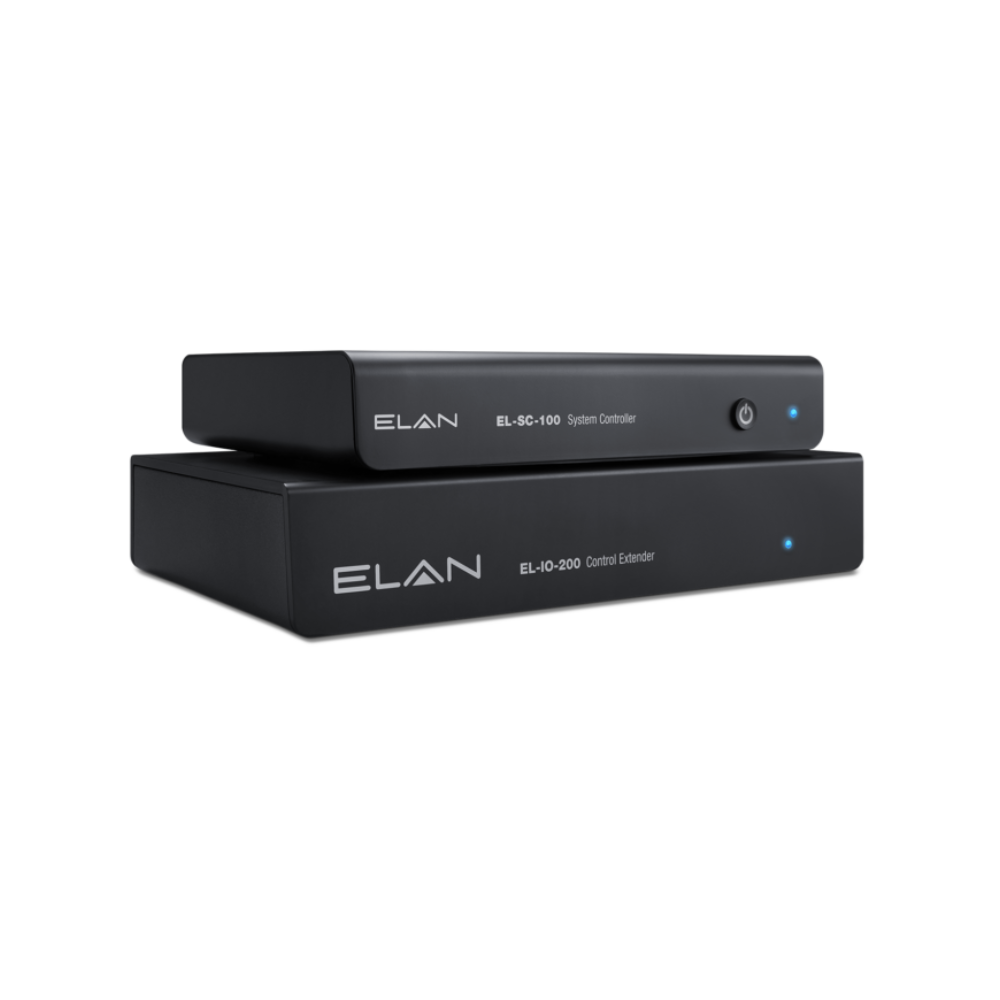

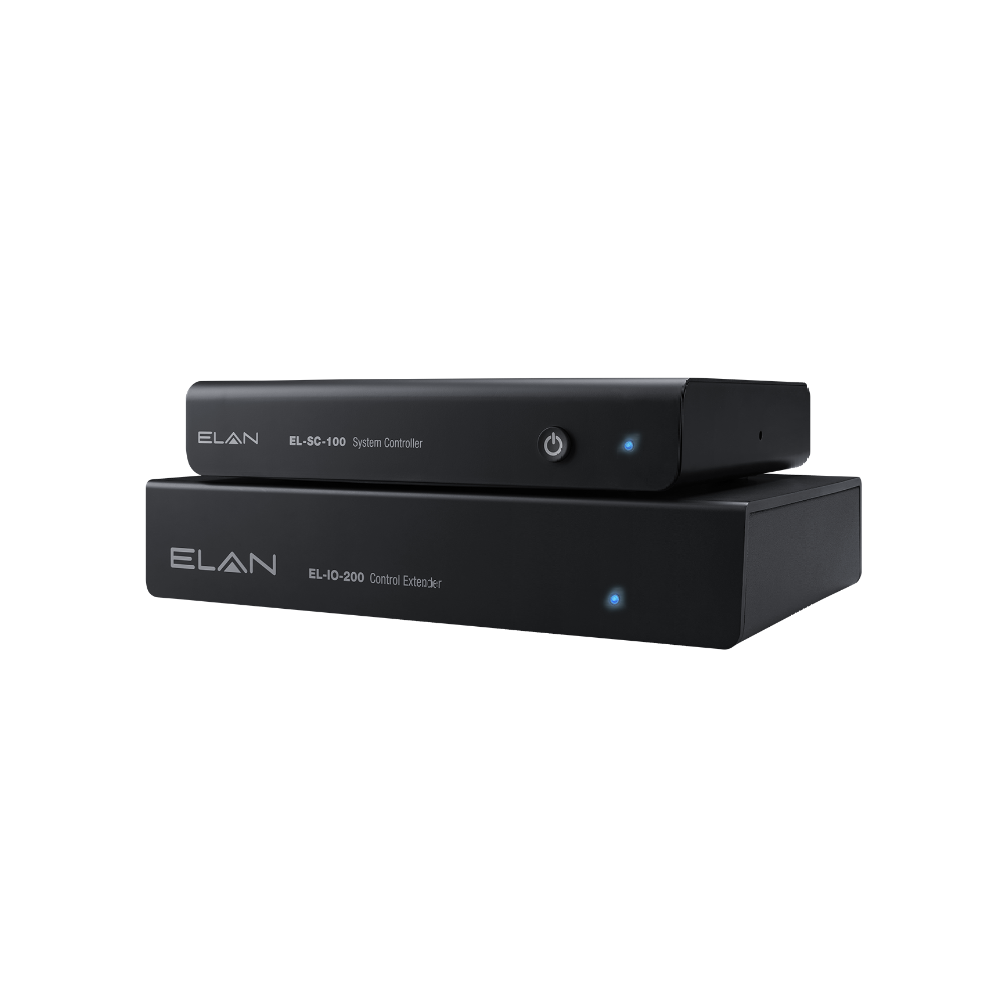

The Nice/ELAN¨ EL-SC-200 System Control Bundle is perfect for moderate sized or decentralized installations. The EL-SC-200 bundles our EL-SC-100 System Controller, EL-IO-200 Control Extender and ties it all together with an EL-SW-100-PRO license to seamlessly provide control and automation for media, climate, lighting, security, surveillance and more.

And now with Z-Wave onboard, the Nice/ELAN SC-200 eliminates the need for additional third-party hardware to control Z-Wave devices (with optional EL-SC-ZW Z-Wave transceiver). Backed by and controlled through our award-winning user interface, the EL-SC-200 delivers an exceptional experience.

FEATURES

  • Compatibility – Control all your devices, no matter what the format.
  • Multi-platform Experience – Themes and layouts will be consistent across all devices, whether you’re using the Nice/ELAN Touch Panels or Mobile and Desktop Apps.
  • Compact – The design allows for installation in cabinets, structured wiring cabinets or other tight locations
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to reduce the amount of cables needed.

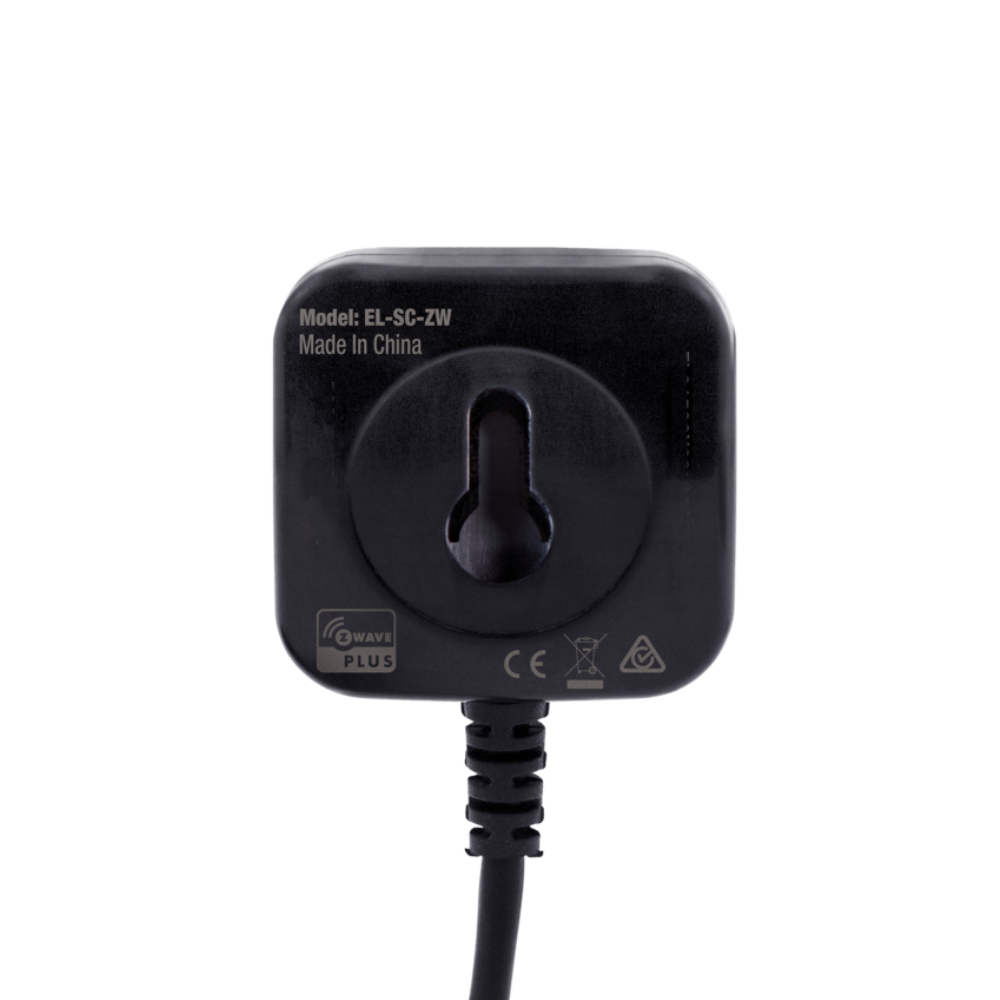

  • Z-WAVE¨ Integration – Z-Wave functionality enables control and automation of compatible Z-Wave devices. Requires optional Z-Wave Transceiver EL-SC-ZW
  • OSD – Connection for OSD to control your Nice/ELAN system from any display.
  • Audio Output – Allows video doorbells to play chimes throughout the home audio system Network
  • Flexibility – Connect these devices wired or wirelessly to the network for reliable control of all your devices; allowing for more installation flexibility.

SPECIFICATIONS

EL-IO-200 Specifications

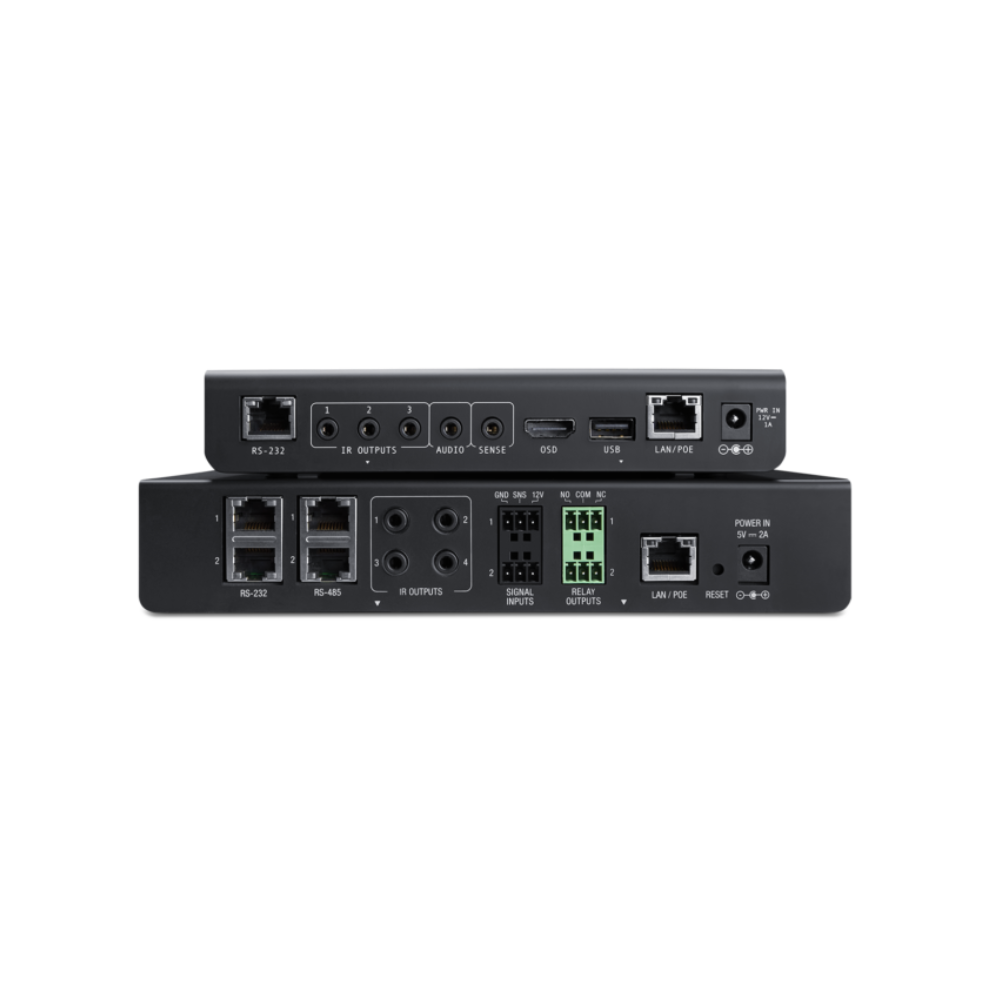

CONNECTIONS:

RS-232: (2) RJ-45 ports. Null modem configurable
RS-485: (2) RJ-45 ports
IR Output: (4) 3.5mm ports. (Mono), – 12V DC
Signal Input: (2) Terminal Block Connectors 3-pin
Relay: (2) Terminal Block Connectors 3-pin
Ethernet: (1) RJ-45 port PoE IEEE 802.3af (802.3at Type 1)
Power: (1) 120/240VAC 5V 2A Output

  • PoE IEEE 802.3af (802.3at Type 1)

Wi-Fi: 2.4 / 5 GHz 802.11 b/g/n/ac

SYSTEM:

Software compatibility: Refer to the integration note for compatibility
Updates: Managed by Core Module Software

GENERAL:

Operating Temperature: 0° to 40° C
Operating Humidity: 90% Maximum (Non-Condensing)
Mounting: Free standing, Wall mount, structured wiring cabinet
Product Dimensions: (in.) 8.46in W x 1.63in H x 5in D

  • 215mm W x 41.5mm H x 127mm D)

Weight: 1.8 lbs, 11oz / 3.95kg

EL-SC-100 Specifications
CONNECTIONS:

RS-232:(1) RJ-45 Connector
ELAN Sense:(1) 3.5mm Connector
IR Output:(3) 3.5mm Connectors (Mono), – 12V DC
Audio:(1) 3.5mm Connectors (Stereo)
On-Screen Display:(1) HDMI Female Connector
USB:(1) USB A Connector
Ethernet:(1) RJ-45
Wi-Fi:2.4 / 5 GHz 802.11 b/g/n

SYSTEM:

Software compatibility:Requires Core Module 8.4 or above
Updates:Managed by Core Module software

GENERAL:

Power:120/240VAC Input 12VDC 1A output : PoE IEEE 802.3af (802.3at Type 1)
Operating Temperature:0° to 40° C
Operating Humidity:90% Maximum (Non-Condensing)
Mounting:Free standing, Wall mount, Structured wiring cabinet
Product Dimensions:(in.)6.975w x 1.25h x 5d : (mm.) 176w x 31h x 126d
Product Weight:0.8 lb / 0.36 Kg
