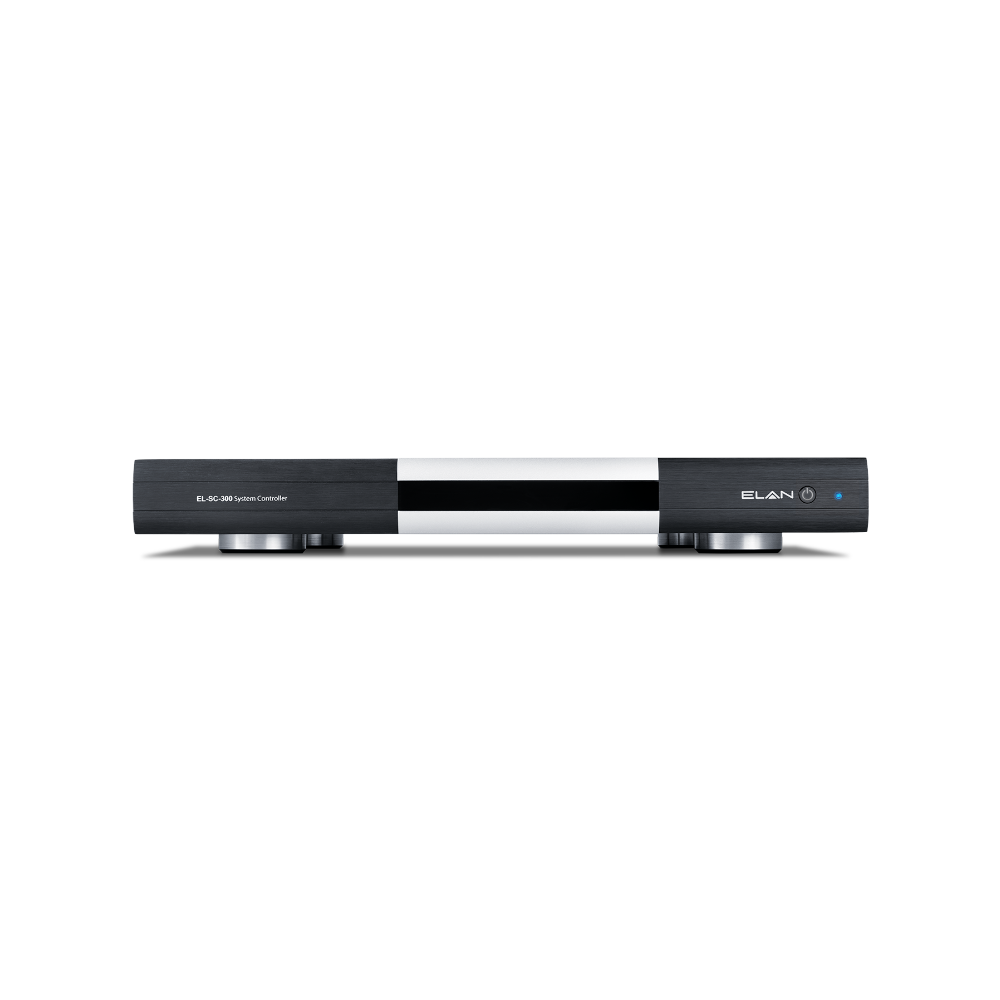

EL-SC-300-ZW
System Controller with Z-Wave

A Flagship Controller for Your Most Demanding Installations

The EL-SC-300-ZW is the premium control center for the connected home. It brings together all your intelligent devices and allows them work together in one seamless system. Control media, lighting, climate, pool/spa, irrigation, and more through a single app interface.

The EL-SC-300-ZW is the flagship Nice/ELAN¨ controller for your most demanding installations. With options for RS-232, RS-485, Relays, IR, IP, input sensors, and Z-Wave control, the EL-SC-300-ZW gives you the ultimate flexibility for a system of virtually any size.

FEATURES

  • Compatibility – Control all of your devices, no matter what the format. Integrated IP, serial, and infrared control in a one-box design
  • Multi-platform Experience – Themes and layouts will be consistent across all devices, whether youÕre using the Nice/ELAN¨ Touch Panels or Mobile or Desktop Apps.
  • Z-WAVE¨ Integration – Included Z-Wave functionality enables control and automation of compatible Z-Wave devices.
  • OSD – Connection for OSD to control your ELAN system from any display.
  • Audio Output – Allows video doorbells to play chimes throughout the home audio system
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to reduce the amount of cables needed.
  • Powerful -The EL-SC-300-ZW packs amazing punch into a single rack space; rack mount hardware included.
  • A great partner – Pair with the EL-IO-200 Control Extender on larger or decentralized installations.

SPECIFICATIONS

SC-300-ZW SPECIFICATIONS

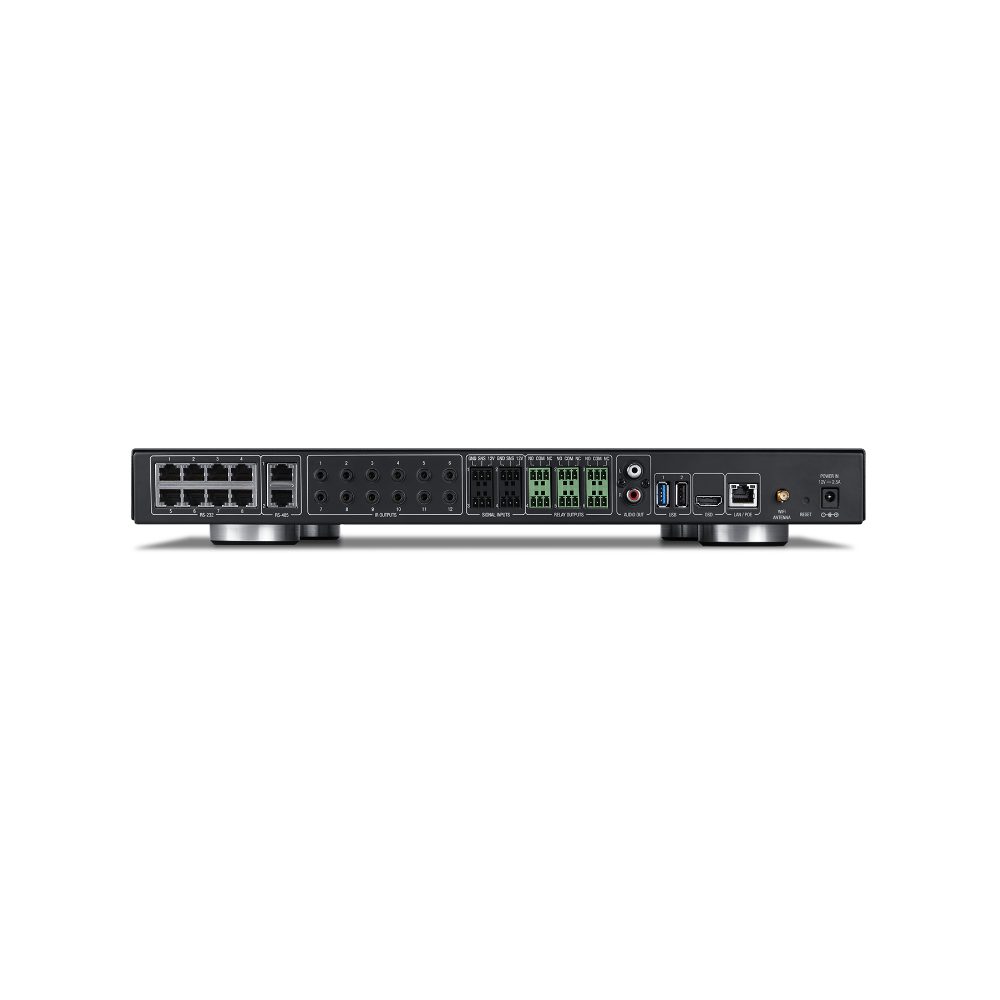

CONNECTIONS:

RS-232: (8) RJ-45 ports. Null modem configurable
RS-485: (2) RJ-45 ports
IR Output: (12) 3.5mm ports. (Mono), – 12V DC
Signal Input: (4) Terminal Block Connectors 3-pin
Relay:(6) Terminal Block Connectors 3-pin
HDMI: (1) For on-screen display 1.4b
USB: (1) 3.0 USB / (1) 2.0 USB
RCA Audio: (2) Stereo audio out
Ethernet: (1) RJ-45 port
Wi-Fi: 2.4 / 5 GHz 802.11 b/g/n/ac

SYSTEM:

Software Compatibility: Requires Core Module 8.6 or above
Updates: Managed by Core Module Software

GENERAL:

Power: 120/240VAC Input 12VDC 1A output
PoE: IEEE 802.3af (802.3at Type 1)
Operating Temperature: 0° to 40° C
Operating Humidity: 90% Maximum (Non-Condensing)
Mounting: Free standing, Rack mount
Product Dimensions:
With feet:17″ W x 2.25″ H x 14″ D: (431.8mm W x 57.2mm H x 355.6mm D)
Without feet, with rack mount brackets: 19″ W x 1.75″ H x 14″ D: 482.6mm W x 44.45mm H x 355.6mm D
Weight: 8 lbs, 11oz / 3.95kg

Z-WAVE TRANSCEIVER

Frequency Band: 868.4MHz – 916MHz
RZ-Wave: 700 Series
Supported Regions: Multi-Region
Connection: USB / Nice/ELAN Controller
Power Consumption: 5V
Power Connection: USB / Nice/ELAN Controller
Operating Temperature: 32° to 104°F / 0° to 40°C
Operating Humidity: 90% Maximum (Non-Condensing)
Product Dimensions: 1.5w x 1.5h x .5d in. / 40w x 40h x 17d mm
Connector Cable Length: 6.5 feet / 2 meters
