Player Generates Pre-recorded IQ Signals by Weiver 2.0 Covering frequencies from 100KHz to 2.7GHz Max. 56MHz bandwidth recording.

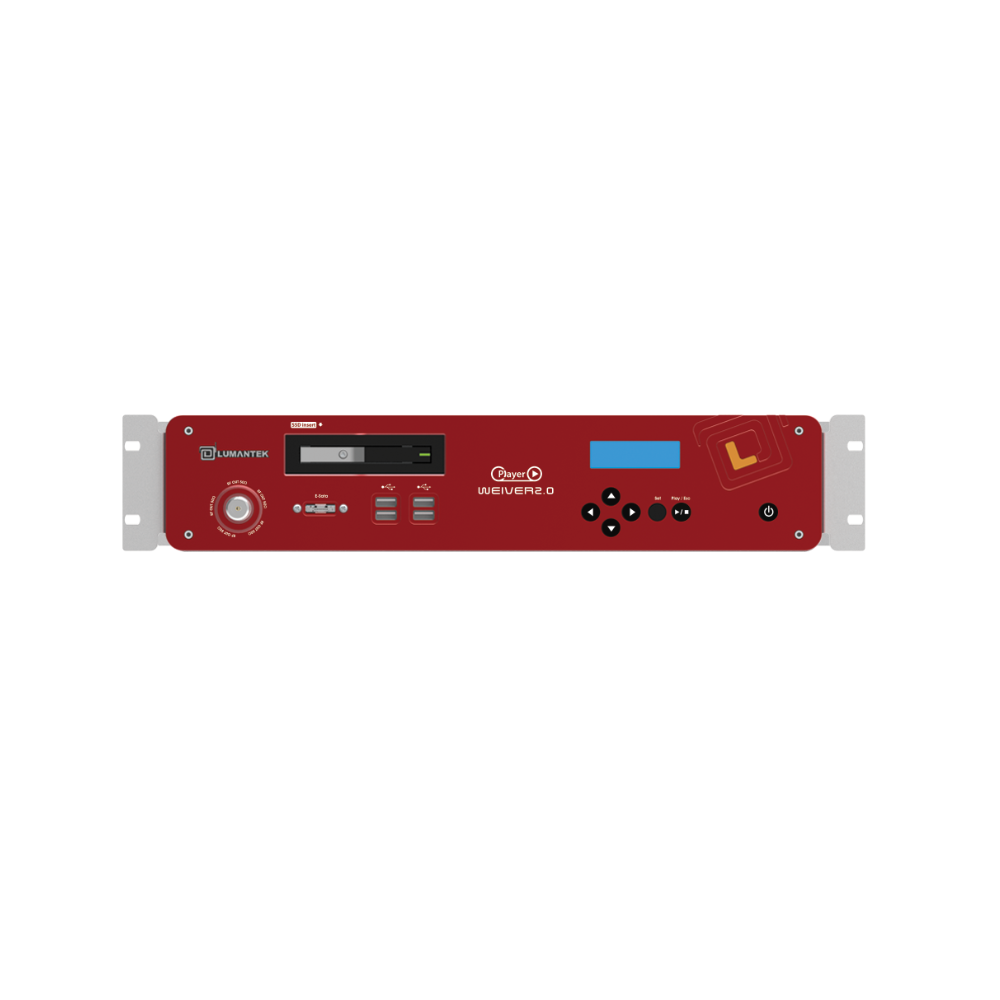

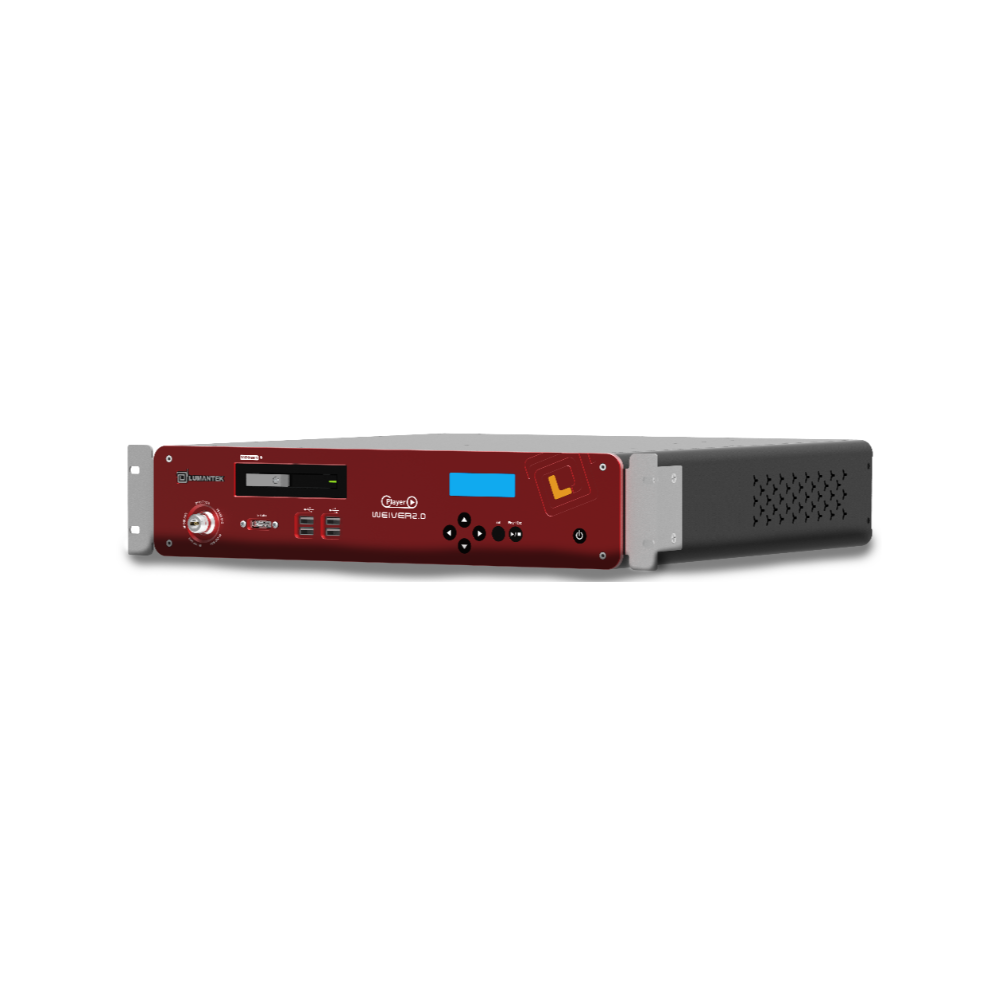

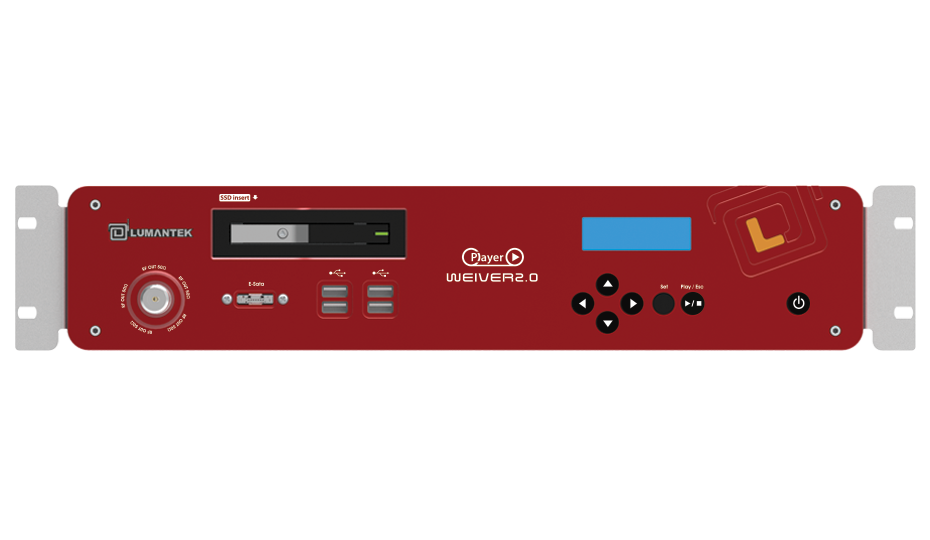

Weiver 2.0 Player

Player Generates Pre-recorded IQ Signals by Weiver 2.0 Covering frequencies from 100KHz to 2.7GHz Max. 56MHz bandwidth recording.

RF PLAYBACK SYSTEM

Play worldwide Broadcasting standards of DTV (FM, AM, ATSC, DVB-T/H, DVB-T2/S2, DVB-C, DMB, CMMB, DTMB, ISDB-T/B, OpenCable, and ATSC 3.0), Radio Broadcasting ATV (NTSC, PAL), RDS, TMC, LTE, Wifi.
WeiverPlayer supports GPS information for accurate locative information to evaluate the strength of the RF signal.

AM Radio to Satellite/GPS

100 KHz to 2.7 GHz, Max 56 MHz Real time Bandwidth playback

Signal Tracer with Google Map

The ‘Signal Tracer’ based on API of the Google map traces information on RF recorded area, RF power for each location, and vehicle speed.

3D spectrum Mask

The world’s first 3D Spectrum Analyzer, user may observe long tail sequence of a spectrum at any angles via mouse.

Resize of Any 1 Hz bandwidth

A unique, Lumantek’s patented technology embedded testing equipment with freely adjustable Bandwidth capability by 1 Hz step.

TECH SPECS

Weiver 2.0 Player

RF PLAYBACK SYSTEM

TECH SPECS

 Frequency
 Frequency band  0.1 to 1 GHz
 Frequency resolution  1Hz step
 Freq. Stability vs. Temp.  ±20 ppb max.
 Daily Aging  ±1 ppb max.
 Aging (PER year)  ±50 ppb max.
 Spectral Purity
 Phase Noise @ 1 KHz offset  ≤ -100 dBc/ Hz (30 MHz)
 ≤ -95 dBc/ Hz (1 GHz)
 ≤ -90 dBc/ Hz (2.7GHz)
 Phase Noise @ 10 KHz offset  ≤ -105 dBc/ Hz (30 MHz)
 ≤ -100 dBc/ Hz (1 GHz)
 ≤ -95 dBc/ Hz (2.7GHz)
 Spurious Responses
 2nd Harmonic  ≤ -50 dBc
 3rd Harmonic  ≤ -60 dBc
 Other  ≤ -60 dBc
 RF Output characteristics
 Gain Range  -30~+30dB (Input Level Basis)
 Amplitude Resolution  0.1dB step (Min.)
 Amplitude Accuracy  ±1dB
 power  0dBm max. (48 to 2700 MHz) /
+ 10dBm max. (0.1 to 48MHz)

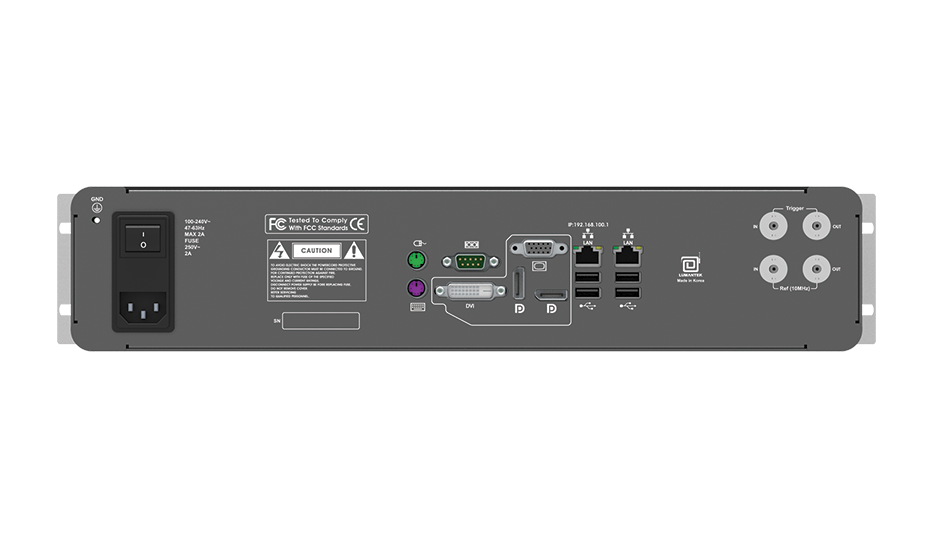

 RF Output
 RF Output Port  50ohm, N type female, DC-coupled
 Max. DC input  ±25 VDC max.
 Max. Reverse RF Power  1W (Max.)
 Environment
 Operating Temperature  0 to +50°C
 Relative Humidity  90%
 Storage temperature  -20 to +70 °C
 Physical Features
 Dimensions  478mm(W) x 88mm(H) x 462mm(D)
 Weight  7.5 kg
 Power Consumption  70W
