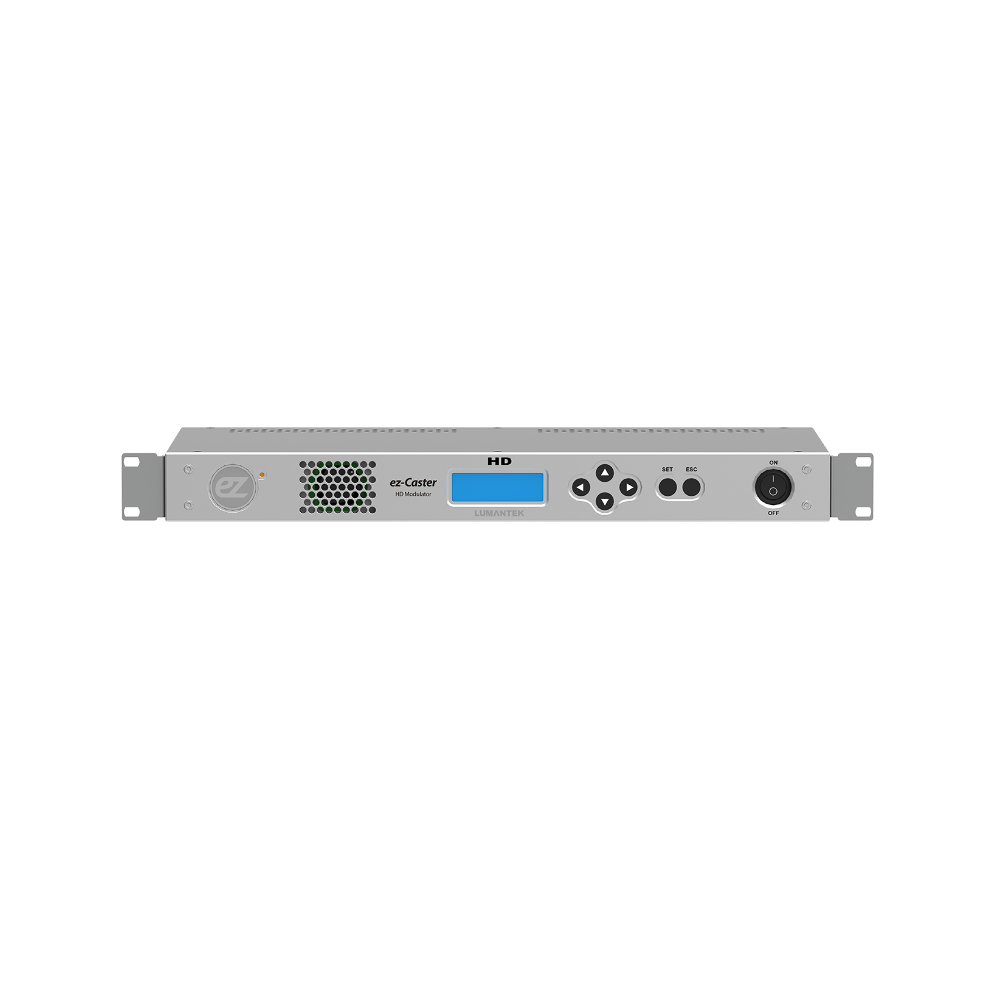

ez-Caster EN3
MPEG2 / H.264 HD Encoder

ez-Caster EN3 is a 1RU size encoder with plenty of input interfaces including Component, Composite, SDI, and HDMI. It can encode in Full HD resolution of Both of MPEG-2 and H.264 format. It can output the signal in ASI, TS Over IP, and ATSC RF out. ez-Caster EN3 also has “TS over IP” output available.

ez-Caster EN3

MPEG2 / H.264 HD ENCODER

All-in-one HD Encoder and ATSC Modulator

ez-Caster EN3 is a 1RU size encoder with plenty of input interfaces including Component, Composite, SDI, and HDMI. It can encode in Full HD resolution of Both of MPEG-2 and H.264 format. It can output the signal in ASI, TS Over IP, and ATSC RF out. ez-Caster EN3 also has “TS over IP” output available.

Brodcasting Quality of MPEG 2 and H.264 HD encoding

Not comseumer grade HD encoding core, and offering both of MPEG 2 and H.264 encoing on professinal brodcasting grade.

Multiple Interfaces

ez-Caster EN3 can receive many types of interfaces. Component, Composite, HDMI and SDI. Such diversity offers flexibility to the user.

150ms Ultra Latency

Fast encoding is available with ez-Caster EN3. You are also going to be able to keep the video quality loss to the minimum.

TS over IP out

In easy installtion , not only support ATSC RF Out, and also support UDP streaming out.

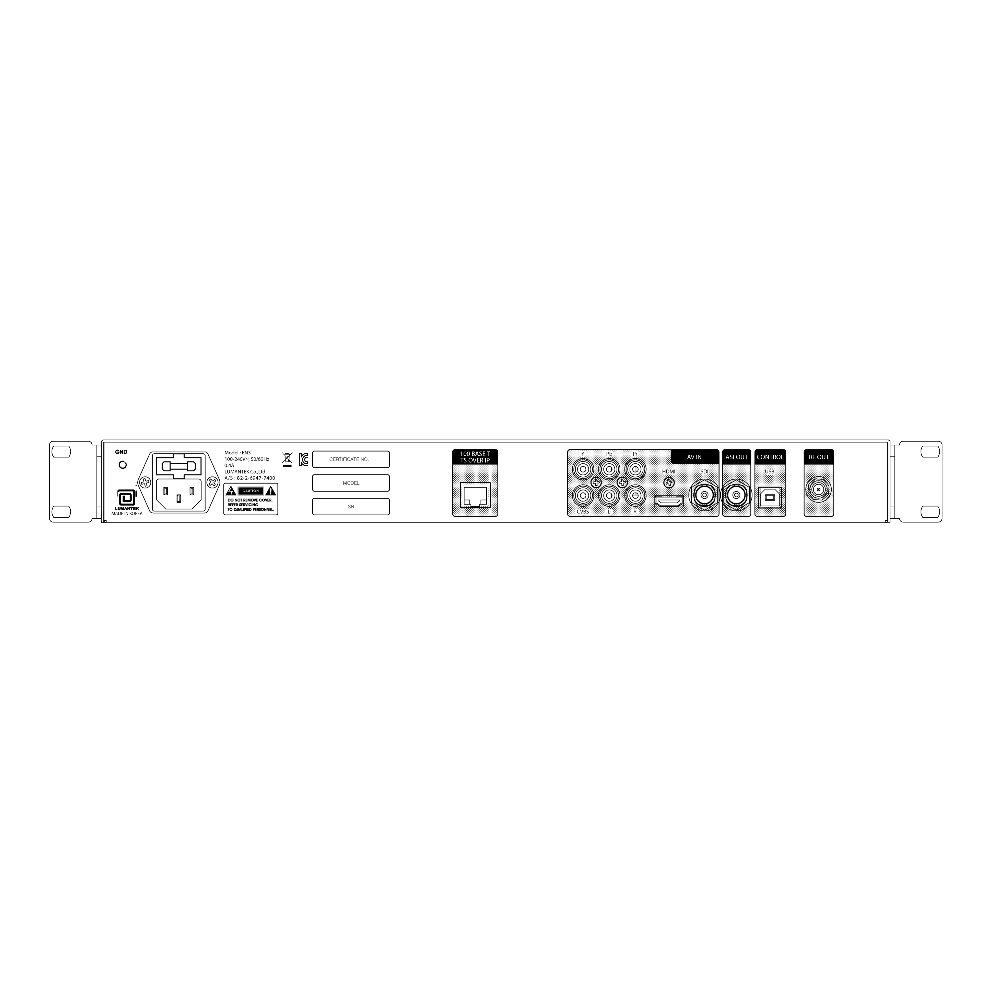

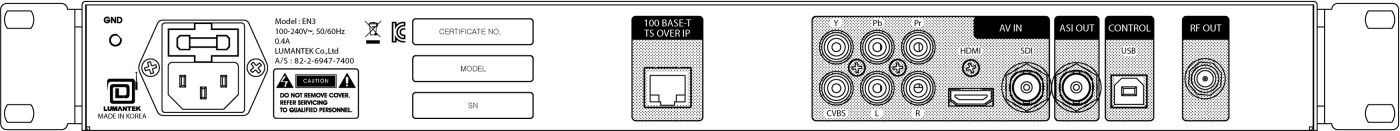

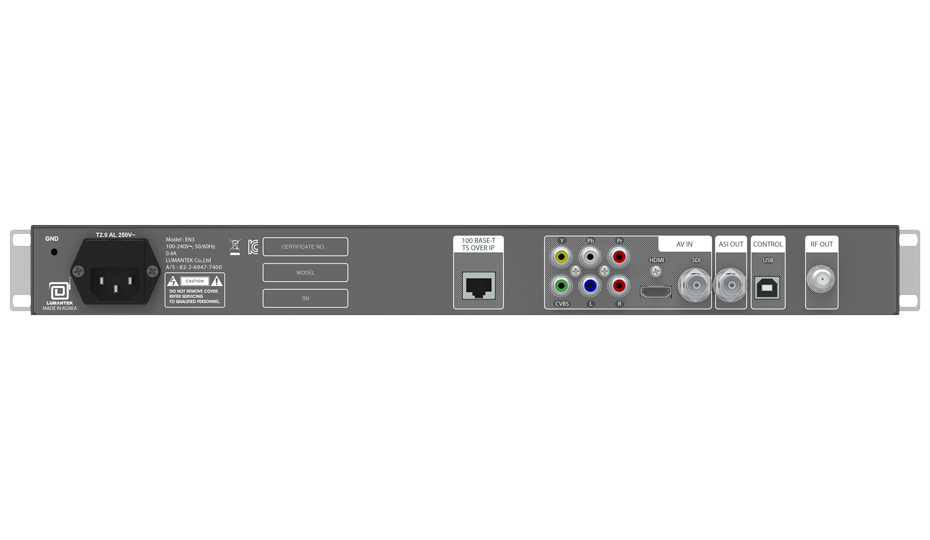

ez-Caster [EN3]

Input Ports

Video:
1 set x Component
1 set x Composite
1 x HDMI
1 x SDI

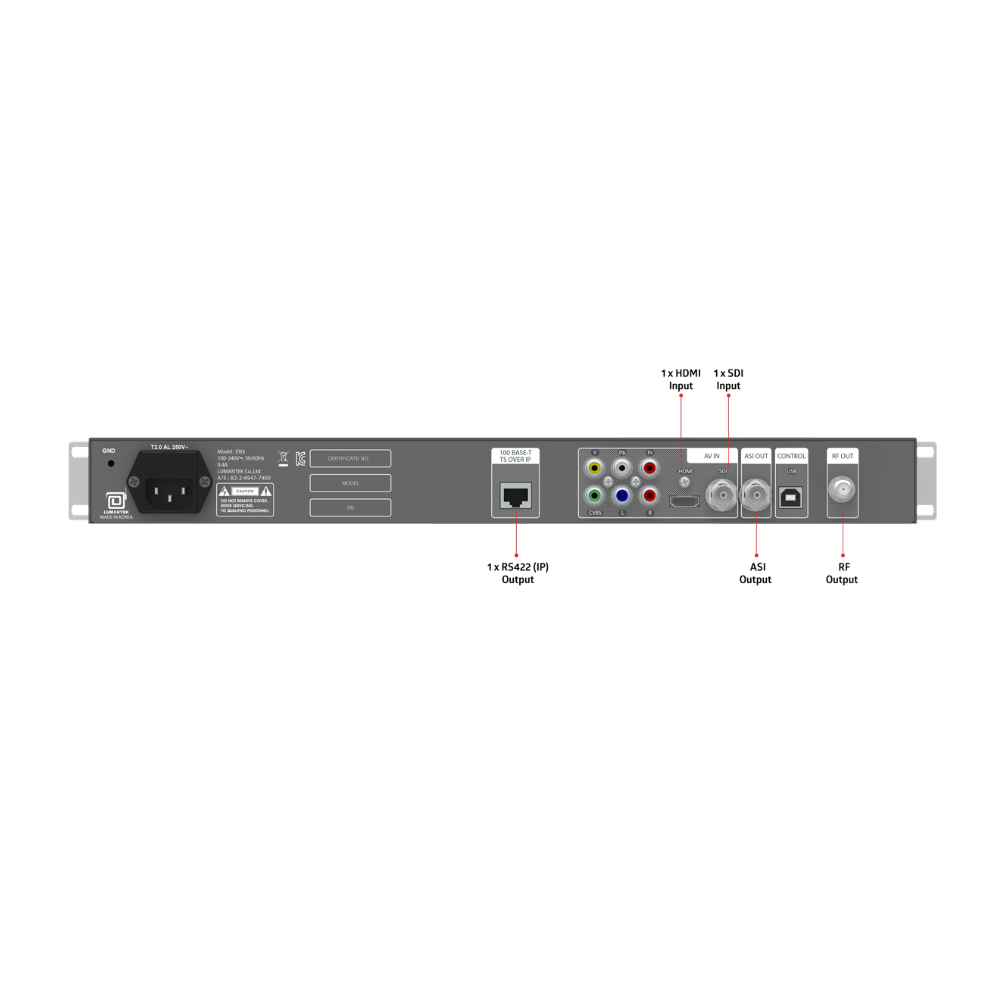

ez-Caster [EN3]

Output Ports

Video:
1 x ASI
1 x RF
1 x RS422 (IP)

Encodulator

LUMANTEK’s ez-Caster EN3 is a mix of encoder and modulator. Depending on your use, you can use the ASI signal to keep it as a stream or modulate the video to send it as an RF. You can also send the signal as IP for online videos.

TECH SPECS

ez-Caster EN3

MPEG2 / H.264 HD ENCODER

SPECS

Type HD Encoder + 8VSB modulator
Inputs SD/HD-SDI, BNC 75Ohm 1ea
HDMI 1.4a 1ea (HDCP not supported)
Component, YCbCr, 170MHz 12bit ADC, RCA 3ea
Composite, CVBS, 3D Comb Filter, RCA 1ea
Analog Stereo Audio (Left/Right), RCA 2ea
Video Resolutions 1920 x 1080 @60p, 59.94p, 50p Automatic Convert to Interlaced Format
1920 x 1080 @60i, 59.94i, 50i
1280 x 720 @60p, 59.94p, 50p
720 x 480 @59.94i (NTSC)
720 x 575 @50i (PAL)
Resolution detect and automatic/manual change support
TS Mux & System System Delay : 150ms, 200ms, 350ms, 650ms
TS Bit-rate : 4.5~25Mbps
Editable TS ID, PMT/PCR/ VIdeo/ Audio PID
Video Encoder MPEG2, H.264
MPEG2 HD/SD (MP@HL/MP@ML), H.264 HD/SD (HP@L4/HP@L3)
Bit Rate : (MPEG2) 5 ~ 22 Mbps, (H.264) 3.5 Mbps ~ 22Mbps
Closed Caption Support
Audio Encoder MP1L2, Dolby AC3, AAC-LC HE-AACv2 (stereo)
Bit-rate : 192-384  Kbps (HE-AACv2:32-96Kbps)
Sample Rate : 48KHz
Audio Delay : 0 – 400ms
Volume Control : 100 – 500%
PSIP Generator MGT, TVCT Generation Enable/Disable
Short name, major and minor channel number setting
ASI Output Connector : BNC 75Ohm, 1ea
Packet Size : 188Bytes
TS Bit Rate : 19.392Mbps
RF Output Modulation : ATSC (8VSB)
Connector : F-Type 75Ohm 1ea
Output Level : +2~-18dBm (0.5dB step)
Center Frequency Range : 40~999MHz
MER : >36dB
Spurious : 60dBc (Relative to Output level)
Phase Noise : VHF 110dBc@20kHZ, UHF 95dBc @20kHz
IP Output (*option) Ethernet : 10/100Bast-T, half/Full Duplex
Maximum Transmission Unit : 1464-1472 MTU
Streaming Protocol : MPEG2-TS/UDP
Transport Protocol : UDP, Unicast or multicast
IGMPv1, IGMPv2 Support

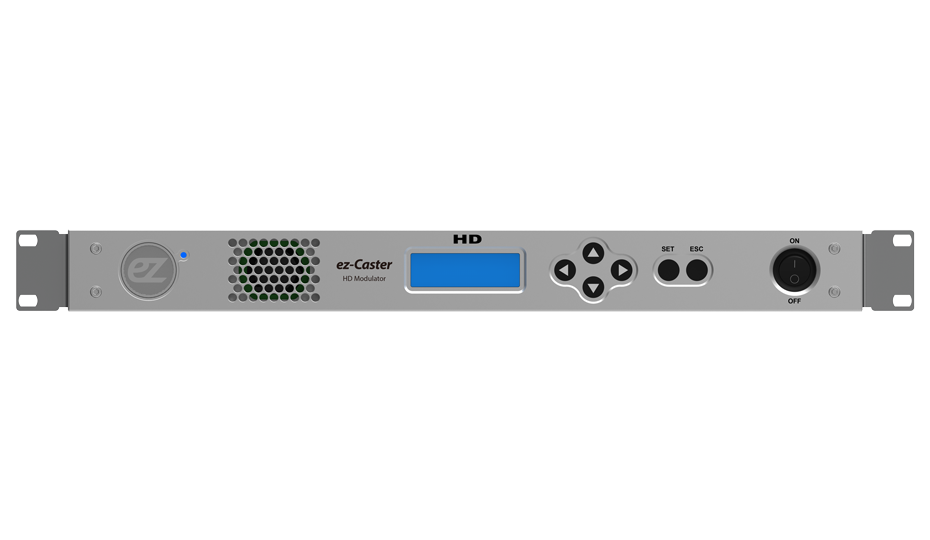

Management Front Panel : 4-line text LCD, 6 buttons, Status LED(RGB)
Rear USB Port : GUI, Firmware update
Physical Dimension : 44(H) x 483(W) x 240(D) (excluding connectors)
Operation Temperature : 0 – 45℃
Weight : 2 kg (4.40 lbs)
Power Consumption : 25W (Max.)

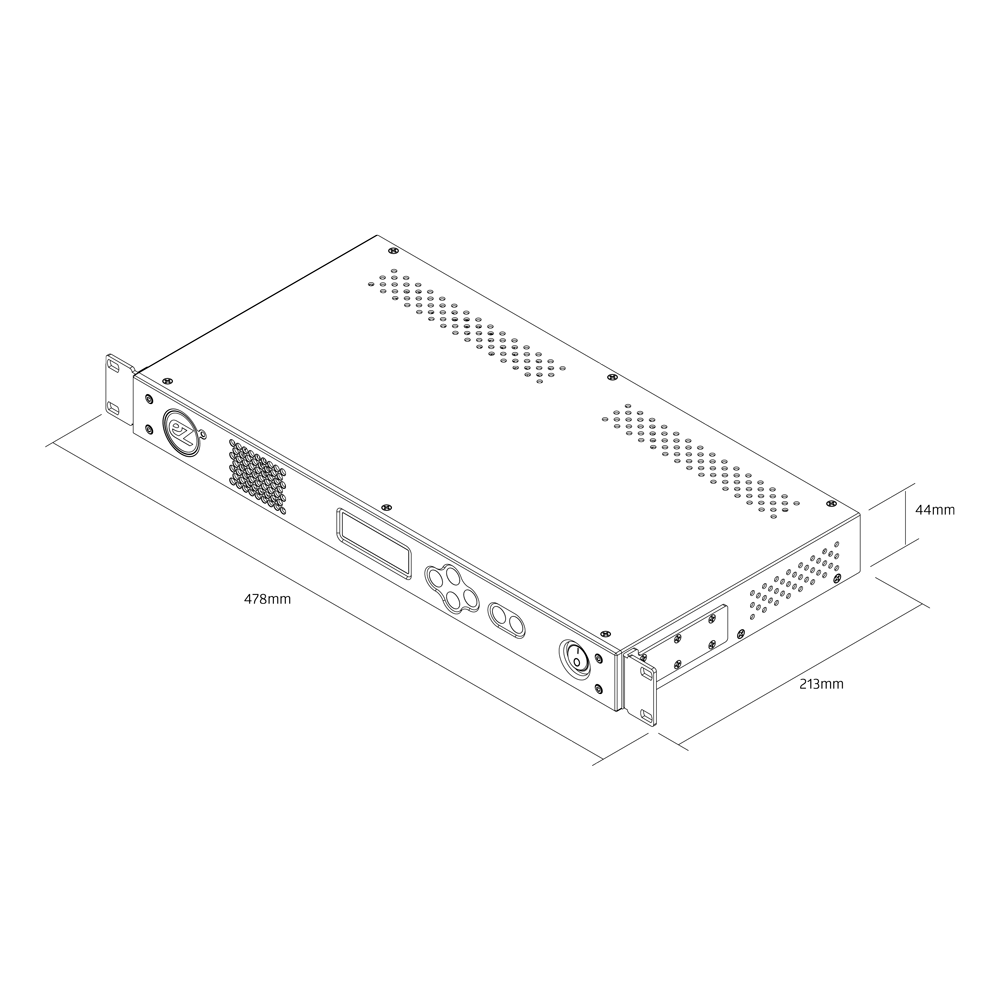

DIMENSIONS
