UltraStudio
Professional Capture and
Playback for Thunderbolt 3 Computers!
Now you can connect Thunderbolt 3 computers to any kind of video equipment for building high performance edit workstations, archiving from old broadcast decks, outputting broadcast graphics and even live streaming! Simply connect to the Thunderbolt 3 port to get a wide range of video and audio connections that operate in all SD, HD, Ultra HD and 4K DCI formats up to 60 frames per
second! Connections include SDI, HDMI and analog video and audio with broadcast quality 10‑bit YUV and 12-bit RGB in Apple ProRes and uncompressed file formats. UltraStudio is designed to work with popular video software on Mac, Windows and Linux such as DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro, Final Cut Pro and many more.
Introducing the
New UltraStudio 4K Mini
The new UltraStudio 4K Mini model is a portable Thunderbolt 3 capture and playback solution packed with the latest broadcast technology, including 12G‑SDI, HDMI 2.0 and analog connections. You get broadcast quality 8 and 10‑bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12‑bit high dynamic range capture in all formats up to 4K DCI at 30p. The front
panel features push button controls, an LCD for monitoring signal and setup, an XLR microphone input and a ¼” headphone jack. UltraStudio 4K Mini features USB for connecting a keyboard and mouse, plus it will trickle charge your laptop computer when connected to the Thunderbolt 3 port. There’s even a built in SD card reader allowing instant access to your camera media cards!
Choose the
Perfect Model for Portable or Studio
UltraStudio features a ‘breakout box’ style design that gives you virtually every connection you need to connect to professional decks, monitors and other equipment. That means they’re perfect for equipment racks or post production suites where you need to position them on a desktop or editing station. UltraStudio Mini models feature a more compact design thats more portable so it’s the perfect choice when you need to access video connectivity for live camera capture or on set color grading on location.
Rackmount
Desktop
Portable
Professional Capture
and Playback for any Workflow!
Whether you’re working on-set or in post production, UltraStudio gives you broadcast and digital cinema quality capture and playback that can be used for any workflow. UltraStudio is perfect for everything from editing, color and visual effects to live capture and on-set monitoring during production. There are even models with 12G-SDI and support for the latest HDR formats to ensure high end
colorists get everything they need for monitoring to broadcast displays, HDR televisions or the latest digital cinema projectors. UltraStudio can even be used to feed SDI fill and key from RGB graphics directly from a computer to a live production switcher for amazing live broadcast graphics keying.
Built In Hardware Video Encoding
UltraStudio 4K Extreme 3 features a built in multi format hardware encoder that lets you capture to H.265. H.265 delivers amazing quality and is the compression standard for distributing Ultra HD content online. You can also use H.265 compression for SD and HD video giving you smaller files at higher quality than other compression formats. The built in hardware encoder is designed to be upgradable so you get a future proof solution that can add new formats via software updates as they become available.
World’s Highest Quality Connections
With UltraStudio you can connect to virtually any video device! All UltraStudio models include SDI in and out, HDMI out for monitoring on TVs and projectors and analog YUV/NTSC/PAL video and balanced analog input for archiving from legacy analog broadcast tape decks. Plus the dual SDI outputs can switch to fill and key! All models include video reference for sync playback to broadcast systems, plus RS-422 remote. The UltraStudio 4K Mini and Extreme models add an extra HDMI input plus a balanced analog audio out for connecting to in-studio audio monitoring. UltraStudio 4K Extreme’s larger design accommodates 4 channel analog audio via XLR connections, 2 channels of AES/EBU digital audio and dedicated timecode connections.
The Power of Thunderbolt 3™
Built on revolutionary Thunderbolt 3™ technology, UltraStudio uses a blazingly fast single cable connection to any computer that has the bandwidth to handle the highest resolution video formats easily! Thunderbolt ensures low latency and highly accurate time synchronization for the highest quality capture and playback. The UltraStudio HD Mini model is powered from the Thunderbolt connection so can run from a laptop battery without needing any power connection. UltraStudio 4K models also include an AC power connection, perfect when working in studios. The new UltraStudio 4K Mini model even provides 45W trickle power via Thunderbolt 3 to the connected computer so it stays charged when connected.
Amazing Quality in
Compressed or Uncompressed
UltraStudio supports popular compressed video formats such as Apple ProRes and DNxHD as well as 10-bit uncompressed video, so you’re not locked into a single file format. When working with uncompressed video all captured images are a perfect pixel‑for‑pixel clone of the source without any quality loss, so you have the confidence you’re working at the absolute highest quality possible. Get the sharpest keying with green screens, cleanest compositions, superior color correction and more! Ultra HD has 4 times the resolution of 1080HD for amazing looking images!
Incredible 12G‑SDI
Technology for Ultra HD
UltraStudio 4K Extreme 3 and UltraStudio 4K Mini feature the latest 12G‑SDI, for the most powerful video capture and playback solution! The incredible speed of 12G‑SDI means UltraStudio 4K models can support both capture and playback of Ultra HD and 4K 60p over a single BNC cable! Because 12G‑SDI connections are multi rate, you can still connect to all of your existing equipment. Only 12G‑SDI gives you the compatibility to connect to all your existing SD and HD equipment but also supports the future with all Ultra HD formats up to 2160p60. Because the 12G-SDI outputs are dual link, you can do stereoscopic or simultaneous fill and key in real time up to 2160p30!
Super Tough Elegant and Portable Design

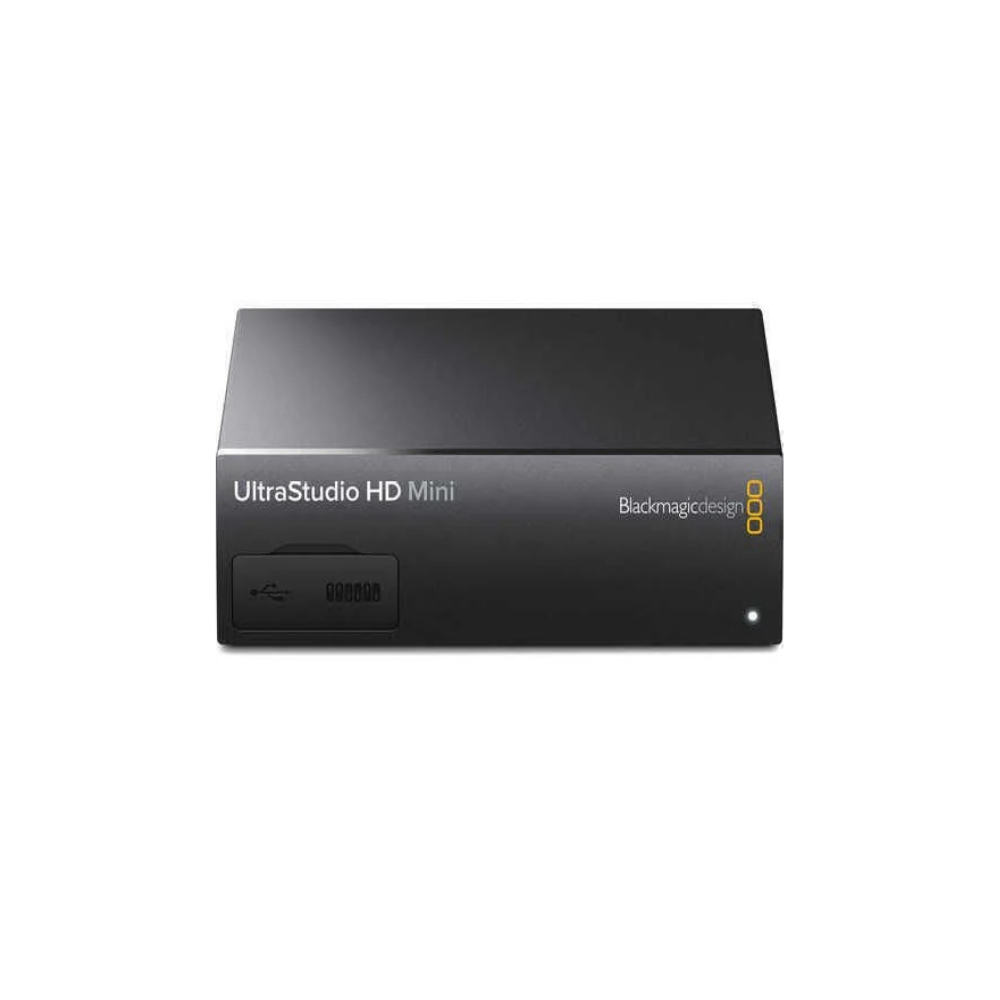

UltraStudio 4K models feature elegant front panels with integrated color LCD and fast control buttons, with the rear panel using industry standard BNC and HDMI connectors for video connections. UltraStudio Mini models are designed for portability and can be used as a stand alone on a desktop or rack mounted with other equipment. The UltraStudio HD Mini model is even more compact at only ⅓ of a rack width! That means they have very low visual impact when placed on a desktop, and you can fit up to 3 of them in a single rack unit size!
Download DaVinci Resolve
Get professional editing, visual effects,
color correction and audio post!
UltraStudio models have been designed to be the perfect match for DaVinci Resolve, so you can get a complete post production solution simply by downloading the software now on Mac, Windows or Linux! You get the world’s most advanced solution that combines professional editing, color correction, audio post and visual effects all in one software tool! DaVinci Resolve is used to finish more Hollywood feature films than any other solution, so you’ll get the best possible post production tools available. Whether you’re working on major feature films, episodic television production, music videos, TVCs or even the latest YouTube shoot, DaVinci Resolve gives you a high end workflow so the tools will never be the limit to your creativity!
Supports Macs with Thunderbolt 3
UltraStudio has been specifically designed for the Mac platform’s unique needs and is supported by a huge range of popular video software. The included drivers have been optimized for high performance video, plus the features needed for editing software such as DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, and Avid Media Composer. For visual effects get full compatibility with Fusion, After Effects CC and Photoshop CC. For audio get compatibility with ProTools, Steinberg Nuendo and Cubase. For streaming use OBS, Wirecast, Livestream Producer.
Get Incredible Windows Compatibility
For Windows you get access to a massive range of software because UltraStudio supports WDM and DirectShow! For editing you can use DaVinci Resolve, Avid Media Composer, Premiere Pro CC, MAGIX Vegas Pro, Corel VideoStudio Pro, CyberLink Power Director and MAGIX Video Pro. For visual effects use Fusion, After Effects CC and Photoshop CC. Audio software supported includes Steinberg Nuendo and Cubase. When streaming you get compatibility with Flash Media Live Encoder, Xsplit Broadcaster, Wirecast and Livestream Producer.
