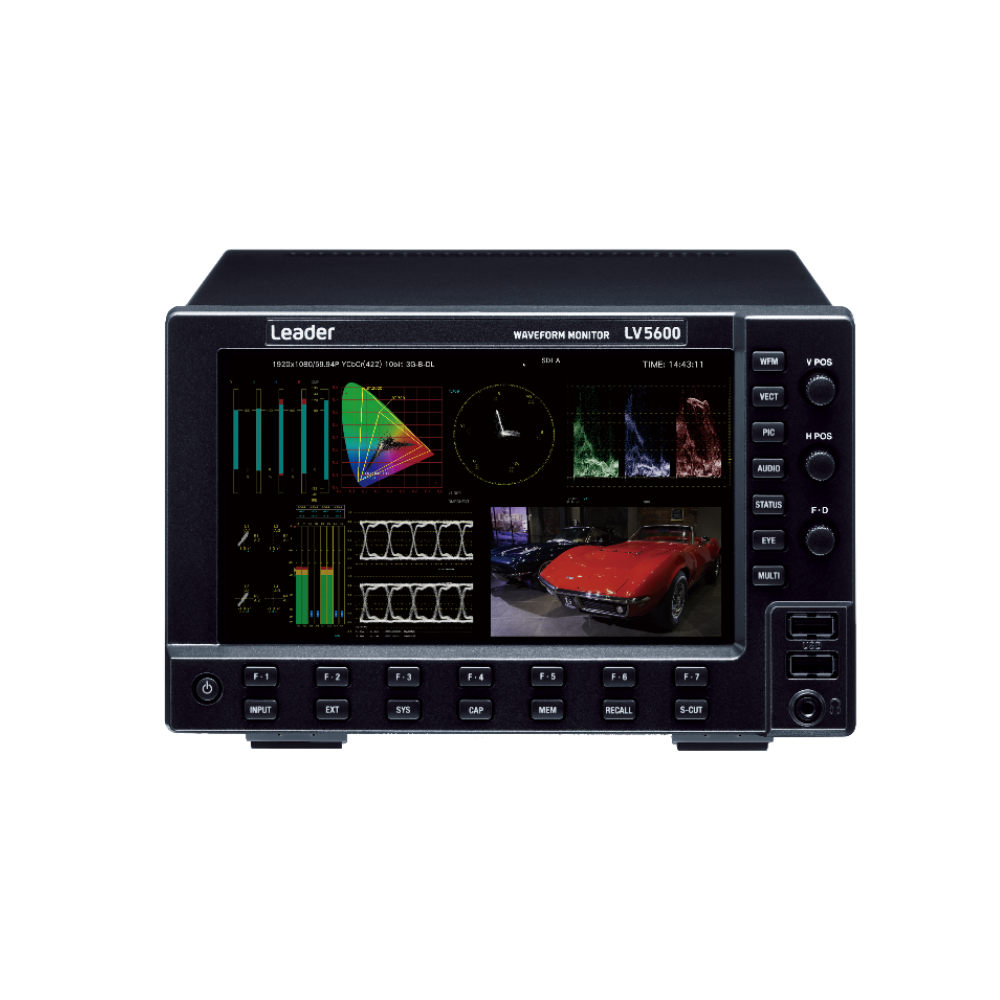

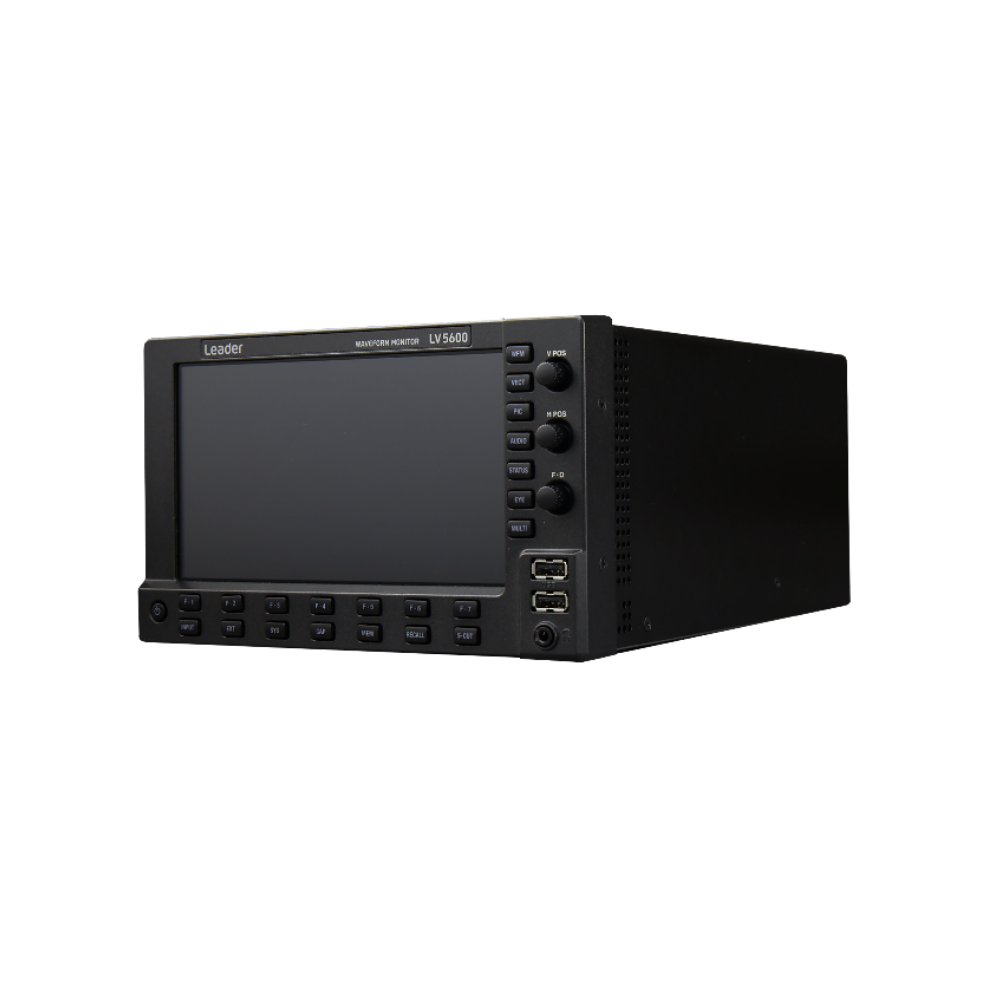

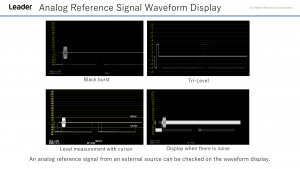

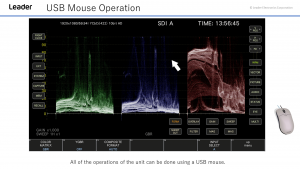

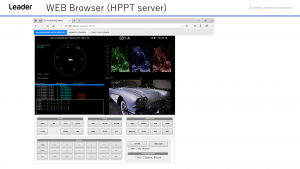

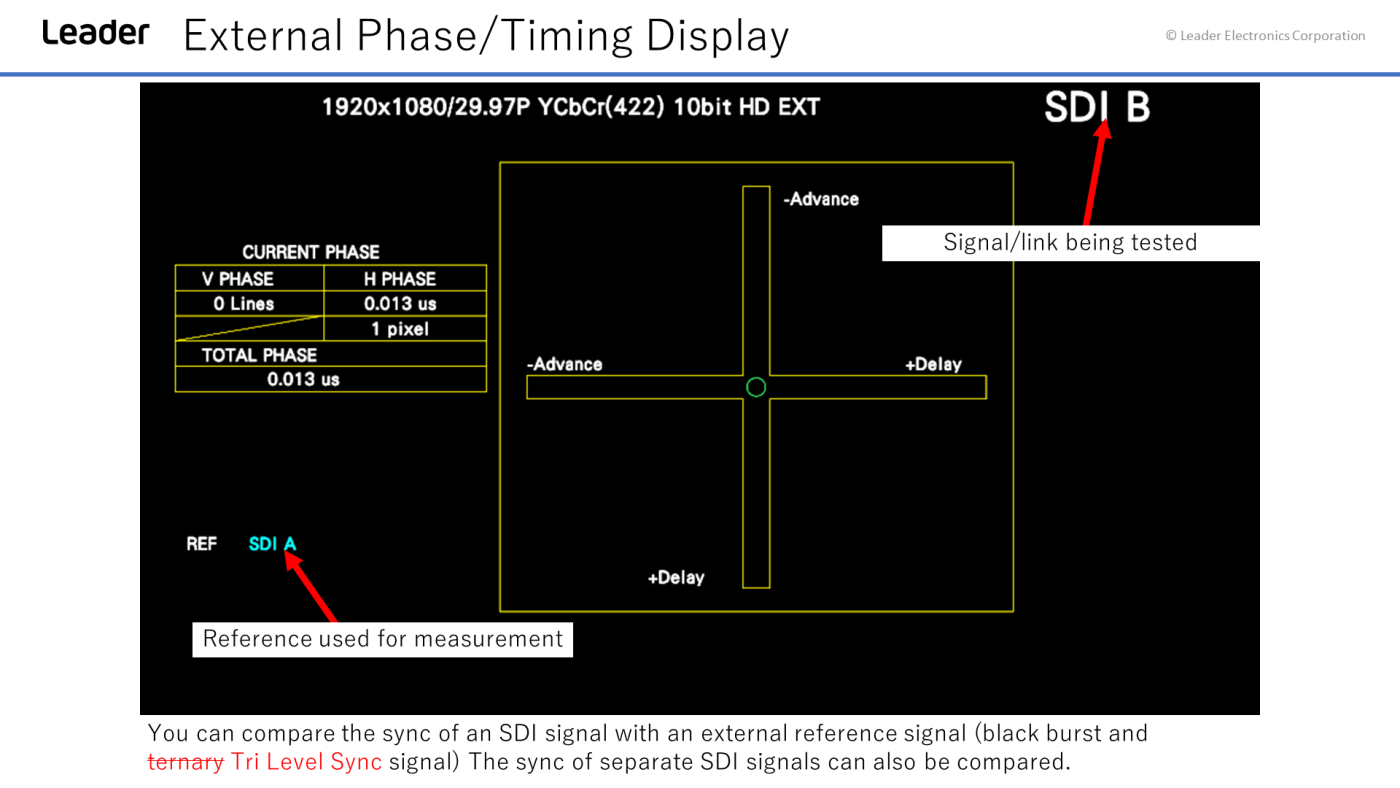

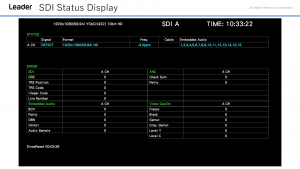

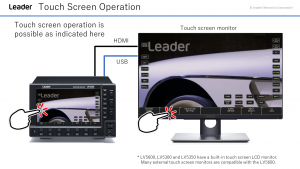

LV5600
WAVEFORM MONITOR

OPTION

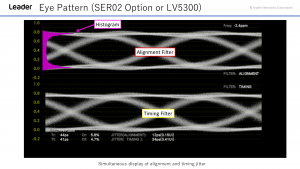

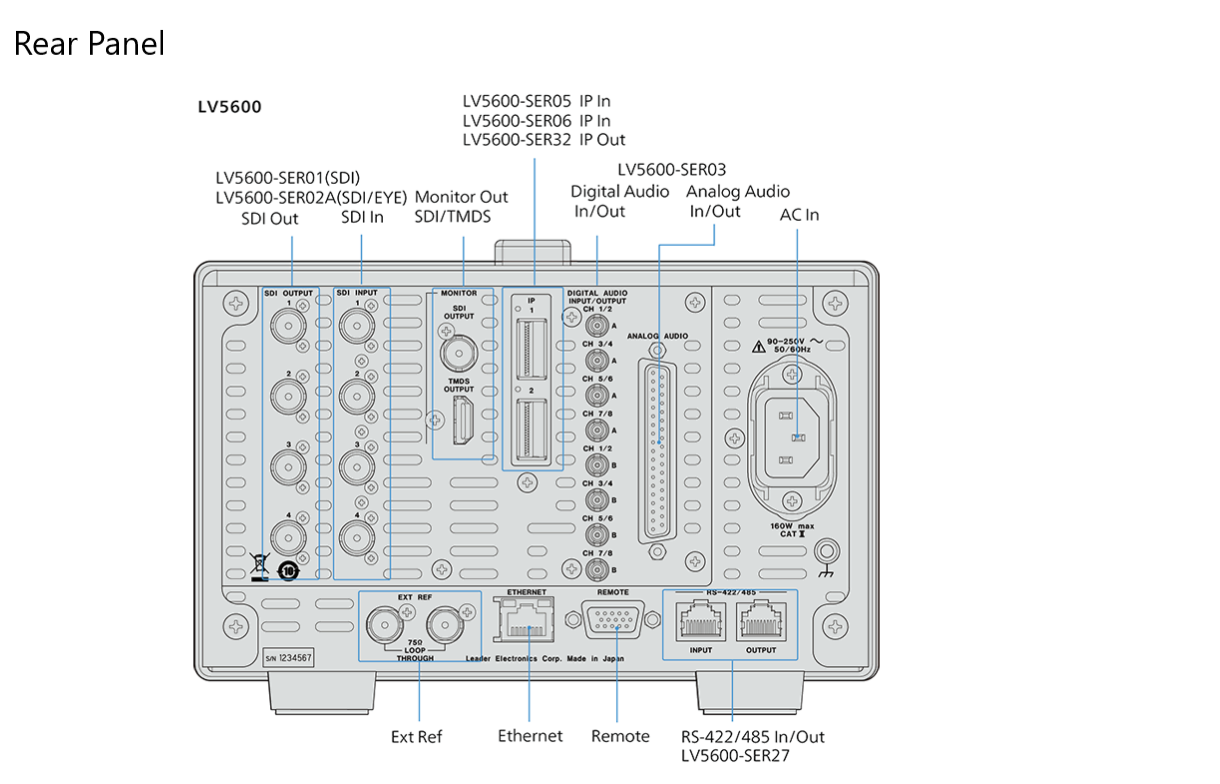

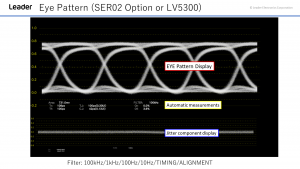

Hardware Options

Software Options

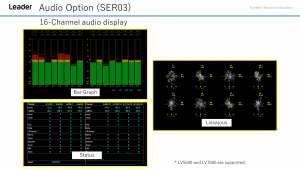

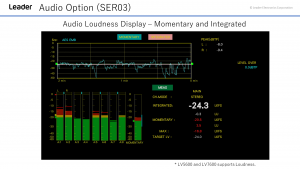

LV5600-SER03 | Digital and analog audio I/O and displays (16 ch)

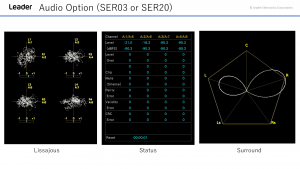

• Audio analysis
  Lissajous display, surround display, mute, clip error detection, loudness measurement, etc. are now available. Various analysis displays are also possible, and simultaneously display of 16 channels from one SDI signal or 4 channels from 4 SDI signals is possible.

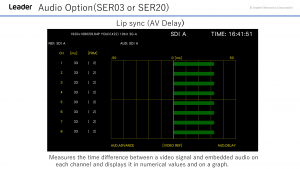

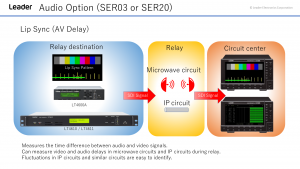

• Lip sync measurement
  Measures the time difference between the SDI signal and digital audio signal with a Leader TSG that supports lip syncing. Displays the results numerically and graphically.
  * TSG patterns not made by Leader may be supportable by specifying the video signal setting and audio signal setting.
• Embedded Audio
  Approved standard

  12G、6G、3G、HD、HD(DL)　*1	SMPTE ST 299
  SD	SMPTE ST 272
  Sampling Frequency	48kHz / 24bit / L-PCM
  Quantization	24bit
  Format	L-PCM / Dolby-E / Dolby Digital / Dolby Digital Plus *2
  Clock Generation	Generated from the video clock.
  Synchronization	Must be synchronized to the video clock.
  	All SDI signals must be synchronized
  Channel Separation	Separates up to four groups (16 channels) from an SDI input. (For 3G, channels 1 to 16 and channels 17 to 32 are divided.)

  *1 Support for 12G and 6G by adding LV5600-SER28 and SER29.
  *2 Support for Dolby by adding LV5600-SER04.

• External input audio


  Approved standard	AES-3id
  Synchronization condition	All external input audios are synchronized with each other.

• Digital audio input/output Terminal


  Input/output terminal	DIN 1.0/2.3 connector
  Number of Inputs/outputs	Group A 4 terminals 8ch Group B 4 terminals 8ch
  Switching input/output	Switching by each group terminals 8 ch

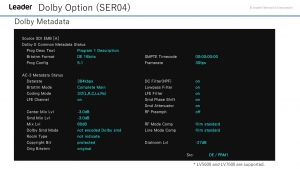

LV5600-SER04 | Dolby Digital, Dolby E decoding function
Decoding display of Dolby E, Dolby Digital, Dolby Digital Plus becomes possible by adding
LV5600-SER 04 to LV5600-SER 03 option.

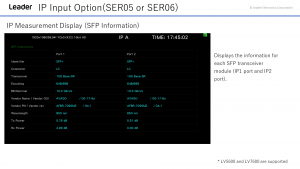

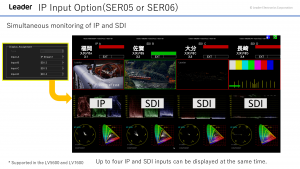

LV5600-SER05 | 10Gb/s IP input

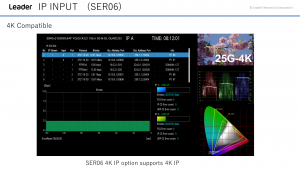

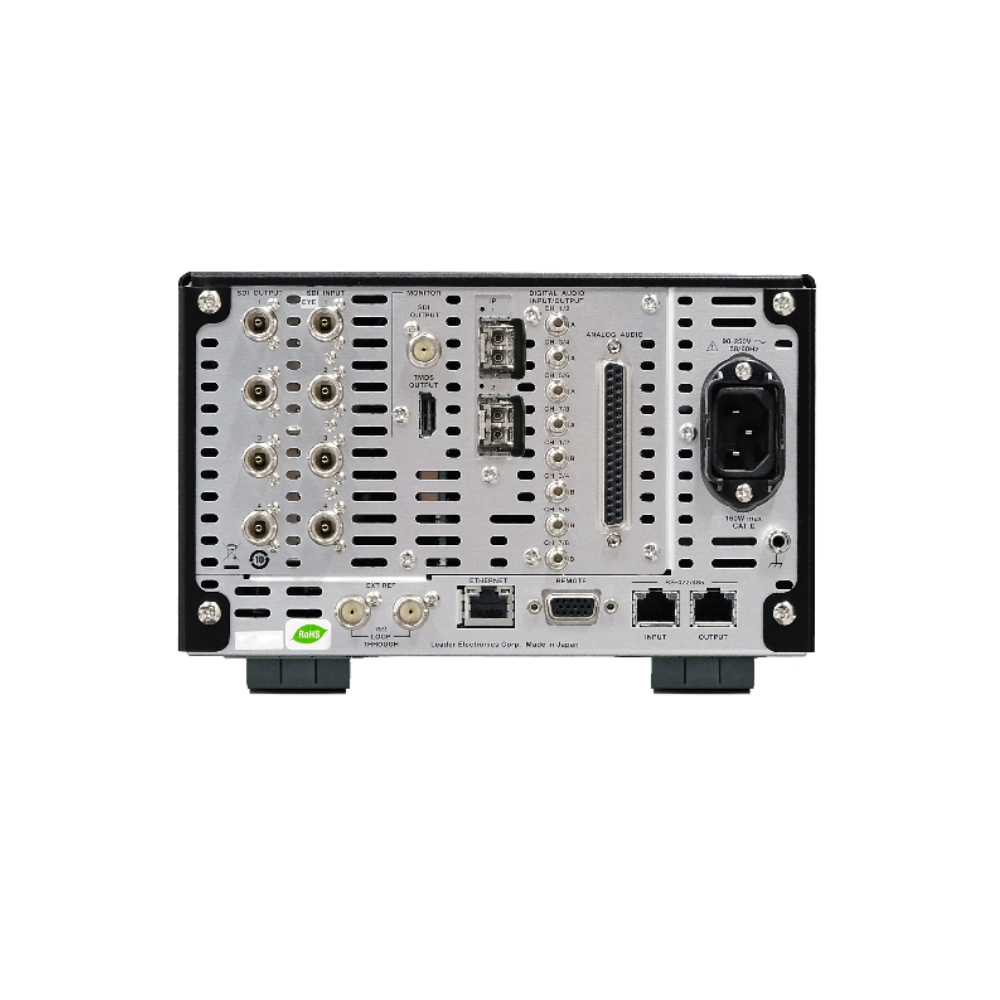

LV5600-SER06 | 25Gb/s IP input

• It corresponds to the IP signal and the video signal of the 2K video format at SMPTE ST 2022-6 (non-compression) and SMPTE 2110-20 (non-compression).
  LV5600-SER06 is ready for 10G/25G IP inputs.
  The IP transmission standards conform to SMPTE ST 2022-6/7 and SMPTE ST 2110-20/30/40, and SMPTE ST 2110 streams can also decode 4K(3840×2160) streams.
  * To support 4K, LV5600-SER28 is required.

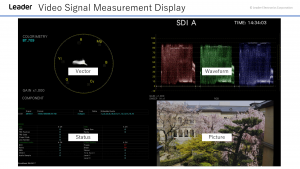

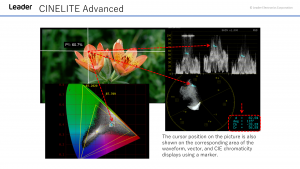

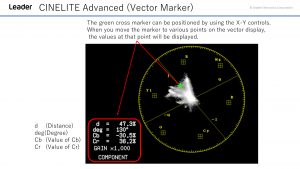

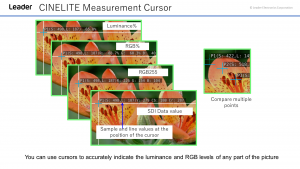

• Video analysis function

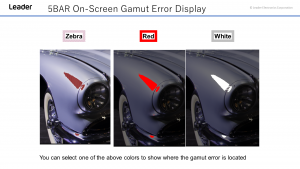

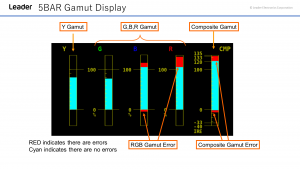

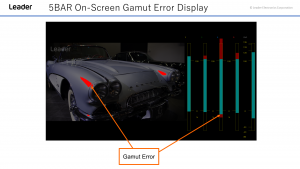

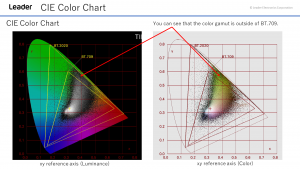

  Various types of video signals, in addition to a variety of displays such as video signal waveform displays, vector display, picture display, 5 BAR display, the CIE chromaticity diagram and CINELITEII, video signal quality (QoE) frozen frame error, black frame error, gamut error detection, etc. are equipped as standard features.

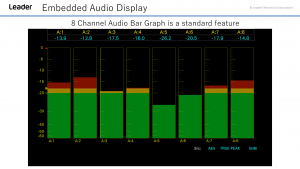

• Audio analysis function
  The audio signals superimposed on IP signals can be displayed on a 8ch level meter.
  16ch level meter,Lissajous, surround and status can be displayed by adding LV5600-SER03.In addition,decoding display of Dolby E, Dolby Digital, Dolby Digital Plus becomes possible by adding LV5600-SER04.
• Transmission quality analysis function
  Together with monitoring transmission errors such as packet loss, check sum error, packet discontinuity, the transmission quality (QoS) monitoring function such as packet jitter, which was difficult to observe by using IP, are strengthened.
• Capture function
  A screen capture function to capture the display screen as still image data is equipped. It also has a frame capture function and can capture one frame of an active video period.
• Time code display
  The time code superimposed on IP signals and can be displayed.
  The time code can also be used as the timestamp of the event log.
• Redundancy System
  The apparatus support the redundancy system of SMPTE ST 2022-7 and enable checks of the signal switching display seamlessly.

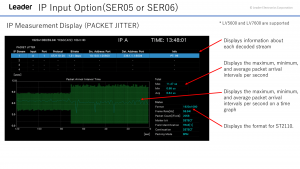

• Packet Jitter Measurement
  The apparatus measures the arrival intervals of IP stream packets and graphically display temporary fluctuations.

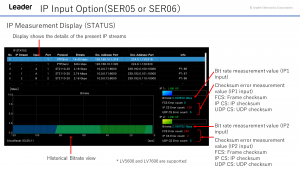

• IP Packet Status Display
  The apparatus displays information, including source addresses, destination addresses, and protocols for the IP packets. They display traffic of 10G/25G Ethernet graphically, as well.

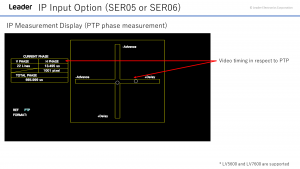

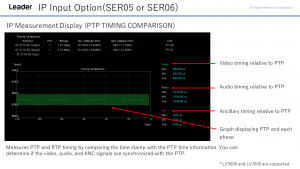

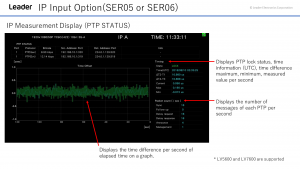

• PTP Packet Status Display
  The apparatus graphically displays PTP time information and network delay information.
• Conversion Output of SDI from IP
  The apparatuses converts video signals that are input in the form of IP stream into SDI and output the converted signals.
• Packet Capture
  The apparatus captures the received IP packets and save them in the USB memory device in the form of PCAP files.

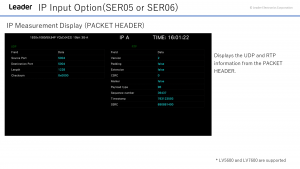

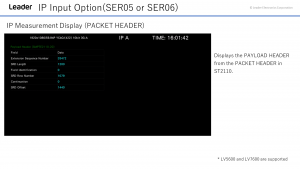

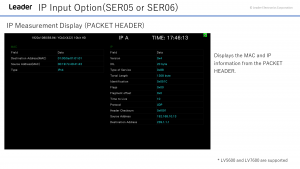

• Packet Header Analysis
  The apparatus displays the packet header information of selected streams.

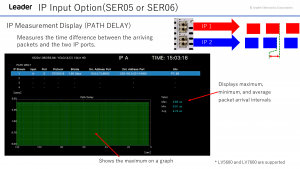

• Display of Delay for Each Port
  The apparatus displays delays in the stream conforming to SMPTE ST 2022-7 for each input port.
• Redundancy measurement
  Display packet jitter and PTP measurement port 1 and 2 at the same time.

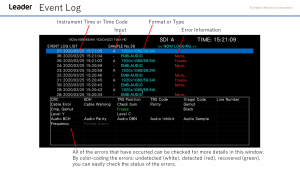

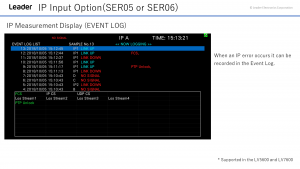

• Logging by PTP timestamp
  Logging error by PTP timestamp
  Time Display by PTP time.
• PTP information display.
  Display PTP Grand Master from PTP announce message.
• Add payload ID when IP convert to SDI
  SDI output with Payload ID when IP convert to SDI.
  * ST2110 only
• CSV file copy of Graph data
  Can be copied graph data of packet jitter and PTP and other by CSV file.
• Audio ANC packet jitter display
  Support packet jitter graph display for Audio and ANC.
  * ST2110 only
• Buffer measurement
  Measure CMAX and VRX value of standardized SMPTE 2110-21
  * LV5600-SER06/ST2110 only
• Support IP format


  Standard	SMPTE ST 2022-6，SMPTE ST 2110-20
  Redundancy standard	SMPTE ST 2022-7
  Synchronized standard	PTP (SMPTE ST 2059-1/2)
  Support protocol	IPv4 (Internet Protocol version 4)
  	IGMPv2/v3 (Internet Group Management Protocol)
  	NMOS (IS-04/05) via Ethernet

• Input video format


  LV5600-SER05
  Standard	10G SMPTE ST 2022-6，SMPTE ST 2110-20
  Video format	Non compression SD *1　 720×487（59.94I）、720×576（50I） HD　 1920×1080（60,59.94,50I）、1280×720（60,59.94,50P） 3G-A　 1920×1080（60,59.94,50P）
  Color System	YCbCr4:2:2/10bi
  LV5600-SER06
  Standard	10G/25G SMPTE ST 2022-6，SMPTE ST 2110-20
  Video format	Non compression SD *1　 720×487（59.94I）、720×576（50I） HD　 1920×1080（60,59.94,50I）、1280×720（60,59.94,50P） 3G-A　 1920×1080（60,59.94,50P） 4K *2　 3840×2160（60/59.94/50 /P）
  Color System	YCbCr4:2:2/10bit

  *1 Only SMPTE ST 2022 is supported.
  *2 Only SMPTE ST 2022 is supported.SER28 must be installed to input 4K signals.

• Input Audio format


  Standard	SMPTE ST 2022-6,SMPTE ST 2110-30,SMPTE ST 2110-31
  Sampling frequency	48kHz
  Format	L-PCM
  Quantization	10bit
  Produce clock method	From Video clock.
  Synchronization condition	Synchronized with video
  IP audio 16ch maximum display

• Ancillary data


  Support standard

  SMPTE ST 2110-40

• LV5600-SER05
  Input connector

  Connector Type	SFP+
  Port number	2
  Support standard	10G BASE-SR / 10G BASE-LR

• LV5600-SER06
  Input connector

  Connector Type	QSFP+, QSFP28
  SFP	SFP+ / SFP28 *1
  Port number	2 *2
  Support standard	10G BASE-SR / 10G BASE-LR
  	25G BASE-SR / 25G BASE-LR

  *1 The conversion adapter included with the SER06 is used when installing the SFP+ or SFP28.
  *2 Signal standard of Port 1 and Port 2 should be same standard.

• Ancillary data


  Support standard

  SMPTE ST 2110-40

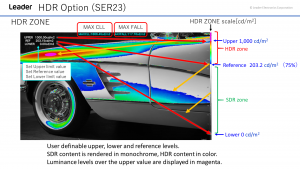

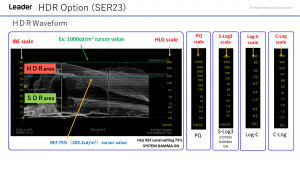

LV5600-SER23 | HDR measurement function
In addition to HLG and PQ provided by ITU-R BT.2100, the level monitoring of the HDR signal corresponding to S-log3 and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.

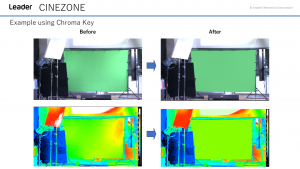

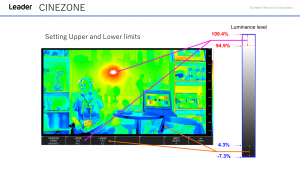

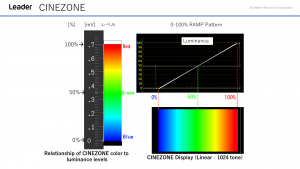

The video signal waveform displays HDR scale along with the IRE scale. In the cine zone display, the luminance distribution of the HDR area can be easily confirmed by displaying the SDR area in monochrome, and the HDR with a color according to the brightness.

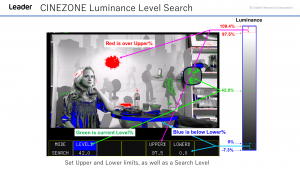

• HDR zone display.
  The luminance distribution of the HDR area can be easily confirmed by coloring the SDR area with monochrome, and the HDR with a color according to the brightness.
• HDR Scale
  By associating WFM and histogram with HDR scale, management of the video with brightness at the time of scene linearity is possible.

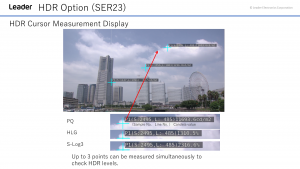

• HDR waveform display
• HDR point measurement
  • The crosshairs can be freely moved.
  • Up to 3 points can be measured simultaneously
• Approved standard
  ITU-R BT. 2100 (HLG, PQ), S-Log 3, C-Log, Log-C
  It corresponds to all except SD input of SDI.

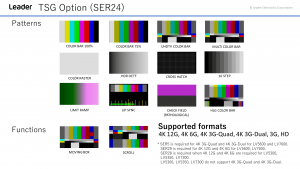

LV5600-SER24 | SDI Generator function
SDI signal generation function can handle from HD-SDI to 12G-SDI.
Simplified UHDTV multi-format color bar and pattern correspond to the multiple overlays of moving boxes and embedded audio, flat field pattern can be specified at any level, 4K multiformat color bar can be selected.

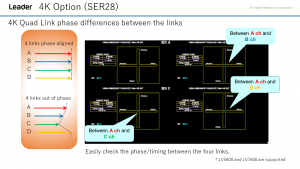

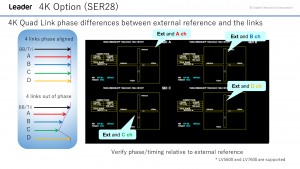

With the 4K pattern of 3G-SDI quad link, the phase of each link can be shifted and output, so confirmation of the pull-in margin of the receiving device is possible.
*1 To support 4K, LV5600-SER28 is required.
*2 To support 12G-SDI and 6G-SDI, LV5600-SER28 and LV5600-SER29 are required.

• Output pattern
  100% color bar, 75% color bar, HD multiformat color bar *1, 4K multiformat color bar *1, color raster, gamma, cross hatch, 10 step, limit lamp, check field, lip sync pattern(LV5600-SER03 is required), HDR color bar (LV5600-SER23 is required) *1
• Scrolling *2
  ・Direction : Eight directions (up, down, left, right, and their combinations)
  ・Speed : Range and Unit Per frame (field) 4 to 124 dots, in 4 dot steps
• Moving Box *2 : ON / OFF
  ・Colors : WHITE / YELLOW / CYAN / GREEN / MAGENTA / RED / BLUE / BLACK
  ・Speed : 1 to 3
• Embedded Audio
  ・Number of Embedded : Channels 16 channels max. *3
  ・Embedding On/Off : On/off at the audio group level
  ・Audio Level : -20d BFS, -18 dBFS, 0 dBFS, Mute
  ・Audio frequency : 1kHz
  ・CRC error addition function : Insert incorrect CRC value in Y series of the first line.

*1 It cannot be set in horizontal 4096 and 2048 pixel format.
*2 Either scrolling, or moving box can be turned on.
*3 For horizontal 4096/2048 pixel format at frame rates 60, 59.94, 30, 29.97 Hz,only 8 channels are embedded.

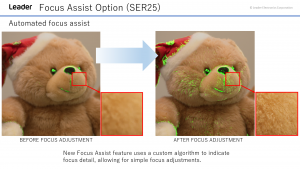

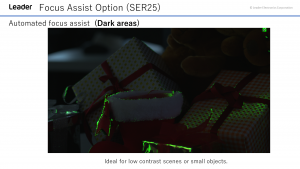

LV5600-SER25 | Focus assist function
This is a focus detection function realizing a new algorithm based on nonlinear super resolution technology. The focus details can be detected with high sensitivity even with low-contrast images, which were conventionally difficult to detect. In addition, sensitivity can be selected from 5 levels according to the video scene.

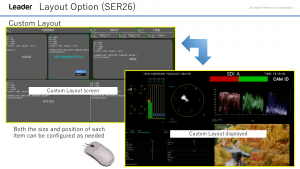

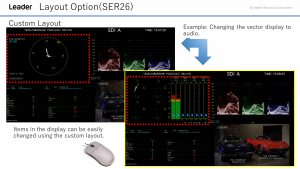

LV5600-SER26 | Customized layout function

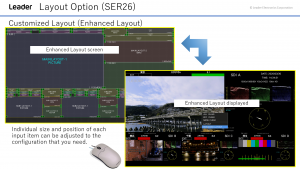

• Customizable layout function
  Various items such as video signal waveforms display, vector display waveforms, and images of input signals can be laid out in any position with your user’s preferred size. Multiple input signals up to 4 inputs can be displayed simultaneously, or one input signal can be displayed on multiple screens.

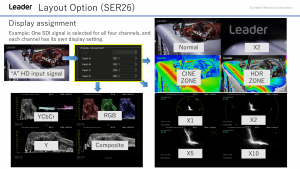

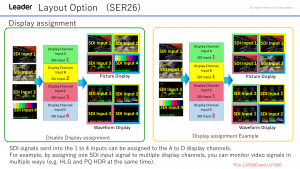

• Display assignment Function
  1 SDI input signals of 1 to 4 input terminals can be allocated to A to D display channels.
  At this time, by allocating one SDI input signal to multiple display channels, monitoring video signals in multiple display formats is possible.
  For example, displaying the signal input to SDI input 1 as component video waveform can be displayed on display channel A and the composite video waveform can be displayed on display channel B.

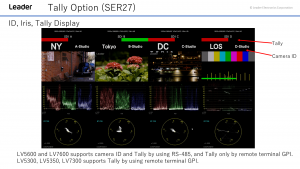

LV5600-SER27 | ID, iris, tally display function
Serial communication RS-422/485 terminals enable to display camera ID, and tally. Fast switching of tally display by remote terminal is also possible.

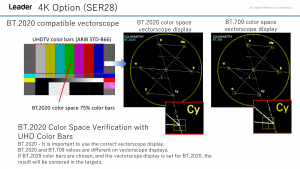

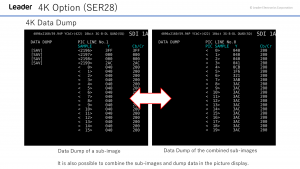

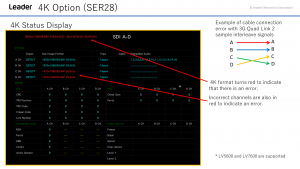

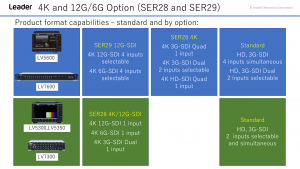

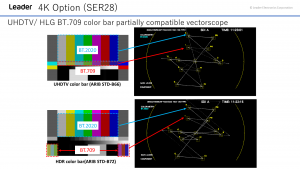

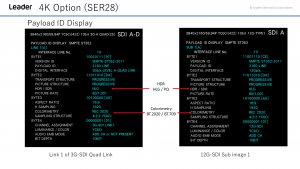

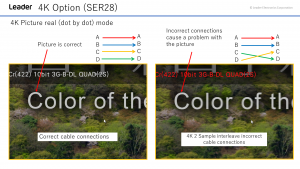

LV5600-SER28 | 4K video signal compatible function
It supports 4K video format signals of 3G-SDI dual link and quad link, HD- SDI quad link.In the case of 3G-SDI dual link input, up to two inputs can be displayed through switching.

LV5600-SER29 | 12G-SDI compatible
It is compatible with 12G-SDI and 6G-SDI single link. Also, up to four inputs can be displayed through switching.
* LV5600-SER28 is required for LV5600-SER29.

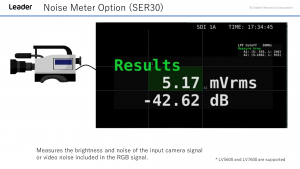

LV5600-SER30 | Video Noise Meter
The LV5600-SER30 is license options for the LV5600 to add the function to measure the brightness signals of input SDI signals or video noise contained in the RGB signals.

• Support various formats.
  Measurement is possible with various SDI formats ranging from 4K to SD.
• Noise Measurement Frequency Band
  A low-pass filter to select frequency bands is mounted, thereby enabling the removal of high-frequency range components during noise measurements.
• Full Digital Processing
  Measurements of noise without conversion of analog to digital data obtained from input SDI signals enables high precision, stable measurements.
• Measurement Window
  The Noise Measurement Window can be set in the picture display window. The size and the area of the window can be set in units of pixels or lines. If the video level is not flat as affected by the lens, the area as flat as possible of the measurement window can be selected for the measurement.
• Alarm Function
  An alarm can be displayed when the noise level exceeds the predetermined threshold value.

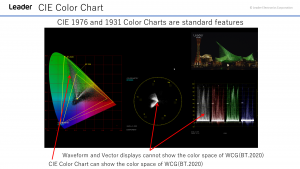

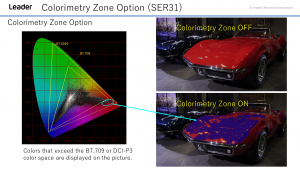

LV5600-SER31 | Colorimetry zone display
This feature simplifies the task of identifying the reproduction errors which can occur when transmitting video content produced in BT.709, DCI-P3 or BT.2020 wide color gamut or when converting content from BT.2020 to narrow color gamut.

• LV5600-SER32 | 10G, 25Gb/s IP Pattern Generator
  HD and 4K (3840×2160) video signal test patterns can be generated as an IP transmission stream that conforms to SMPTE ST 2110-20/30/40 for LV5600-SER06.
  • IP Format Ready
    Test pattern signal streams conforming to IP format (SMPTE ST 2110-20/30/40) can be generated.
  • Network Synchronization
    Video and audio test signals can be generated in synchronization with SMPTE ST2059 PTP (Precision Time Protocol).
  • Packet Error
    Packet errors can be added to the test signals.
    (Only ST2110)
    When packet errors or packet jitter is added to the test signal output of a unit, you cannot decode video, audio and ANC streams in the same unit.
    (Only PORT 1 is supported)
  • Packet Jitter
    Packet jitter can be added to the test signals.
    (Only ST2110)
    When packet errors or packet jitter is added to the test signal output of a unit, you cannot decode video, audio and ANC streams in the same unit.
    (Only PORT1 is supported)
  • Lip-sync Pattern output
    Lip-sync pattern can be selected and output as a test pattern.

  * To support 4K, LV5600-SER28 is required.

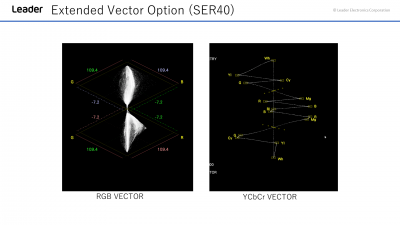

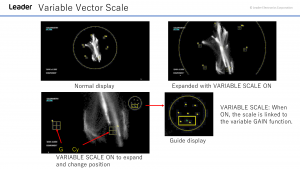

• LV5600-SER40 | Extended Vector

LV7290 | Remote Controller
The remote controller LV7290 is used to remotely control waveform monitor or rasterizer (LV5900 / LV5600 / LV5350 / LV5300(A) / LV7600 / LV7300 / LV7390）via Ethernet.
Used by connecting to the ETHERNET terminal on the rear of the product.
One remote contoroller can be connected up to 8 units of waveform monitor or rasterrizer in every combination.
Dimensions and weight: 482 (W) X 44 (H) X 110 (D) mm (excluding protrusions), 1.2 kg
