FEATURES
EXTENSIVE VIDEO TOOLSET
With simultaneous signal generation and analysis, its built-in core toolset includes a multi-format waveform, vectorscope and video display, plus data view and VANC/ANC inspector. Over 350 formats are supported for compliance monitoring. Signal generation offers 32 test patterns, including pathological.
MULTI-CHANNEL AUDIO ANALYSIS
The SxA features support for 16-channel audio metering and bitstream generation and analysis of Dolby E, Dolby Digital and Dolby Digital Plus. Embed a single external 48kHz synchronous AES stream into the generated video stream, as well as extract embedded audio and export it via the AES output.
AV DELAY GENERATION AND ANALYSIS
AV Delay Generation and Analysis offers an end-to-end solution for the measurement of Audio to Video differential delay through a broadcast system. The tool provides a realtime update of the differential delay between the video content and the selected audio channel pair to measure the propagation (latency) or pipeline delay.

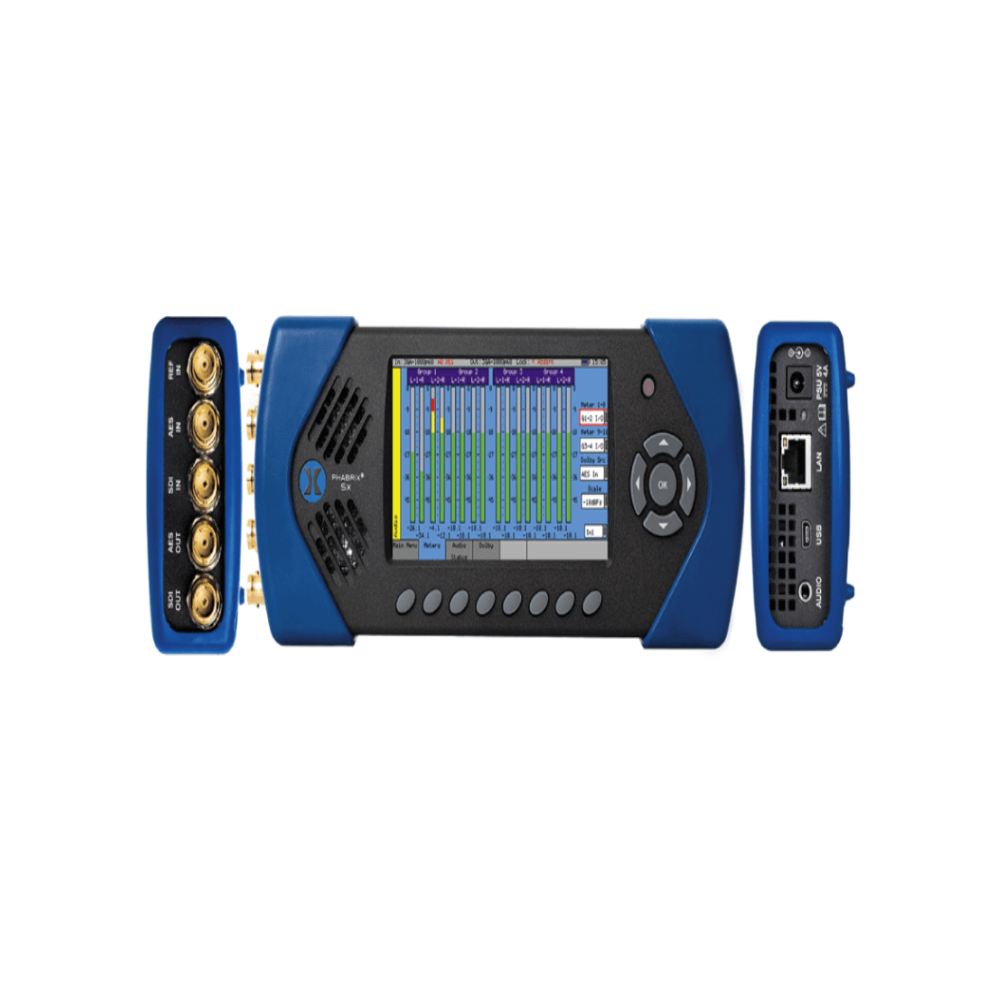

ULTRA PORTABLE, RUGGED DESIGN
The SxA offers great mobility with a lightweight aluminium case with integral, high quality screen for instrument display and video monitoring. The generator/ analyzer operates via rechargeable battery for up 2 hours, and can also be powered by the mains to offer flexible operation.
ENHANCED REMOTE CONTROL
The SxA features a TCP/IP interface for remote control, automated testing, engineering support and fault analysis. Comprehensive status logging with custom reports, together with instrument picture capture to simplify fault finding is also included.
FAST, INTUITIVE OPERATION
With its color coded GUI that simplifies signal and instrument selection, the Sx Series of generation, analysis and monitoring instruments offer unmatched ease of use for busy engineers who need to diagnose faults and assure compliance quickly.
