- Compatible with HDMI and DVI 1.0 standards
- Supports the following HDMI features:
- High video bandwidth up to 340 MHz / 10.2 Gbps
- Resolutions up to 1080p@60 Hz and 4K×2K@24/30 Hz
- 6-bit Deep Color
- LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTSHD Master Audio (Sampling rates from 32 kHz to 192 kHz)

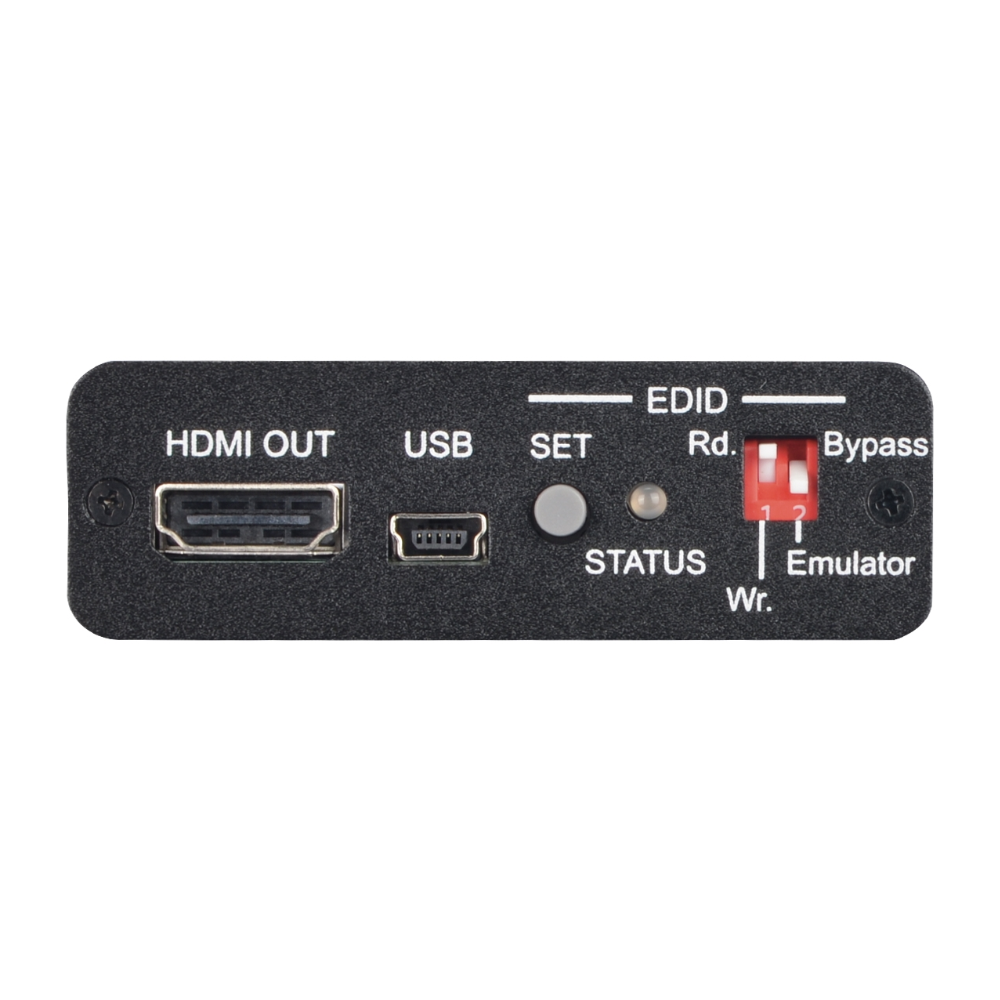

- Supports four different EDID Modes:
- Read Mode: Reads the TV/display’s EDID information
- Write Mode: Overwrites the TV/display’s EDID information (TV/display needs to be able to support overwrite function)
- Emulator Mode: Allows the source device to read the selected EDID information from the unit’s default or learned EDID memory
- Bypass Mode: Allows the source device to read the EDID information from the TV/display directly
- Supports 8 sets of default EDID
- Supports DVI source by using HDMI to DVI adaptor
- Supports CEC and EDID pass-through
- Supports being powered by USB or HDMI input
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x USB Mini-B [1x Propriety Data / USB Power]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
PSU:
- USB powered
Dimensions
- 71mm [W] x 71mm [D] x 23mm [H]
Net Weight
- 108gr
