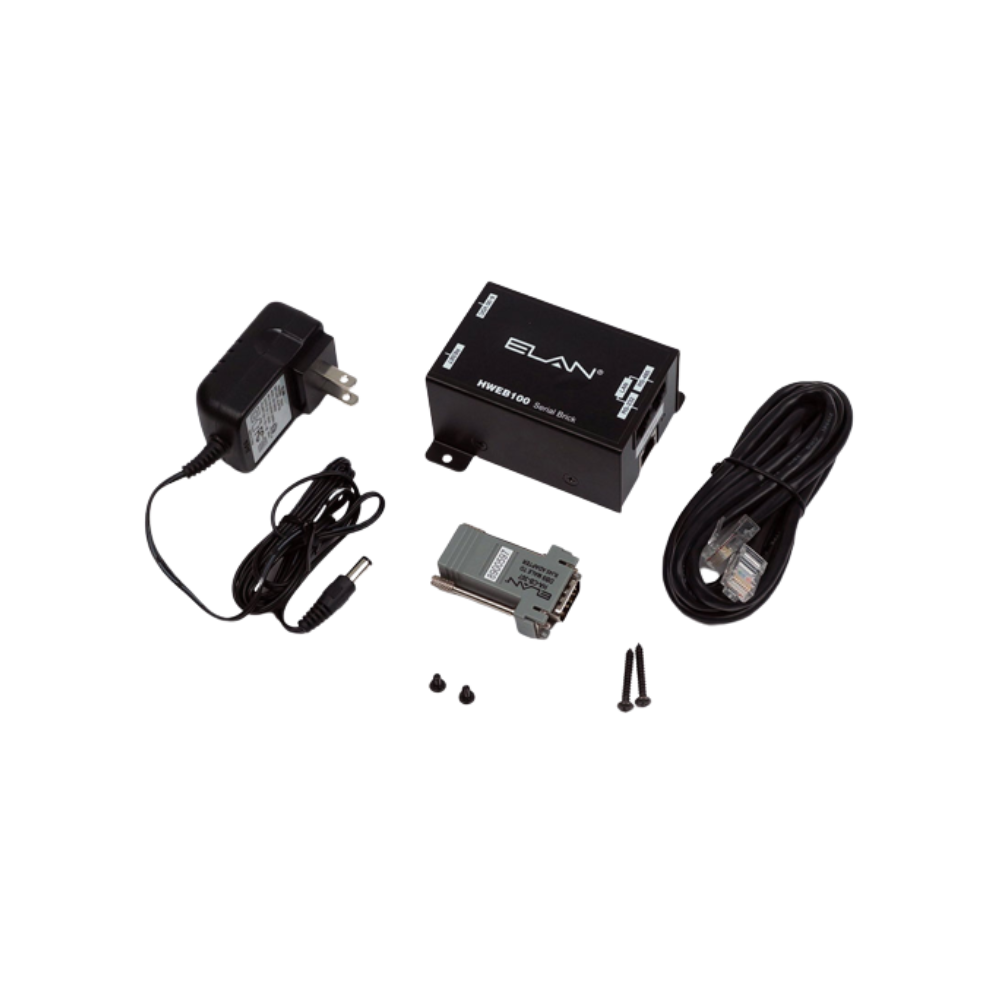

HWEB100
Serialbrick, Serial To Ethernet

The SerialBrick provides an easy to configure connection from the home network to the many sub-systems available today that rely on serial communications (RS-232 and RS-485).

  • Easy Installation: SerialBricks can be conveniently located either in the System Enclosure or near the desired equipment.
  • Easy Cabling: SerialBricks provide RJ45 or screw terminal connections as needed for maximum versatility and easy testing.

SPECIFICATIONS

Dimensions:2.10″ wide x 1.63″ tall x 3.63″ deep
Weight: .8 lbs (.85 kg)
Operating Temperature: 40º~120ºF (5º~50ºC)
Operating Humidity: 0%~90% (non-condensing)

OTHER SPECIFICATIONS

Shipping Info

  • Length10.2 (Inches)
  • Width6.9 (Inches)
  • Height3 (Inches)
  • Weight1.15 (Lbs)
  • Unit of MeasureEach
  • UPC844039009074
  • Master Pack Qty10
  • Dimensions2.10″ wide x 1.63″ tall x 3.63″ deep
  • Weight .8 lbs (.85 kg)
  • Operating Temperature 40º~120ºF (5º~50ºC)
  • Operating Humidity 0%~90% (non-condensing)
