P-3600 AR G
30A Global Voltage Regulator / Power Conditioner

The Prestige Series P-3600 AR G is a 3RU power conditioner/True RMS voltage regulator that offers a one-of-a-kind power management solution for A/V professionals around the globe. The P-3600 AR G ensures stable 120V power delivery from any input voltage source between 100V to 127V or 208V to 240V.

The unit provides connected 120V equipment with stable voltage, power protection, and AC line filtration, ideal for use with 120V A/V gear when travelling to countries with 100V, 220V, 230V, or 240V services.

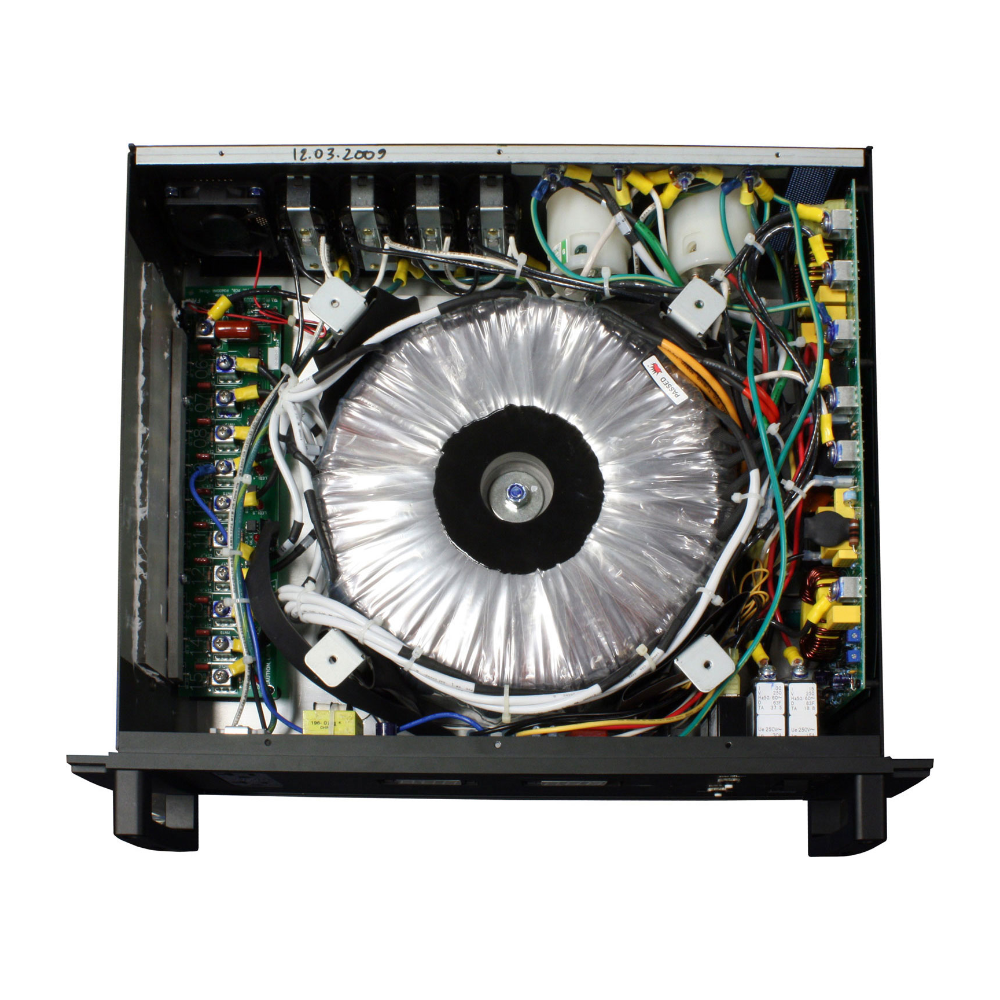

The P-3600 AR G’s predecessor, the Furman AR-PRO, has been an indispensable product for many professional users. The updated model features Furman’s True RMS Regulation Technology (utilizing an ultra-low-noise torroidal isolation transformer/autoformer, high-current switching TRIACs, and micro-processing control) to step-down or step-up input voltages. The unit also offers Furman’s exclusive LiFT/SMP/EVS technologies for professional-level protection and linear AC noise filtration.

These features, along with the P-3600 AR G’s 30A output capacity and wide input voltage capture range, make it a unique solution among other portable power conditioner/voltage regulators and a reliable, application-specific alternative to typical step-up/step- down transformers.

FEATURES

  • Global True RMS Voltage Regulation
    Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems
  • Surge Protection
    Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
  • Noise Filtration
    LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
  • Voltage Protection
    Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
  • Diagnostic Lights
    LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
  • Large LED Voltmeter
    Large LED voltmeter displays incoming line voltage.
  • Large LED Ammeter
    Large LED ammeter displays output current draw.
  • 30 Amp Rating
    30 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
  • 11 Total Outlets
    11 total outlets (nine rear panel outlets and two front panel convenience outlet).

SPECIFICATIONS

Response Time: 1 Nanosecond
Maximum Surge Current: 6,500 Amps
AC Input: L-14 Male Twistlock Inlet (Twistlock Cable-Mount Connector Included)

OTHER SPECIFICATIONS

General

  • FamilyPrestige Series
  • Line Voltage120 (Volts)
  • Number of Outlets11
  • Number of Isolated Banks0

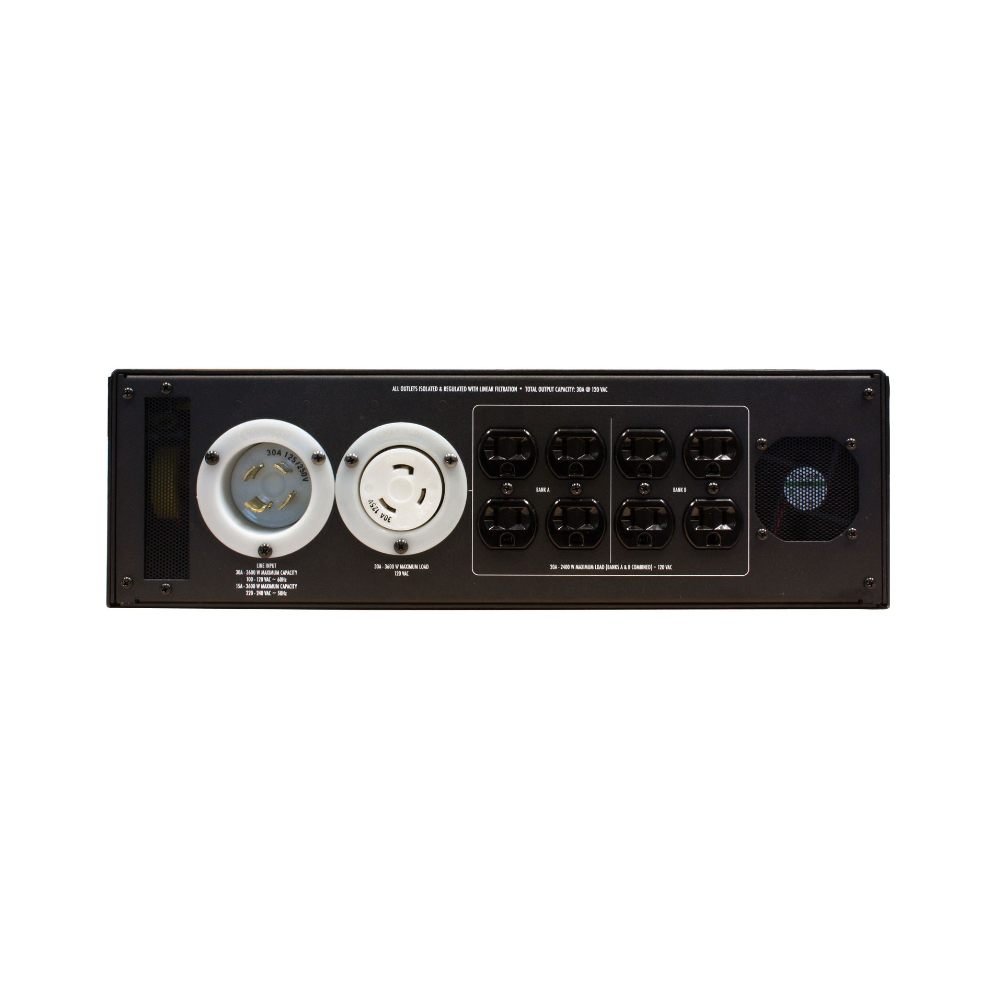

  • Outlet DescriptionsAll 11 outlets regulated, protected, and filtered. Rear panel: (8) 20 amp outlets and (1) 30amp outlet. 2 front panel 20 amp convenience outlets.
  • Rack MountableYes
  • Rack Ears IncludedYes
  • Front Panel Meter(s)LED voltmeter displays incoming line voltage, LED ammeter displays output current draw.
  • Front Media Light(s)No
  • ControlFront panel:
    – On/Off switch
    – Outlet bank reset buttons
  • Voltage RegulationRegulation capture range:
    (LOW) 88-133 VAC @ 50/60Hz
    (HIGH) 170-265 VAC @ 50/60Hz
  • CompliancecTUVus
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordL-14 male twistlock inlet (twistlock cable-mount connector included)
  • Dimensions19″ W x 14.25″ D x 5.25″ H
  • Weight98 lbs

AC Protection

  • AC Protection TechnologyGlobal True RMS Voltage Regulation
    Extreme Voltage Shutdown
    Series Multi-Stage Protection
    Non-sacrificial protection with zero ground contamination
  • Over-Voltage Shutoff145 VAC Nominal (120VAC Input)
    275 VAC Nominal (240VAC Input)
  • Maximum Current Rating30 (Amps)
  • Initial Clamping Level191V Peak @ 3,000 Amps

Filtration

  • Filtration TechnologyLiFT
  • Filtration Rating10 dB @ 10KHZ
    40 dB @ 100 KHZ
    55 dB @ 500KHZ
  • Signal Line ProtectionNo

Shipping Info

  • Length24 (Inches)
  • Width23 (Inches)
  • Height13.5 (Inches)
  • Weight110 (Lbs)
  • Unit of MeasureEach
  • UPC654061028215
  • Master Pack Qty1
  • Other Specifications
  • Response Time:1 Nanosecond
  • Maximum Surge Current:6,500 Amps
  • AC Input:L-14 Male Twistlock Inlet (Twistlock Cable-Mount Connector Included)

Proposition 65 Warning

  • Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
