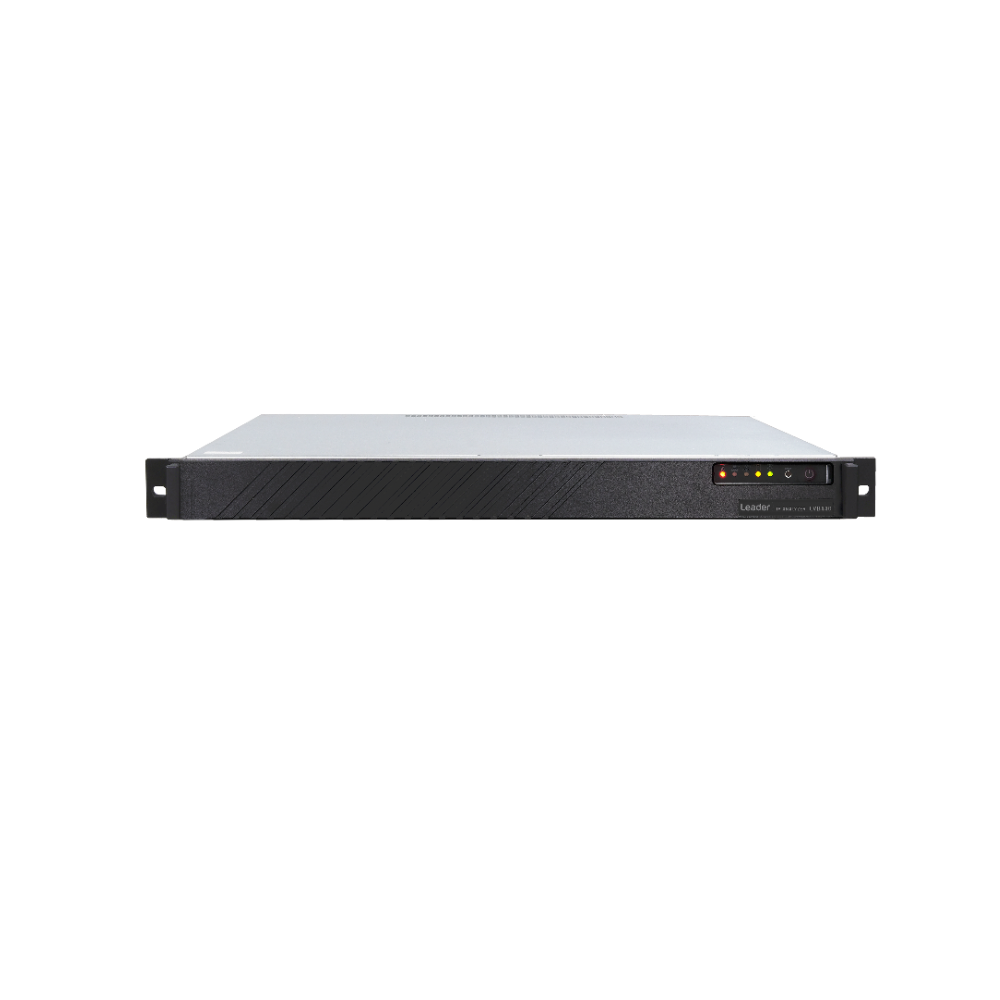

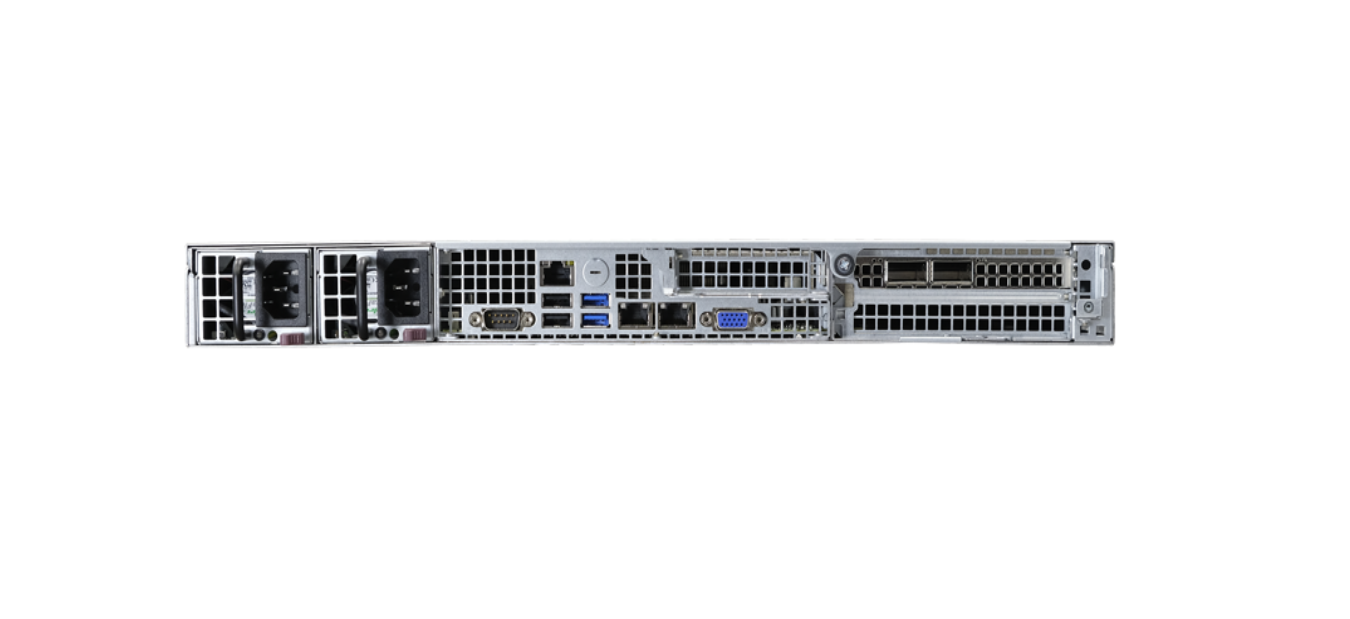

LVB440
IP ANALYZER

The LVB440 IP packet monitoring device monitors multiple high-bitrate IP media traffic such as master control, line, production/news studio, etc., and demonstrates its power for quick troubleshooting and quality improvement.
It supports dual 40Gbps bitrates, ST2110 and ST2022-6 uncompressed and ST2110-22 (JPEG-XS) compression, and monitors streams from SD to 4K (UHD). Dual 60Gbps is supported by adding options. Packet analysis of uncompressed video and audio with microsecond precision.
By adding the JPEG-XS decoding option, you can evaluate video signals of streams compressed with ST2110-22 (JPEG-XS) using picture display, vector display, etc.
Using Widglets API – HTML5 video monitor, you can monitor video and audio of multiple IPs at the same time.
Up to 8 clients can simultaneously view the analysis data with a standard web browser, and it has been used for remote production from overseas at international sports competitions.
We provide real-time analytics solutions to broadcasters and network operators handling large volumes of streams, regardless of location.

FEATURES

Features

  • Eight users can access the LVB440 simultaneously, remotely (via web browser / HTML5).
  • Video can be confirmed with a minimum delay of 2 frames.
  • ST2110 and ST2022-6/7 IP standard compatible.
  • ST2110-22 (JPEG-XS) measurement supported as standard, decoding available as software optional extra.
  • Supports dual SFP 10G, 25G, 40G, 100G.
  • Dual 40 Gbps support; dual 60 Gbps analysis bandwidth with additional software options.
  • Check packet loss and jitter on both primary and secondary network lines.
  • IP Jitter allows you to visualize changes in arrival time between two adjacent IP packets.
  • Comprehensive error logging for up to 4 days, including packet loss.
  • Check PTP lock status, grandmaster information, Clock Identity, time delay, ANC.
  • Easily verify video streams available on the network.
  • Various error settings such as phase shift voice error FEC packet loss, RTP packet loss, synchronization error, etc. are possible.
  • Multiple packets can be monitored at the same time.
  • Primary and secondary video streams can be checked by simply alternating tabs.
  • Network status history recorded and displayed graphically for ease of troubleshooting.
  • NMOS compliant for simplified automation and integration.
  • NMOS SDP file acquisition, display and data download are available.
  • Video, audio, and ANC packet status can be verified at a glance.
  • Key statistics and alarming available including.
  • Video format, number of errors, bit rate, packet rate, angle of view, frame rate, and color system compatible standards.
  • Decoding functions are Picture display, Waveform display, Vector display, CIE Chart display, HDR display, Audio Level Meter, Audio lissajous, Surround display, and Loudness display.
  • Video frame and packet capture function, up to 50 video frames and up to 10,000 packets.
  • Measure primary and secondary packet delays.
  • Visual alarm summaries.

Measurement item

  • RTP error average, minimum / maximum per flow
  • RTP frequency offset measurement
  • IAT average, minimum / maximum per flow
  • Bitrate average, minimum / maximum per flow
  • PTP synchronization interval and out-of-range indication
  • PTP setting function （ST2059）
  • Average packet rate
  • DSCP QoS parameter settings per flow
  • Packet TTL per flow

Monitoring band

  • Monitoring bandwidth LVB440 standard
    Dual configuration   PORT-A: 40G, PORT-B: 40G
    Single configuration   PORT-A only: 40G
  • Monitoring bandwidth LVB440 + 40G-OPT
    Dual configuration   PORT-A: 60G, PORT-B: 60G
    Single configuration   PORT-A only: 80G

Corresponding standard

  • ST 2022-6
  • ST 2022-7 Redundancy
  • ST 2110-20 / 21 / 22(JPEG-XS) / 30 / 31 / 40
  • AES 67
  • NMOS IS-04 / 05/07
  • PTP v2 SMPTE 2059 / IEEE 1588-2008

Function

  • Waveform monitor
  • Vector scope
  • Picture monitor
  • CIE Chart display
  • HDR Measurement display
  • Audio Level Meter
  • Audio Lissajous
  • 7.1ch surround
  • Loudness display
  • Closed Caption (OP-47, CEA-608, CEA-708)
  • Decode SCTE104 data and Display on the Picture monitor
  • SONY SR Live Metadata Display

Widglets API – HTML5 video monito

  • Simultaneous display of multiple full-motion/video/audio/vectorscopes
  • Free layout by HTML5
  • Uses flexible code embedded in HTML5
  • Compatible with ST2110, ST2022-6 / 7, ST2059-2, NMOS

OPTION

Option list

Model number Product name Function
LVB440-SER21 40Gbps-OPT  40Gbps can be added to support up to 60Gbps for dual and 80Gbps for single.
LVB440-SER22 JPEGXS-OPT JPEG-XS decoding option.Can be evaluated using vector and image display.
LVB-SW3 Software Maintenance  3-year software maintenance and version upgrade support
LVB-SW5 Software Maintenance  5-year software maintenance and version upgrade support

SPECIFICATIONS

  • SUPPORTED STANDARDS
    FORMAT Remarks
    ST2022-6 SDIoIP, encapsulated SDI over IP
    ST2022-7 Dual network parallel redundancy
    ST2110-10/20/30/40 SMPTE suite of standards for uncompressedflows of Video, Audio and ancillary data.
    SMPTE ST 2110-22 Compressed video.
    SMPTE ST 2110-31 AES3 transport containing uncompressed PCM audio or compressed AC-3/E-AC-3 audio
    OP-47/SMPTE RDD 8, CEA 608, CEA 708 Subtitles / Closed Captioning
    PTP IEEE 1588v2, ST 2059-2 (Multicast, mixed SMPTE w/o negotiation)
  • CURRENT SUPPORTED VIDEO FORMATS
    FORMAT COLOR SPACE SAMPLE STRUCTURE FRAME/FIELD RATE
    SD 480i YCBCR 4:2:2 8/10 59.94
    576i YCBCR 4:2:2 8/10 25/50
    HD 720p YCBCR 4:2:2 8/10 23.98/24/25/47.95/48/50/59.94/60
    1080i YCBCR 4:2:2 8/10 50/59.94
    1080p YCBCR 4:2:2 8/10 23.98/24/25/47.95/48/50/59.94/60
    UHD 2160p YCBCR 4:2:2 8/10 23.98/24/25/47.95/48/50/59.94/60
    4K YCBCR 4:2:2 8/10 23.98/24/25/47.95/48/50/59.94/60

    All formats support Rec. 601. Rec. 709 and Rec. 2020 SDR. Additional formats to be supported in future software update.

  • CURRENT SUPPORTED AUDIO FORMATS
    Corresponding standard SAMPLE RATE BITS CHANNEL ORDERING
    SMPTE ST 2022-6 (SDI over IP) 48 KHz 20 Mono, Stereo, Quad, 5.1 Surround, 7.1 Surround
    44.1 kHz, 48 kHz, 96 kHz 24 Mono, Stereo, Quad, 5.1 Surround, 7.1 Surround
    48 KHz 2-bit float from AC-3/E-AC-3 Mono, Stereo, 5.1 Surround, 7.1 Surround
    SMPTE ST 2110-30 (AES67) 44.1 kHz, 48 kHz, 96 kHz 16/24 Mono, Stereo, Quad, 5.1 Surround, 7.1 Surround
    88.2 kHz, 192 kHz 24 Mono, Stereo, Quad, 5.1 Surround, 7.1 Surround
    SMPTE ST 2110-31 (AES3 over IP) 44.1 kHz, 48 kHz, 96 kHz 16/20/24 Mono, Stereo, Quad, 5.1 Surround, 7.1 Surround
    32-bit float from AC-3/E-AC-3 24 Mono, Stereo, 5.1 Surround, 7.1 Surround
  • NMOS SPECIFICATIONS
    Corresponding standard
    IS-04(Discovery and Registration)
    IS-05(Connection Management)
    IS-07(Event and Tally)
    IS-09(System API)
    BCP-002-01(Natural Grouping)
    BCP-003-01(API Security: Communications)
  • PHYSICAL SPECIFICATIONS
    Item SPECIFICATION
    Operating Temperature Range 5 ~ 35 ℃
    Operating Relative Humidity Range 8%~90%（non-condensing）
    Voltage AC 100 ~ 250 V, 50/60 Hz
    Power Supply 400W（Redundant PSU）
    Form factor 1RU ：43（H）× 437（W）× 503（D）mm
    Weight 20Kg (44 lbs)
