AT40USB
DVB Fantastic

TS Player & Recorder

DVB-ASI Input & Output

Powered from USB port

Free Application Software

  • Smallest DVB-ASI I/O Device in the world
  • High Speed USB 2.0
  • Windows Drivers & SDK
  • Linux Drivers
  • Free Application Software, DVSStation3
  • Supports DVB Standards A1010 Rev1 & EN50083
  • Supports 188/204 byte & Arbitrary Packet Sizes

Input

  • Integrated Loop Through output
  • Automatic Cable Equalization of up to 350m
  • Supports True or Inverted ASI signals
  • Carrier and Lock Detection
  • Sync, Error & Code Violation Detection
  • PID filtering by Hardware.
  • PCR Time stamping by Hardware

Output

  • Programmable Output Bit Rate
  • Can play Higher Bitrate then the TS file
  • Can output True and Inverted signals
  • Supports Burst Mode
  • Null packet insertion by Hardware
  • PCR, continuity counter correction
  • Packet time and date correction
  • Error insertion
  • Hardware Generated Null & Counter Packet

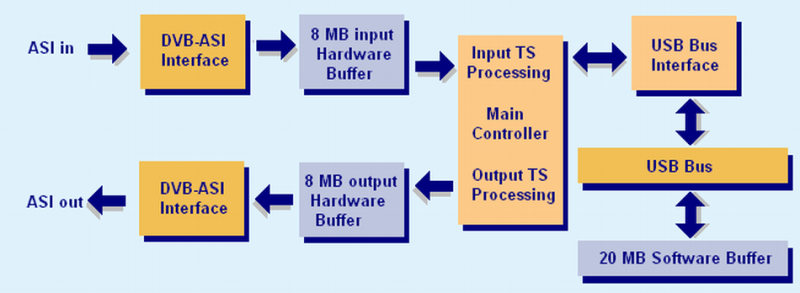

BLOCK DIAGRAM

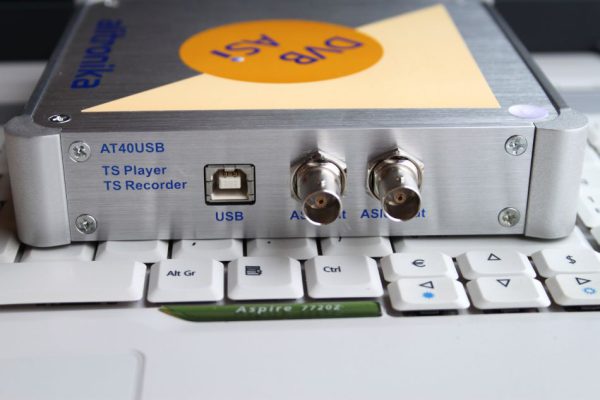

CONNECTIONS

APPLICATIONS

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT40USB is an ideal solution for a number of applications such as:

  • Development Tools
  • DVB to IP Gateway
  • Universal Interface for TS Processing
  • Video on Demand Server
  • Transport Stream Test Generator
  • High Speed Serial Data Link
  • Software Based MPEG2 Encoders/Decoders

SPECIFICATIONS

  • On Board Buffer: 8 Mbytes
  • DVB-ASI Connector: 75 Ohms Mini BNC
  • Input Return Loss: >15 dB
  • Input Signal level: 800 mV +/- 10%
  • Output Signal level: 1.0Vp-p nominal
  • DVB-ASI I/O Bit Rate: 0 to 214 Mbit/s
  • Bit Rate Stability:
    – Standard: +/- 25ppm
    – Maximum: +/- 1ppm
  • DVB-ASI Output Clock: 270 MHz

APPLICATION SOFTWARE

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika’s FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

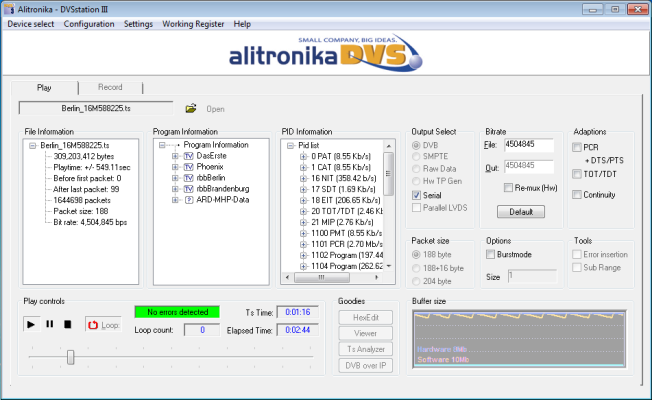

Play Screen

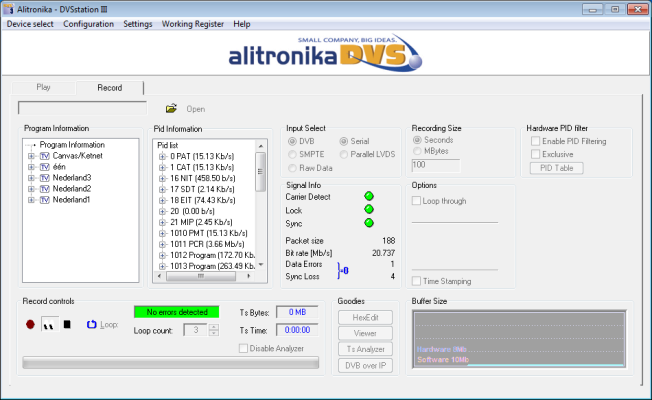

Record Screen

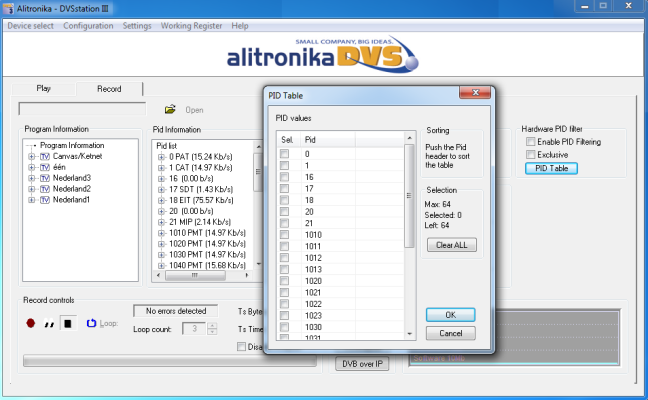

PID Filtering

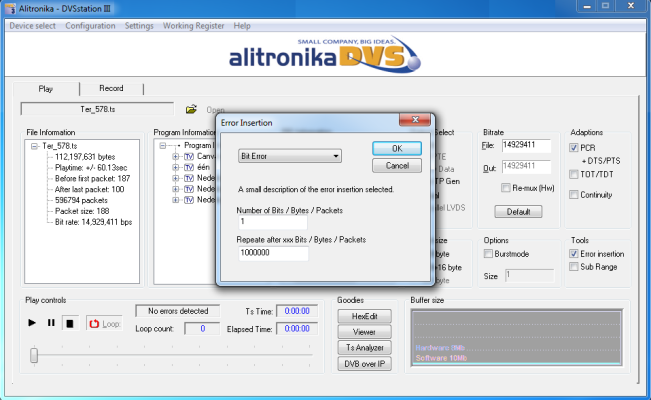

Bit, Byte & Packet error insertion

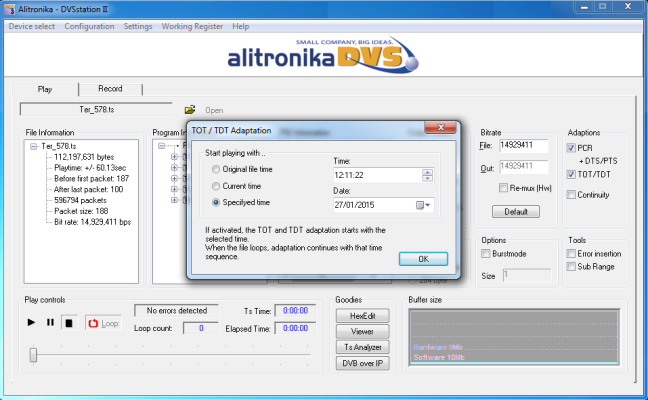

TOT & TDT selection

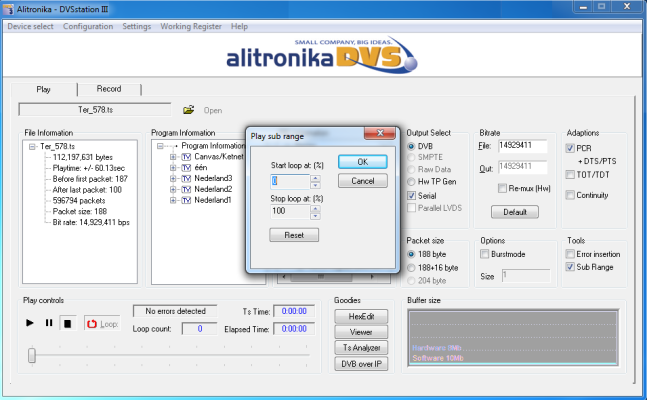

PlayBack in loops, sub-loops & more

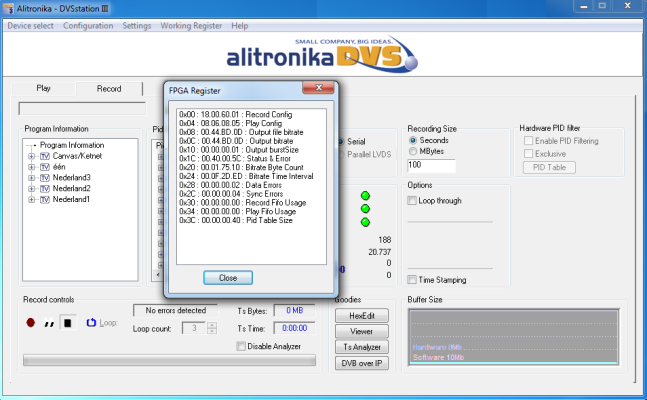

Accessable Working Regiters

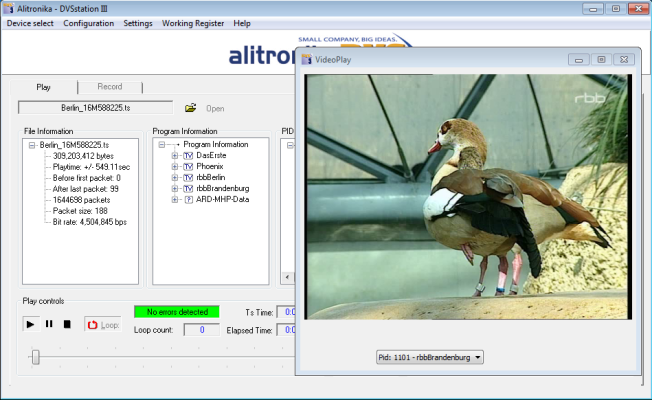

Among “Goodies” are: Video Viewer

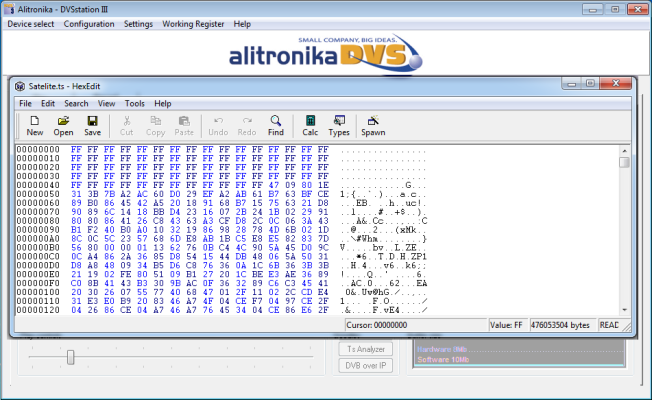

Hex Editor

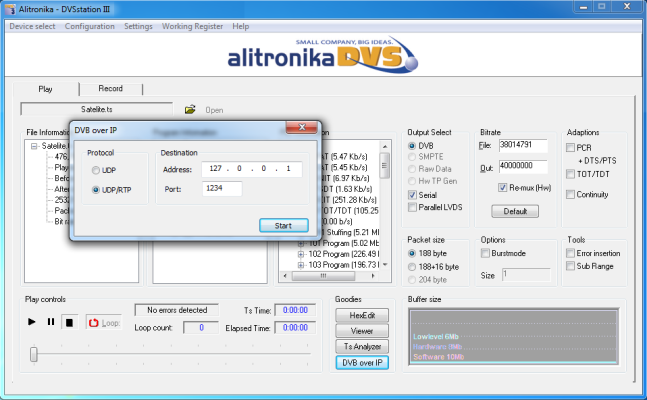

A DVB to IP Player/Converter

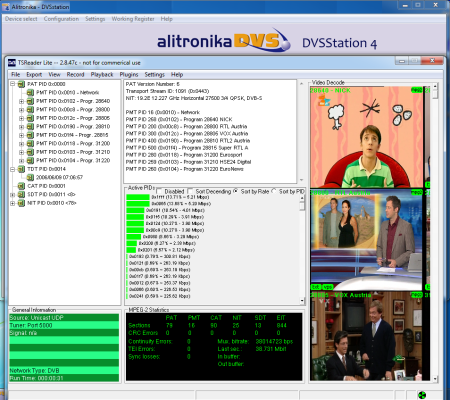

TSReader supports Alitronika’s devices.
