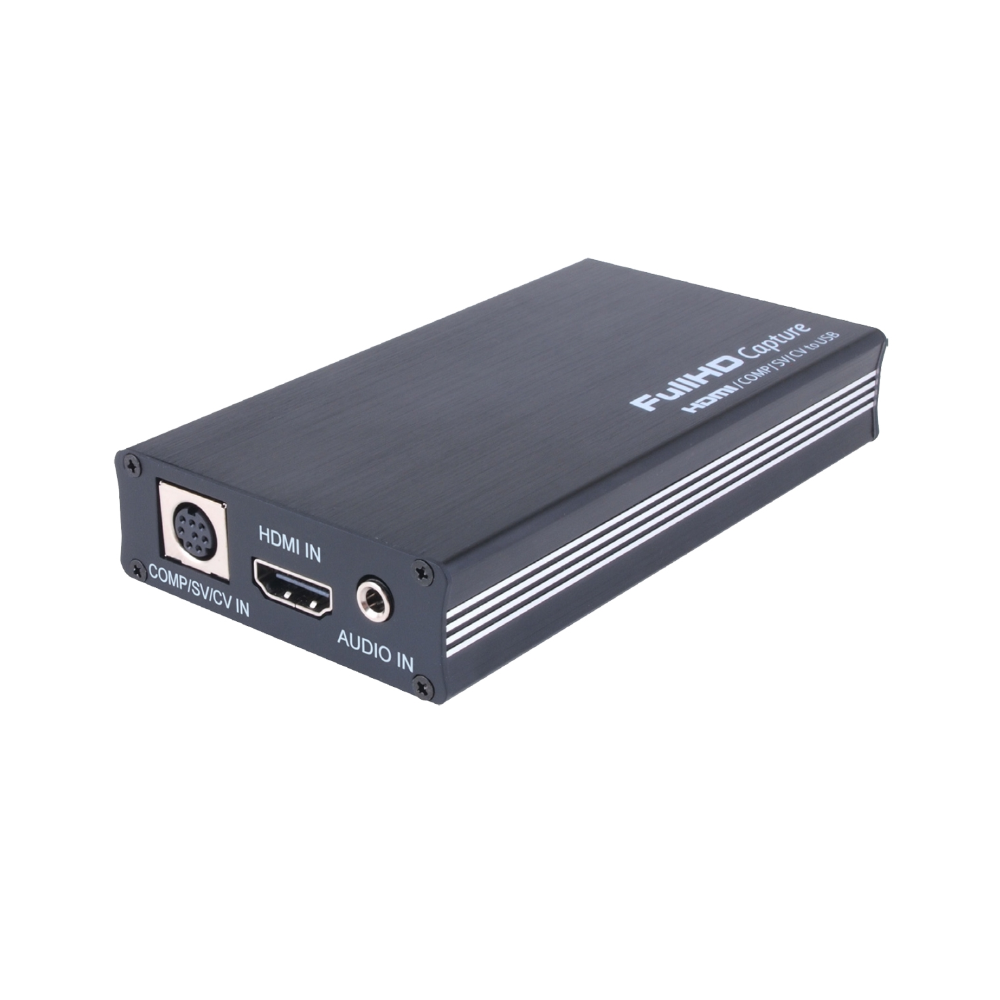

- FullHD capture HDMI/COMP/SV/CV to USB
- H.264/MPEG4-AVC High Definition encoder
- Video input supports: 1920x1080i/p, 1280x720p, 576i/p, 720x480i/pSupp
- orts MPEG-4 Advanced Audio Coding (AAC)
- 48 KHz audio sampling frequencies
- It use USB bus power for low power consumption
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 8-pin DIN [1x COMP/SV/CV YCbCr]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
Outputs
- 1x USB Mini-B [1x Propriety Data / USB Power]
PSU:
- USB powered
Dimensions
- 121mm [W] x 65mm [D] x 21mm [H]
Net Weight
- 146g
