- HDMI and DVI 1.0 compliant
- Converts an HDMI video signal to NTSC/PAL
- Converts HDMI digital audio to analog stereo audio
- Accepts a wide range of input resolutions of 480i to 1080p (HDTV) and VGA to WUXGA@60 Hz (PC)
- Output picture can be set to ‘Underscan’ or ‘Overscan’
- otion adaptive 3-D de-interlacing with pixel-by-pixel motion adaptive interpolation
- 3D noise reduction in both temporal and spatial domain
- Frame rate conversion with a arbitrary conversion ratio
- Adaptive contrast enhancement

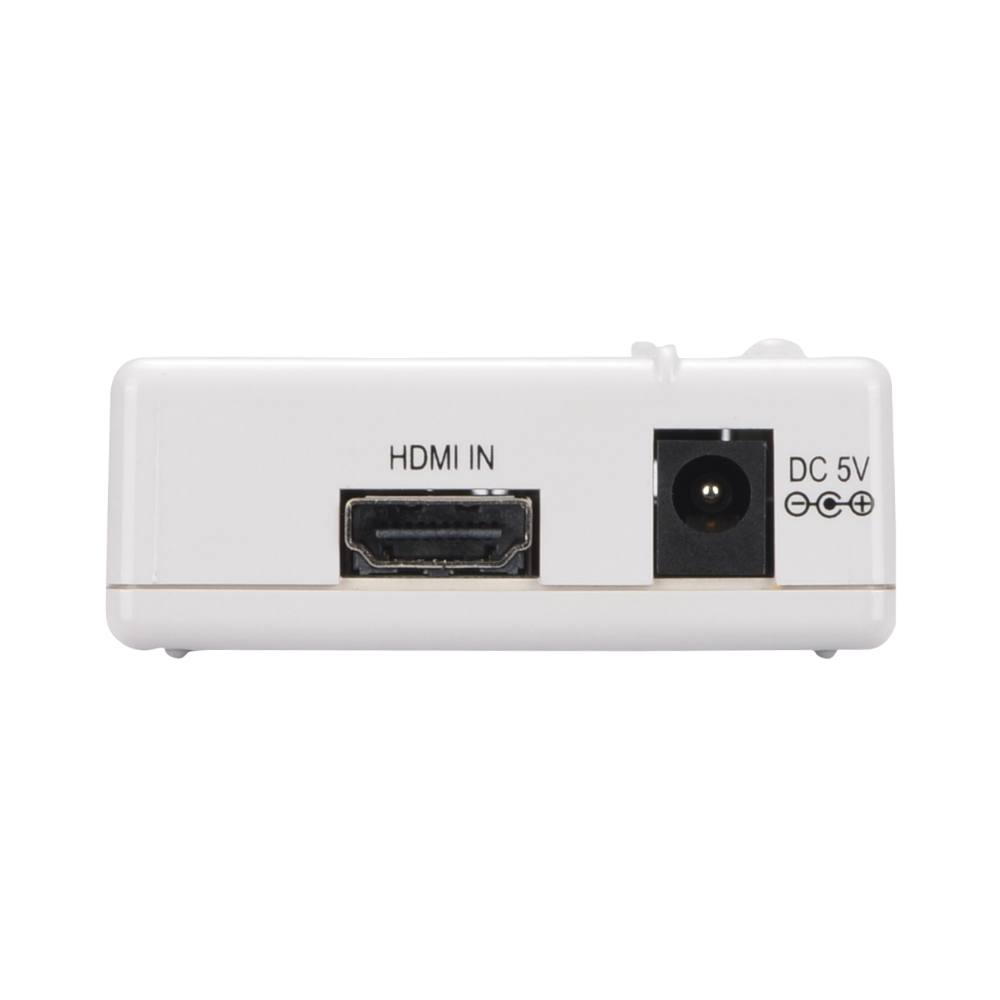

Inputs
- 1x HDMI [1x Uncompressed AV and Data]

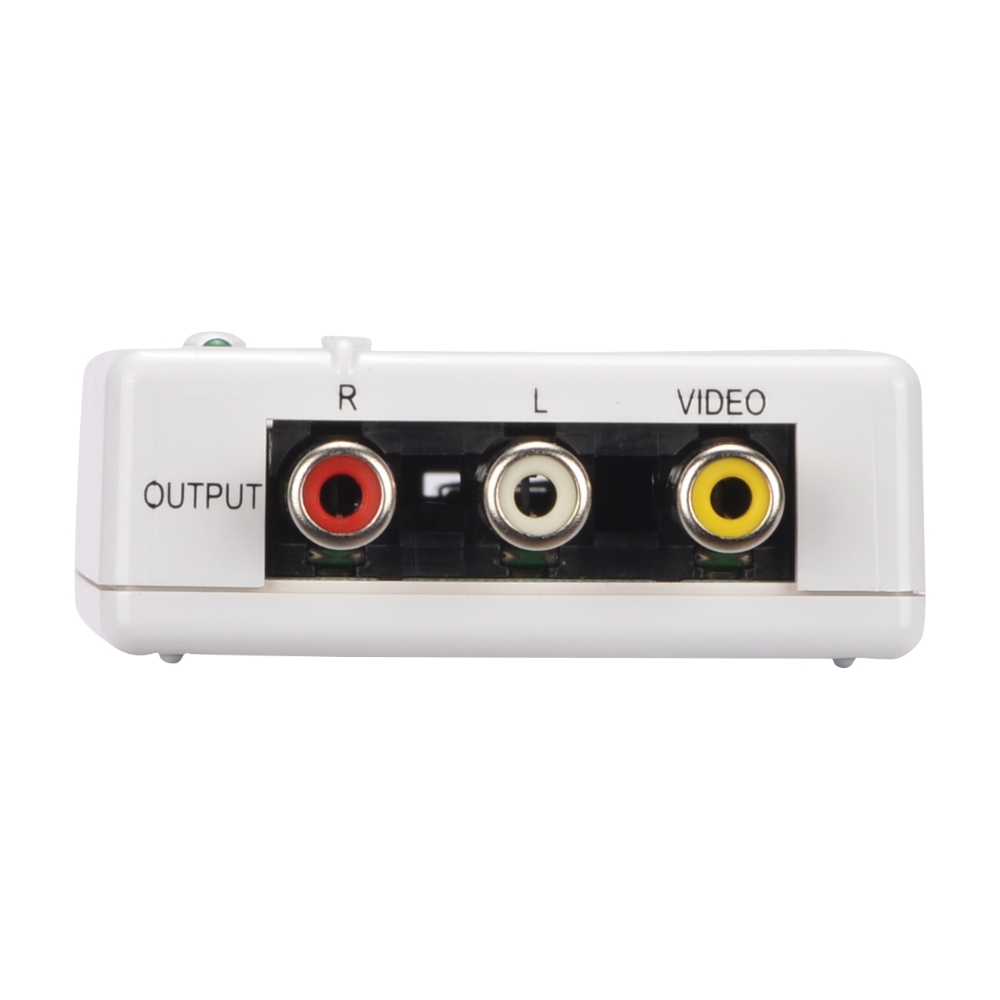

Outputs
- 1x RCA [1x Composite Video]
- 2x RCA [1x Stereo (L/R)]
PSU:
- 5V/1A
Dimensions
- 26mm [W] x 65mm [D] x 114mm [H]
Net Weight
- 120gr
