- Supports scaling of any input signals to a wide range of HDTV and PC output resolutions up to 1080p and WUXGA (RB)
- Digital to Analog and Analog to Digital Audio conversion (DAC/ADC)
- Compatible with HDMI, HDCP 1.1
- Excellent Audio transmission (32-192kHz sample rate)
- Supports distances up to 100 meters over CAT5e/6/7 cables
- Simultaneous video output through the HDBaseT, HDMI outputs and audio output through the digital coaxial and analog L/R outputs
- Supports switchable HDMI bypass allowing local monitoring of any of the HDMI or HDBaseT inputs
- Supports Power over Ethernet (PoE) on the CAT5e/6/7 output to a compatible receiver
- Control scaler via IR, Remote control, RS-232, Telnet, Web GUI and on-panel controls
- Supports HDBaseT LAN serving function to a compatible receiver
- Supports High-definition Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

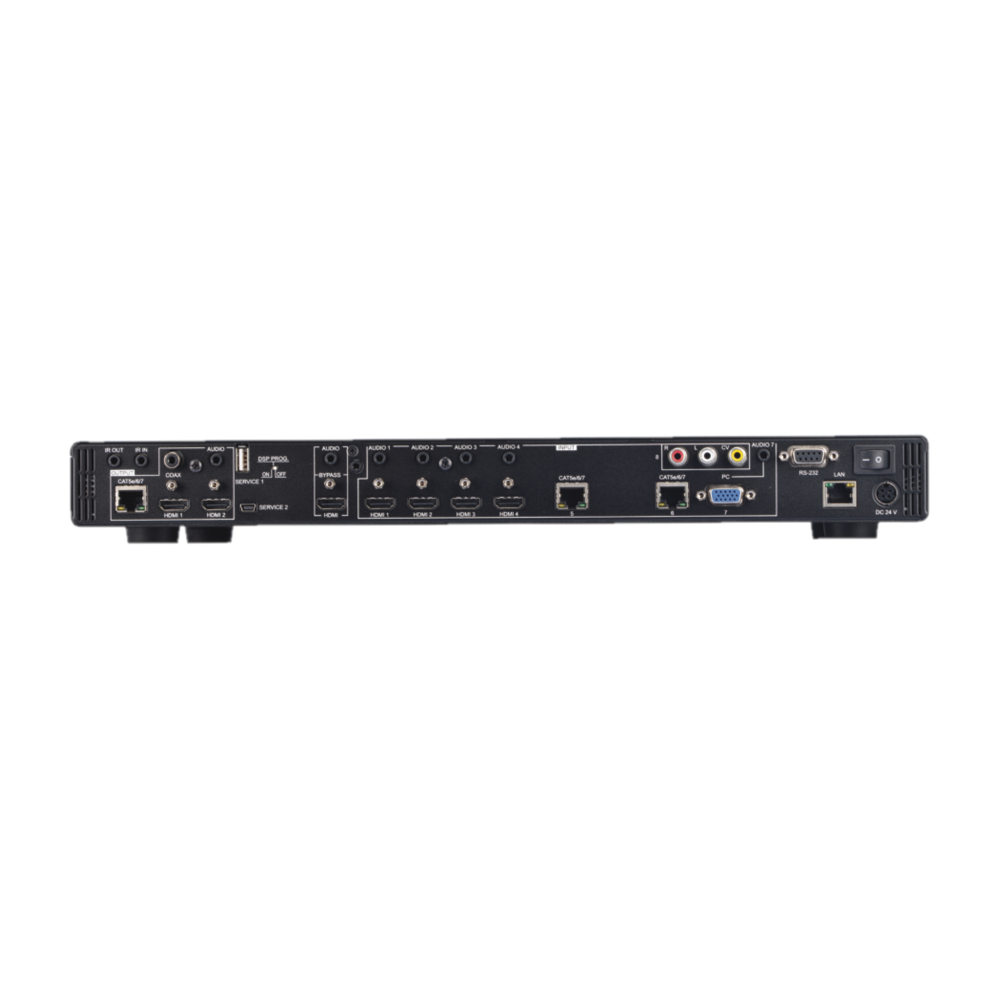

Inputs
- 4x HDMI [4x Uncompressed AV and Data]
- 2x RJ45 [2x HDMI & Propriety Data]
- 1x 15-pin D-sub [1x PC RGBHV]
- 1x RCA [1x Composite Video]
- 5x 3.5mm Stereo Mini-jack [5x Stereo(L/R)]
- 2x RCA [1x Stereo (L/R)]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x RJ45 [1x IP Control / LAN Serving]
- 1x USB Type A [1x SERVICE 1 Propriety Data]
- 1x USB Mini-B [1x SERVICE 2 Propriety Data]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
- 1x HDMI [1x BYPASS Uncompressed AV and Data]
- 1x RJ45 [1x HDMI & Propriety Data]
- 1x RCA [1x COAX 2 Channel LPCM]
- 2x 3.5mm Stereo Mini-jack [2x Stereo(L/R)]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
PSU:
- 24V/2.7A
Dimensions
- 438mm [W] x 275mm [D] x 44mm [H]
Net Weight
- 3410gr
