- Compatible with HDMI, DVI, DisplayPort and HDCP 1.4
- Video and audio inputs: 2×HDMI, 2×VGA,1×DisplayPort, 3×Unbalanced audio, 1×Mic audio (w/ 48V phantom power option)
- HDMI and HDBaseT outputs (mirrored)
- Inputs support HD resolutions up to 1080p@60Hz and PC resolutions from VGA to WUXGA
- Outputs support resolutions up to 1080p@60Hz
- Supports pass-through of LPCM 2.0 audio
- Audio DSP with auto mixer and gain control for mixing audio and reducing background audio
- HDBaseT feature support: High-Definition video and audio, 24V PoC (Power over Cable) and control (Bi-directional IR & RS-232 pass through)
- HDBaseT output provides 24V PoC to power to compatible HDBaseT Receivers
- Supports EDID management
- Supports IR In and IR Out to receive or transmit IR signals from compatible Receivers with bi-directional IR
- Remote control provides discrete input source selection
- Supports control via WebGUI, Telnet, IR remote and RS-232

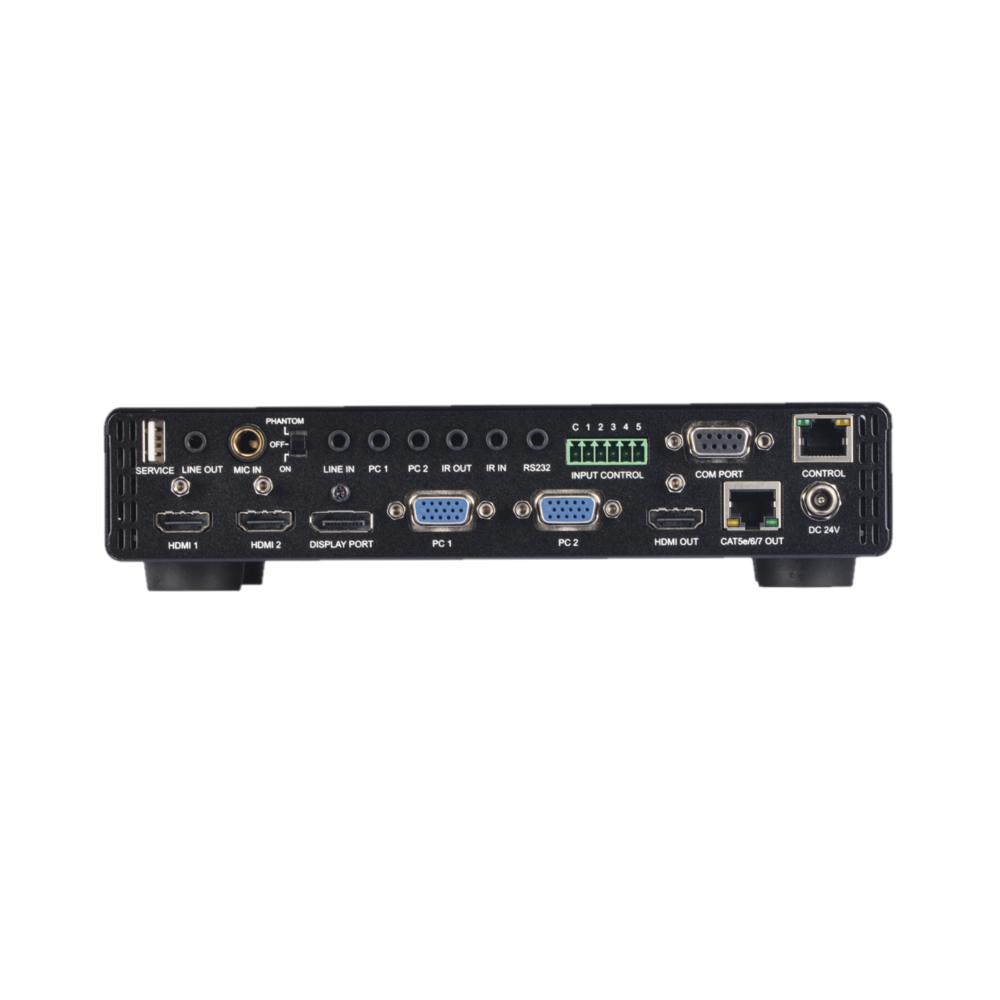

Inputs
- 2x HDMI [2x Uncompressed AV and Data]
- 2x 15-pin D-sub [2x VGA RGBHV]
- 1x DisplayPort [1x Uncompressed AV]
- 1x 6.35mm Stereo Jack [1x Microphone]
- 2x 3.5mm Stereo Mini-jack [2x PC 1 / PC 2 Stereo(L/R)]
- 1x 3.5mm Stereo Mini-jack [1x LINE-IN Stereo(L/R)]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x 9-pin D-sub [1x RS-232 Data]
- 6x 1-Pin Terminal Block [1x INPUT CONTROL]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x RJ45 [1x HDMI & Propriety Data]
- 1x 3.5mm Stereo Mini-jack [1x LINE-OUT Stereo(L/R)]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
- 1x 3.5mm Stereo Mini-jack [1x RS-232]
PSU:
- 24V/1.25A
Dimensions
- 219mm [W] x 165mm [D] x 52mm [H]
Net Weight
- 1256gr
