- 1 HDMI input and 2 HDMI outputs with 4K UHD (18Gbps) support and HDCP 2.2 compliance
- Supports HDCP 2.2 to HDCP1.4 conversion
- Compatible with DVI 1.0

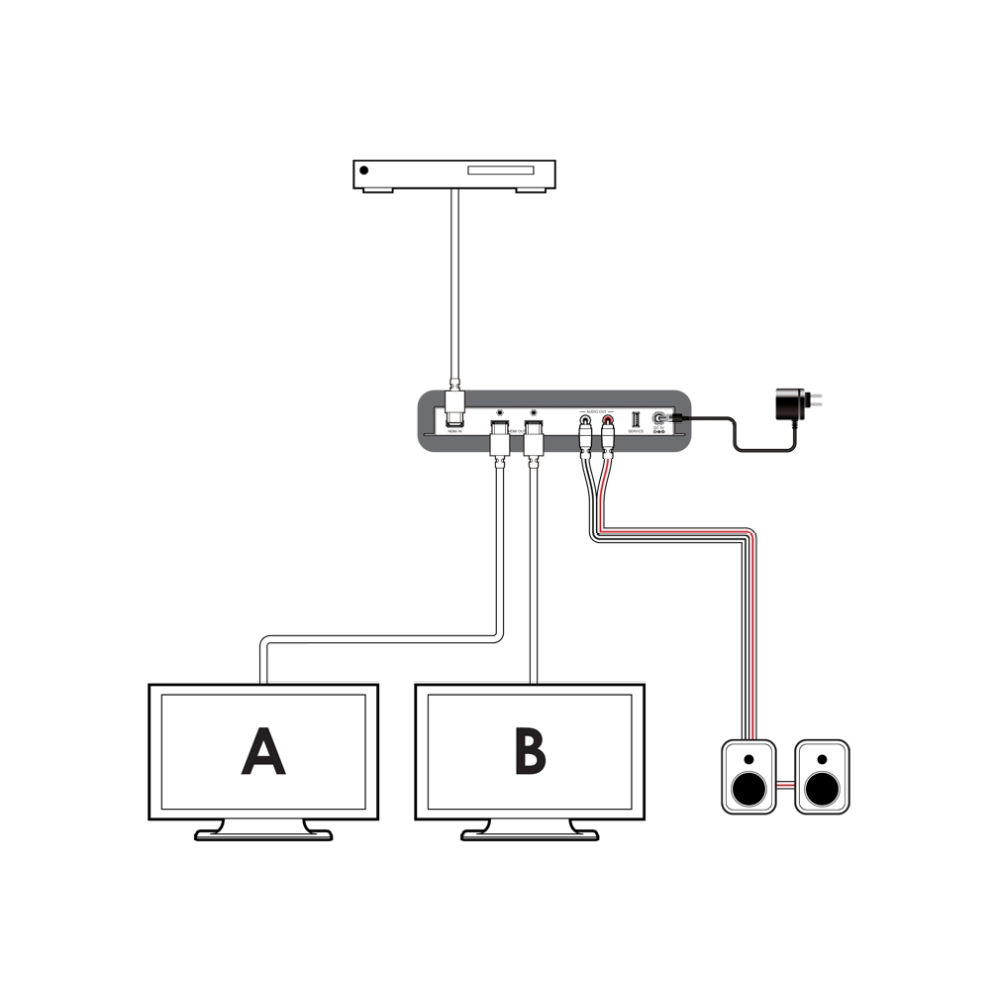

- HDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output A
- 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- HDMI signal bypass, upscale and downscale
- Integrated EDID management
- Test pattern generation at selected resolutions for on-site display testing
- Supports High-Dynamic-Range (HDR) sources
- Supports HDR conversion from 4K@24/25/30Hz (4:4:4/4:2:2) 10 or 12-bit to 4K@24/25/30Hz (8-bit)
- Supports UHD resolutions up to 3840×2160@50/60Hz (4:4:4) & 4096×2160@50/60Hz (4:4:4)
- Supports data rates up to 18Gbps (600MHz) and Deep Color up to 1080p/16-bit
- Supports pass-through of HD audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- OSD with instant I/O resolution display
- Digital to Analog (DAC) audio conversion
- Supports the Apple source compatibility mode option
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
- 2x RCA [1x Stereo (L/R)]
PSU:
- 5V/2.6A
Dimensions
- 231mm [W] x 118mm [D] x 30mm [H]
Net Weight
- 616gr
