- Compatible with HDMI, HDCP and DVI
- Supports a wide range of video standards including NTSC, NTSC4, PAL, PAL-M, PAL-N and SECAM
- Supports upscaling to resolutions of VGA to WUXGA (PC) or 480p to 1080p (HD)
- Automatically detects the display settings of the connected display and outputs the correct resolution and refresh rate when the NATIVE output option is selected
- Supports 50/60Hz frame rate conversion
- Supports 3D motion video adaptive, 3D de-interlacing and 3:2/2:2 pull down detection and recovery
- Provides adjustment of contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size of the video output
- Supports OSD selectable stereo analog and digital audio inputs and simultaneous stereo analog and digital audio outputs to HDMI, Optical digital audio and analog mini-jack connections

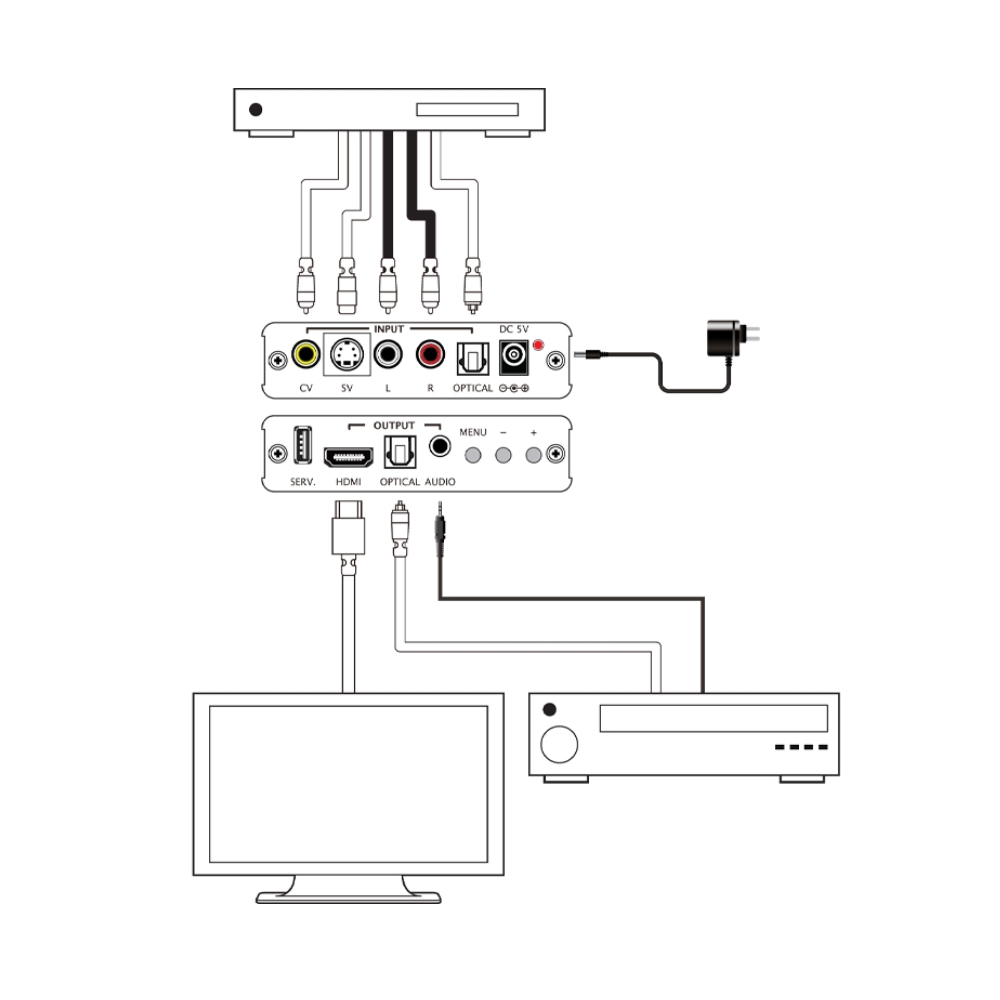

Inputs
- 1x S-Video [1x S-video]
- 1x RCA [1x Composite Video]
- 2x RCA [1x Stereo (L/R)]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
- 1x USB Type A [1x Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 2x RCA [1x Stereo (L/R)]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
PSU:
- 5V/2.6A
Dimensions
- 102mm [W] x 186mm [D] x 25mm [H]
Net Weight
- 396gr
