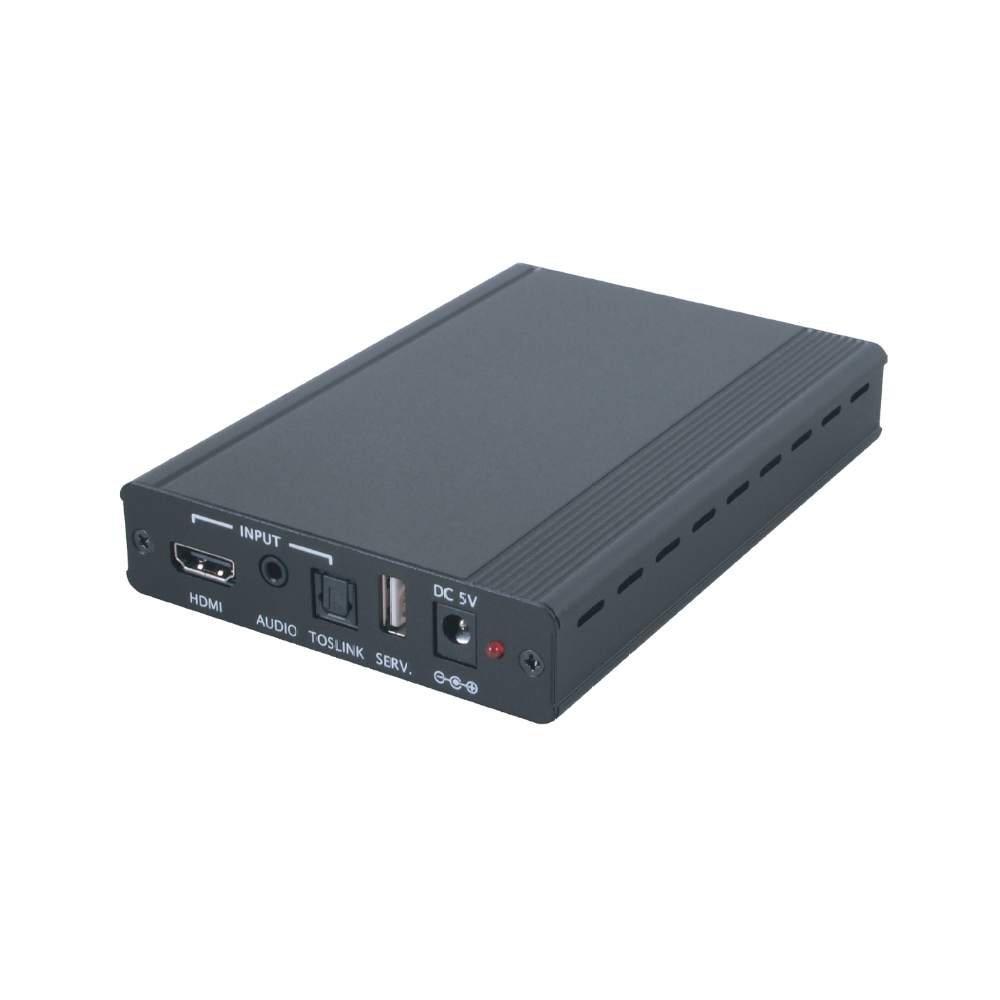

The HDMI to HDMI Scaler is designed to upscale an HDMI video signal from an HDMI source. Output resolution can be up to 1080p/WUXGA. This unit can also convert a digital/analog audio signal and then simultaneously output to an HDMI, Optical and 3.5mm Mini-jack (L/R audio) connections. This unit has a comprehensive OSD menu that allows the user to select a variety of output resolutions, the conversion of the video signal to maximize compatibility, and make adjustments to optimize the image quality.
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
PSU:
- 5V/2.6A
Dimensions
- 102mm [W] x 155mm [D] x 25mm [H]
Net Weight
- 338gr
