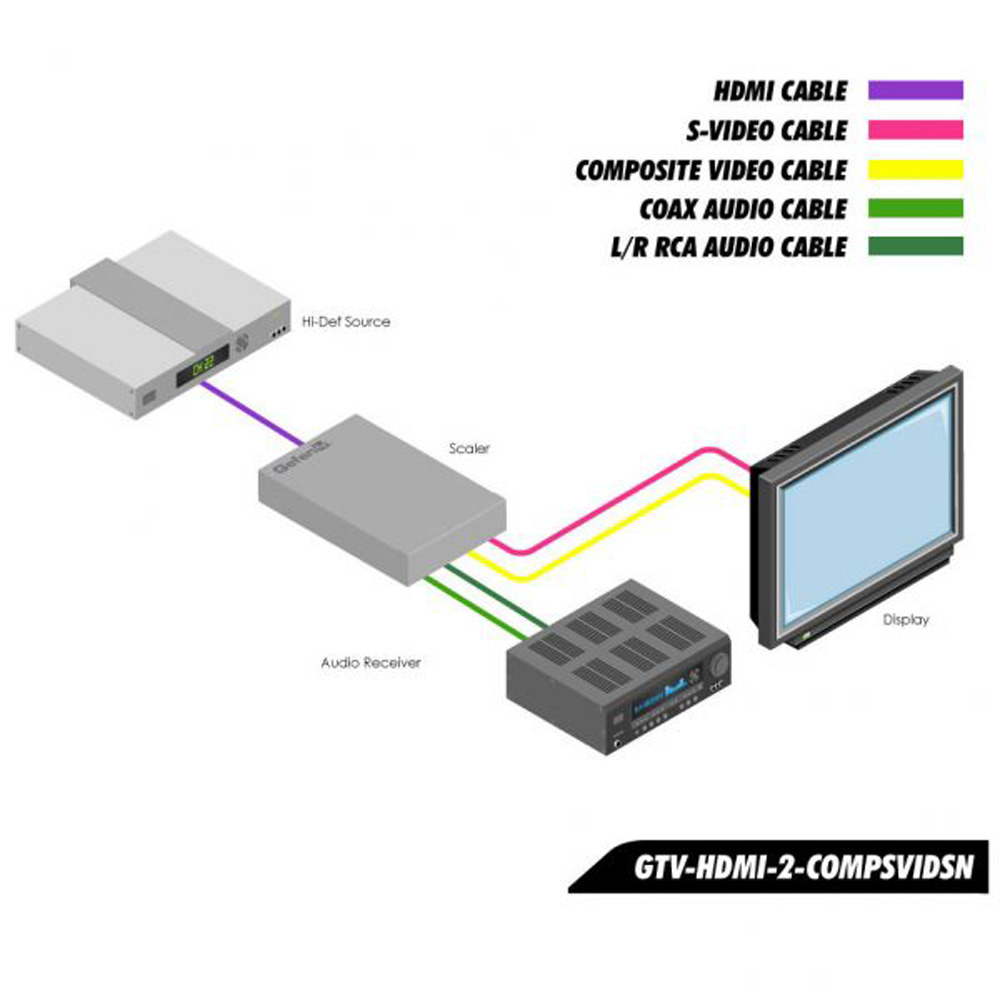

Convert any Hi-Def source to standard definition NTSC/PAL format with scaling. The HDMI to analog video scaler supports resolutions up to 1080p Full HD video and scaled outputs in Composite and S Video, while maintaining the original aspect ratio for optimal viewing. The coax S/PDIF digital audio and left/right analog audio outputs allow the audio extracted from the HDMI signal to be sent to any AV Receiver or audio amplifier. Underscan/Overscan and NTSC/PAL switches help assure compatibility with a variety of analog televisions. This scaler also features a USB port for firmware upgrades.
FEATURES
- Supported input resolutions:
- 576i@50Hz
- 480p@60Hz
- 576p@50/Hz
- 720p@50/60Hz
- 1080i@50/60Hz
- 1080p@50/60Hz
- 640×480@60Hz
- 800×600@60Hz
- 1024×768@60Hz
- 1280×1024@60Hz
- 1600×1200@60Hz

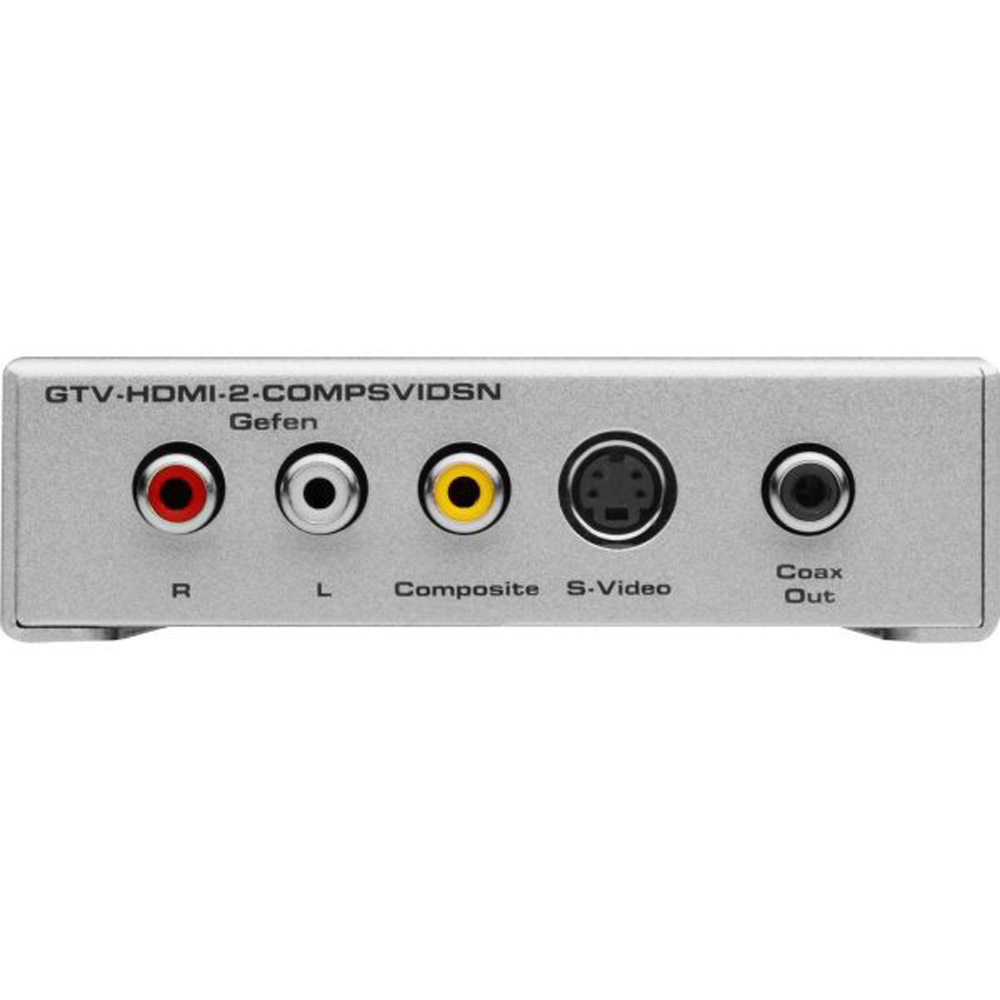

- Converts and scales HDMI to Composite/S-Video at 480i/60 or 576i/50
- De-embeds audio from HDMI and outputs it as digital and analog audio
- Accepts HDMI video at resolutions of up to 1080p Full HD
- Supports both NTSC and PAL formats

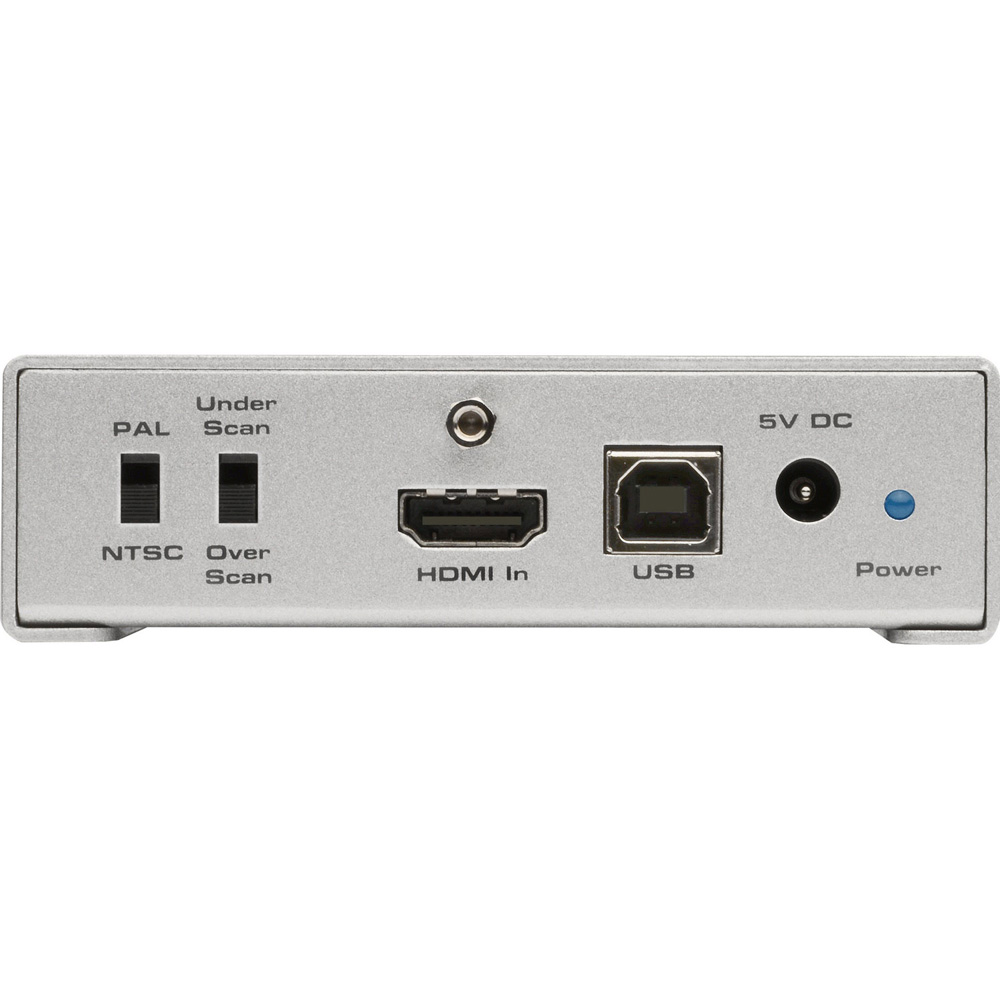

- Underscan/Overscan Switch helps optimize image size on old analog TV screens without over-cropping or visible black borders
- Field upgradable firmware via USB port
OTHER SPECIFICATIONS
Shipping Info
- Length12 (Inches)
- Width6.13 (Inches)
- Height4.25 (Inches)
- Weight2.2 (Lbs)
- UPC845344057309
In The Box
- HDMI to Composite Scaler with USB port (GTV-HDMI-2-COMPSVIDSN)(1)
- 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)(1)
- 5V DC Locking Power Supply (EXT-PS526AIPN)(1)
- Quick Start Guide (QSG-GTV-HDMI-2-COMPSVIDSN)(1)
