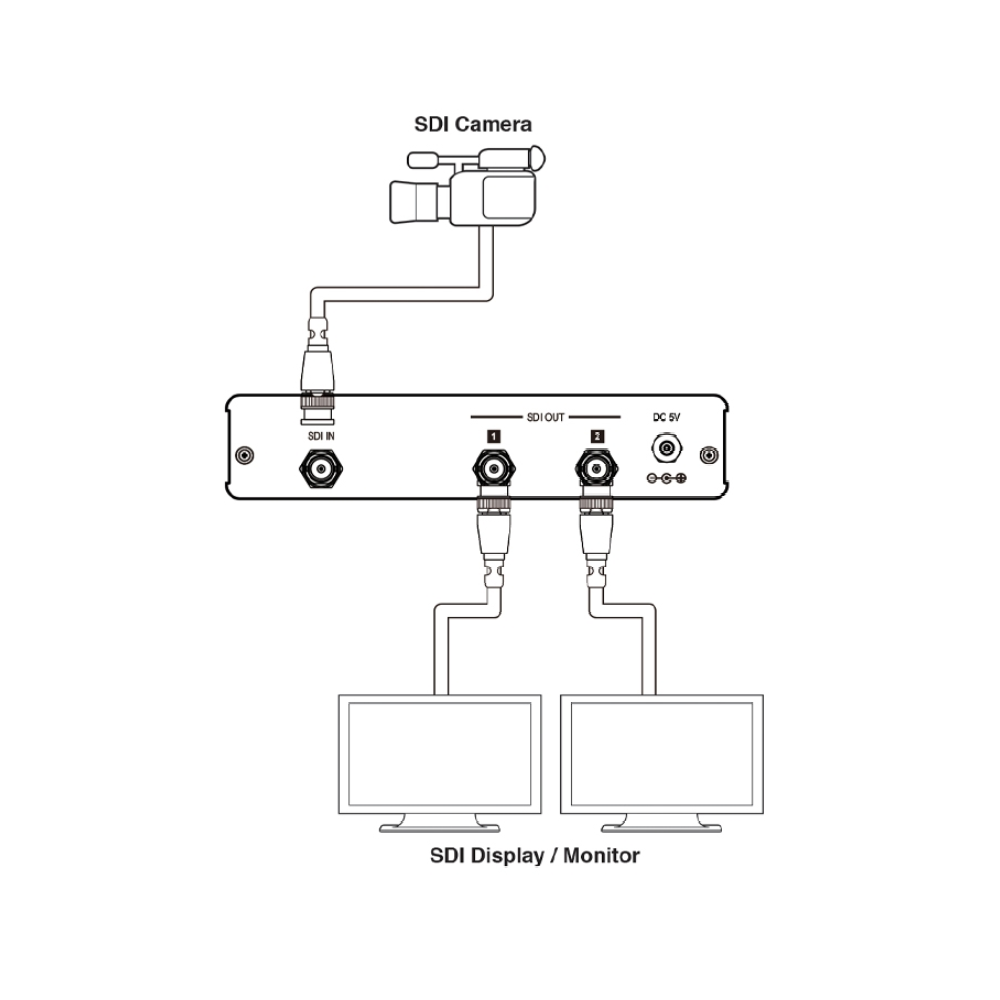

- Splits an SDI input to two SDI outputs with scaler function
- Supports scaling of any SDI input to any SDI output to SDI standards
- Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with autodetection
- Supports SDI bitrates of 2.970Gbps & 2.970/1.001Gbps, 1.485Gbps & 1.485/1.001Gbps, and 270Mbps
- Supports SDI input/output modes/standards:
- SD-SDI: SMPTE 259M-C@270Mbps
- HD-SDI: SMPTE 292M@1.485Gbps & 1.485/1.001Gbps
- 3G-SDI: SMPTE 424M/425M-A@2.970Gbps & 2.970/1.001Gbps
- -Supports up to 8 audio channels at 48 kHz
- -Supports SDI input/output distances up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Inputs
- 1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]
Outputs
- 2x BNC [2x 3G-SDI / HD-SDI / SD-SDI]
PSU:
- 5V/2.6A
Dimensions
- 145mm [W] x 131mm [D] x 30mm [H]
Net Weight
- 354gr
