- HDMI (with 6G audio/video support), coherent with HDCP 2.2 and DVI (note: does not support ‘Deep Color’/color space – YCbCr 422/444)
- 1 HDMI input and 10 HDMI outputs
- Supports System Reset function (CEC active source command)

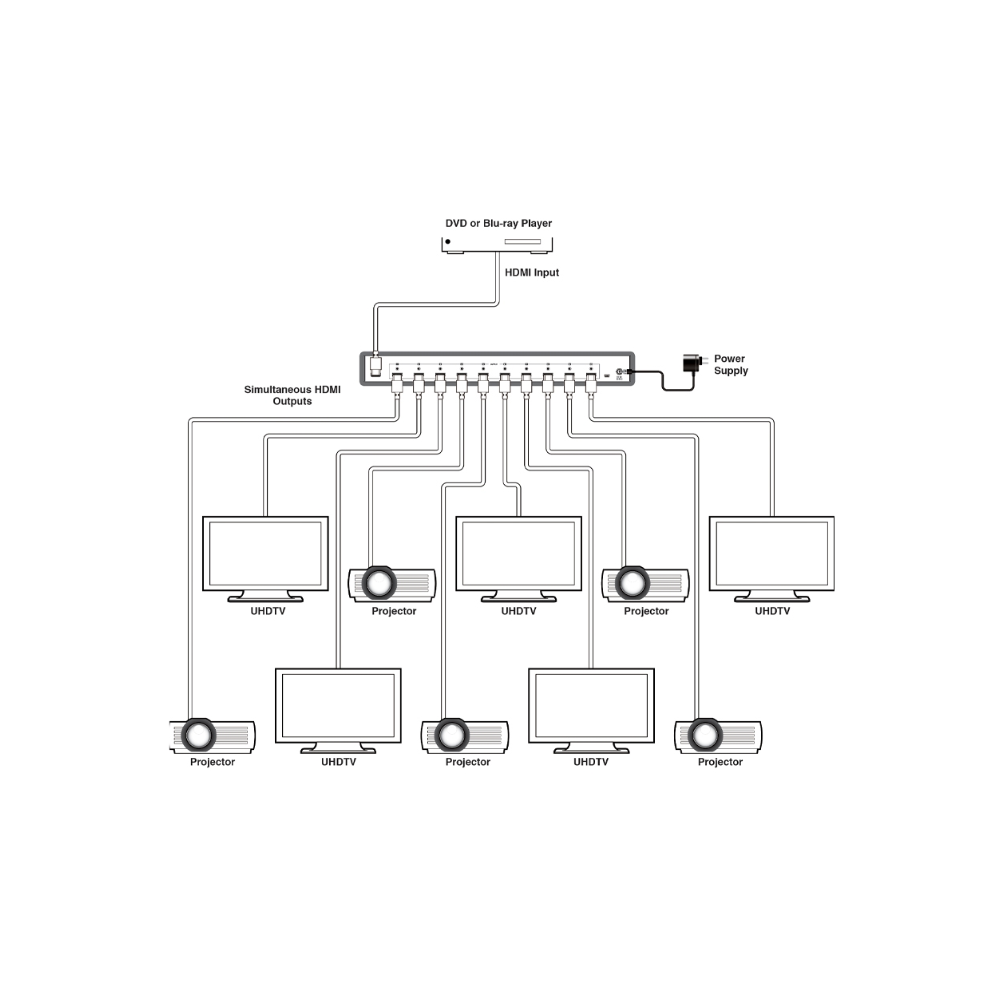

- Contemporaneous display of a single Ultra High-Definition source on up to 10 UHDTV displays
- 3D passthrough with compatible 3D source and 3D TV
- Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160@24/25/30/60Hz
- Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
- Coherent with HDCP 2.2 and HDCP1.4
- HDMI input supports ‘Standard’ mode and ‘TV’ mode EDID settings
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs
- 10x HDMI [10x Uncompressed AV and Data]
PSU:
- 5V/6A
Dimensions
- 436mm [W] x 160mm [D] x 44mm [H]
Net Weight
- 2000gr
