- Compatible with HDMI and HDCP 2.2
- Supports HDTV resolutions up to 4K2K including 3840×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV420), 4096×2160@24/25/30Hz, 4096×2160@50/60Hz (YUV420) and PC resolutions up to WUXGA@60Hz (RB)
- Supports Hi-Def audio transmission:LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio

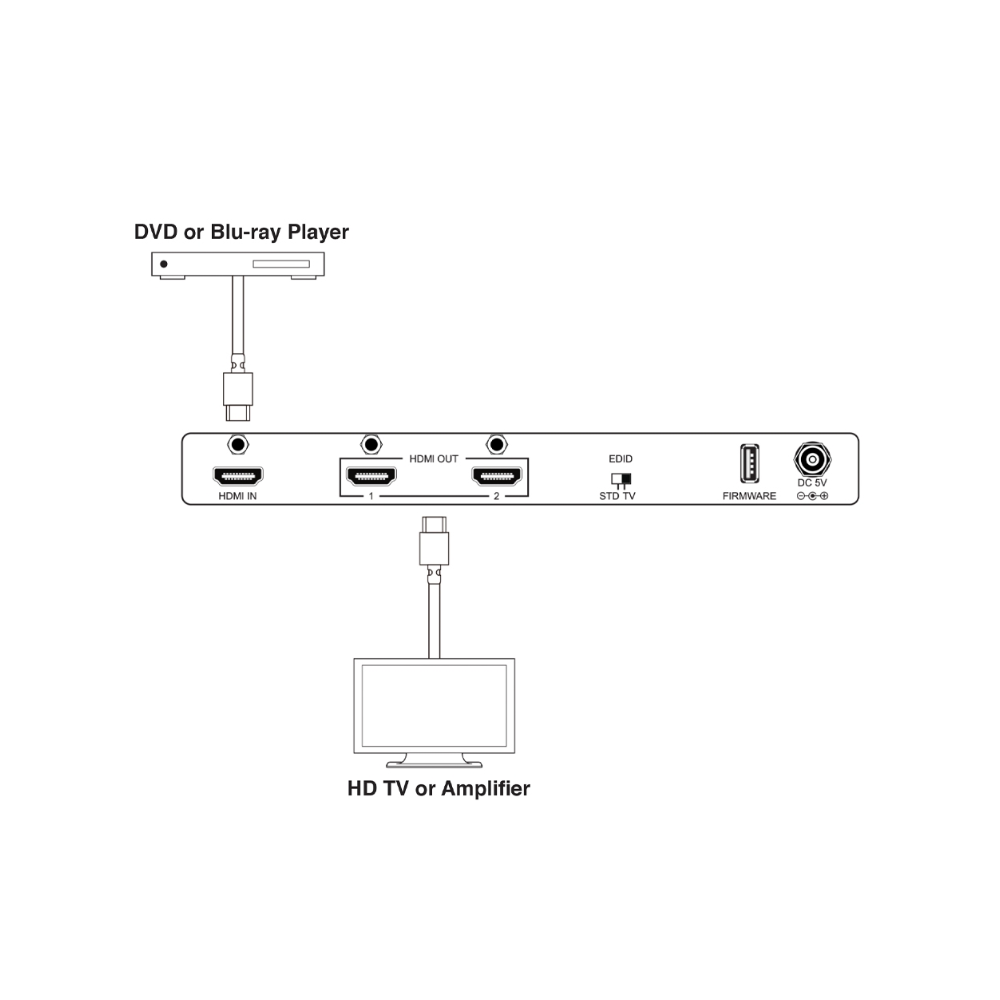

- An HDMI source connect with two HDMI displays simultaneously
- Supports HDMI data rate up to 9Gbps and Deep Color up to 1080p/12 bit
- Supports EDID Selection function
- 3D Signal support
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x USB Type A [1x FIRMWARE Propriety Data]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
PSU:
- 5V/2.6A
Dimensions
- 220mm [W] x 127mm [D] x 28mm [H]
Net Weight
- 368gr
