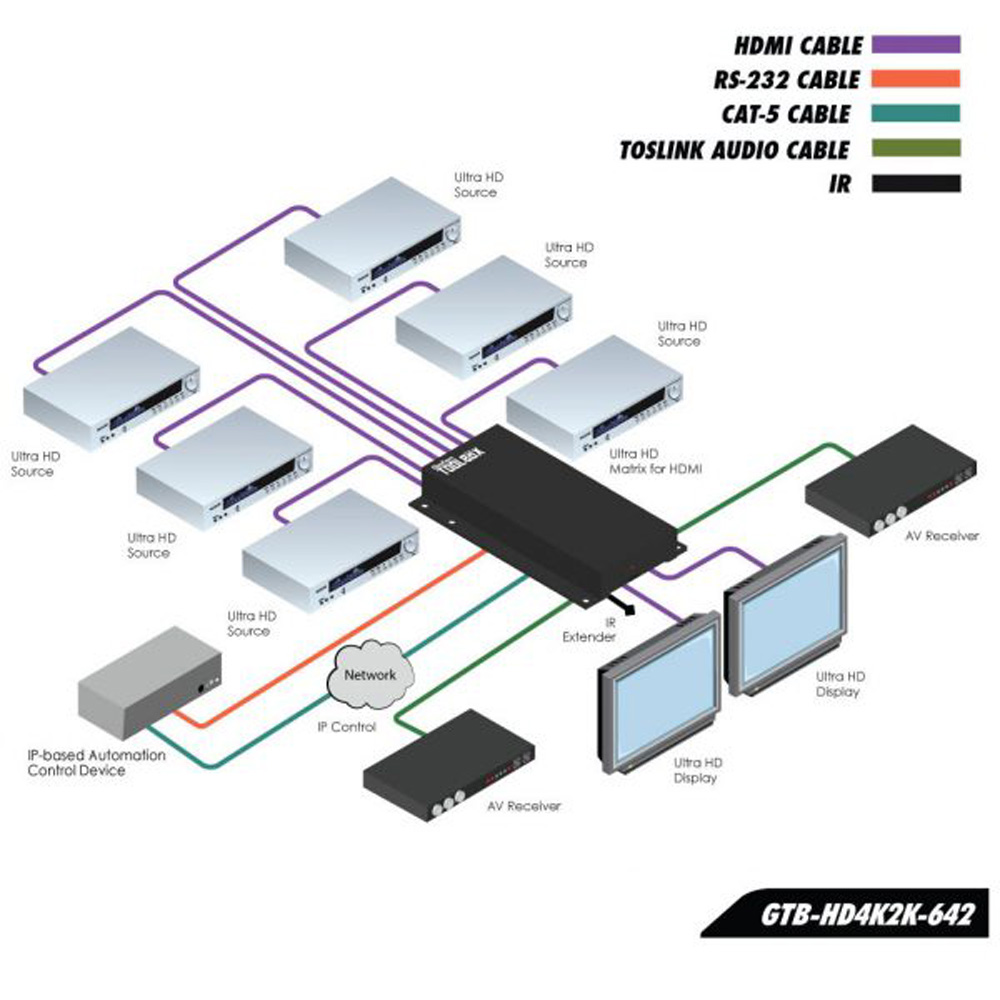

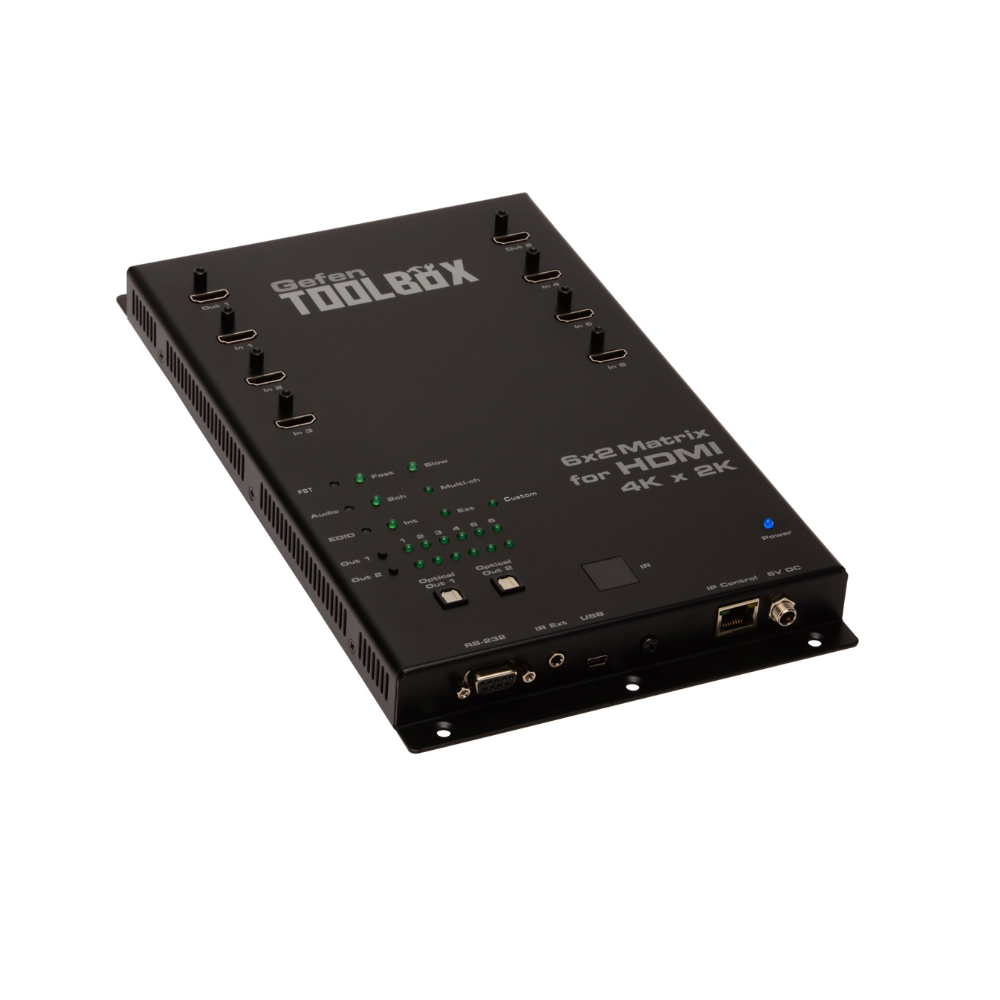

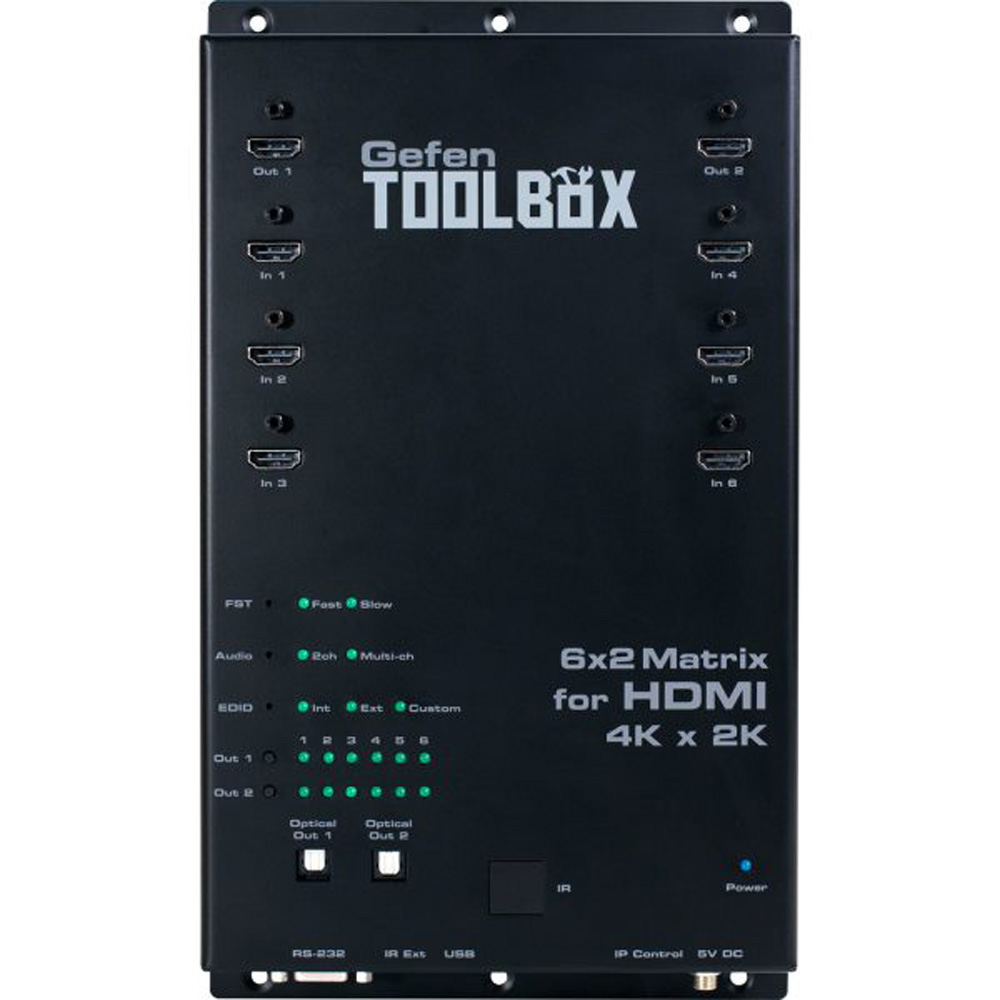

The Gefen GTB-HD4K2K-642-BLK ToolBox 6×2 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. It allows up to six Ultra High Definition 4K or 1080p Full HD sources to be routed to up to two Ultra HD displays. Each Hi-Def source can be routed to either of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.
Video Support
Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920×1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.
Audio Support
multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.
