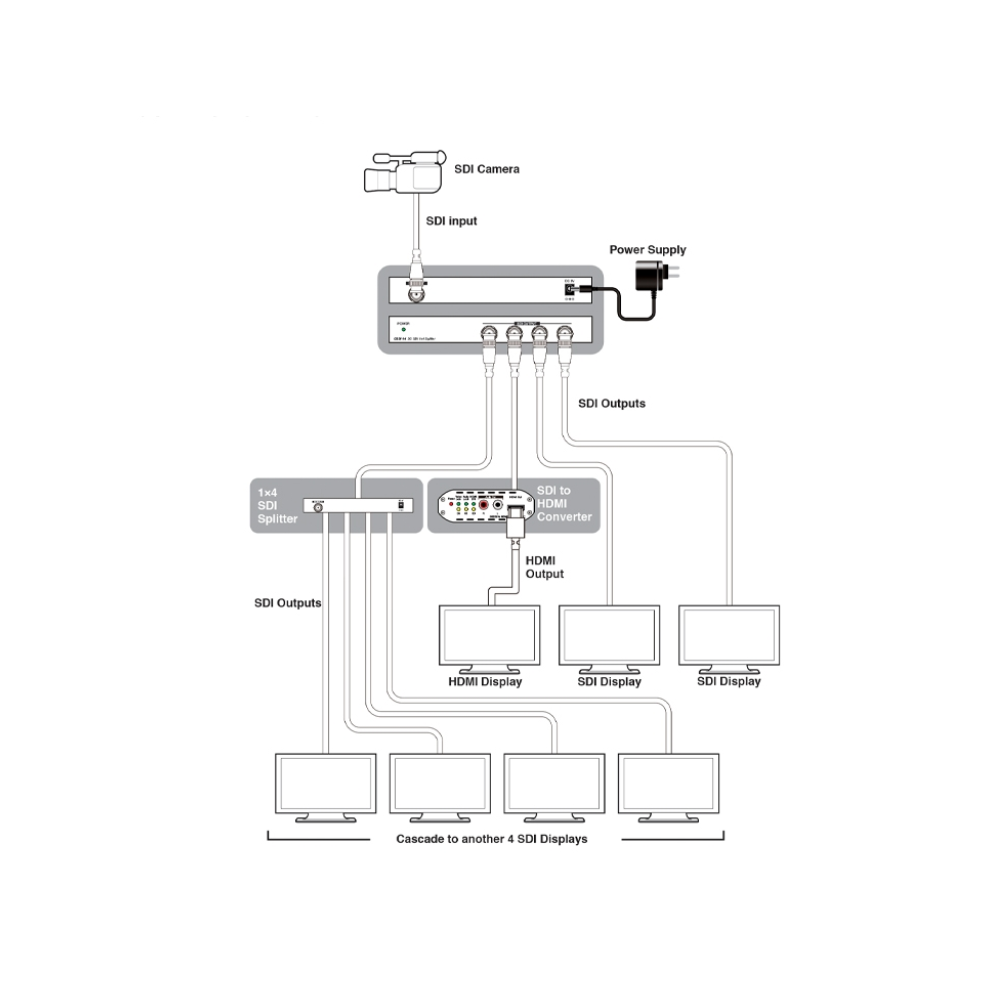

- Splits simultaneously one SDI input source to four SDI displays
- Supports SMPTE 425M-A, SMPTE 424M for 3G-SDI SMPTE 292M for HD-SDI and SMPTE 259M-C for SD-SDI
- Supports operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
- Supplies equalized and re-clocked transmission
- Supports signal input and output distances up to 300m for SD-SDI signals, 200m for HD-SDI signals and 100m for 3G-SDI signals
Inputs
- 1x BNC [1x 3G-SDI]
Outputs
- 4x BNC [4x 3G-SDI]
PSU:
- 5V/2.6A
Dimensions
- 200mm [W] x 138mm [D] x 30mm [H]
Net Weight
- 900gr
