- HDMI 2.0 with 18Gbps 4K UHD support, coherent with single-link DVI 1.0
- Coherent with HDCP 2.2 and 1.4

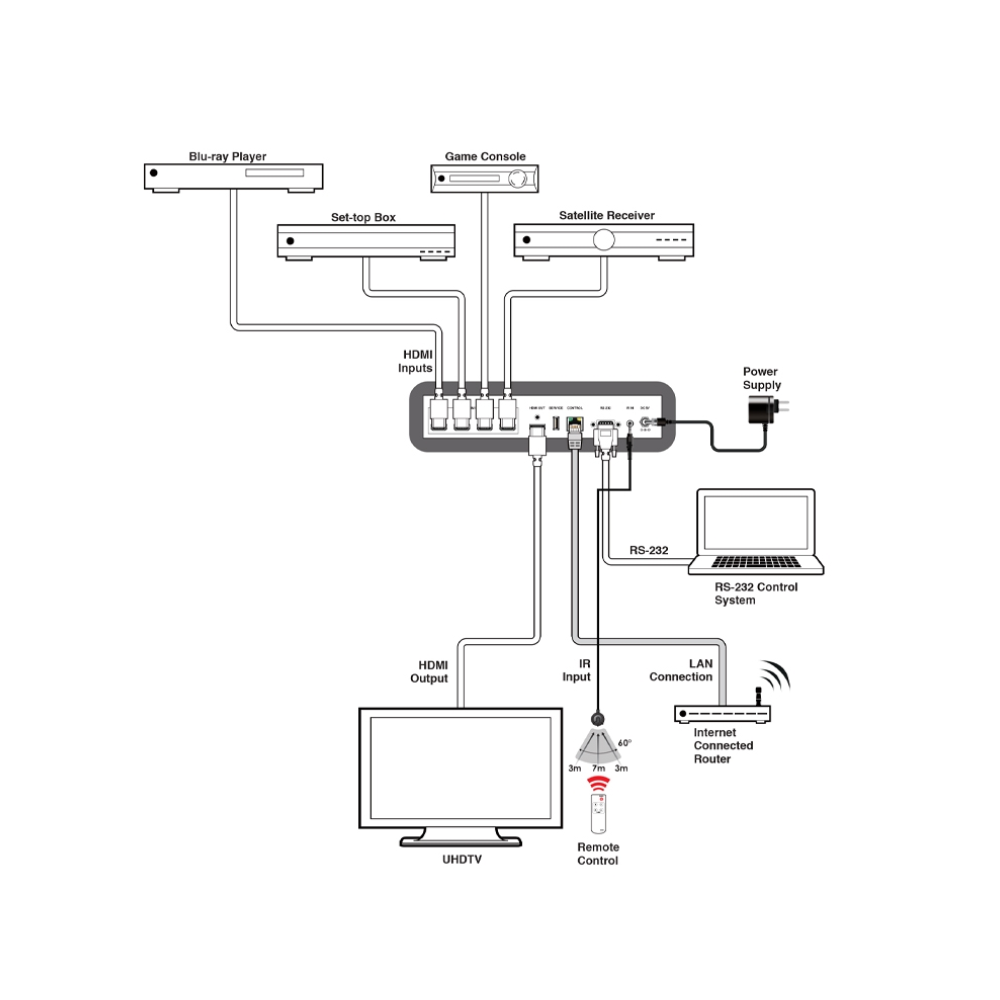

- 4 HDMI inputs and 1 HDMI output
- Supports HDTV resolutions up to 4K UHD (3840×2160@50/60Hz & 4096×2160@50/60Hz)
- Supports data rates up to 18Gbps and Deep Color (16-bit) up to 1080p
- Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
- Remotely controllable via Ethernet (WebGUI & Telnet), RS-232 and IR remote
Inputs
- 4x HDMI [4x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
PSU:
- 5V/2.6A
Dimensions
- 240mm [W] x 112mm [D] x 48mm [H]
Net Weight
- 850gr
