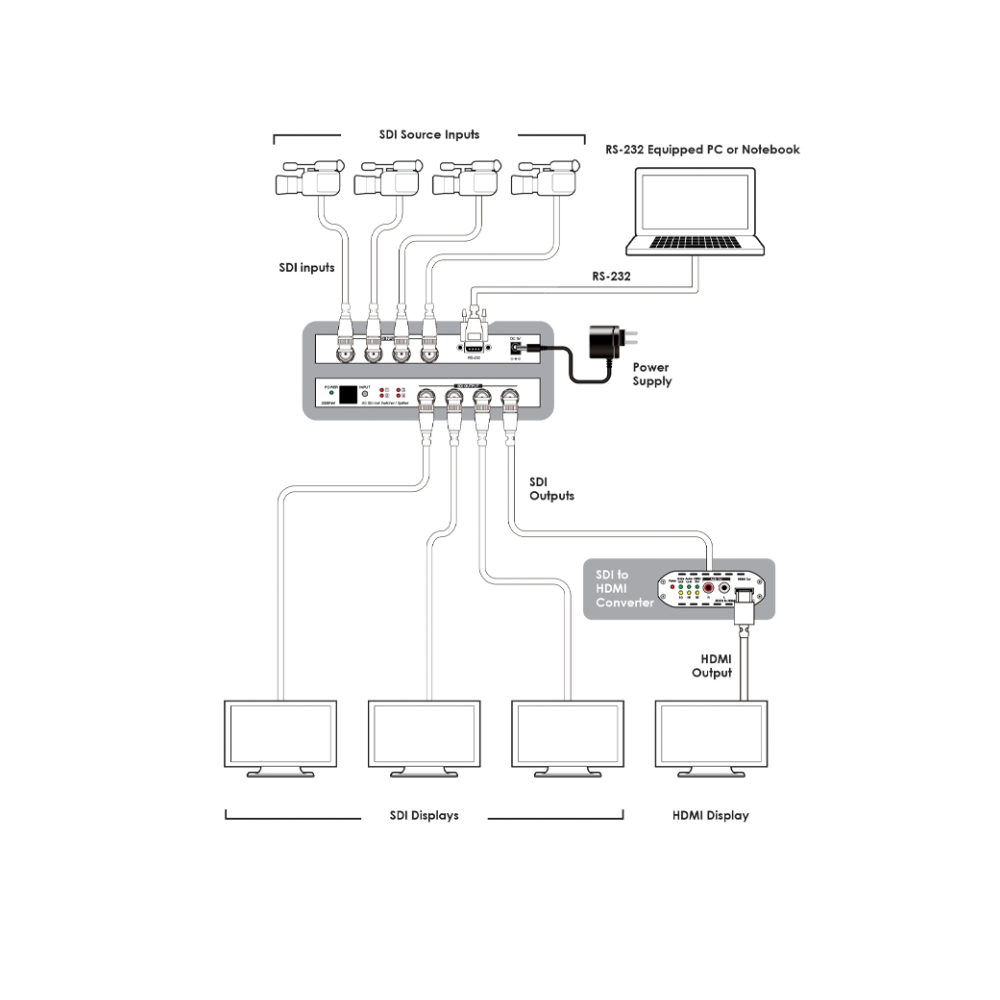

- Switches between four SDI input sources and splits the output to four SDI displays simultaneously
- SMPTE Resolution:
- 3G/SDI SMPTE 424M/425M-A@2.970Gbps & 2.970/1.001Gbps
- HD/SDI SMPTE 292M@1.485Gbps & 1.485/1.001Gbps
- SD/HDI SMPTE 259M-C@270Mbps
- Provides equalized and re-clocked transmission
- Control via RS-232, IR remote control (supplied) and on-panel buttons
- Supports signal input and output distances of up to 300m for SD-sdi signals, 200m for HD-SDI signals and 100m for 3G-SDI signals
Inputs
- 4x BNC [4x 3G-SDI / HD-SDI / SD-SDI]
- 1x 9-pin D-sub [1x RS-232 Data]
Outputs
- 2x BNC [2x 3G-SDI / HD-SDI / SD-SDI]
PSU:
- 5V/2.6A
Dimensions
- 200mm [W] x 138mm [D] x 30mm [H]
Net Weight
- 900gr
