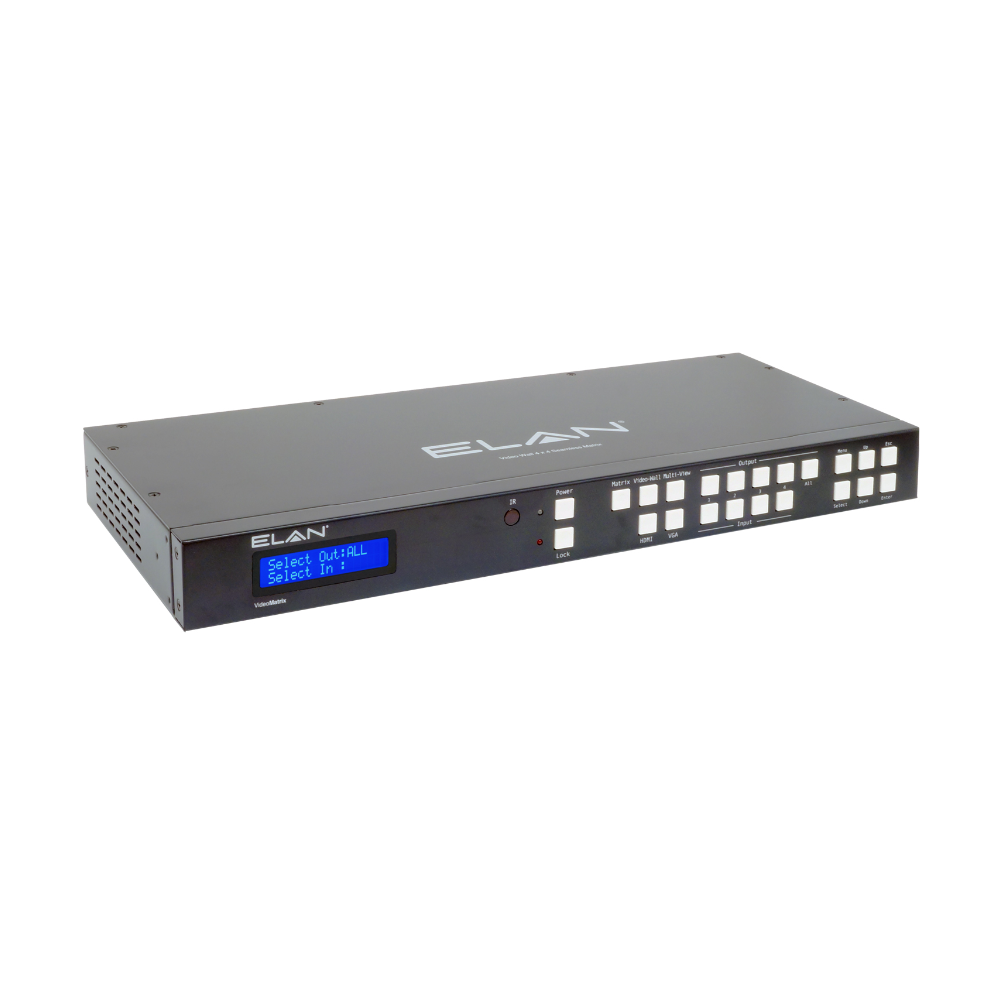

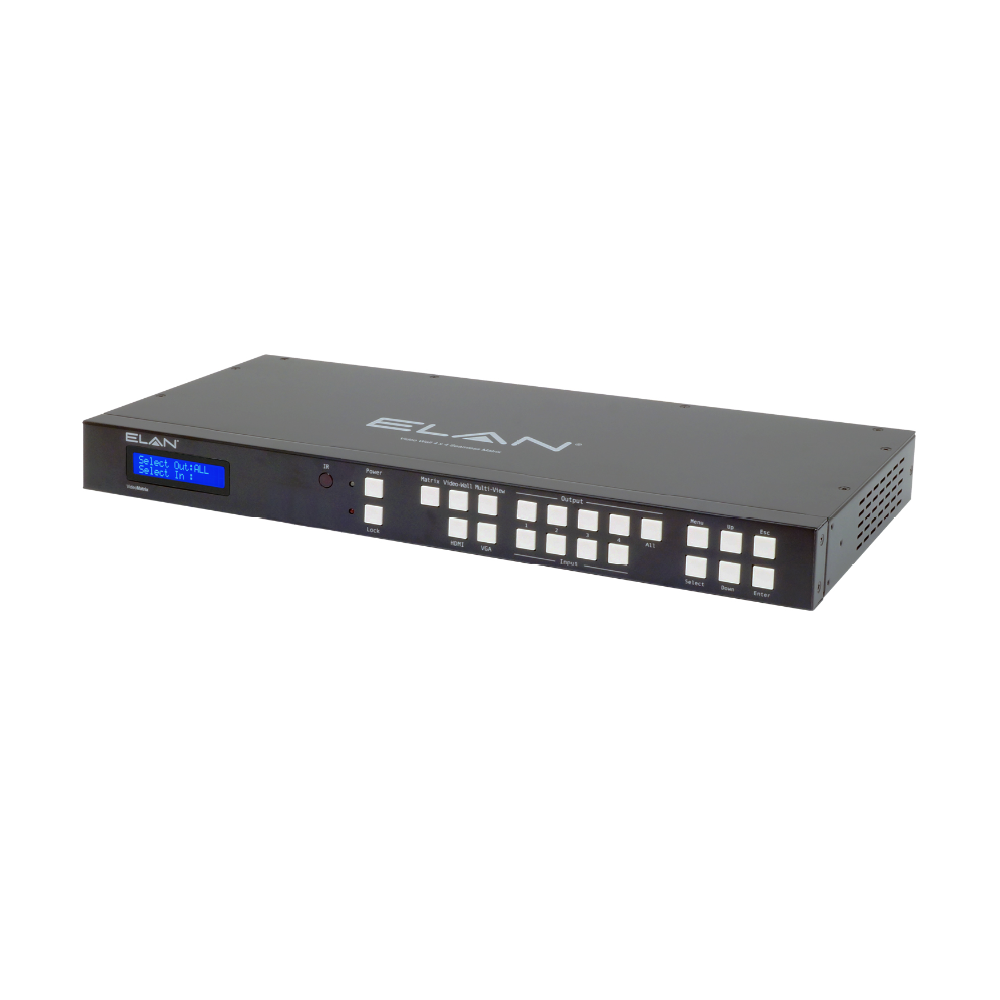

The EL-4KM-VW44 4K HDMI/VGA matrix is a multi-purpose high-speed video processing system. The EL-4KM-VW44 can be configured for 3 different output modes. The EL-4KM-VW44 can perform as a 4×4 seamless matrix switcher, as a 2×2, 4×1 or 1×4 video wall solution, or as a quad multi-view presentation system. Source Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio. The HDMI/VGA matrix is easily configured and added to your Nice/ELAN projects using Nice/ELAN’s Configuration Software. The EL-4KM-VW44 also features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface, and TCP/IP.
FEATURES
- Features 3 operational modes:
- 4×4 Matrix (selected HDMI or VGA inputs)
- Video wall (2×2, 4×1 or 1×4 configuration)
- Multi-viewer mode with preset layouts
- Features 4x video inputs that can be configured as HDMI video or VGA video with associated L/R analog audio
- Seamless video switching
- Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- HDMI output resolution fixed to 1080p 60Hz
- Supports HDMI 2CH PCM audio only
- IR routing Includes 5 x 5v-to-12v IR converter cables for IR Inputs
- Web interface module for control and configuration of Matrix

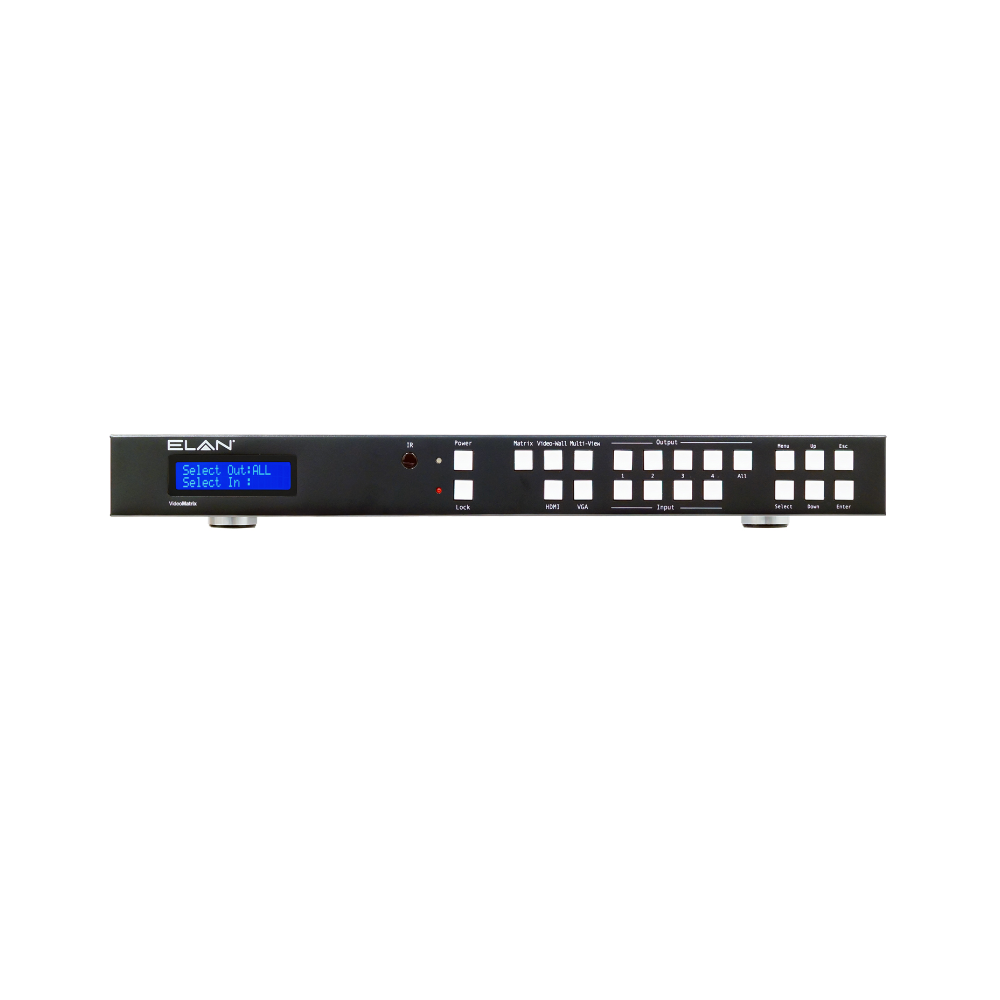

- Control via front panel, IR, RS-232 and TCP/IP
- 3rd Party drivers available for all major home control brands
- Advanced EDID management HDCP compliant
SPECIFICATIONS

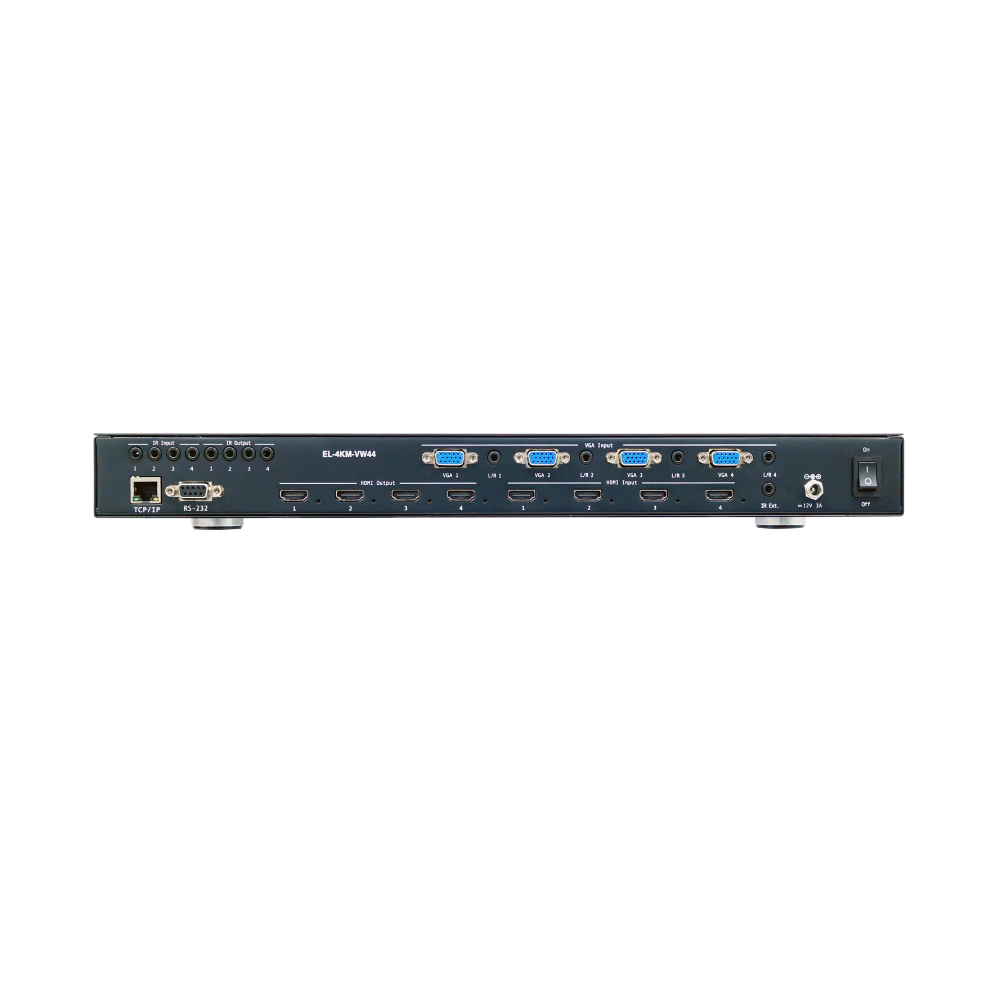

Video Input Connectors :4x HDMI Type A, 19-pin, female & 4x VGA
Video Output Connectors :4x HDMI Type A, 19-pin, female
Audio Input Connectors :4x Analogue audio 3.5mm stereo Jack
RS-232 serial port :DB-9, female TCP/IP Control :RJ45, female
IR Input ports :5 x 5v 3.5mm stereo jack
IR Output ports :4 x 5v 3.5mm mono jack
Mounting kit included
Casing Dimensions (W x H x D) :440mm x 45mm x 180mm
Dimensions including connections (W x H x D) :440mm x 44mm x 187mm
Shipping Weight :4.0kg
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-4°F to 140°F (-20°C to 60°C)
Power Supply :12V/3A DC
OTHER SPECIFICATIONS
Shipping Info
- Length6.25 (Inches)
- Width12 (Inches)
- Height7.25 (Inches)
- Weight5 (Lbs)
- Unit of MeasureEach
- C844039013521
Other Specifications
- Video Input Connectors 4x HDMI Type A, 19-pin, female & 4x VGA
- Video Output Connectors 4x HDMI Type A, 19-pin, female
- Audio Input Connectors 4x Analogue audio 3.5mm stereo Jack
- RS-232 serial port DB-9, female TCP/IP Control RJ45, female
- IR Input ports 5 x 5v 3.5mm stereo jack
- IR Output ports 4 x 5v 3.5mm mono jack
- Mounting kit included
- Casing Dimensions (W x H x D) 440mm x 45mm x 180mm
- Dimensions including connections (W x H x D) 440mm x 44mm x 187mm
- Shipping Weight 4.0kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Power Supply 12V/3A DC
