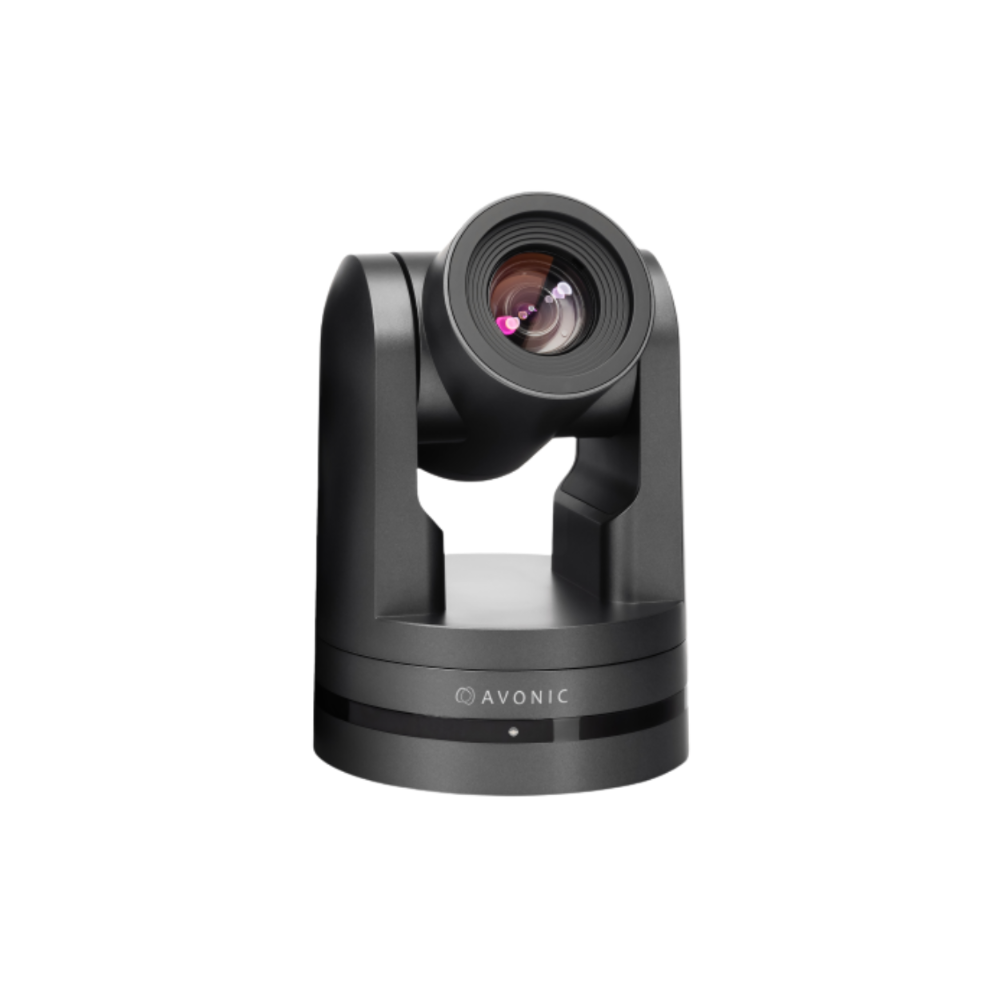

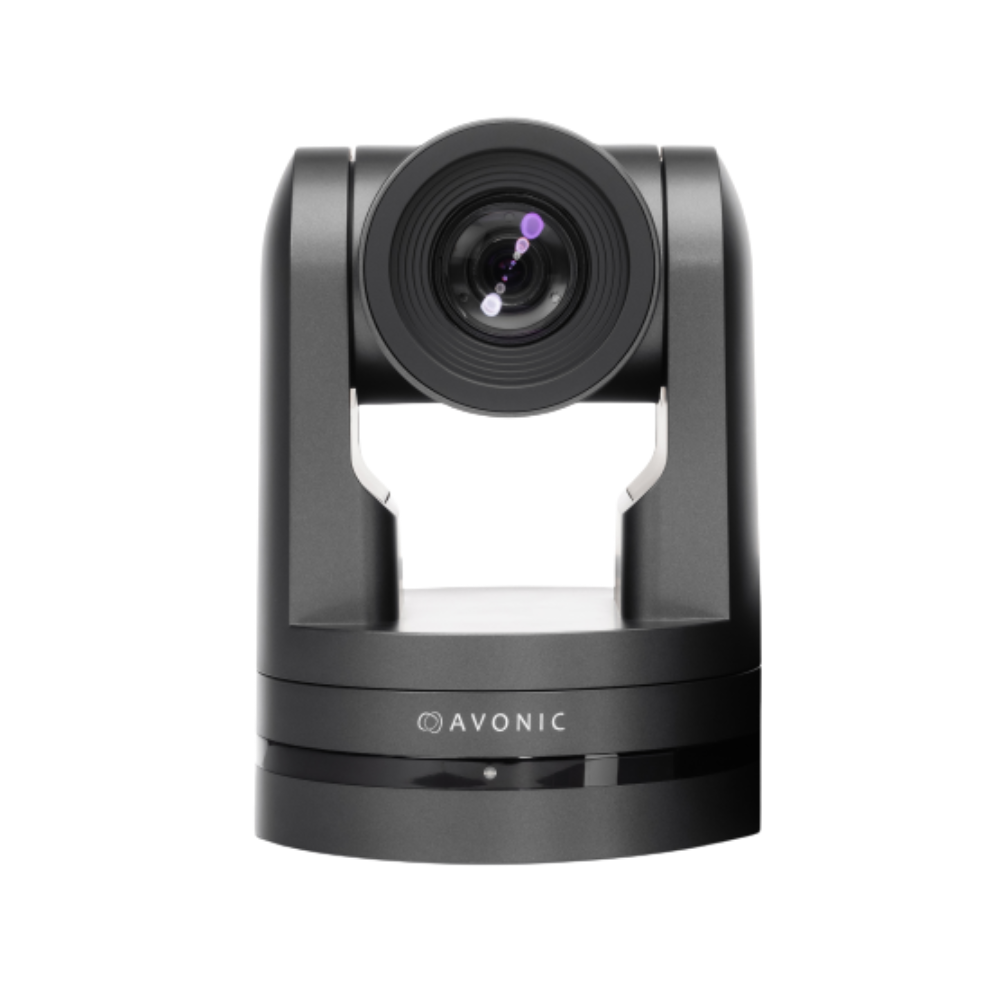

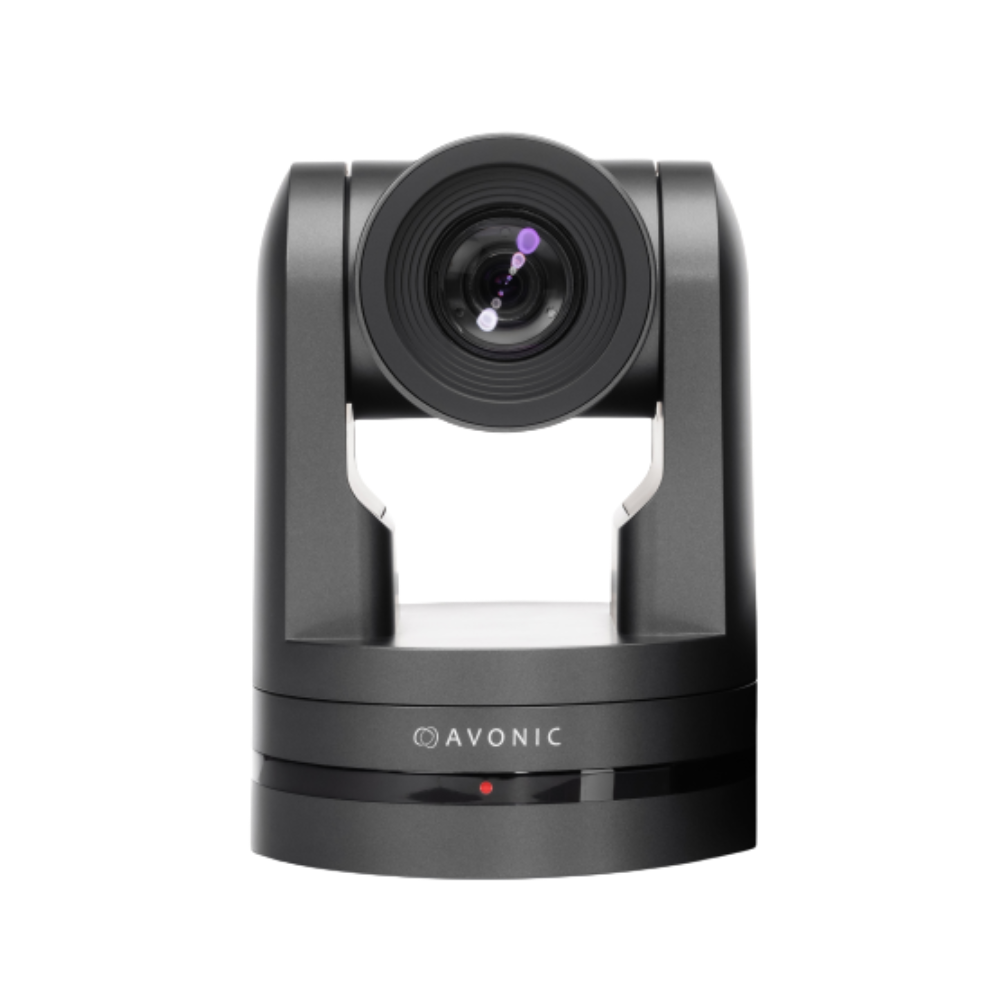

CM70-NDI-B
PTZ Camera 20x Zoom IP NDI®| HX

The CM70-NDI is a high-quality PTZ camera with concurrent HDMI, 3G-SDI, USB 2.0 and IP stream ethernet outputs.

FEATURES

The CM70-NDI is a high-quality PTZ camera with concurrent HDMI, 3G-SDI, USB 2.0 and IP stream ethernet outputs. The CM70-NDI is equipped with high-efficient IP technology called NDI®|HX. This all-in-one PTZ camera from Avonic allows the move to an all IP infrastructure even for mobile applications. With IP deployment on existing networks all cameras detected within your network become directly available for use without complex configuration. Video, audio, control and power all with PoE connecting your CM70-NDI camera to hundreds of systems, devices and applications that support NDI. The CM70-NDI includes a rich featureset usually found on broadcast-grade cameras, including a user-adjustable Color Matrix and SRT streaming (licensed premium functions). Known for its pristine image quality even under low light conditions. The combination of a high-quality PTZ camera with a protocol that improves every live production give the CM70-NDI endless possibilities.

PRODUCT SPECIFICATIONS

• Lens
High-quality glass lens, 20x optical zoom and Horizontal wide: 60.38° – tele: 3.72°, Vertical wide: 35.80° – tele: 2.14°, field of view.
• Full HD 1080p30
The camera has a Full HD resolution of 1920 x 1080p60 and achieves a pristine image quality.
• Control
VISCA , Pelco-D/P via RS232, RS485, IP (VISCA, NDI®| HX), Onvif or IR. 255 presets with 0.1° accuracy.
• Low light
High SNR CMOS combined with digital noise reduction for a clear picture even under very low light conditions.
• Output
3G-SDI, HDMI, USB 2.0 (1080p30) and IP.
• DUAL low latency IP-Stream
H265, H264, optional SRT and MJPEG compression at a bitrate up to 40Mbit enabling Full HD video stream by ultra-low latency over RTSP, RTMP, UDP, Unicast, Multicast and NDI®| HX suppo
• IP-features
The camera can be powered using PoE (802.3af) and can be accessed by webGUI, controlled by VISCA over IP/ Onvif and stream the video.
• Audio embedding
Balanced audio input with embedding into IP stream, SDI and HDMI outputs. Includes configurable audio offset.
• Optional Premium features

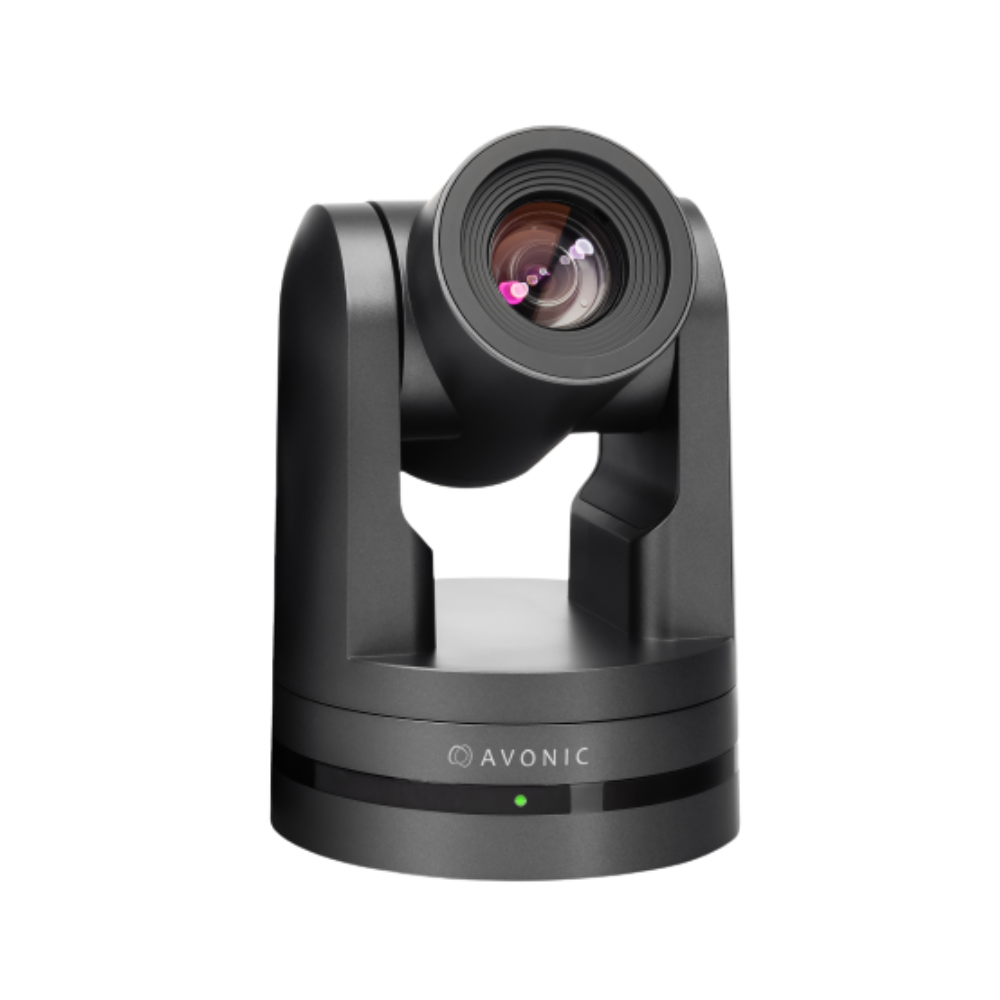

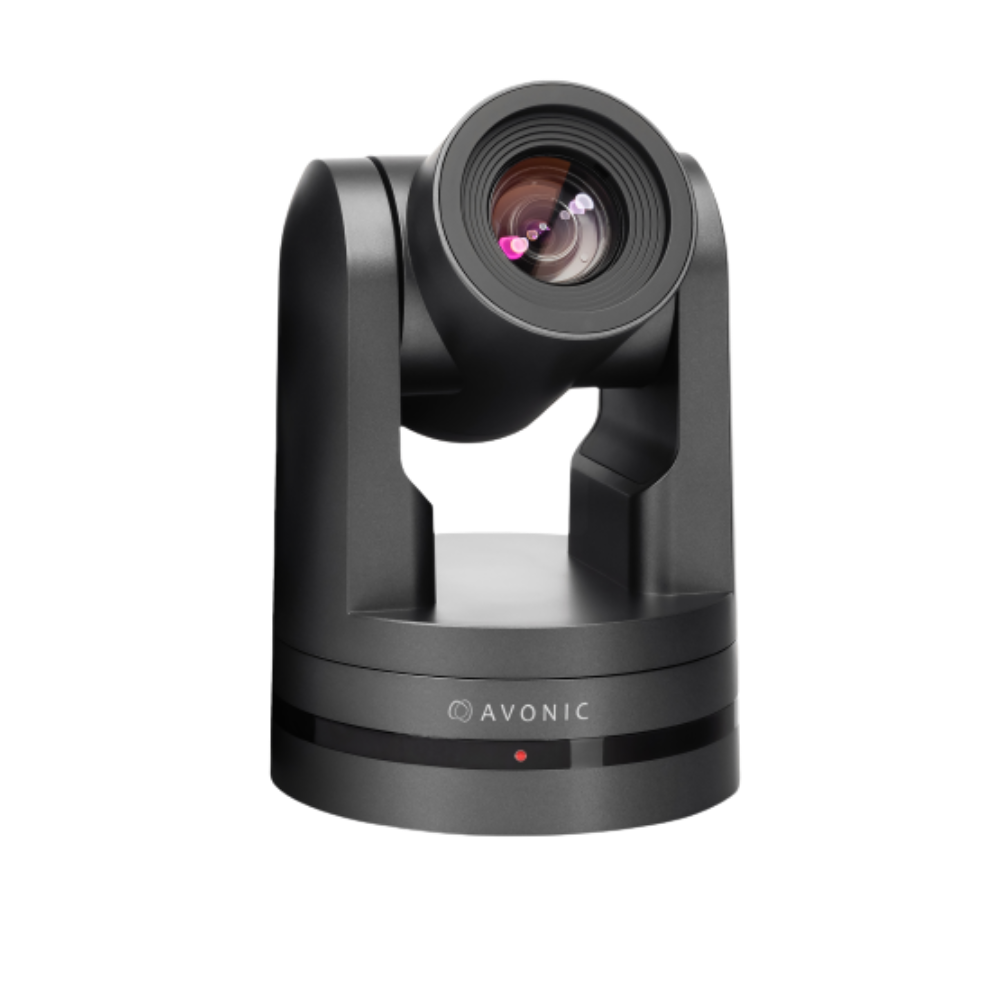

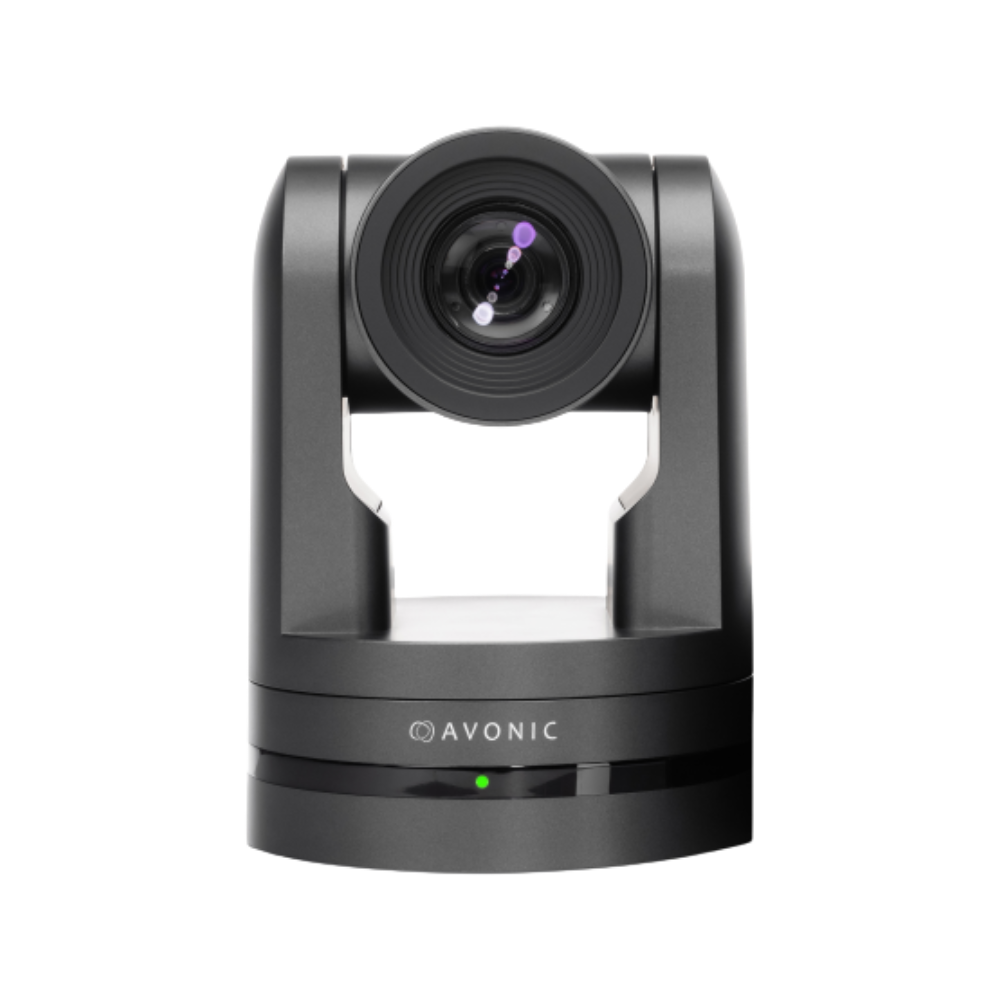

SRT streaming, Tally light, configurable Color Matrix. License AV-LC70-1 sold separately.

Product Information

Weight 2.4 kg
Dimensions 26.5 × 25 × 23 cm
Color Black
Audio Input Analog Balanced

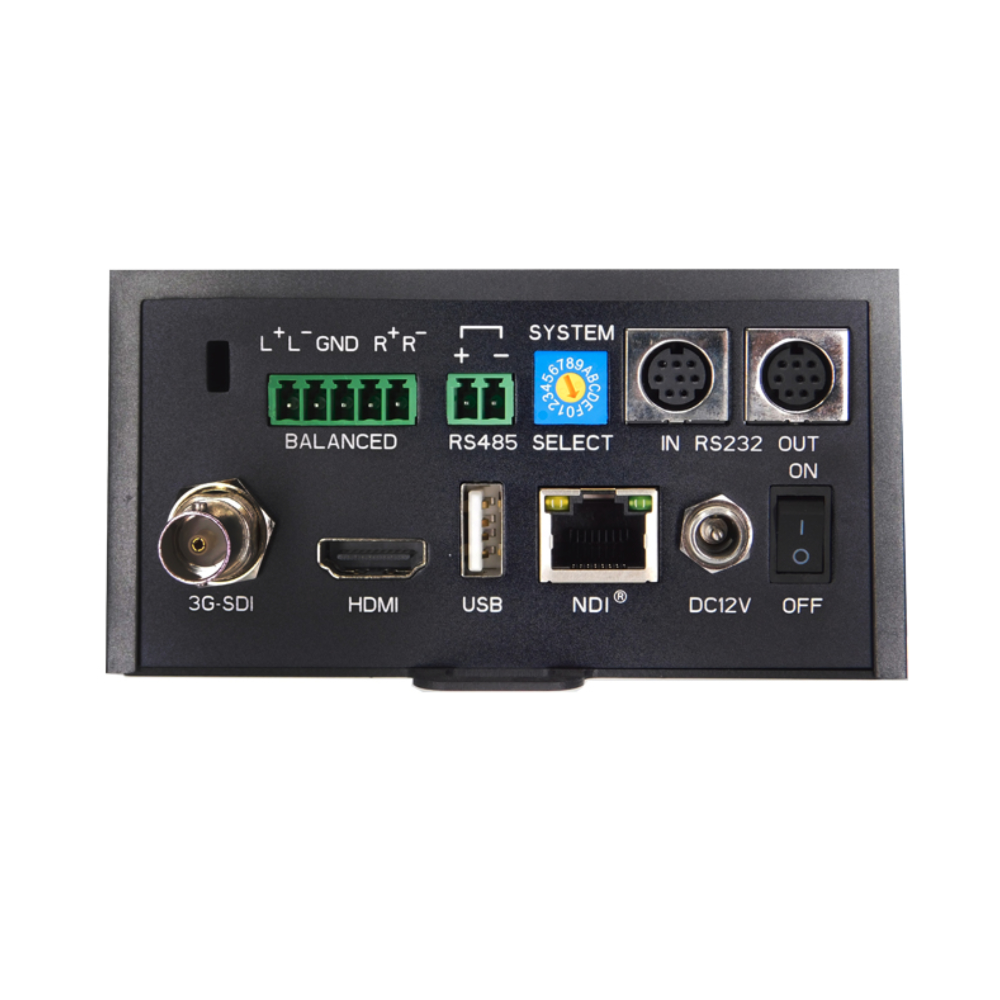

Video Output 3G-SDI, H.264 IP-Stream, H.265 IP-Stream, HDMI, MJPEG IP-Stream, NDI®|HX, SRT, USB 2.0
Optical Zoom 20x
Control IR remote, NDI®|HX, ONVIF, RS-232, RS-485, USB UVC, VISCA over IP
Power 12V Power Adapter, PoE (802.3af)
