CM71-IP-W
PTZ Camera 12x Zoom White

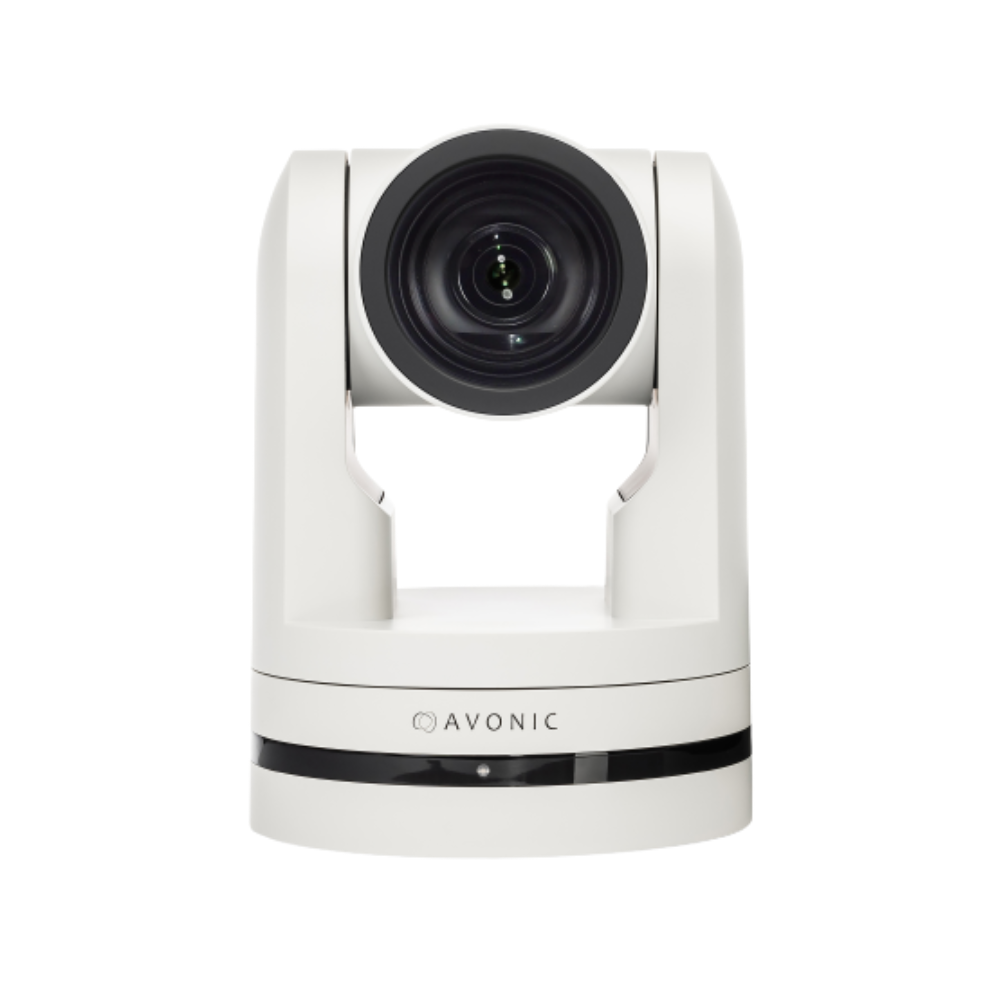

The Avonic AV-CM71-IP-W is a high-quality 12x optical zoom PTZ camera, with concurrent HDMI, 3G-SDI, USB 2.0 and IP stream ethernet outputs.

FEATURES

The Avonic AV-CM71-IP-W is a high-quality 12x optical zoom PTZ camera, with concurrent HDMI, 3G-SDI, USB 2.0 and IP stream ethernet outputs. The camera is designed for fixed installations in less than optimal light conditions. The CM71-IP includes a rich feature set usually found on broadcast-grade cameras, including a user-adjustable Colour Matrix and SRT streaming (licensed premium functions). The CM71-IP has the ability to deliver outstanding quality under low light conditions, thanks to its high SNR CMOS sensor. The sensor delivers Full HD 1080p60 video.

PRODUCT SPECIFICATIONS

• Lens
High-quality glass lens, 12x optical zoom and 70.4° horizontal field of view.
• Full HD 1080p60
The camera has a Full HD resolution of 1920 x 1080p60 and achieves a pristine image quality
• Control
Control the camera with common protocols: VISCA , Pelco-D/P via RS232, RS485, IP(VISCA), Onvif or IR, remote control included. Supports up to 255 presets with 0.1° accuracy and High Speed Pan Tilt function.
• Low light
High SNR CMOS combined with digital noise reduction for a clear picture even under very low light conditions.
• Output

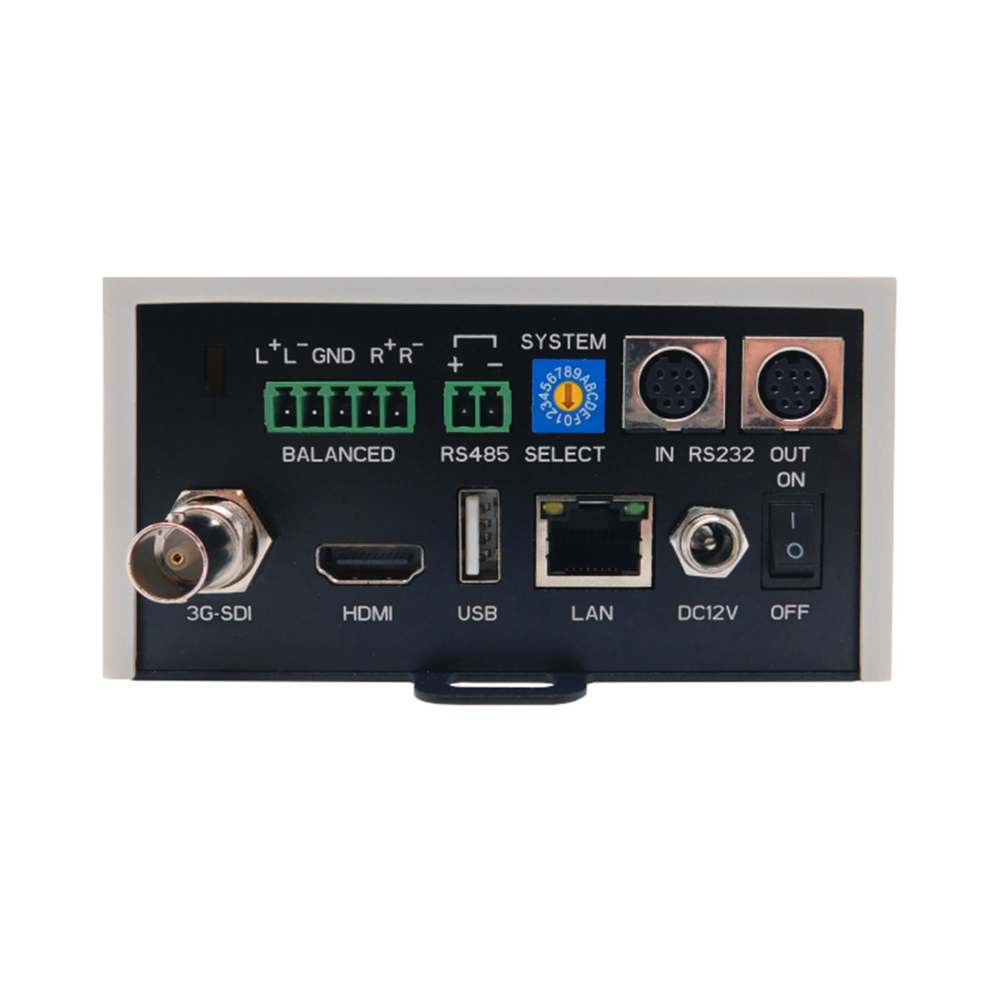

3G-SDI, HDMI, USB 2.0 (1080p30) and IP.
• DUAL low latency IP-Stream
H265, H264, optional SRT and MJPEG compression at a bitrate up to 40Mbit enabling Full HD video stream by ultra-low latency over RTSP, RTMP, UDP, Unicast and Multicast.
• IP-features
The camera can be powered using PoE (802.3af) and can be accessed by webGUI, controlled by VISCA over IP/ Onvif and stream the video.
• Audio embedding
Balanced audio input with embedding into IP stream, SDI and HDMI outputs. Includes configurable audio offset.
• Optional Premium features
SRT streaming, Tally light, configurable Color Matrix. License AV-LC70-1 sold separately.

Product Information

Weight 2.4 kg
Dimensions 26.5 × 25 × 23 cm
Color White
Audio Input Analog Balanced
Video Output 3G-SDI, H.264 IP-Stream, H.265 IP-Stream, HDMI, MJPEG IP-Stream, USB 2.0
Optical Zoom 12x
Control IR remote, ONVIF, RS-232, RS-485, USB UVC, VISCA over IP
Power 12V Power Adapter, PoE (802.3af)
