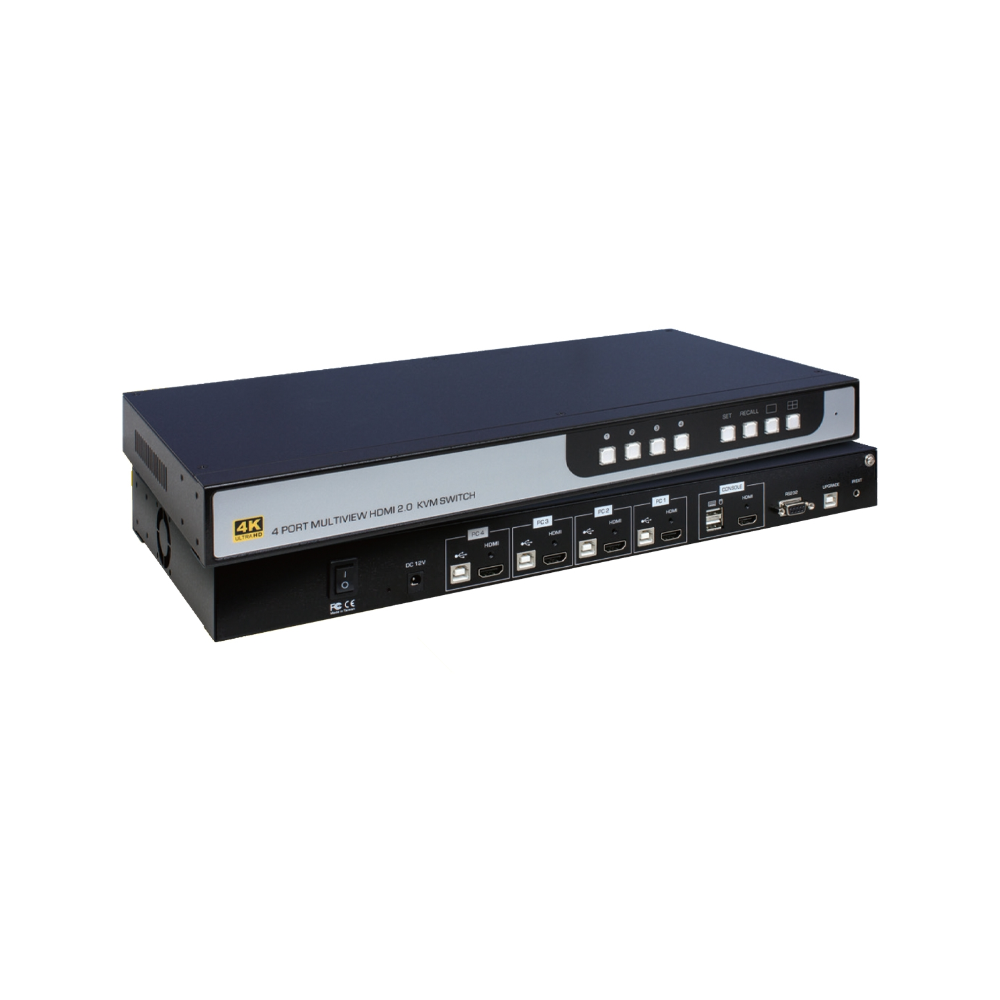

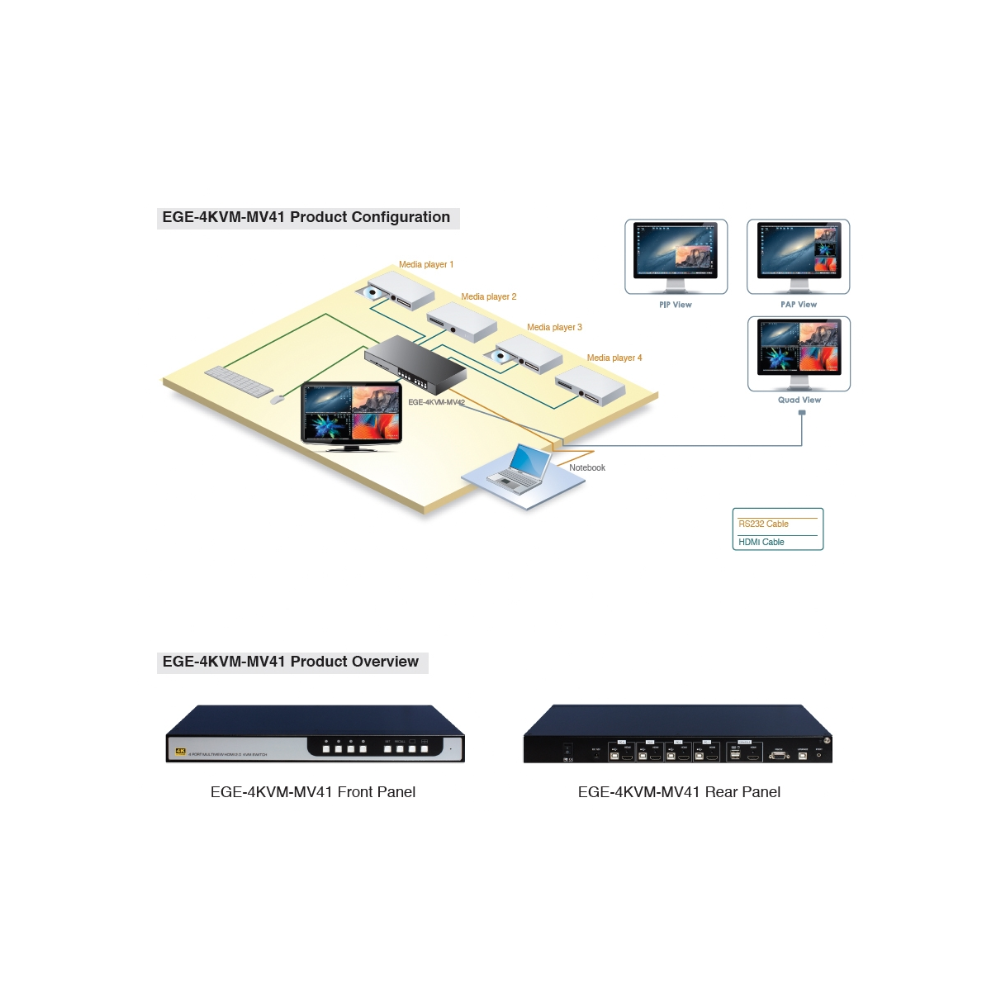

The 4K MultiView KVM Switch is a standalone device which designed to meet the
requirement of multi-task. It allows the user to simultaneously monitor up to four HD HDMI multimedia
sources on a single HDTV and upscale the resolution up to 4K. Meanwhile, a PC connection is supported,
user can also fully access, control and reboot the connected computer through this switch.
4K is a new standard of display which delivering four times the resolution of Full HD. The
EGE-4KVM-MV41 series support various input as long as built-in an HDMI connection and upscale the
resolution up to 4K. It means the images can be demonstrated sharper and contain more details using
the EGE-4KVM-MV41 series.
Features:
- KVM Mouse hopping for MultiView screen
- Seamless switching between input channels and combined multiple images on single monitor
- Support HDMI® signals with Deep Color and HDCP 1.4 / 2.2.
- Support input resolution up to 4K@60Hz, 4:4:4 color sampling
- Support output resolution up to 4K@60Hz, 4:4:4 color sampling
- Support upscaling up to 4K@60Hz, 4:4:4 color sampling
- Support PIP, POP and multi-view layout configurations
- Support 14 different screen layouts by 6 preset screen layouts and extra 8 customized screen layouts
- Receive Dolby Digital® 5.1, DTS® 5.1 and uncompressed 7.1 linear PCM audio includes stereo analog
audio input
Support stereo audio output - Support front panel button, IR remote control, RS232 ,Web UI and keyboard Hot-key.
- Support firmware upgrade
