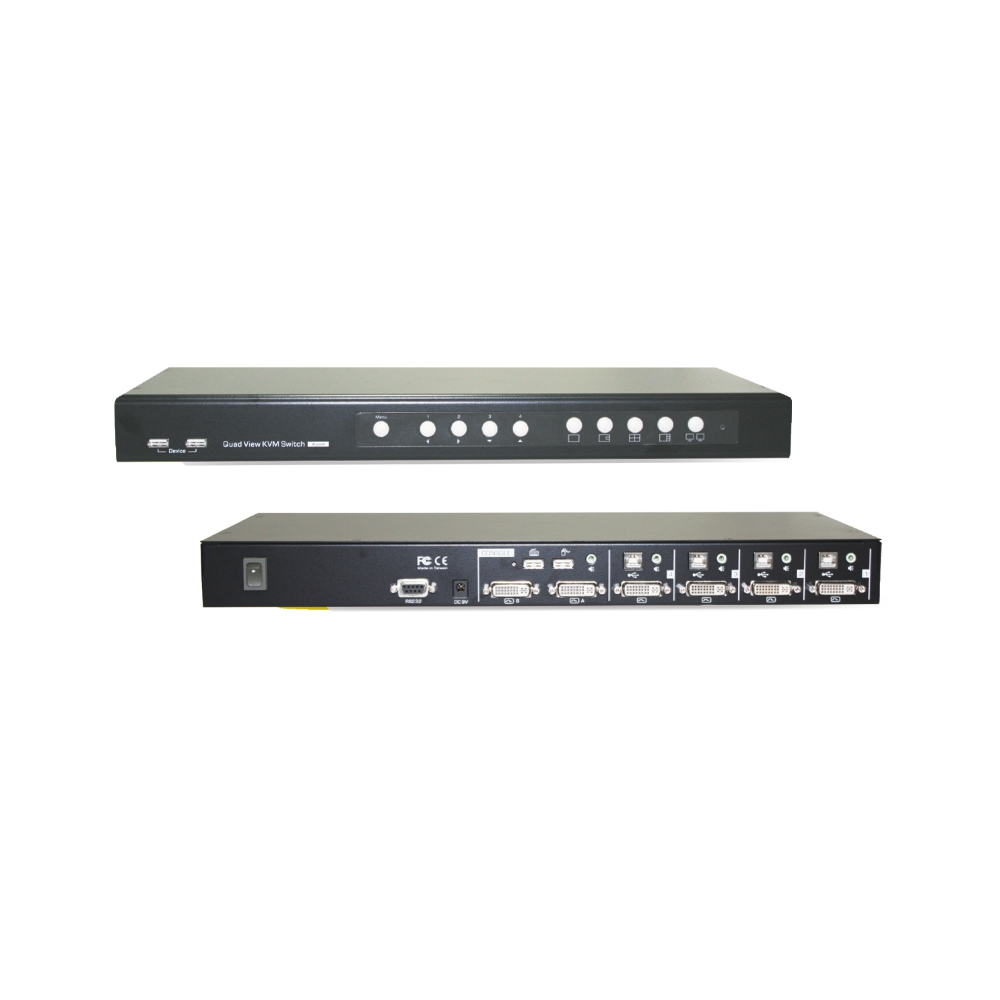

EGE-KVM-MV41 is a new generation Multiviewer KVM Switch, it allows you to simultaneously
monitor up to four computers on a single display, operate multiple computers with one keyboard/mouse
set.
Auxiliary Full-Screen Output
The auxiliary output can be used to drive additional full screen from one of the connected computers,
let you operate the computer in a native manner while monitoring other computers from the 4
split fields of the primary output.

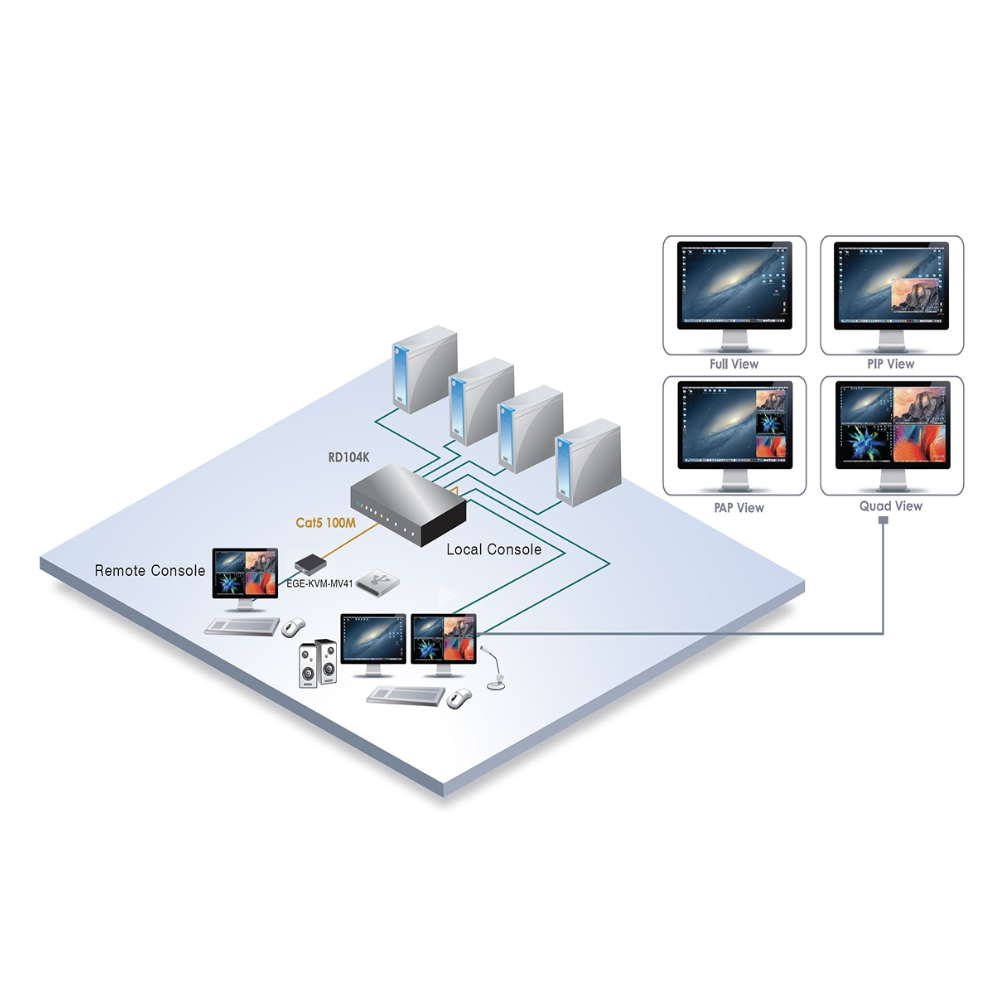

Remote console
Built-in KVM extender let you manage the servers remotely, freeing you or your installation from
strict environment.
Extensibility
Multiple EGE-KVM-MV41 can be daisy-chained up to 8 units, allowsing you to manage 32 computers
with a single mouse/keyboard set. Moreover, with Uniclass intuitive border-switching technology
it is easy to switch between units just by moving the mouse pointer across the edge of the screen to the
screen of another unit.
Multiviewer KVM is an ideal solution for multi-tasking and monitoring real-time progress such as control
rooms; broadcast stations; post-production and live sets.
- Video DVI Output:Local: 1 + 1
- Console Keyboard / Mouse Connector:2 x USB Type A Female
- USB 2.0 Hub Port:2 x USB Type A Female
- Console Video Connector: 2 x DVI-I Female
- Audio Connector: 1 x 3.5 mm Audio Jack
- PC Keyboard / Mouse Connector: 4 x USB Type B Female
- PC Video Connector: 4 x DVI-I Female
- CAT5 Extender Port: –
- PC Audio Connector: 4 x 3.5 mm Audio Jack Female
- RS-232 Connector: 2 x RJ-45 Female
- PC SelectionHotkeys / OSD / Push Button
- Display Resolution:1920 x 1200
- Operation Temperature:0 ~ 40 C
- Storage Temperature: -20 ~ 60 C
- Humidity Limits: 0 ~ 90% RH, Non-condensing
- Safety / Emission: FCC, CE
