The 5×2 Seamless Presentation Switcher provides 3×HDMI, 1×DP and 1×USB-C (video only) inputs, 1×HDMI and 1×HDBaseT mirrored outputs with PIP/PAP/Tri/Quad-view Multiview functionality. It supports single screen seamless switching with no freezing, black or snow screen. One 3.5mm audio de-embedding jacket can output analogue stereo audio. User can use Front Buttons or RS232 commands to control the switcher.
- 5×2 presentation switcher with PIP/PAP/Tri/Quad-view
- True seamless switching, no freezing, black or snow screen
- HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4

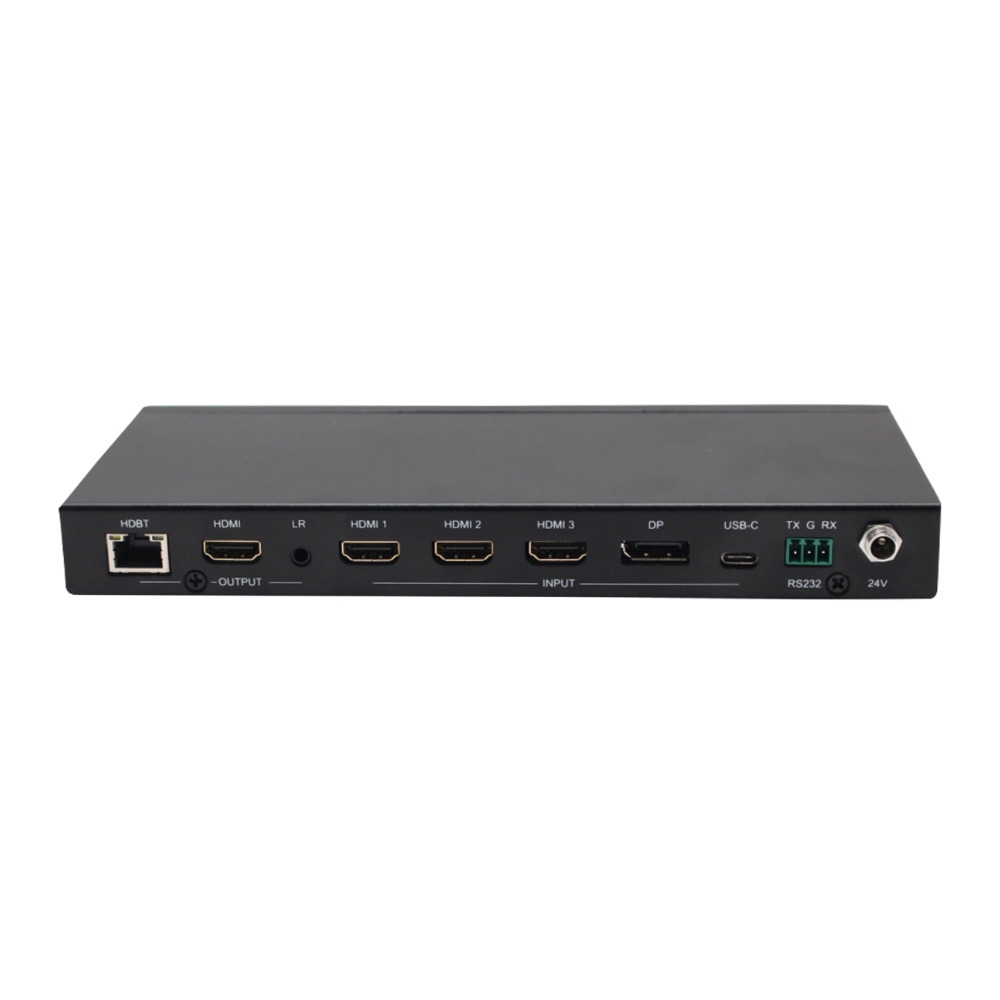

- 3×HDMI, 1×DisplayPort and 1×USB-C inputs
- 1×HDMI, 1×Mirrored HDBaseT 70M/POC outputs
- Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
- Up to 14 output resolutions selectable
- 3.5mm analog audio de-embedding
- EDID management

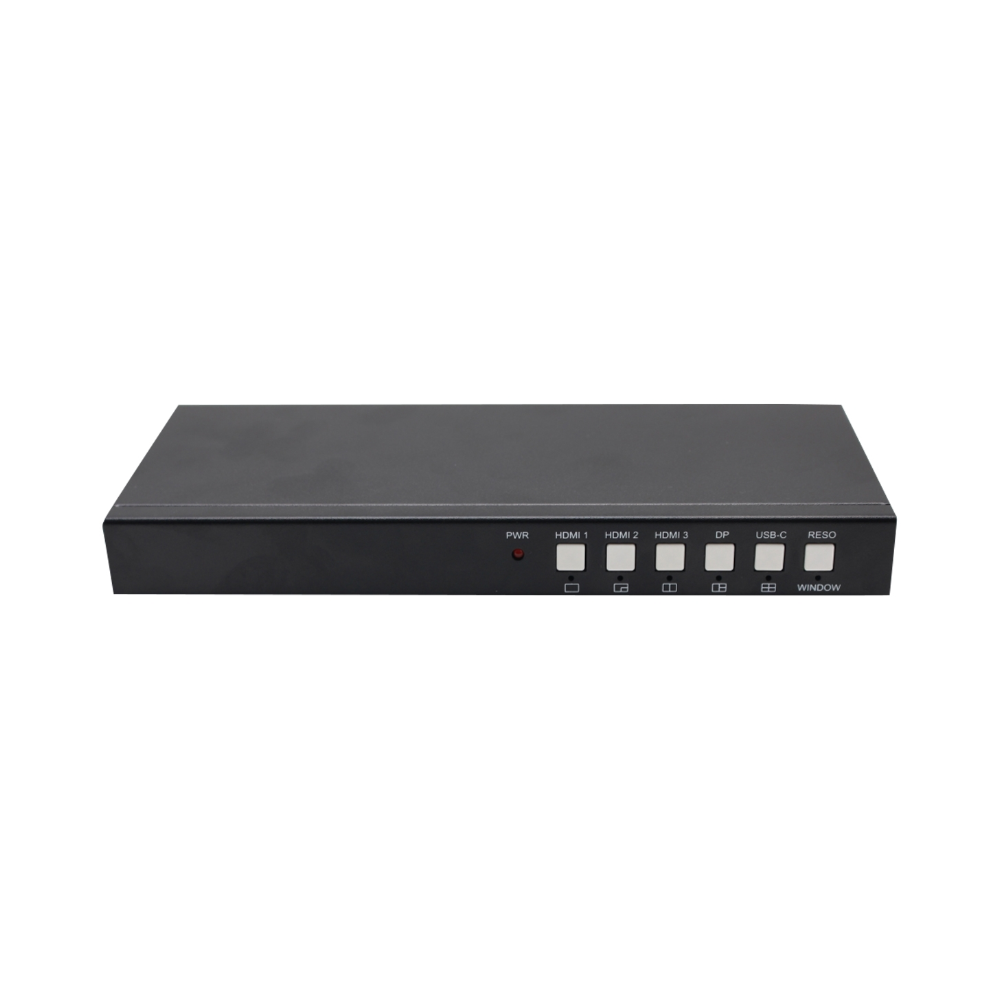

- Buttons and RS-232 control
